Key specifications

Phase
1-Phase or 3-Phase
Dimensions
78.0"W × 28.25"D × 34.0"H
Type
Hot Food Counter
Style
Mobile
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Dinex SKU: DXPDME5PTSBH

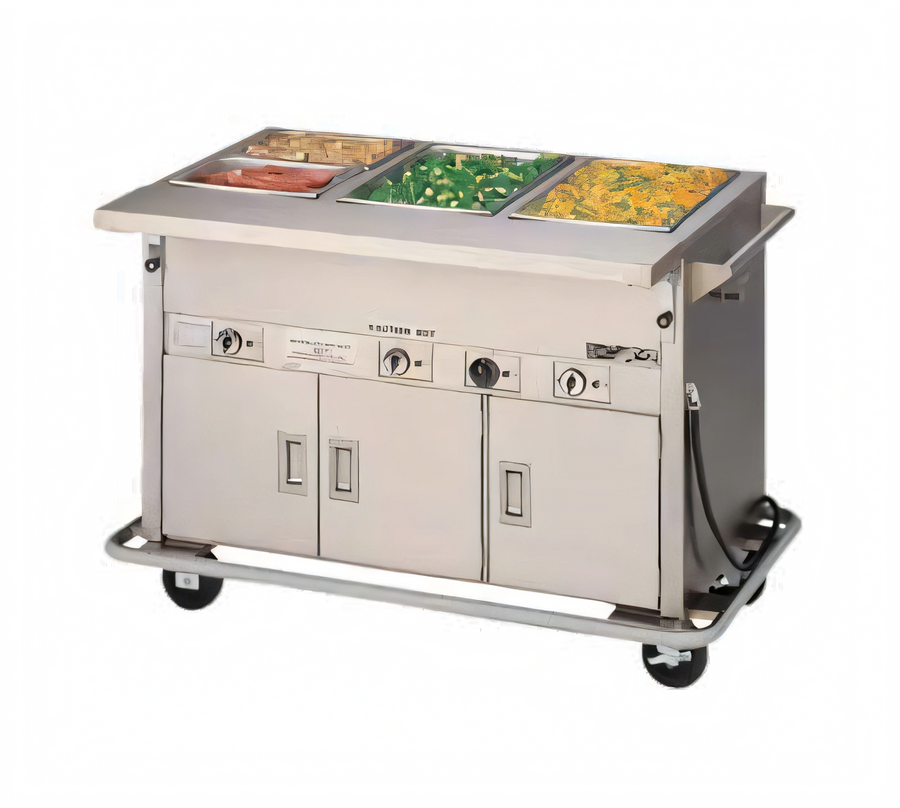

Dinex DXPDME5PTSBH Mobile 5-Well Hot Food Counter

$15,582.60
/each
Estimated to ship in 4–7 business days
Well count
Storage
ElectricalRequired
Included: Dinex warranty 12-month parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,441/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Counter
Style Mobile
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Design Enclosed Heated Base
Pan Capacity 5 Pans
Pan Size 12 x 20 Inches
Well Type Sealed Well
Well Depth 6.5 Inches
Door Type Hinged
Controls Individual Thermostat and Infinite Controls
Watts 7,000 Watts
Base Wattage 2,000 Watts
Voltage 208/240 Volts
Phase 1-Phase or 3-Phase
Cord Length 6 Feet
Caster Count 4
Caster Diameter 5 Inches
Top Gauge 20 Gauge

Description

The Dinex DXPDME5PTSBH is a mobile electric hot food counter with five 12 x 20-inch sealed wells and heated under storage with hinged doors.

It features stainless steel construction, a control-side cutting board, manifold drains, and four 5-inch plate casters.

  • Five sealed wells with 12 x 20-inch openings
  • 7,000 watts total in the five-well heat-in-base configuration
  • Individual thermostat and infinite well controls

Overall Dimensions:

78.0"W x 28.25"D x 34.0"H

Product Weight:

330.0 lb

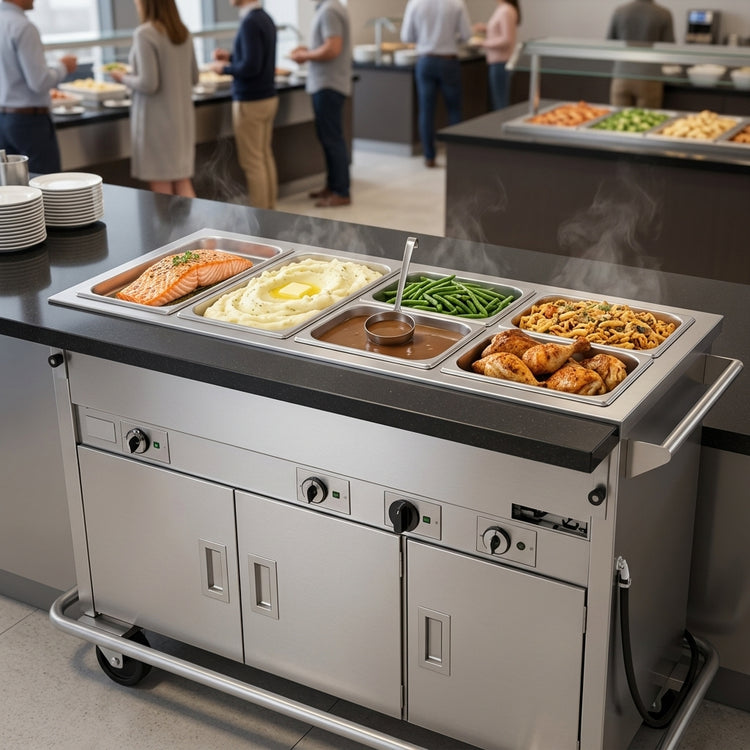

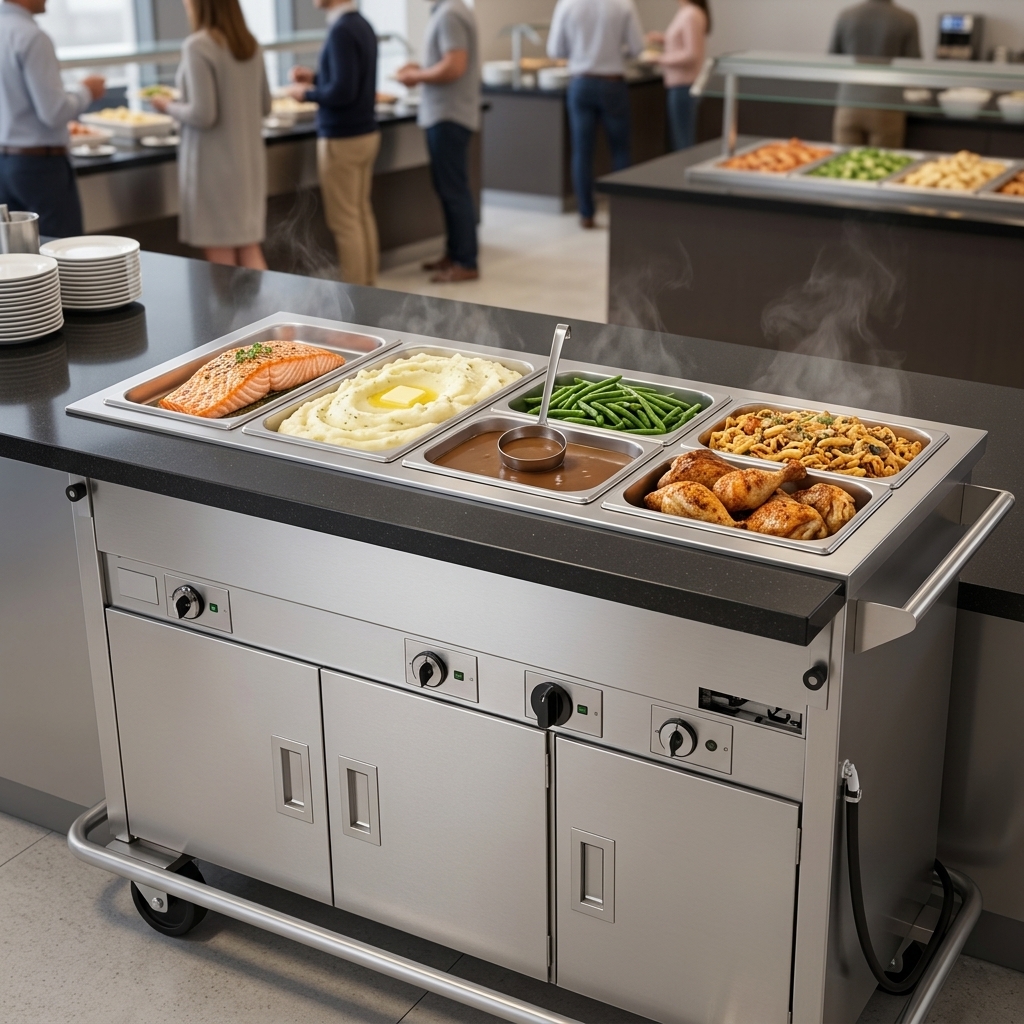

Sealed Wells

Five wells have 12 x 20-inch openings and are 6.5 inches deep.

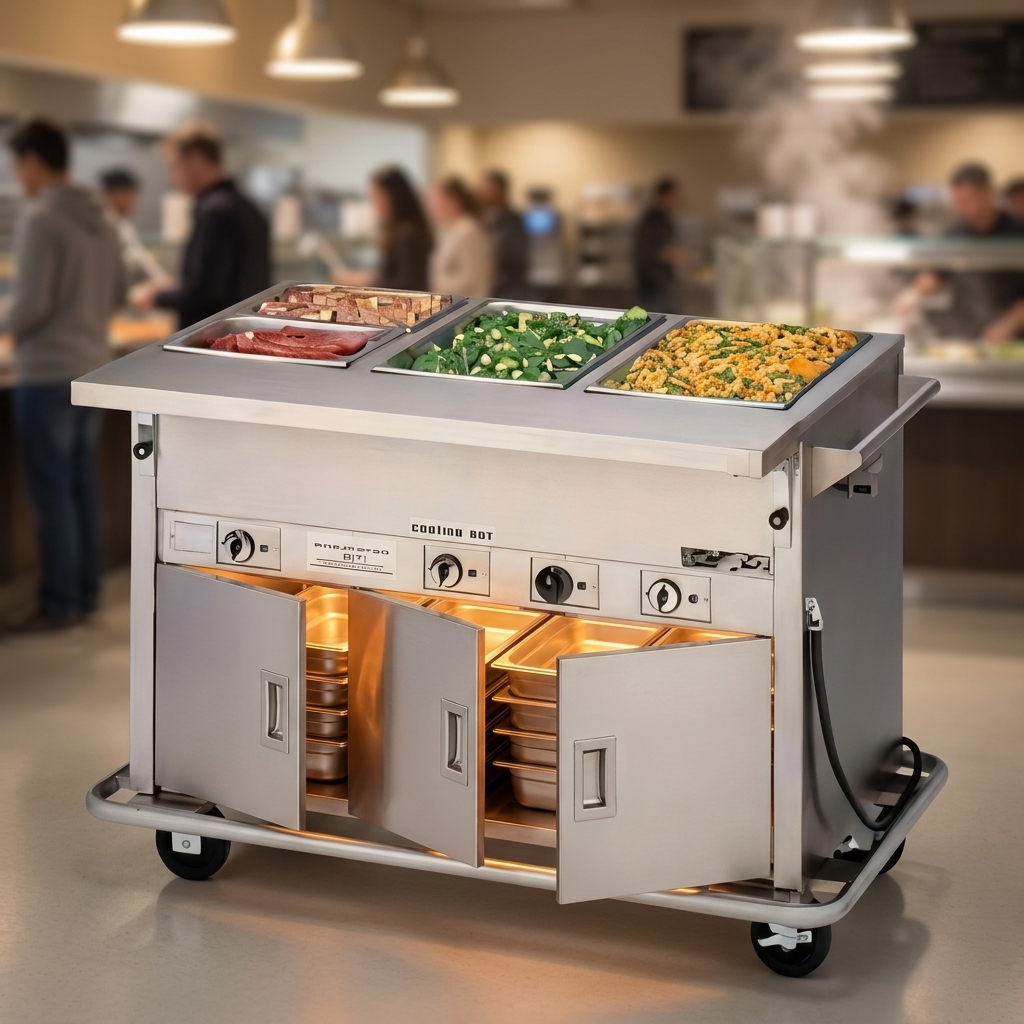

Heated Under Storage

The enclosed base provides heated under storage with hinged doors.

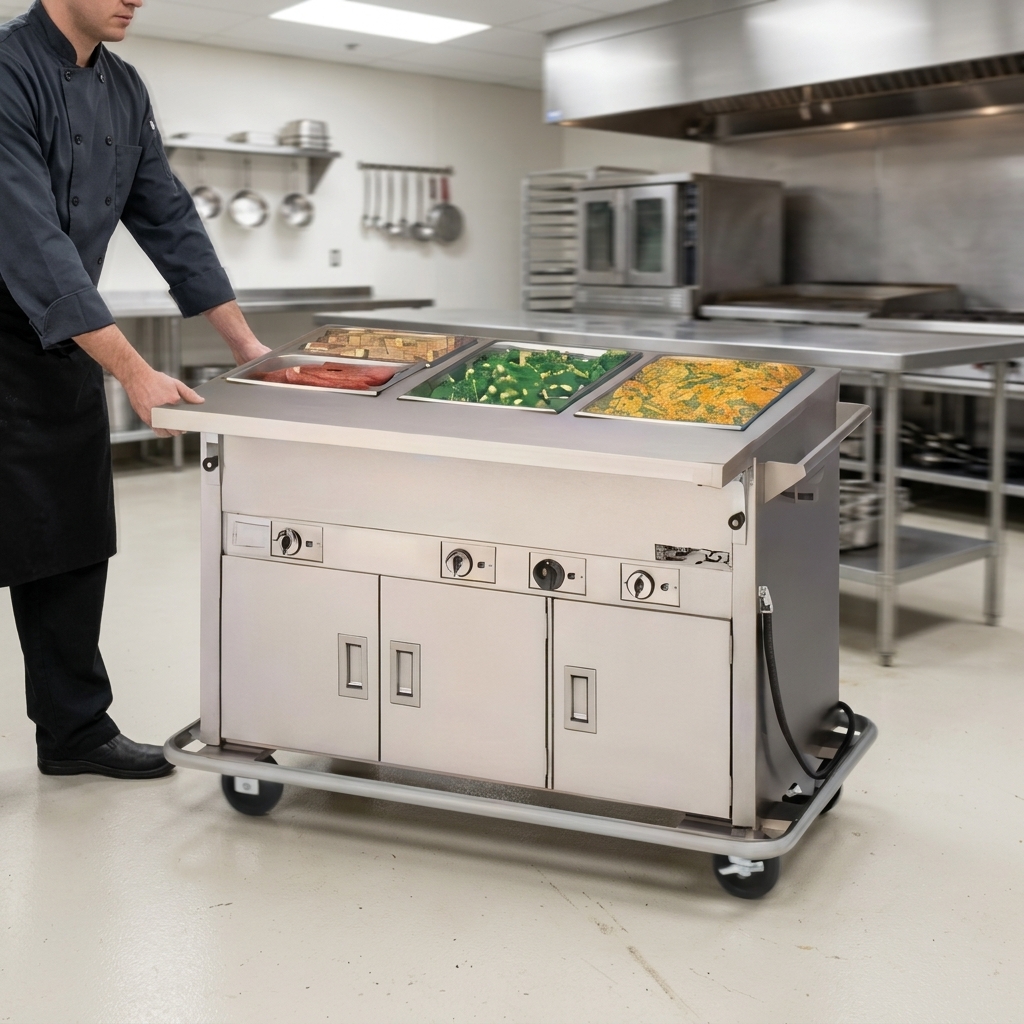

Mobility

Four 5-inch plate casters include two rigid casters and two swivel casters with brakes.

Stainless Steel Construction

The top, cabinet base, and control-side cutting board are stainless steel; the cabinet base has a bumper.

Well Heating

Each well has a 1,000-watt tubular heating element, infinite control, and pilot light.

Thermostat Control

An individual thermostat control is provided.

Manifold Drains

Manifold drains are standard.

Insulation

The wells have 1-inch side and between-well insulation plus 1/4-inch ceramic fiber insulation on the bottom.

Frequently Asked Questions

It has five sealed wells with 12 x 20-inch openings.
Yes. It has enclosed heated under storage with hinged doors.
Yes. It has four 5-inch plate casters, including two rigid casters and two swivel casters with brakes.
The counter measures 78 inches wide, 28.25 inches deep, and 34 inches high, and weighs 330 pounds.
The model is listed for 208 or 240 volts in single-phase or three-phase configurations, with 7,000 watts total.
Yes. Manifold drains are standard.
