Key specifications

Dimensions
50.0"W × 28.25"D × 34.0"H
Type
Hot Food Counter
Style
Mobile
Installation Type
Floor Model
Material
Stainless Steel
Finish
Stainless Steel
Spec sheet
Dinex SKU: DXPDME3PTSBH

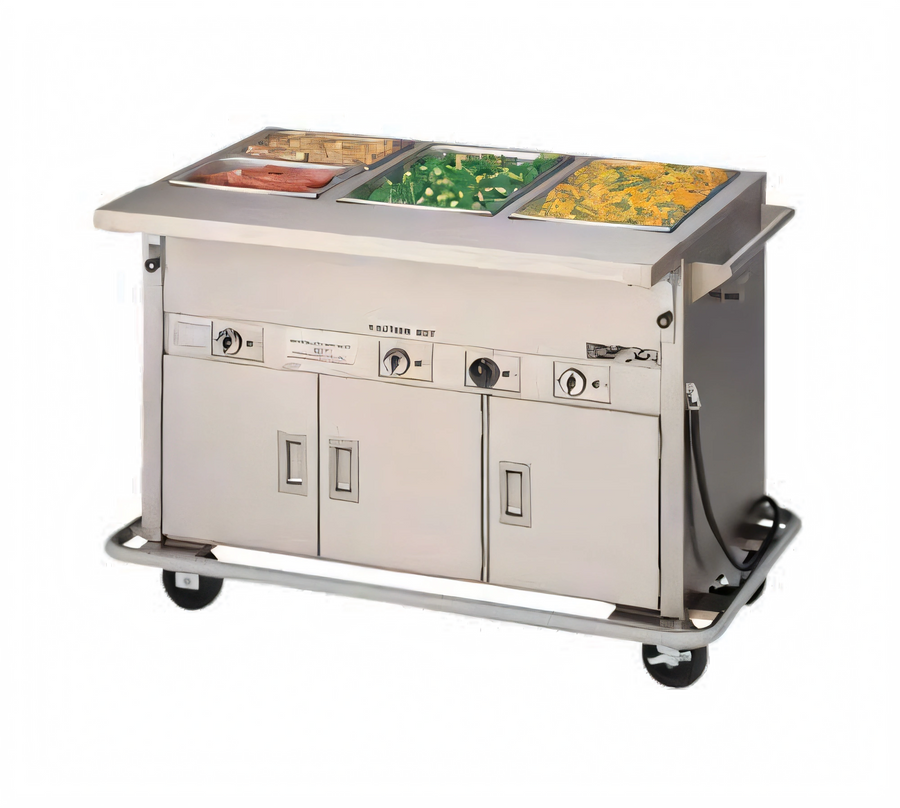

Dinex DXPDME3PTSBH Mobile 3-Well Hot Food Counter with Storage

$11,491.92
/each
Estimated to ship in 4–7 business days
Wells
Under storage
ElectricalRequired
Included: Dinex warranty One-year limited warranty covering parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,063/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Counter
Style Mobile
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Design Enclosed Heated Base
Pan Capacity 3 Pans
Pan Size 12 x 20 Inches
Well Type Sealed
Watts 4.5 kW
Controls Infinite Controls
Thermostat Control Individual
Door Type Hinged
Caster Count 4
Caster Size 5 Inches
Drainage Manifold Drains

Description

The Dinex DXPDME3PTSBH is a mobile electric hot food counter with three sealed 12 x 20-inch wells and heated under storage.

  • Stainless steel construction: Stainless steel top and cabinet base with a stainless steel control-side cutting board.
  • Enclosed heated base: Heated under storage with hinged doors.
  • Mobile design: Four 5-inch plate casters, including two rigid and two swivel casters with brakes.
  • Service features: Individual thermostat control, infinite well controls, pilot lights, removable pan slides, and standard manifold drains.

Overall Dimensions:

50.0"W x 28.25"D x 34.0"H

Product Weight:

250.0 lb

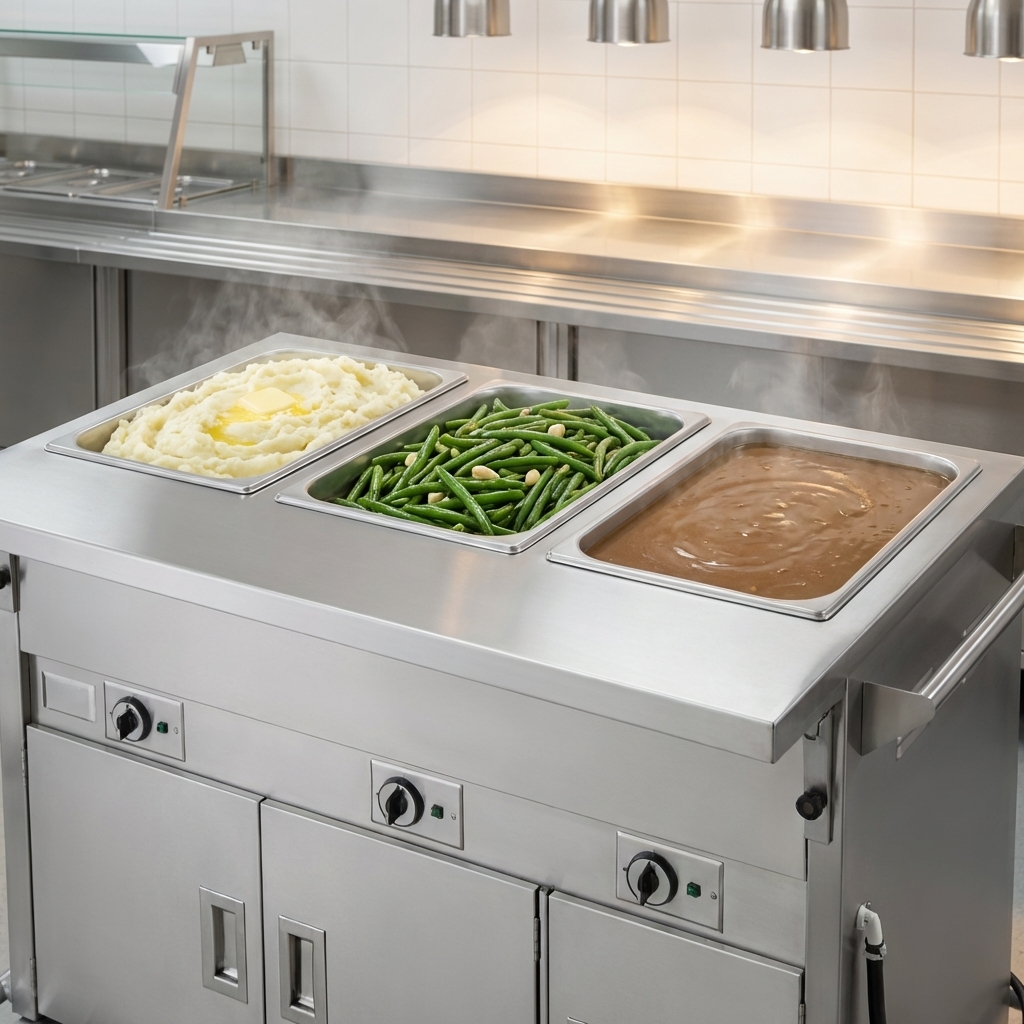

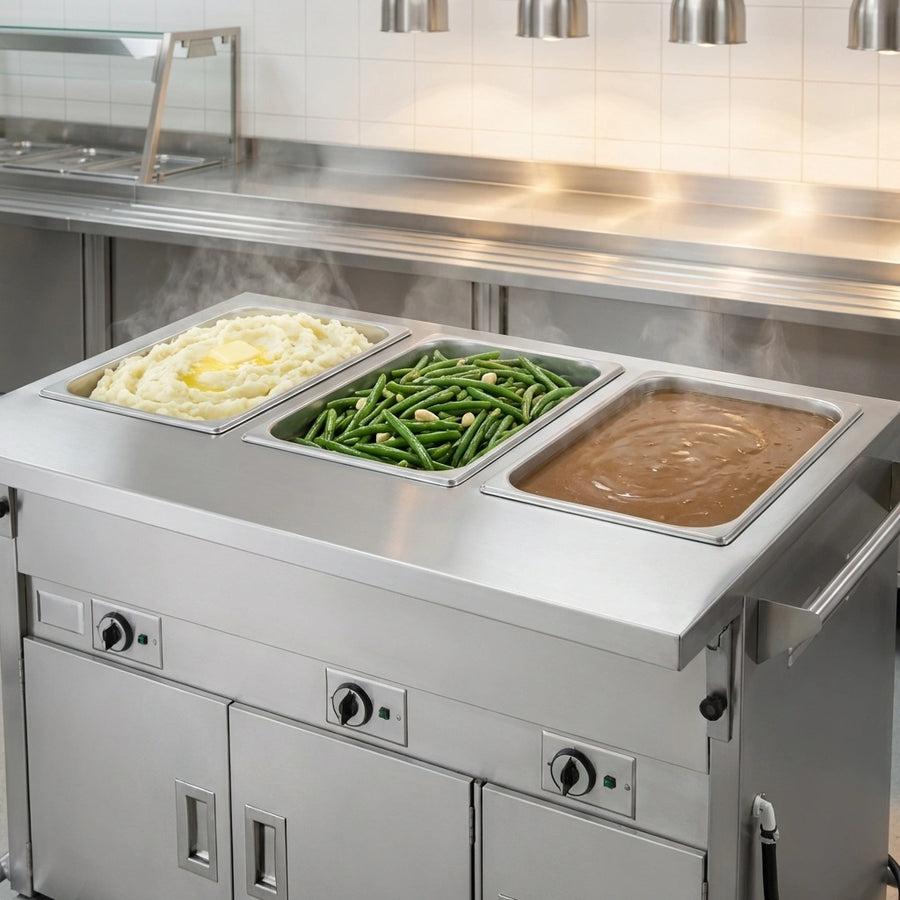

Three sealed wells

Three one-piece, die-stamped stainless steel wells provide 12 x 20-inch openings and are 6.5 inches deep.

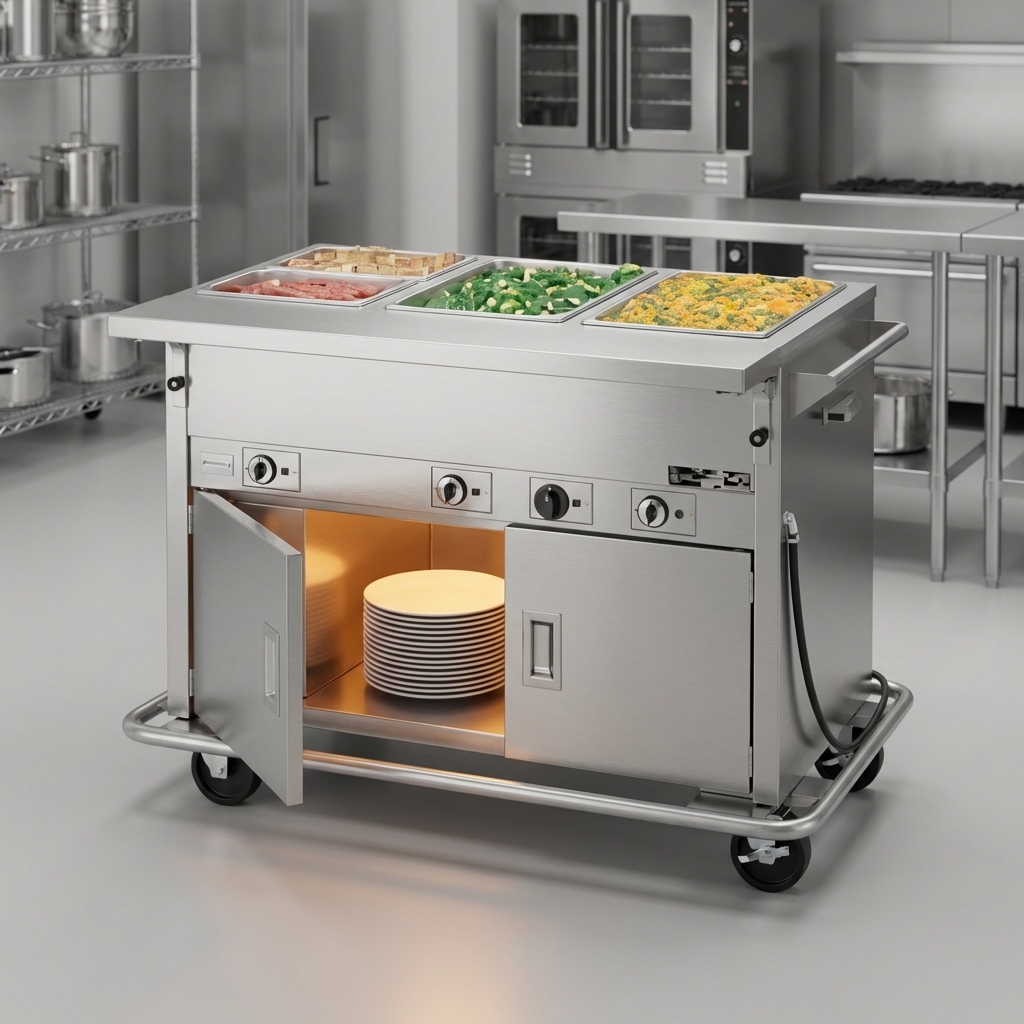

Heated under storage

The enclosed base provides heated under storage with hinged doors.

Stainless steel construction

The top and cabinet base are stainless steel, and the control side includes a stainless steel cutting board.

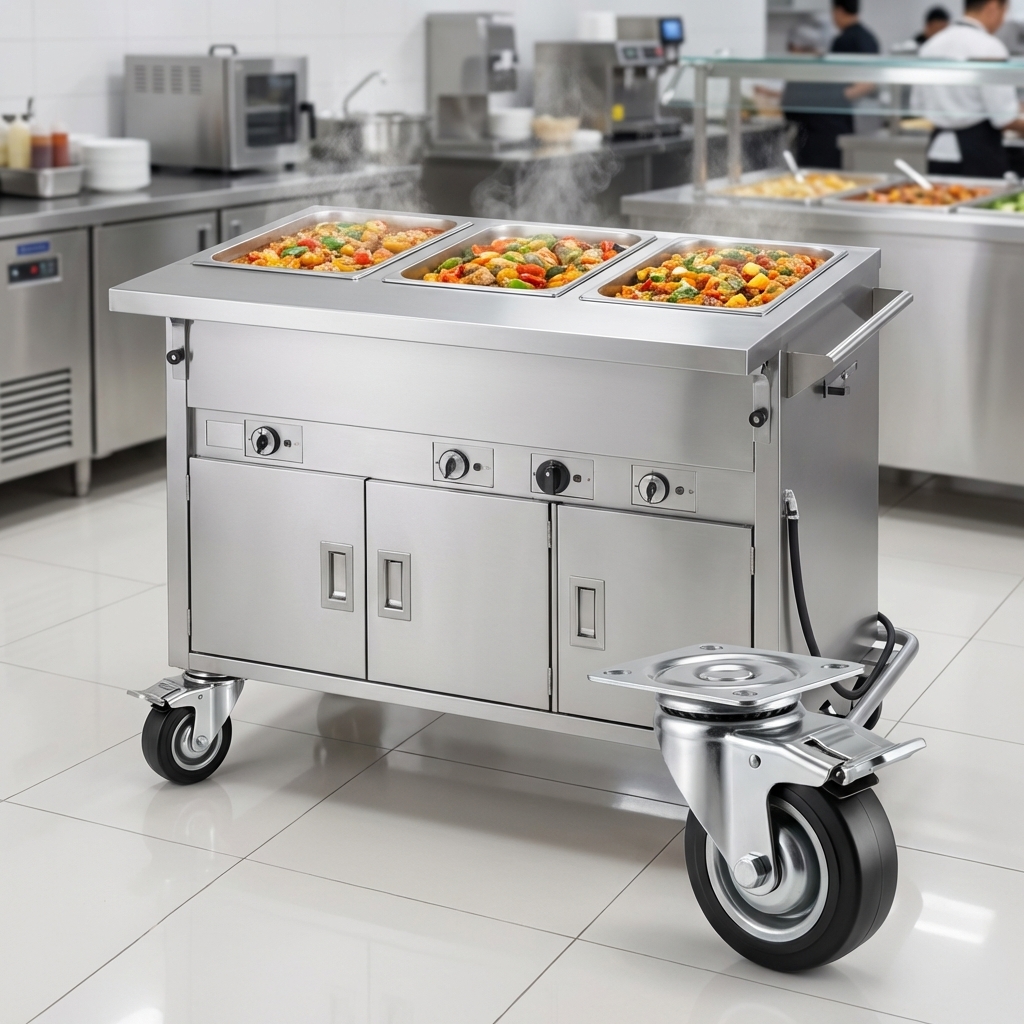

Mobile base

Four 5-inch plate casters include two rigid and two swivel casters with brakes.

Well controls

Each well has a 1,000-watt tubular heating element with infinite controls and a pilot light.

Drainage

Manifold drains are standard.

Removable pan slides

The base compartment has four sets of pan slides on 2-3/4-inch spacing; the slides are fully removable.

Bumper

The 50-inch overall length includes the bumper.

Frequently Asked Questions

It has three sealed wells with 12 x 20-inch openings.
Yes. It has heated under storage in an enclosed base with hinged doors.
The listed dimensions are 50 inches wide, 28.25 inches deep, and 34 inches high. The 50-inch overall length includes the bumper, and product weight is 250 pounds.
The DXPDME3PTSBH is listed at 4.5 kW total wattage.
It has four 5-inch plate casters, including two rigid and two swivel casters with brakes.
Dinex provides a limited one-year warranty covering parts and labor for the original purchaser.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
