Key specifications

Dimensions
74.0"W × 28.0"D × 36.0"H
Type
Serving Counter
Style
Dual Function
Installation Type
Floor Model
Material
Stainless Steel
Finish
Stainless Steel
Spec sheet
Dinex SKU: DXP5HCI

Dinex DineXpress DXP5HCI 5-Pan Hot and Ice-Cooled Counter

$11,395.89
/each
Estimated to ship in 4–7 business days
Height
Understorage
Top
Drain configuration
Base support

Need something else? Contact us.

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,054/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Serving Counter
Style Dual Function
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Design Open Rear With Bottom Shelf
Pan Capacity 5 Pans
Pan Depth 7-1/2 in
Top Gauge 14 Gauge
Watts 4,000 Watts
Heating Elements 4 x 1,000 Watts
Refrigeration Type Ice Cooled
Drain Included
Caster Size 5 in
Modular Design Interlocking

Description

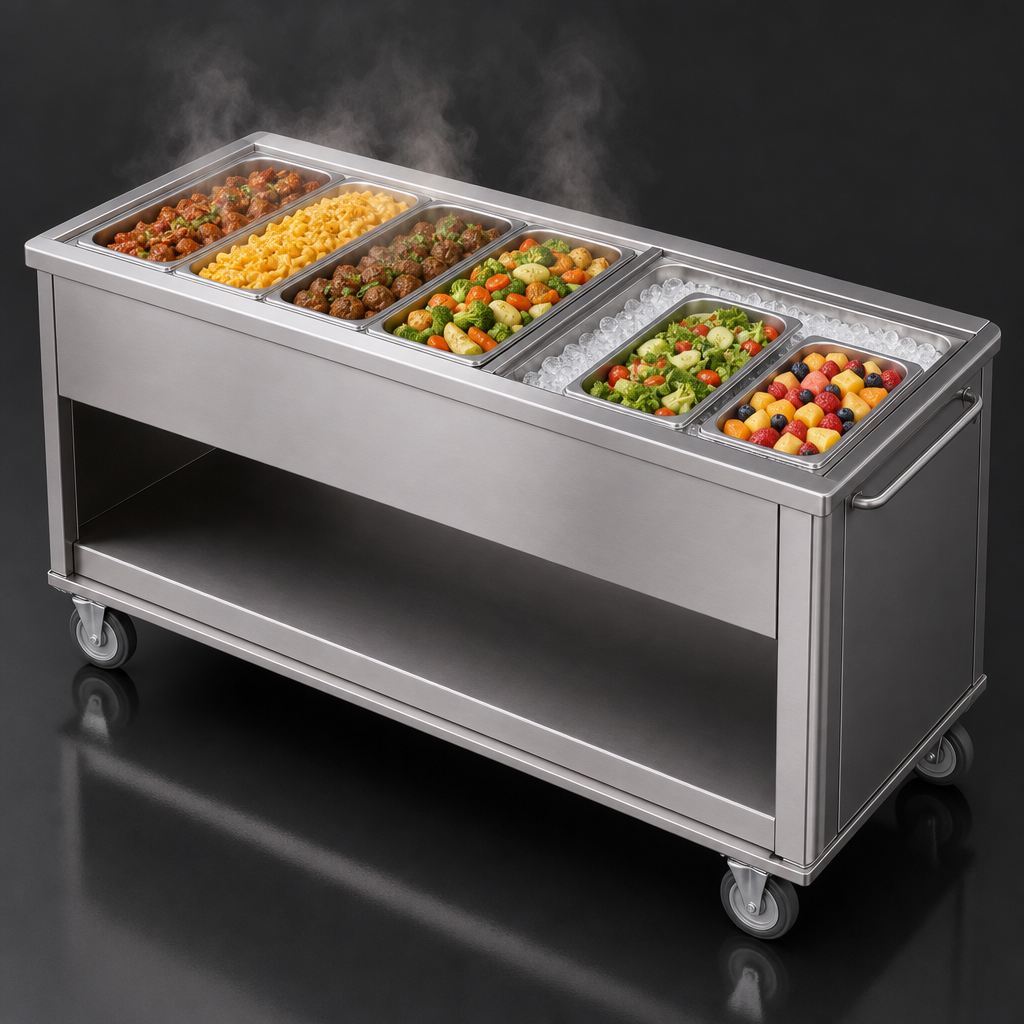

Dual-function service: The DXP5HCI combines an ice-cooled cold-food section with hot food service in a mobile, 5-pan serving counter.

It has four 1,000-watt heating elements under the pan bottom, an ice-cooling drain, and a 14-gauge stainless steel top. The front, end panels, and undershelf are stainless steel.

  • 74 in W x 28 in D x 36 in H
  • 5-inch casters and an interlocking mechanism for mobile modular design
  • NSF and UL certified

Overall Dimensions:

74.0"W x 28.0"D x 36.0"H

Product Weight:

440.0 lb

Dual-Function Service

Combines an ice-cooled cold food section with hot food service in one 5-pan counter.

Ice Cooling

The cold section is ice cooled and includes a drain.

Hot Heating

Four 1,000-watt heating elements are located under the pan bottom.

Stainless Steel Construction

Features a 14-gauge stainless steel top with stainless steel front, end panels, and undershelf.

Mobile Modular Design

Includes an interlocking mechanism and 5-inch casters.

Certifications

Certified to NSF and UL requirements.

Frequently Asked Questions

The DXP5HCI is a 5-pan serving counter with a 7-1/2-inch pan depth.
The cold section is ice cooled and includes a drain.
Four 1,000-watt heating elements are located under the pan bottom.
The counter measures 74 in wide by 28 in deep by 36 in high.
Yes. It has a mobile modular design with an interlocking mechanism and 5-inch casters.
The top is 14-gauge stainless steel, and the front, end panels, and undershelf are stainless steel.
