Key specifications

Amps
33.3 Amps at 120 Volts; 19.2 Amps at 208 Volts; 16.7 Amps at 240 Volts
Phase
1-Phase
Dimensions
60.0"W × 28.0"D × 36.0"H
Type
Hot Food Counter
Style
Mobile
Installation Type
Floor Model
Spec sheet
Dinex SKU: DXP4HF

Dinex DineXpress DXP4HF 4-Well Mobile Hot Food Counter

$9,149.58
/each
Estimated to ship in 4–7 business days
Number of wells
ElectricalRequired
Protector guard
Door type
Cutting board
Tray slide

Need something else? Contact us.

Included: Dinex warranty One year parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $846/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Counter
Style Mobile
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Country of Origin USA
Pan Capacity 4 Pans
Controls Individual Thermostatic
Well Element Wattage 1,000 Watts
Watts 4 kW
Voltage 120 Volts / 208 Volts / 240 Volts
Amps 33.3 Amps at 120 Volts; 19.2 Amps at 208 Volts; 16.7 Amps at 240 Volts
Phase 1-Phase
Plug Type NEMA 5-50P at 120 Volts; NEMA 6-30P at 208/240 Volts
Cord Length 8 Feet
Drain Type Manifold Drains
Caster Diameter 5 in
Caster Brakes 2 Casters
Design Modular, Interlocking
Selling Unit 1 Each

Description

The DineXpress DXP4HF is a mobile electric hot food counter with four wells, individual thermostatic controls, and a modular interlocking design.

  • Each well uses a 1,000-watt heating element and can operate wet or dry.
  • Construction includes a 14-gauge stainless steel top, 20-gauge stainless steel front and end panels, and an 18-gauge stainless steel bottom shelf.
  • Five-inch swivel plate casters, including two with brakes, support mobile service.
  • Manifold drains are standard.

Overall Dimensions:

60.0"W x 28.0"D x 36.0"H

Product Weight:

335.0 lb

Individual Thermostatic Controls

Each well has its own thermostatic control.

1,000-Watt Well Elements

Each of the four wells uses a 1,000-watt heating element.

Wet or Dry Operation

The wells can be operated wet or dry.

Mobile Casters

The unit has 5 in swivel plate casters, with two casters equipped with brakes.

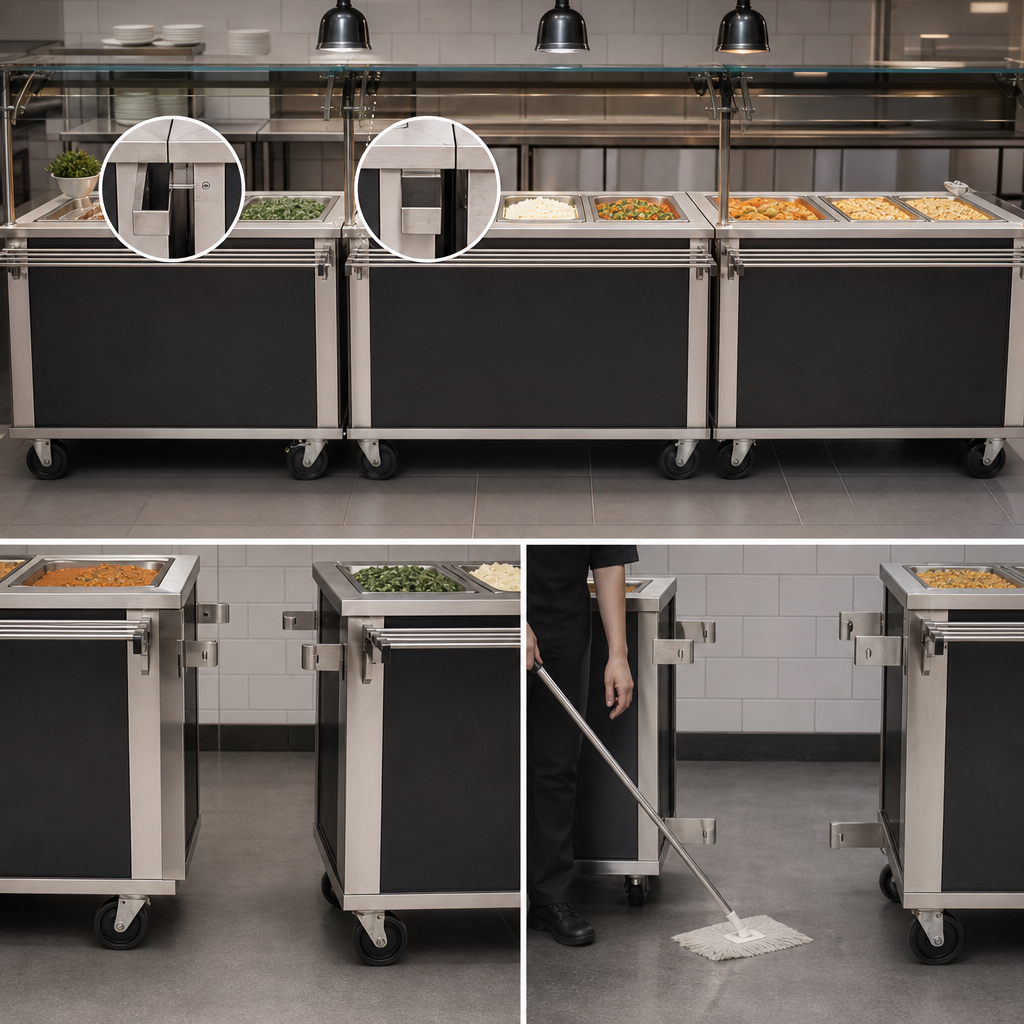

Modular Interlocking Design

An interlocking mechanism allows the unit to interlock with other DineXpress units.

Stainless Steel Construction

The top is 14-gauge stainless steel, the front and end panels are 20-gauge stainless steel, and the bottom shelf is 18-gauge stainless steel.

Manifold Drains

Manifold drains are standard.

Frequently Asked Questions

The DXP4HF has four wells.
Yes. Each well has an individual thermostatic control.
Yes. The wells can be run wet or dry.
Yes. It has 5 in swivel plate casters, including two with brakes.
The unit measures 60 in wide, 28 in deep, and 36 in high.
The DXP4HF is specified for 120 Volts, 208 Volts, or 240 Volts, single-phase operation.
The product has a one-year parts and labor warranty.
