Key specifications

Amps
25.0 Amps (120V); 14.4 Amps (208V); 12.5 Amps (240V)
Phase
1-Phase
Dimensions
46.0"W × 28.0"D × 36.0"H
Type
Hot Food Counter
Style
Mobile
Installation Type
Floor Model
Spec sheet
Dinex SKU: DXP3HF

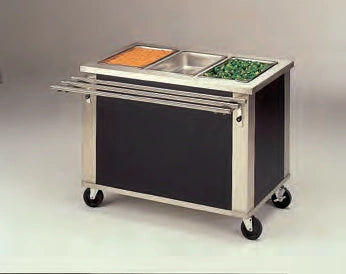

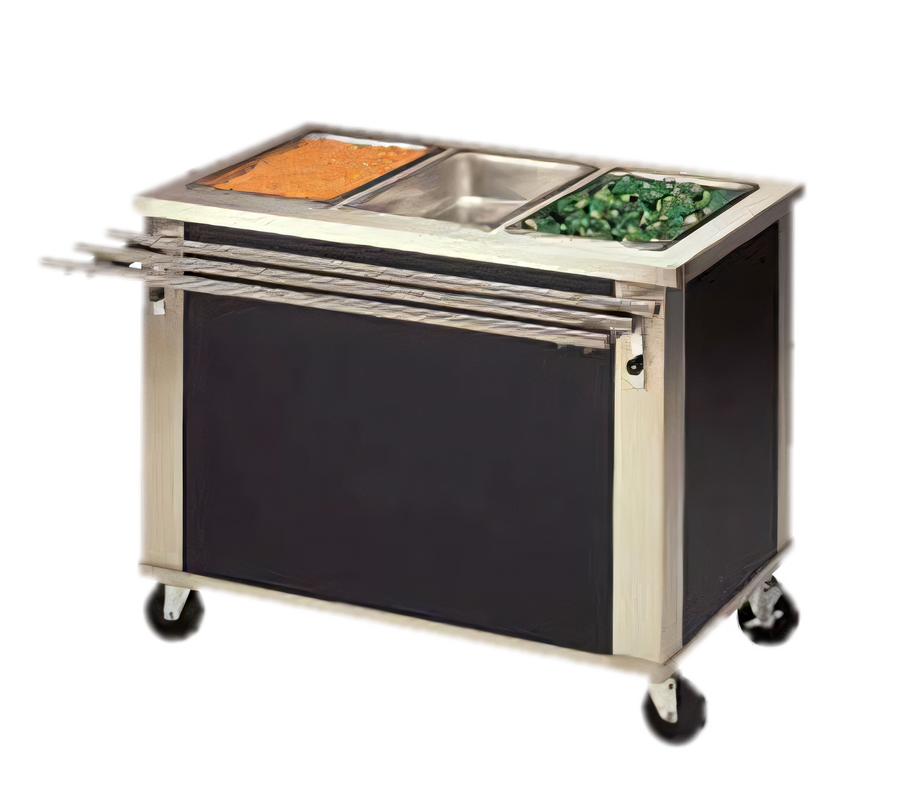

Dinex DineXpress DXP3HF 3-Well Mobile Electric Food Counter

$7,931.88
/each
Estimated to ship in 4–7 business days
Wells
Base
ElectricalRequired
Overhead shelf
Protector guard
Door type
Panel finish

Need something else? Contact us.

Included: Dinex warranty One year parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $734/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Counter
Style Mobile
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Country of Origin USA
Pan Capacity 3 Pans
Well Depth 6.5 Inches
Heating Element Power 1,000 Watts Per Well
Watts 3 kW
Voltage 120/208/240 Volts
Amps 25.0 Amps (120V); 14.4 Amps (208V); 12.5 Amps (240V)
Phase 1-Phase
Plug Type NEMA 5-50P (120V); NEMA 6-20P (208V/240V)
Controls Individual Thermostatic Controls
Caster Diameter 5 Inches
Caster Brakes 2
Drain Type Manifold Drains
Selling Unit Each

Description

The DXP3HF is a mobile electric hot food counter with three wells, a 3 kW total rating, and a modular design for interlocking with other DineXpress units.

  • Each well has a 1,000-watt heating element with individual thermostatic control.
  • The wells can be operated wet or dry and include standard manifold drains.
  • Construction includes a 14-gauge stainless steel top, 20-gauge stainless steel front and end panels, and an 18-gauge stainless steel bottom shelf.
  • Five-inch swivel plate casters are standard, with two casters equipped with brakes.

Overall Dimensions:

46.0"W x 28.0"D x 36.0"H

Product Weight:

310.0 lb

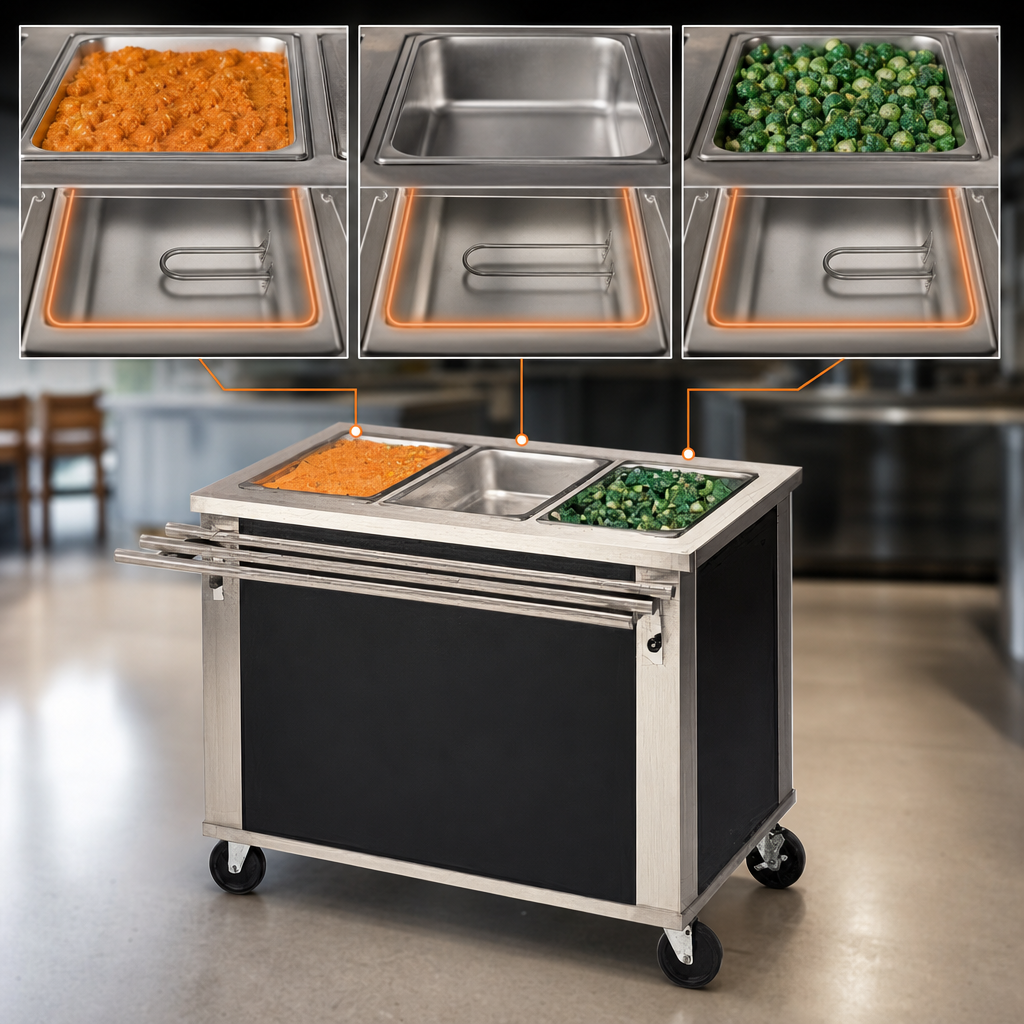

Individually Controlled Wells

Each of the three wells has a 1,000-watt heating element with individual thermostatic control.

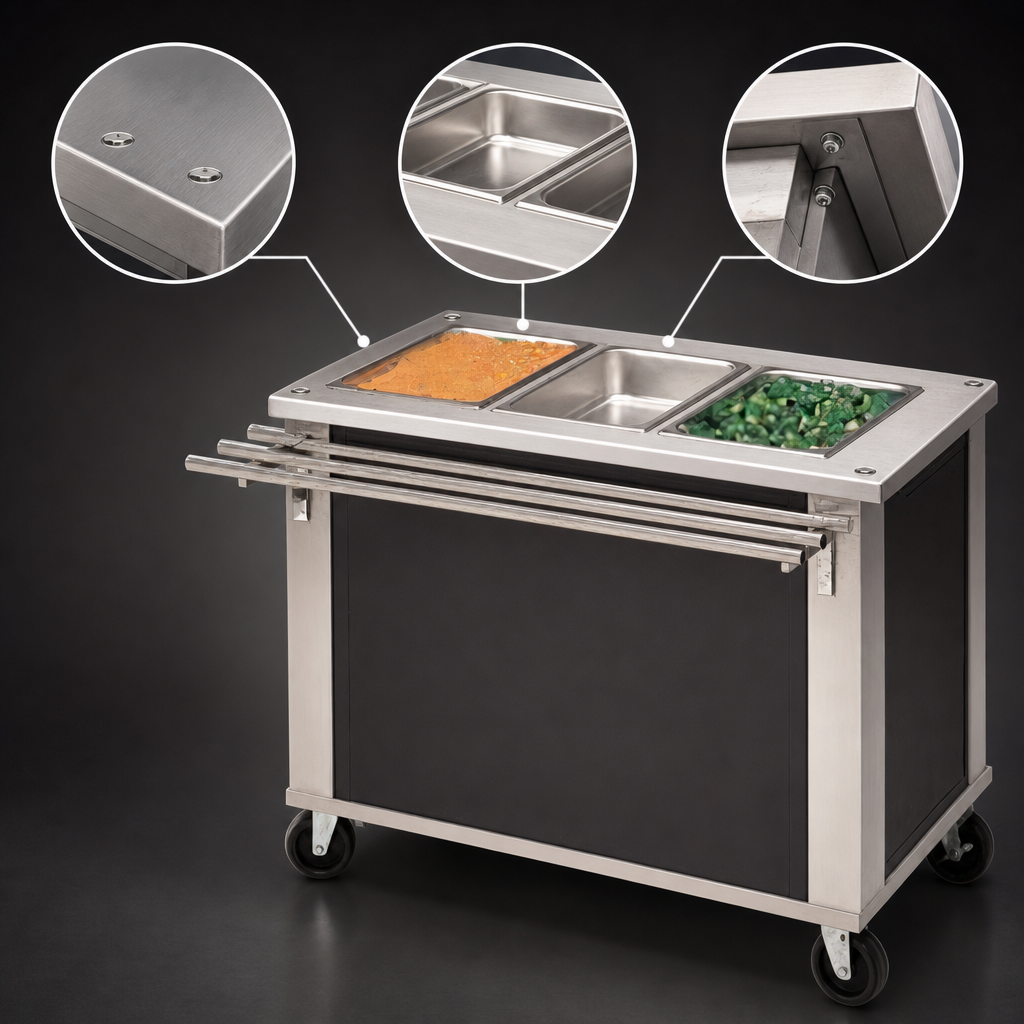

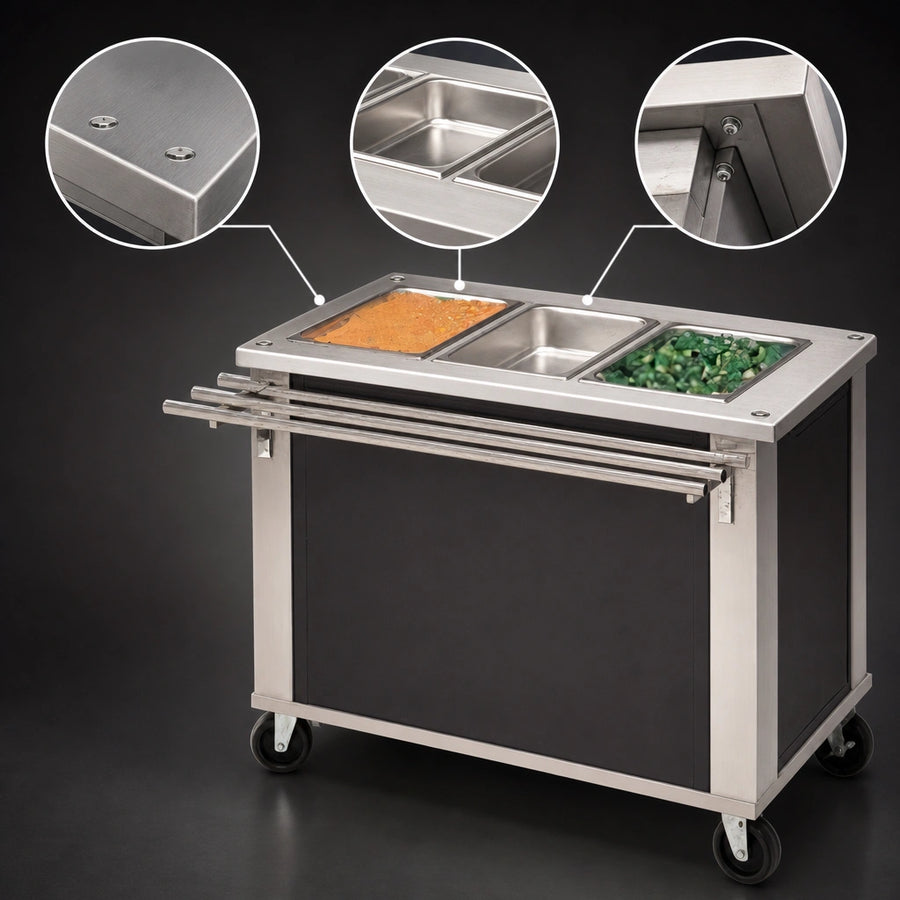

Stainless Steel Construction

The unit has a 14-gauge stainless steel top, 20-gauge stainless steel front and end panels, and an 18-gauge stainless steel bottom shelf.

Mobile Design

Five-inch swivel plate casters are included, with two casters equipped with brakes.

Modular Interlocking

An interlocking mechanism allows the counter to interlock with other DineXpress units.

Wet or Dry Operation

The wells can be run wet or dry.

Manifold Drains

Manifold drains are standard.

Frequently Asked Questions

The DXP3HF has three wells.
Each well has a 1,000-watt heating element with individual thermostatic control.
Yes. The wells can be run wet or dry.
The DXP3HF is 46 inches wide, 28 inches deep, and 36 inches high, with a listed weight of 310 pounds.
The specification sheet lists 120-, 208-, and 240-volt configurations. The listed amperage is 25.0 amps at 120 volts, 14.4 amps at 208 volts, and 12.5 amps at 240 volts.
Yes. It includes 5-inch swivel plate casters, with two casters equipped with brakes.
Yes. It includes an interlocking mechanism for use with other DineXpress units.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
