Key specifications

Amps
16.7 Amps at 120 Volts; 9.6 Amps at 208 Volts; 8.3 Amps at 240 Volts
Phase
1-Phase
Dimensions
32.0"W × 28.0"D × 36.0"H
Type
Hot Food Counter
Style
Mobile
Installation Type
Floor Model
Spec sheet
Dinex SKU: DXP2HF

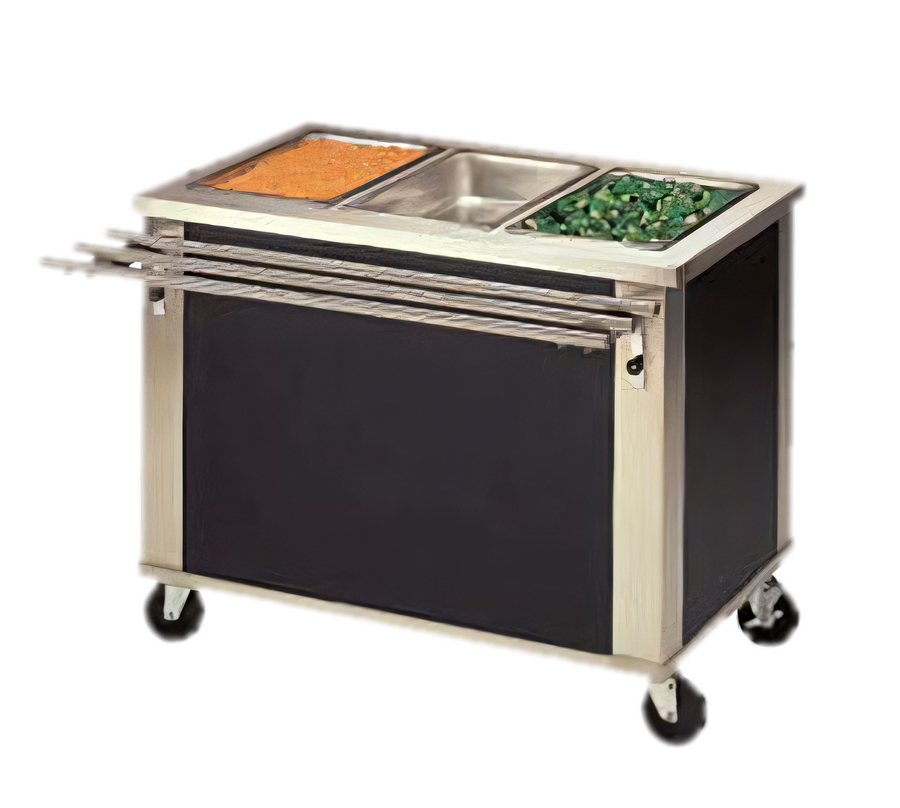

Dinex DineXpress DXP2HF 2-Well Mobile Hot Food Counter

$6,215.22
/each
Estimated to ship in 4–7 business days
Wells
Base
ElectricalRequired
Finish
Cutting board material
Tray slide
Bread shelf material

Need something else? Contact us.

Included: Dinex warranty One year parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $575/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Counter
Style Mobile
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Country of Origin USA
Compartments 2 Wells
Pan Capacity 2 Pans
Top Material 14-Gauge Stainless Steel
Panel Material 20-Gauge Stainless Steel
Bottom Shelf Material 18-Gauge Stainless Steel
Well Depth 6.5 Inches
Watts 2 kW
Voltage 120/208/240 Volts
Amps 16.7 Amps at 120 Volts; 9.6 Amps at 208 Volts; 8.3 Amps at 240 Volts
Phase 1-Phase
Plug Type NEMA 5-30P at 120 Volts; NEMA 6-15P at 208/240 Volts
Cord Length 8 Feet
Controls Individual Thermostatic Controls
Operating Mode Wet or Dry
Heating Element 1000 Watts Per Well
Caster Type 5-Inch Swivel Plate Casters
Braked Caster Count 2
Drain Type Manifold
Drain Connection 3/4-Inch FPT
Selling Unit Each

Description

DineXpress DXP2HF is a mobile electric hot food counter with two 6-1/2-inch-deep wells for food holding. Each well has a 1,000-watt tubular heating element with individual thermostatic control.

  • 14-gauge stainless steel top, 20-gauge stainless steel front and end panels, and 18-gauge stainless steel bottom shelf.
  • Wells can operate wet or dry.
  • 5-inch swivel plate casters, including two with brakes, support mobile service.
  • Manifold drains and an 8-foot electrical cord and plug are standard.
  • An interlocking mechanism allows modular connection with other DineXpress units.

Overall Dimensions:

32.0"W x 28.0"D x 36.0"H

Product Weight:

285.0 lb

Two Hot Food Wells

The unit has two bottom-mounted wells, each 6-1/2 inches deep with coved corners.

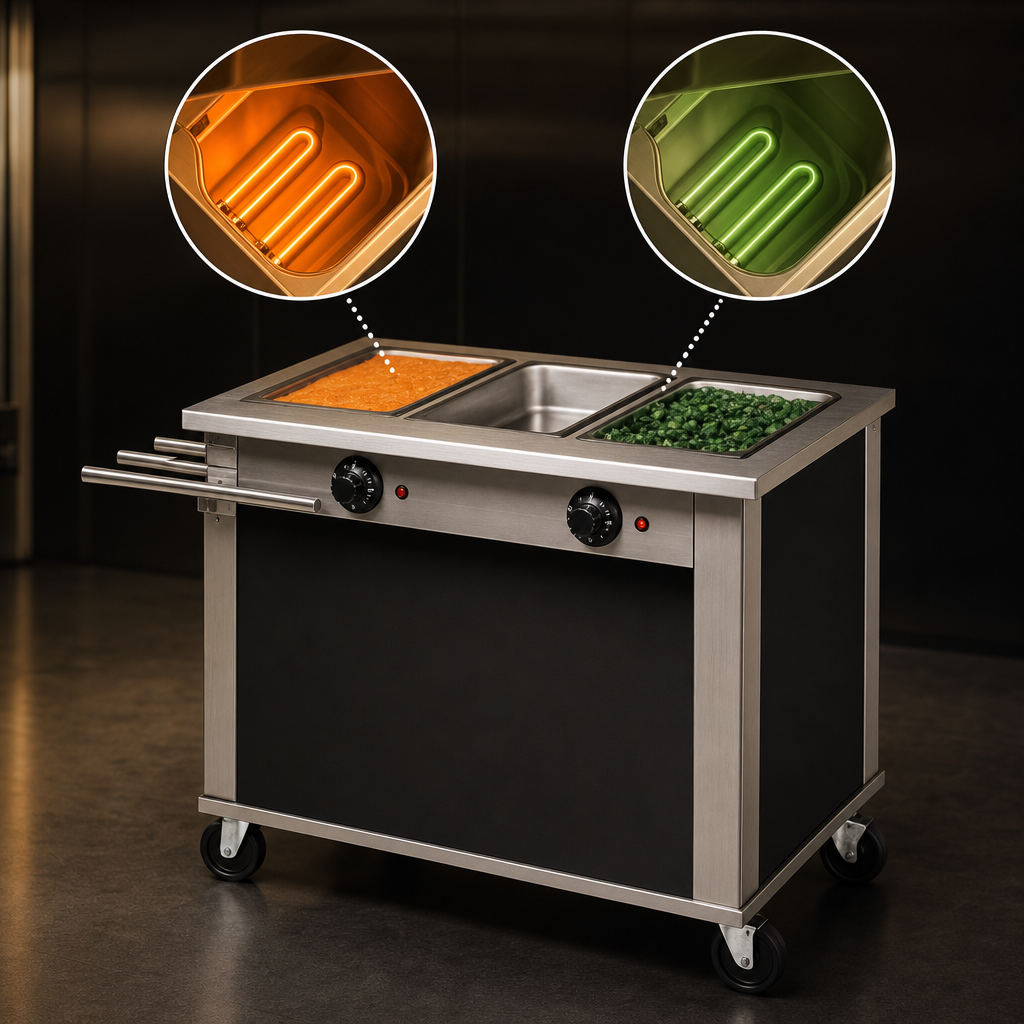

Individual Thermostatic Controls

Each well has its own 1,000-watt tubular heating element with individual thermostatic control.

Wet or Dry Operation

The wells can be operated wet or dry.

Stainless Steel Construction

The top is 14-gauge stainless steel; the front and end panels are 20-gauge stainless steel; and the bottom shelf is 18-gauge stainless steel.

Mobile Casters

The counter has 5-inch swivel plate casters, with two casters equipped with brakes.

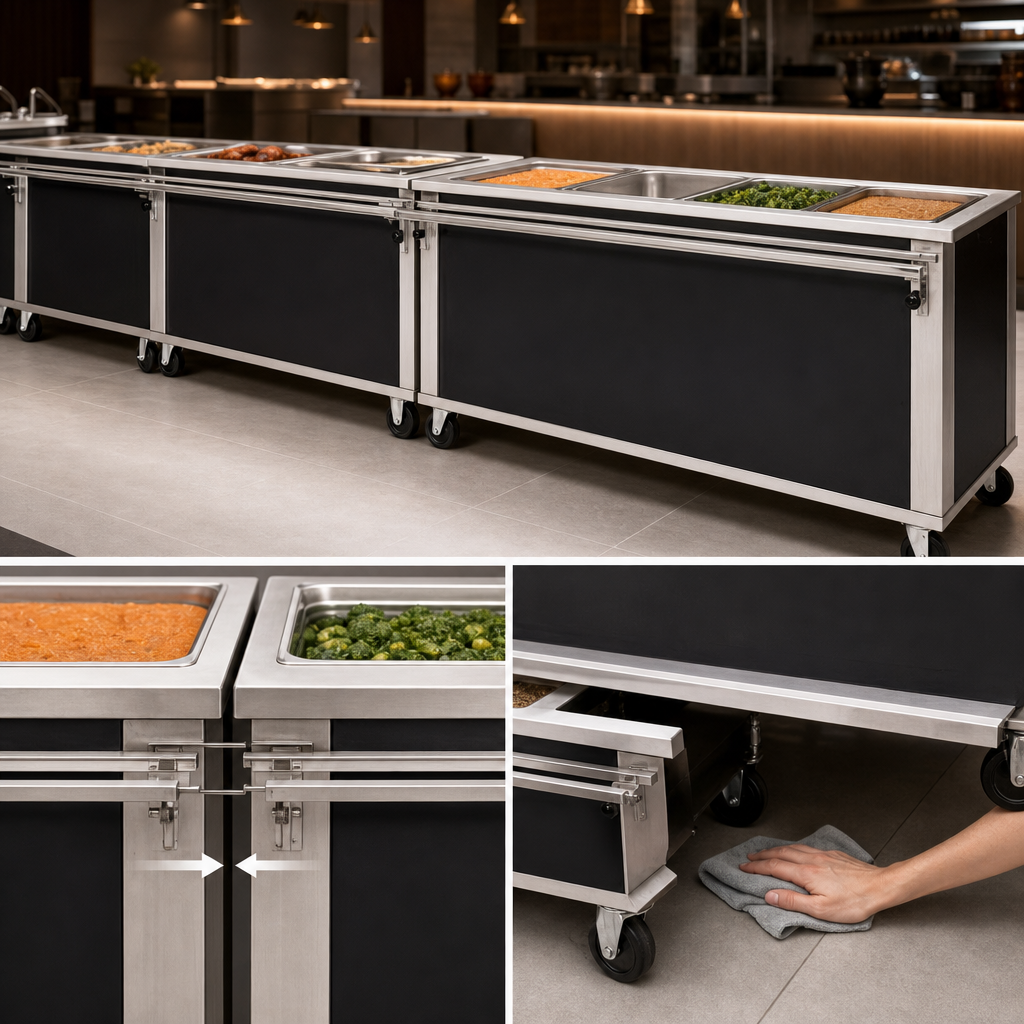

Modular Interlocking Design

An interlocking mechanism allows the unit to interlock with other DineXpress units.

Manifold Drains

Manifold drains are standard, with a 3/4-inch FPT drain valve.

Frequently Asked Questions

The DXP2HF has two hot food wells, each 6-1/2 inches deep.
Yes. Each well has a 1,000-watt heating element with individual thermostatic control.
The unit is available at 120, 208, or 240 volts and uses single-phase power. The specified plugs are NEMA 5-30P at 120 volts and NEMA 6-15P at 208 or 240 volts.
Yes. The wells can be operated wet or dry.
Yes. It has 5-inch swivel plate casters, including two with brakes.
The product measures 32 inches wide by 28 inches deep by 36 inches high and weighs 285 pounds.
The product has a one-year parts and labor warranty.
