Delfield ST4527NP Undercounter & Worktop Refrigeration
Description

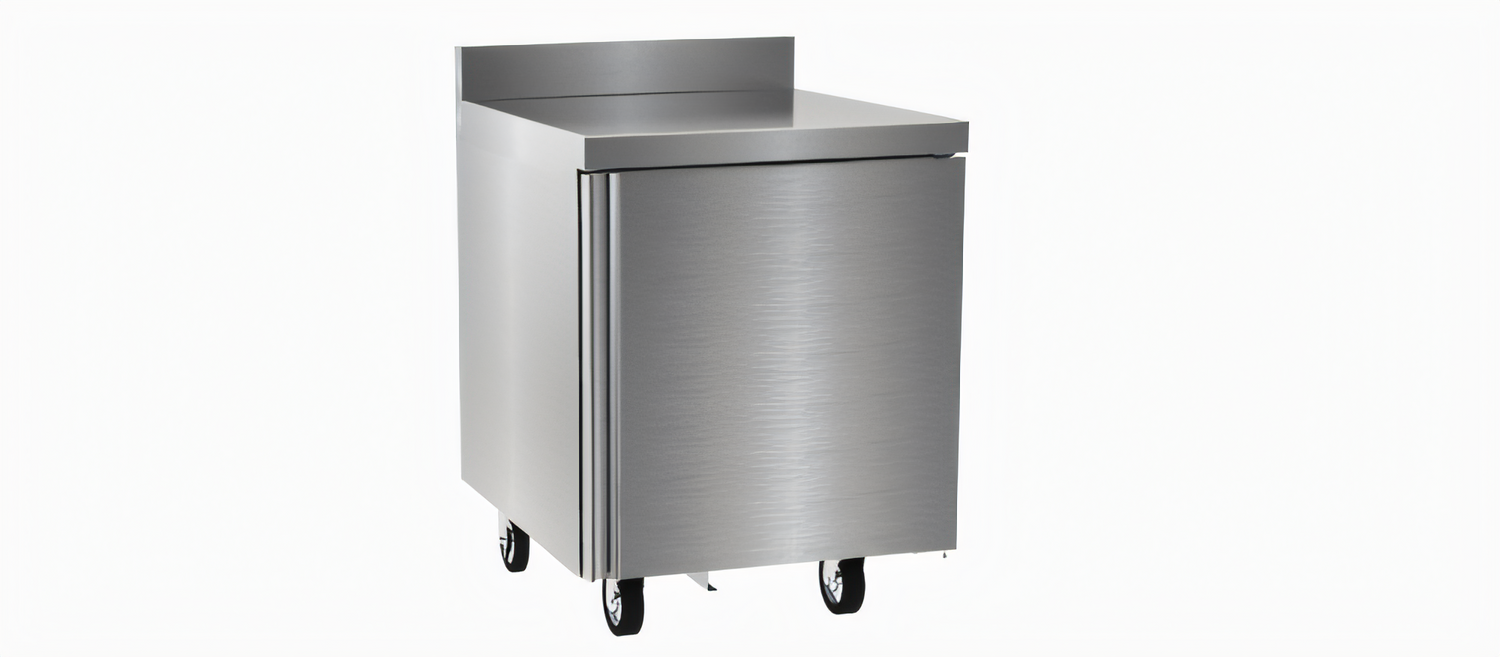

Delfield ST4527NP 27" Worktop Freezer with 4" Backsplash & Single Door
Front-breathing, self-contained undercounter freezer base – 7.14 cu. ft.Keep frozen ingredients within arm’s reach without sacrificing prep space. Delfield’s ST4527NP combines a durable stainless-steel work surface, integrated 4" backsplash and energy-efficient R290 refrigeration to deliver reliable 0 °F storage in the tightest footprints.
Key Advantages

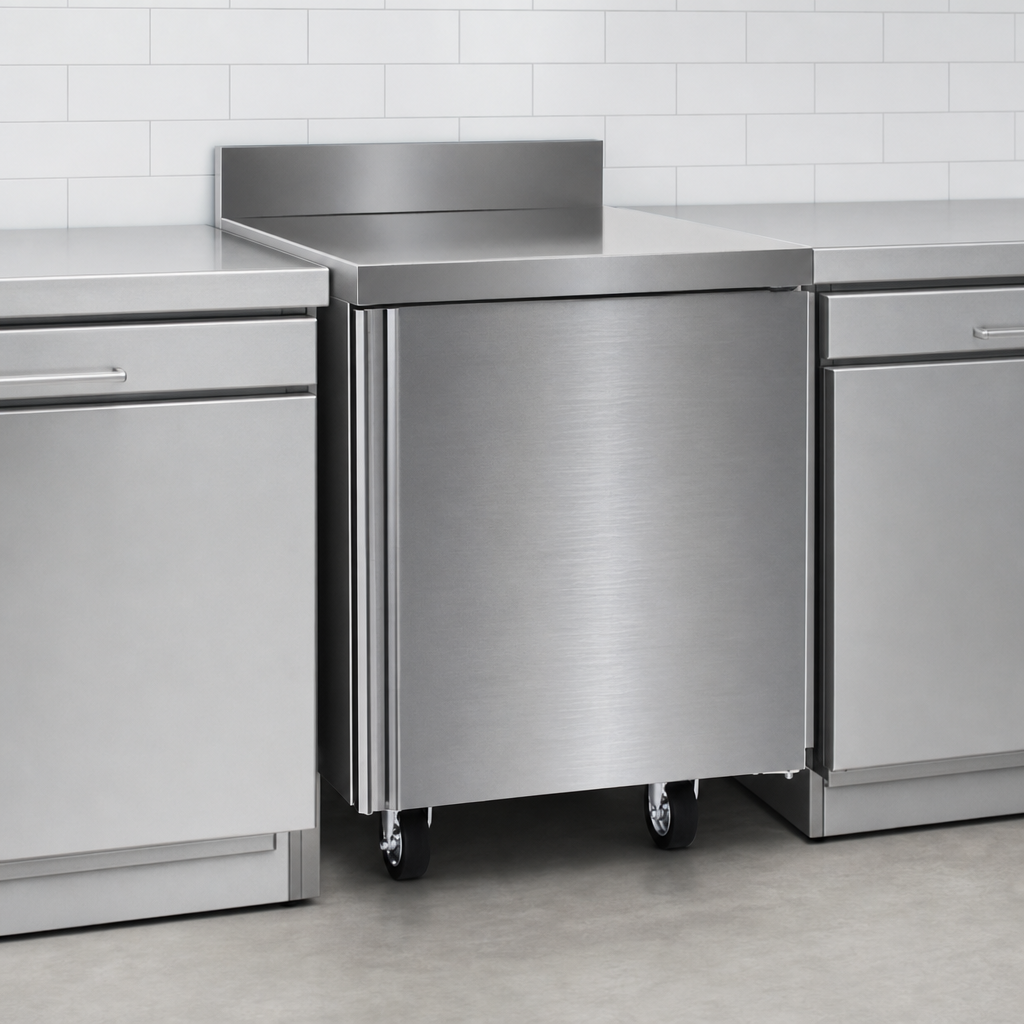

- 100 % front-breathing design lets you install flush against walls or inside millwork.

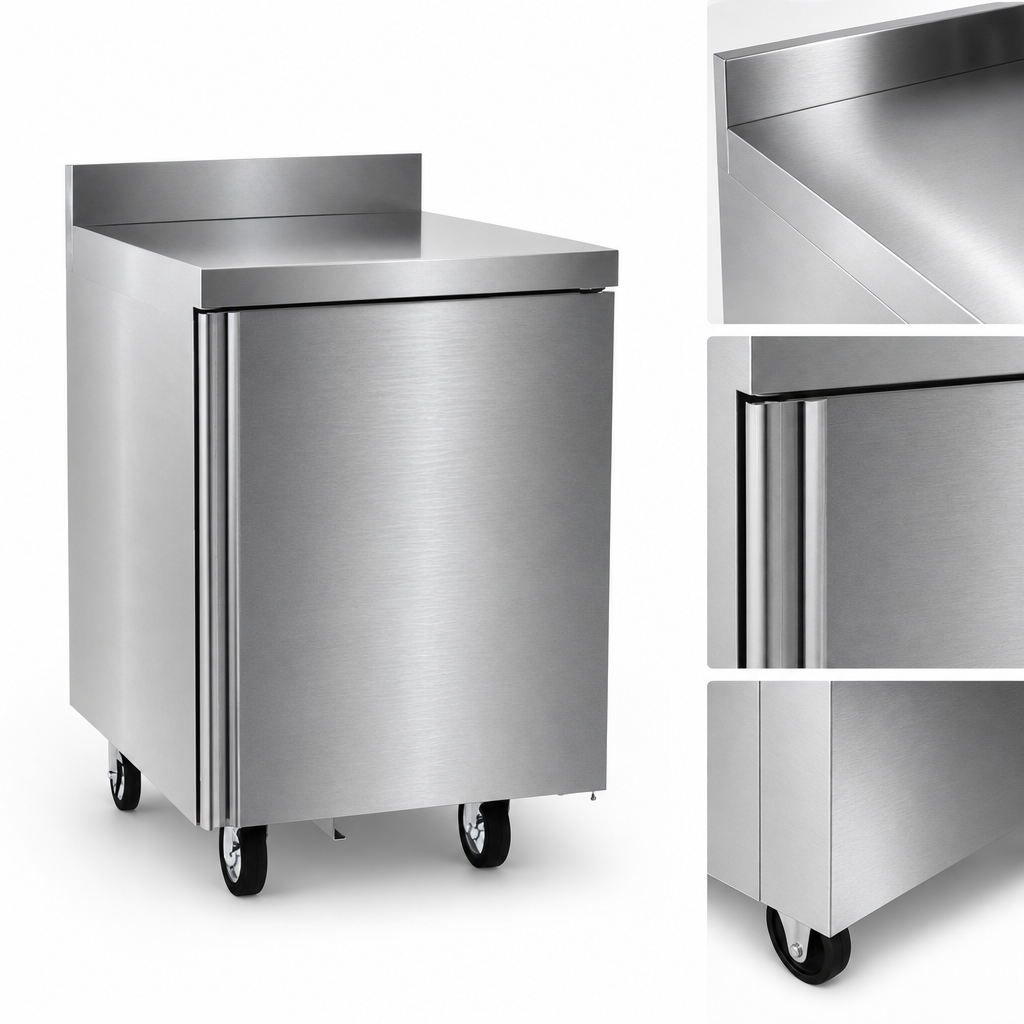

- One-piece 22-ga. stainless top with 4" backsplash doubles as a sanitary work surface.
- Impact-resistant ABS interior sides with lifetime warranty—won’t dent, chip or corrode.
- ACT solid-state controller holds 0 °F–5 °F (-18 °C to -21 °C) even in high-demand kitchens.
- Eco-friendly R290 refrigerant & high-density polyurethane insulation use only 1.94 kWh/day.
- Full-length bent-in door handle and (1) adjustable epoxy-coated wire shelf.
- Rolls out effortlessly on factory-installed 5" locking casters for cleaning & service.
- Ships ready to plug in with 10 ft. cord and NEMA 5-15P.
Perfect For
- Cook lines & make stations that need frozen storage below prep space
- Compact restaurants, cafés, ghost kitchens, concessions & food trucks
- Any operator seeking ENERGY STAR®-level efficiency with heavy-duty durability
Technical Specifications
| Model | ST4527NP |
|---|---|
| Capacity | 7.14 cu. ft. (202 L) |
| Exterior width | 27.13" (69 cm) |
| Exterior height | 31.50" (80 cm) worktop + 4" (10 cm) backsplash |
| Sections / doors | 1 section / 1 hinged door |
| Included shelving | (1) adjustable wire shelf – 3.17 sq. ft. |
| Temperature range | 0 °F to 5 °F (-18 °C to -21 °C) |
| Horsepower | 0.35 HP |
| Refrigerant | R290 (propane) |
| Voltage | 115 V / 60 Hz / 1 Ph |
| Amperage | 5.2 A |
| Plug type | NEMA 5-15P |
| Energy use | 1.94 kWh per day |
| Mobility | 5" plate casters (front two locking) |
| Ship weight | 223 lb (101 kg) |
| Warranty | 3-yr parts & labor / 7-yr compressor (limited) |
Popular Options & Accessories
- 18" wide single-tier overshelf
- Poly or composite cutting boards
- Stainless steel finished back or plastic-laminate front
- Door lock kit for secure overnight storage
- LED interior lighting (door models only)
- Low-profile or 3" casters to reduce overall height
- Additional wire shelves or stacking collar
Looking for matching refrigerator or drawer configurations? Check out Delfield models 4527NP, D4527NP and STD4527NP.
