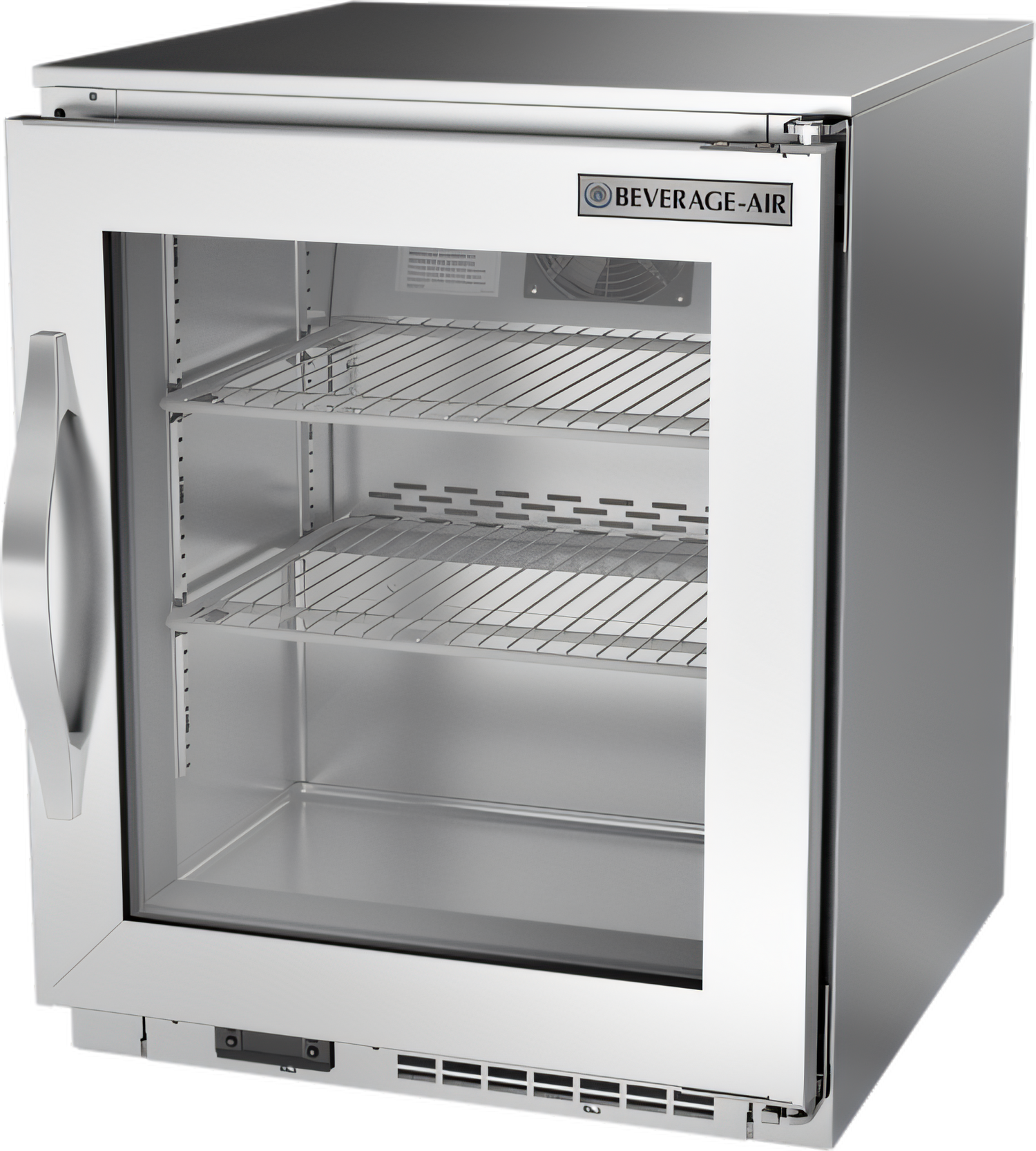

Beverage-Air 20-Inch One-Section Undercounter Ice Cream Freezer with Glass Door, 2.25 Cu. Ft., Shallow Depth

SKU: UCF20HC-25-15
$3,548.24
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Beverage-Air 20-Inch One-Section Undercounter Ice Cream Freezer with Glass Door, 2.25 Cu. Ft., Shallow Depth

Rear-mounted self-contained refrigeration with R290 hydrocarbon refrigerant

Built for tight spaces and frozen display, this compact undercounter freezer combines a glass door, durable stainless steel construction, and reliable R290 refrigeration.

  • Compact 20-inch, one-section footprint is ideal for tight undercounter spaces.
  • Glass door design helps staff quickly identify contents and supports display merchandising.
  • Rear-mounted, self-contained refrigeration uses R290 refrigerant for efficient operation.
  • Electronic control, interior thermometer, and forced-air design help maintain holding temperatures without manual defrost.
  • Stainless steel exterior and aluminum interior are built for commercial durability.
  • Includes two epoxy-coated wire shelves for organized storage.

Overall Dimensions:

20.0"W x 25.0"D x 25.0"H

Product Weight:

117.0 lb

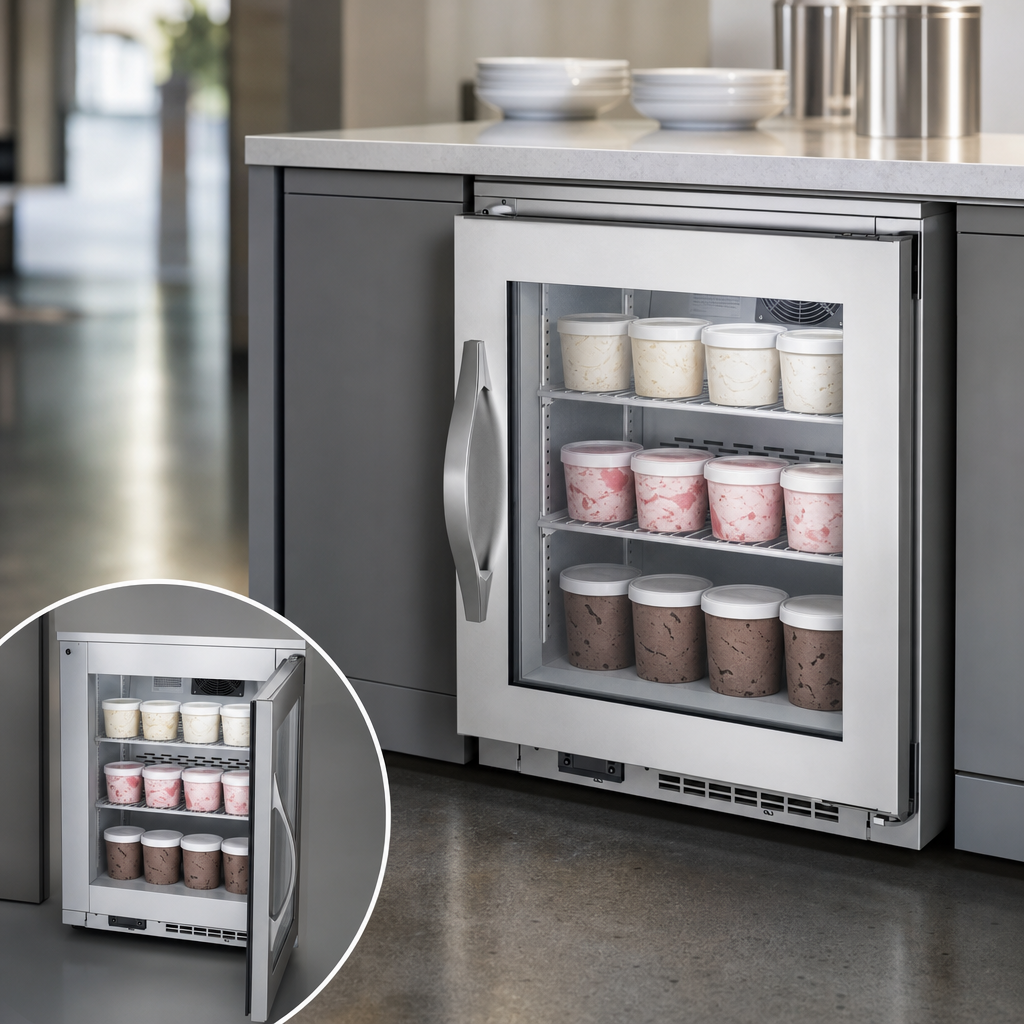

Glass Door Display

One hinged glass door provides visibility into the cabinet while keeping frozen product enclosed.

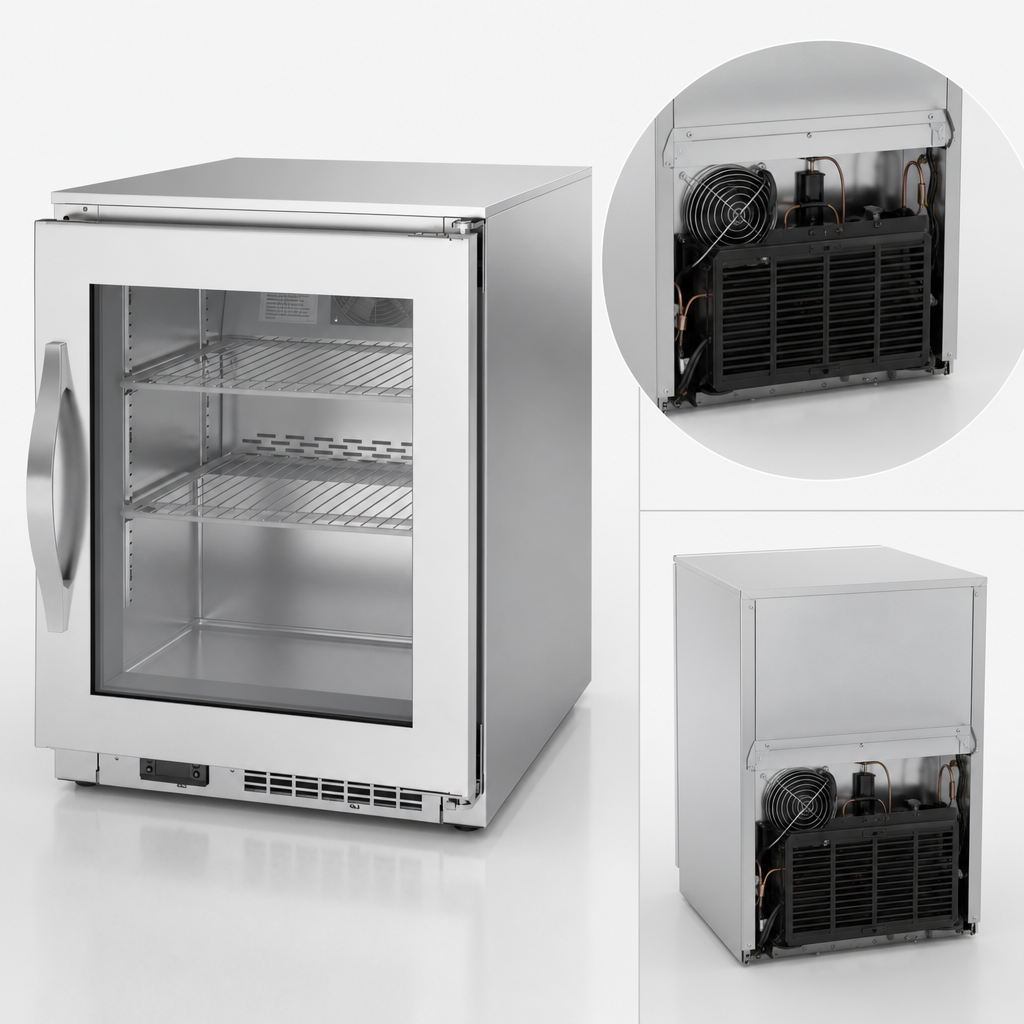

Self-Contained Rear-Mounted Refrigeration

Rear-mounted, self-contained refrigeration simplifies installation and service access.

R290 Hydrocarbon Refrigerant

Uses environmentally friendly R290 refrigerant for efficient operation.

Electronic Temperature Control

Full electronic control and an interior thermometer help maintain accurate cabinet temperature.

Automatic Defrost Design

Forced-air operation eliminates the need for manual defrost.

Durable Cabinet Construction

Stainless steel top, front, sides, doors, and grille with galvanized steel back and bottom plus an aluminum interior.

Self-Closing Door With Stay-Open Feature

The door self-closes and stays open at 120 degrees for loading and cleaning.

Included Shelving

Two epoxy-coated steel wire shelves are included for product organization.

Type Ice Cream Freezer
Style Glass Door
Installation Type Undercounter
Capacity 2.25 Cu. Ft.
Compartments 1
Controls Electronic
Temperature Range -15°F to -10°F or Below
Material Stainless Steel
Interior Finish Aluminum
Finish Stainless Steel
Refrigeration Type Self-Contained
Refrigerant Type R290
BTU 1,513 BTU/Hr
Horsepower 1/2 HP
Voltage 115 Volts
Amps 3.7 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Shipping Width 23 Inches
Shipping Depth 34 Inches
Shipping Height 35 Inches
Shipping Weight 150 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

7-year parts and labor warranty; 7-year compressor warranty for units shipped on or after July 1, 2024.

Frequently Asked Questions

No. The forced-air design does not require manual defrost.
It uses R290 hydrocarbon refrigerant.
Two epoxy-coated steel wire shelves are standard.
The unit operates on 115/60/1 power, draws 3.7 full-load amps, and includes an 8-foot cord with a NEMA 5-15P plug.
Freezer temperatures are held at -15°F to -10°F or below.
The document lists 3 inches of bottom clearance and 2 inches of rear clearance.
