Description

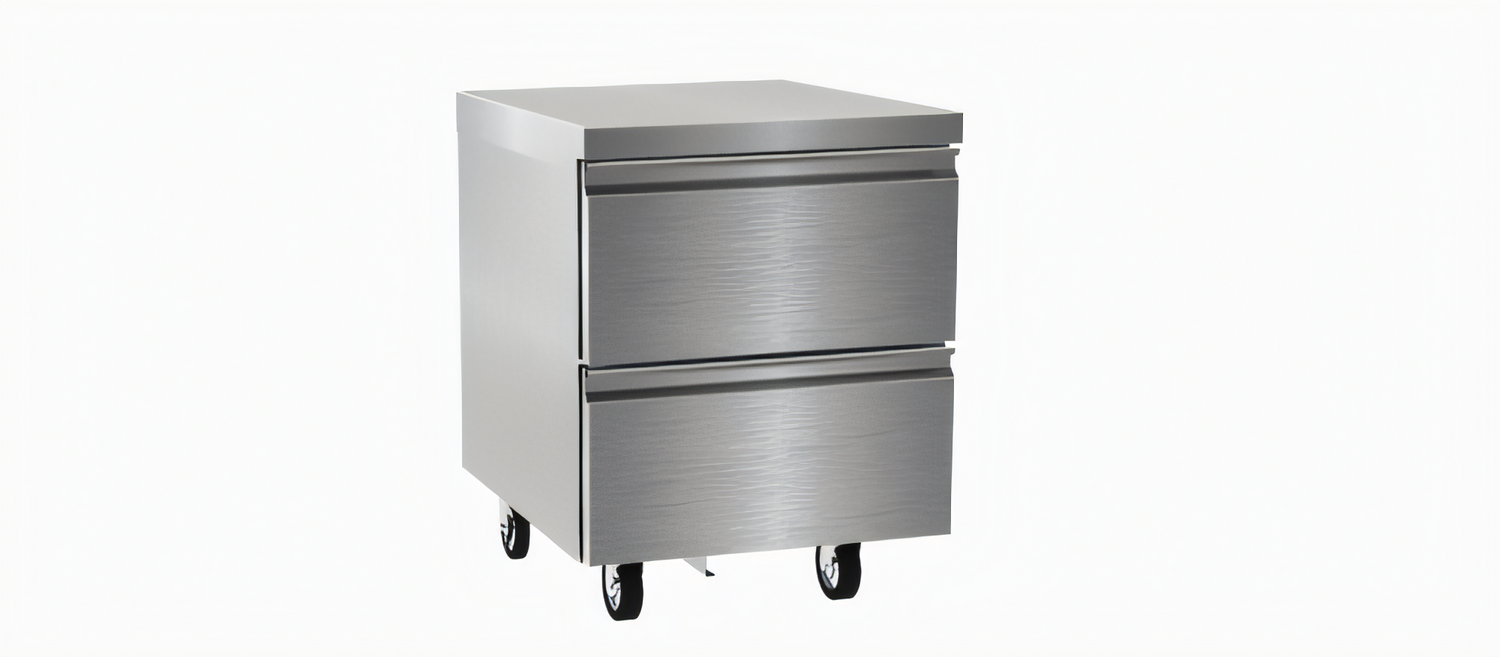

Delfield D4527NP 27" Worktop Freezer With 2 Drawers

Front-breathing, self-contained undercounter base – perfect for point-of-use frozen storage

Keep frozen ingredients within arm’s reach without giving up valuable prep space. The Delfield D4527NP combines a heavy-duty stainless worktop with a high-performance freezer base, delivering 7.14 ft³ of 0°F storage in a compact 27" footprint.

Key Features

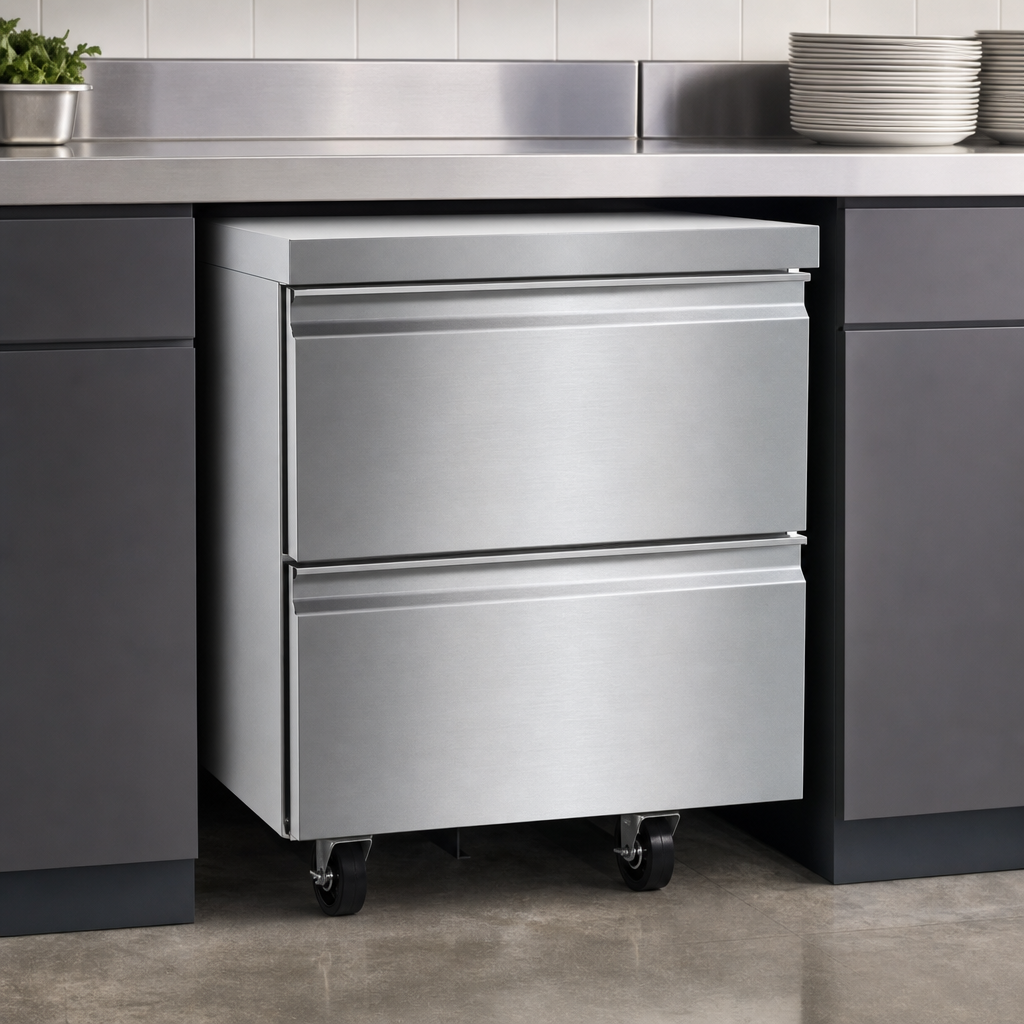

  • 100 % front-breathing design lets you push the unit flush against a wall or build it into existing casework.

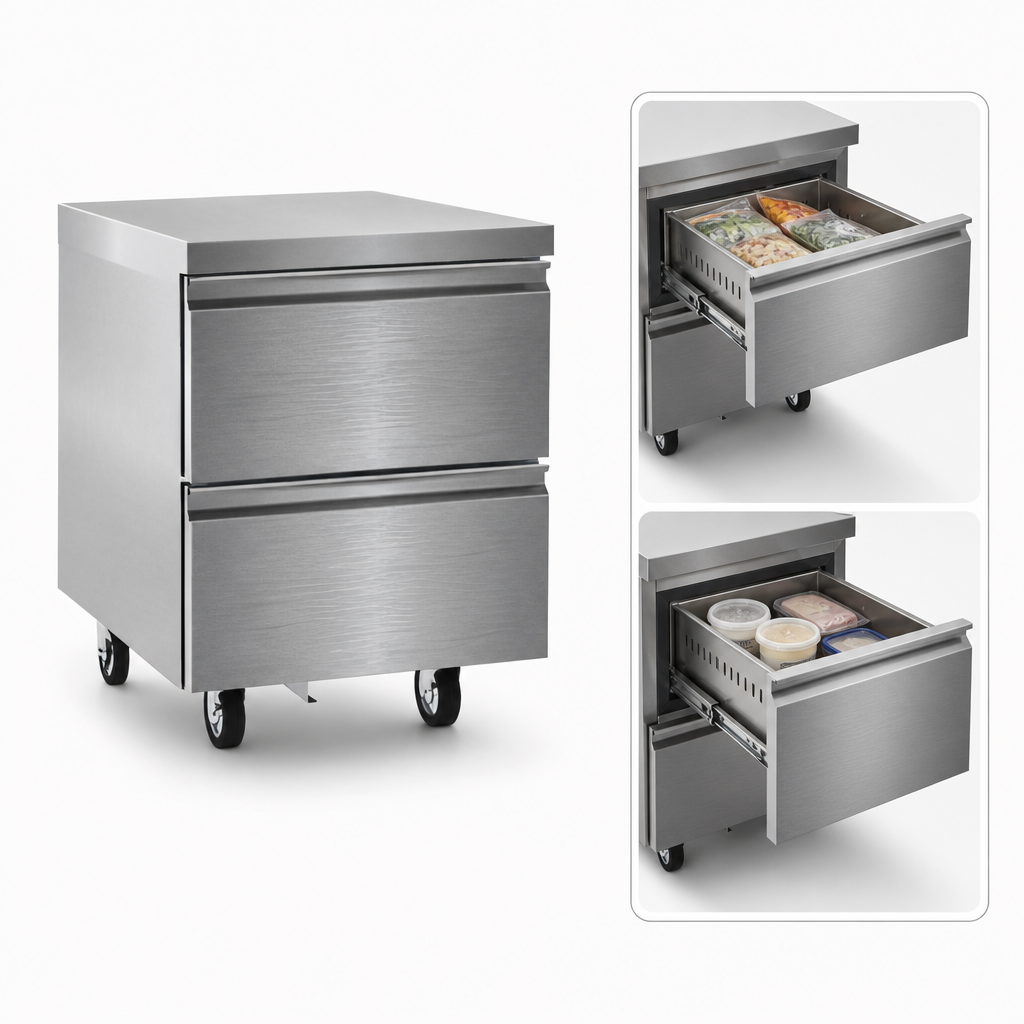

  • (2) full-extension drawers with lifetime-warranted slide system; each drawer accepts 1 full-size 12" × 20" pan + 3 sixth-size pans (pans not included).
  • Rugged stainless-steel front, top and sides resist dents and make wipe-downs quick.
  • Exclusive ABS interior liner will not dent, chip or corrode and carries a limited lifetime warranty.
  • ACT solid-state electronic controller maintains a steady 0 °F – 5 °F (-18 °C – -21 °C) even in heavy-duty kitchens.
  • Eco-friendly R290 refrigerant and high-density, CFC-free foam insulation lower energy use and environmental impact.
  • Ships on 5" locking plate casters with a 10' cord and NEMA 5-15P plug for fast, tool-free installation.
  • Backed by a 3-year parts & labor warranty and 7-year compressor warranty.
Technical Specifications
Model D4527NP
Configuration One section, flat stainless worktop, two drawers
Exterior Dimensions (W × D × H) 27.13" × 31.50" × 31.50" (with 5" casters)
Storage Volume 7.14 ft³ (202 L)
Temperature Range 0 °F – 5 °F (-18 °C – -21 °C)
Refrigerant / Compressor R290 / 0.35 HP, expansion-valve system
Electrical 115 V / 60 Hz / 1-ph, 5.2 A, 10' cord, NEMA 5-15P
Energy Consumption Meets current DOE standards (kWh/day N/A)
Shipping Weight 245 lb (111 kg)
Drawer Pan Capacity
  • Top Drawer – (1) 12" × 20", 4"-6" deep pan & (3) 1/6-size pans
  • Bottom Drawer – (1) 12" × 20", 4" deep pan & (3) 1/6-size pans
  • Pans are supplied by others.
Popular Accessories (sold separately)
  • 18" single-tier overshelf
  • Composite or poly cutting board
  • Stainless-steel finished back
  • 3" or low-profile casters
  • Stacking collar for double-deck installations
  • Door lock kit
  • Plastic-laminate front panel
Installation Reminder: While the D4527NP is front-breathing, leave at least 3" of clearance behind the cabinet to promote optimal compressor airflow.

Looking for quantity pricing or a custom line-up? Contact our foodservice team for expert assistance.

Features & Specs

Manufacturer

Delfield

Height

36.0in

Width

27.0in

Depth

31.5in

Shipping Weight

323.0lbs

Size

1 section

Exterior Finish

all stainless steel exterior

Width

24" - 32"

Access Type

drawers

Refrigeration

self-contained, rear mounted

Specifications

Freezer Worktop/Undercounter, one-section, 27"W, (2) drawers
