Key specifications

Amps
13.8 Amps
Phase
1-Phase
Dimensions
59.0"W × 32.38"D × 68.88"H
Type
Holding Cabinet
Style
Mobile Banquet
Installation Type
Floor Model
Spec sheet
Cres Cor SKU: CCB120A

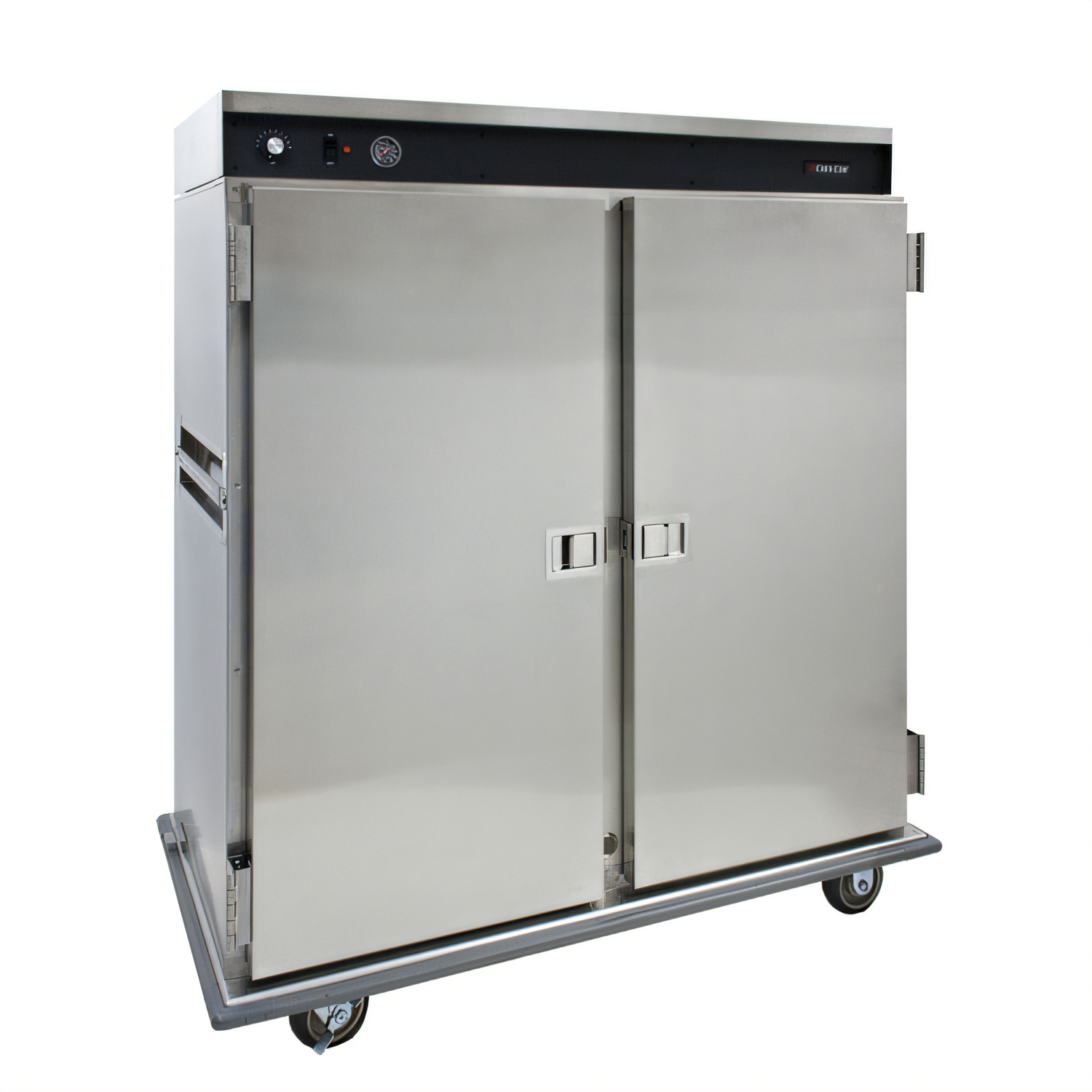

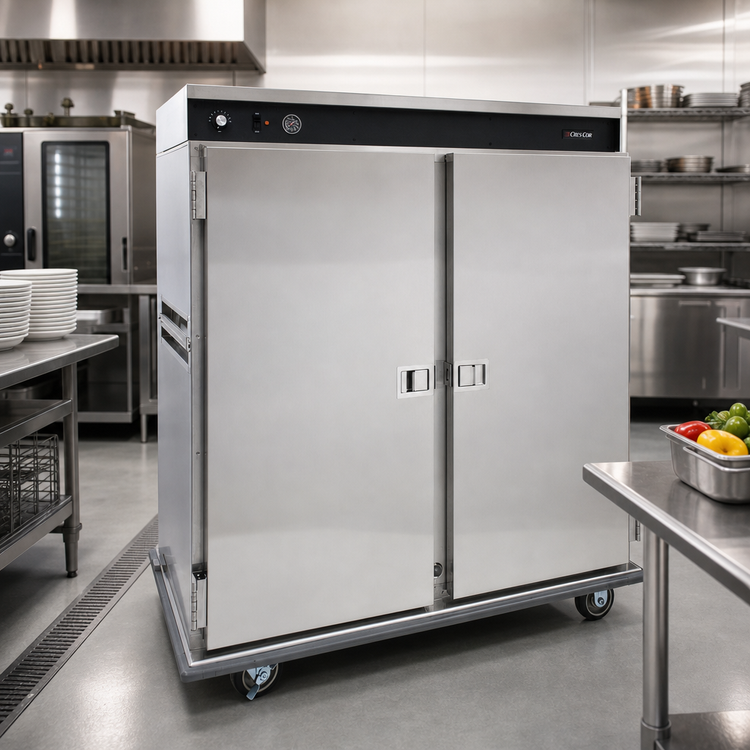

Cres Cor CCB120A Mobile Heated Banquet Cabinet, 120 Plates

$12,352.00
/each
Estimated to ship in 2–5 business days
Electrical
Included: Cres Cor warranty 2-year parts and 1-year labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,143/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Holding Cabinet
Style Mobile Banquet
Installation Type Floor Model
Material Stainless Steel
Base Material Aluminum
Capacity 120 / 90 / 60 Covered Plates
Diameter 11 / 11-3/4 / 13 Inches
Shelf Count 6
Controls Thermostatic Controls
Heat Type Electric
Door Configuration Double Door
Door Swing 270°
Insulation Material Fiberglass
Insulation Thickness 2 Inches
Shelf Material Nickel Chrome Plated Wire
Caster Diameter 6 Inches
Voltage 120 Volts
Amps 13.8 Amps
Service Amperage 15 Amps
Watts 1.65 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 10 ft
Temperature Range Ambient to 200°F (93°C)

Description

The Cres Cor CCB120A is a mobile insulated banquet holding cabinet with double doors and a thermostatically controlled electric heat unit.

  • Holds 120 covered 11-inch plates, 90 covered 11-3/4-inch plates, or 60 covered 13-inch plates.
  • The thermostat operates from ambient temperature to 200°F (93°C), with 1,650 Watts of heating power at 120 Volts.
  • Walls, doors, and base have 2-inch fiberglass insulation.
  • Six removable nickel chrome plated wire grids provide adjustable shelf storage.
  • The cabinet and heat-unit bodies are stainless steel, with a one-piece welded aluminum base and gray non-marking rubber perimeter bumper.
  • Six-inch casters include two swivel casters with brakes for mobile operation.
  • The self-contained heat unit removes without tools, and the power top lifts off for cleaning.

Overall Dimensions:

59.0"W x 32.38"D x 68.88"H

Product Weight:

590.0 lb

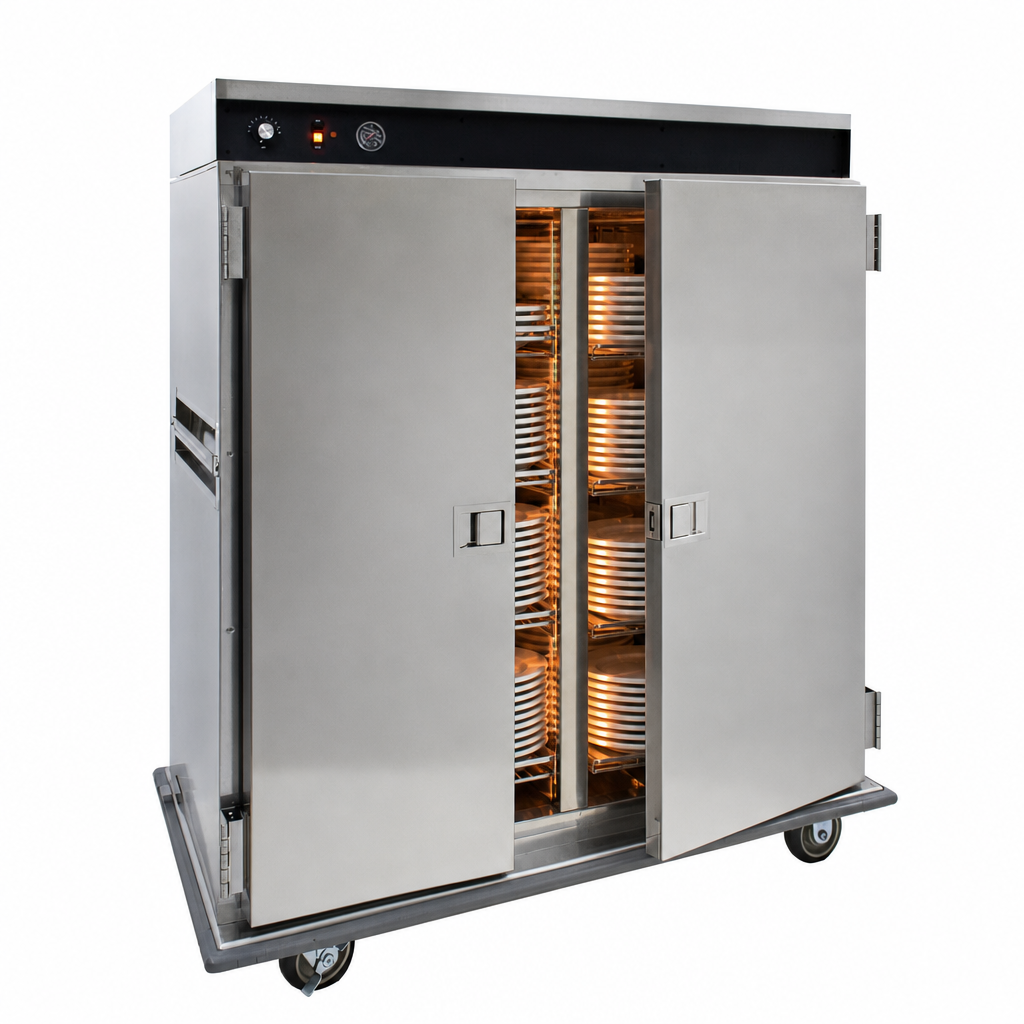

Thermostatic Electric Heat

The removable heat unit uses thermostatic controls with an ambient-to-200°F (93°C) operating range.

Covered Plate Capacity

Capacity is 120 covered 11-inch plates, 90 covered 11-3/4-inch plates, or 60 covered 13-inch plates.

Insulated Cabinet

Walls, doors, and base use 2-inch fiberglass insulation.

Mobile Base

A one-piece welded aluminum base has a gray non-marking rubber perimeter bumper and six-inch casters; two casters swivel and have brakes.

Double Doors

The stainless steel doors swing 270° and are held open on friction catches.

Wire Grid Shelving

Six removable nickel chrome plated wire grids provide shelf storage with adjustable clearance.

Stainless Steel Cabinet

The cabinet and hot-unit bodies use stainless steel construction.

Removable Heat Unit

The hot unit removes without tools, and the self-contained power top lifts off for cleaning.

Frequently Asked Questions

It holds 120 covered 11-inch plates, 90 covered 11-3/4-inch plates, or 60 covered 13-inch plates.
The unit operates at 120 Volts, 60 Hz, single phase, and 13.8 Amps with 15-Amp service. It uses 1,650 Watts and a NEMA 5-15P plug.
The thermostat operates from ambient temperature to 200°F (93°C).
The cabinet includes six removable nickel chrome plated wire grids.
The product is 59 inches wide, 32.38 inches deep, and 68.88 inches high, with a listed weight of 590 pounds.
The listed warranty is 2 years on parts and 1 year on labor.
