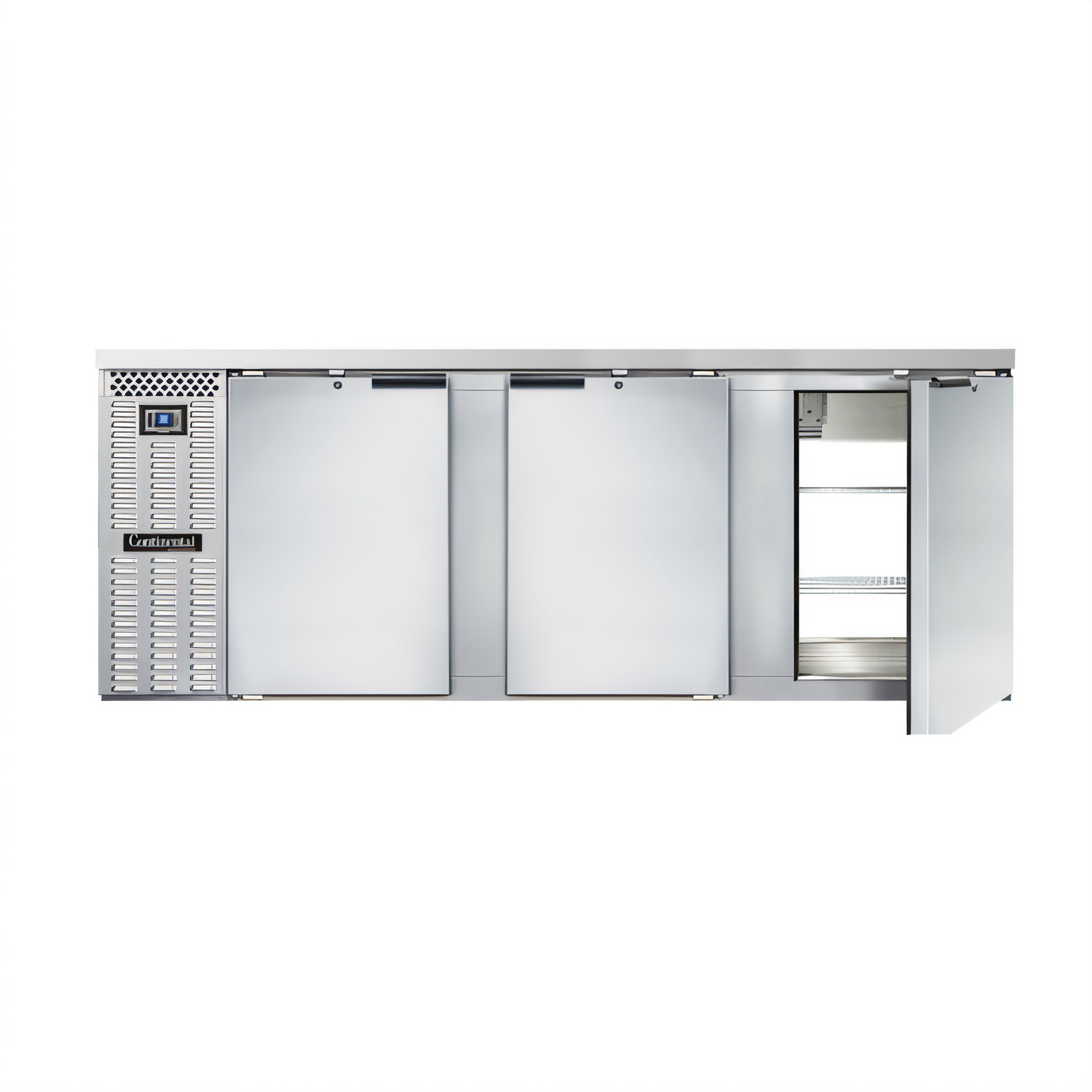

Continental Refrigerator BB90SNSSPT 90-Inch Shallow Depth Pass-Thru Refrigerated Back Bar Cooler

SKU: BB90SNSSPT
$11,484.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Back Bar Coolers Back Bar Coolers Bar Equipment Bar Refrigeration Best Sellers Commercial Refrigeration Commercial Refrigerators Continental Refrigerator New Arrivals Restaurant Equipment

Continental Refrigerator BB90SNSSPT 90-Inch Shallow Depth Pass-Thru Refrigerated Back Bar Cooler

Full-Size, Front Breathing, R290 Hydrocarbon Refrigerant

This 90-inch shallow depth pass-thru back bar cooler offers efficient, front-breathing refrigeration and durable stainless steel construction for demanding commercial environments.

  • Shallow depth design (25 inches body only) ideal for space-constrained areas.
  • Pass-thru functionality allows convenient access from both the front and back of the unit.
  • Utilizes natural, environmentally safe R-290 Hydrocarbon refrigerant for high efficiency cooling.
  • Constructed with a durable stainless steel exterior, top, and interior back/side panels with a reinforced floor.
  • Features 6 solid, self-closing doors, each equipped with cylinder keyed security locks.
  • Equipped with an electronic controller, digital display, and hi-low alarm for precise temperature management.
  • Front breathing refrigeration system allows for flexible installation without requiring side or rear clearance.

Overall Dimensions:

90.0"W x 27.38"D x 34.75"H

Product Weight:

555.0 lb

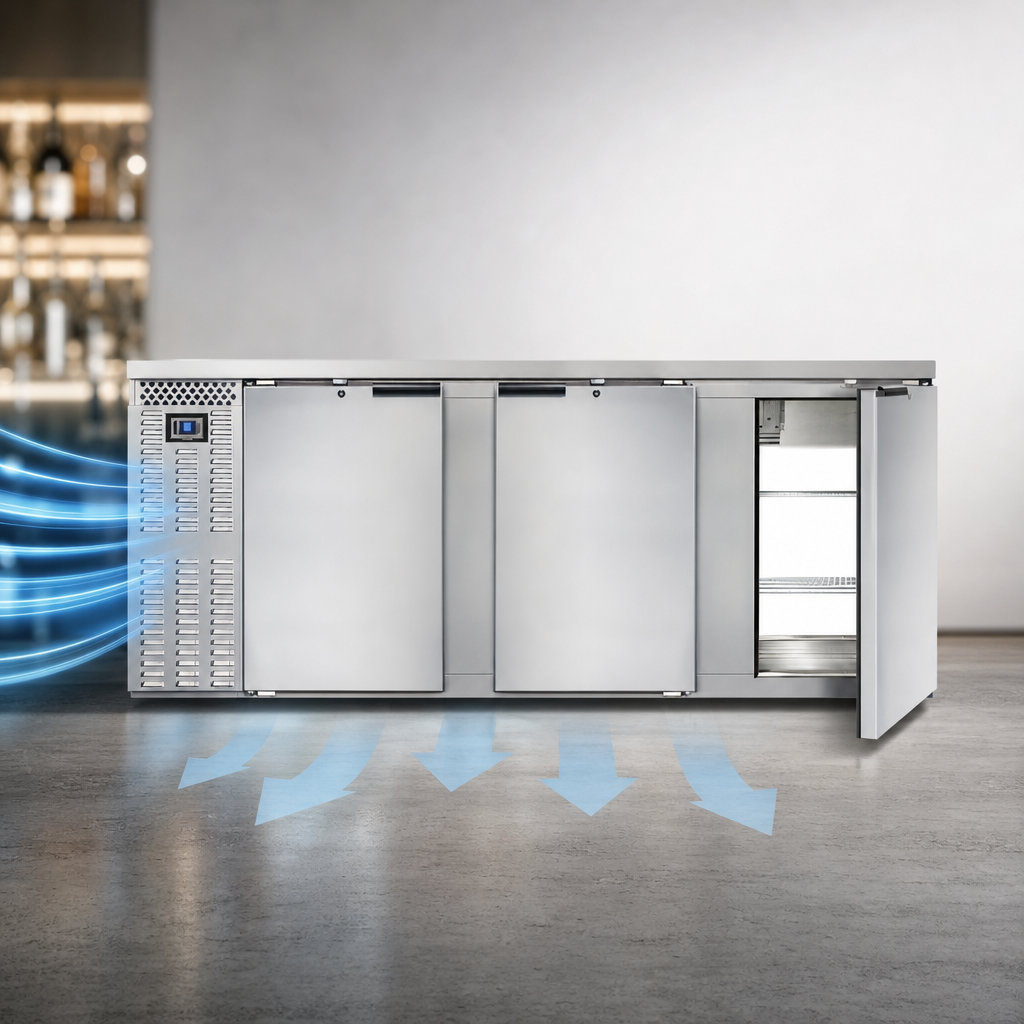

Performance-Rated Refrigeration System

Features a front-breathing refrigeration system for optimal performance and easy installation, utilizing environmentally safe R-290 hydrocarbon refrigerant.

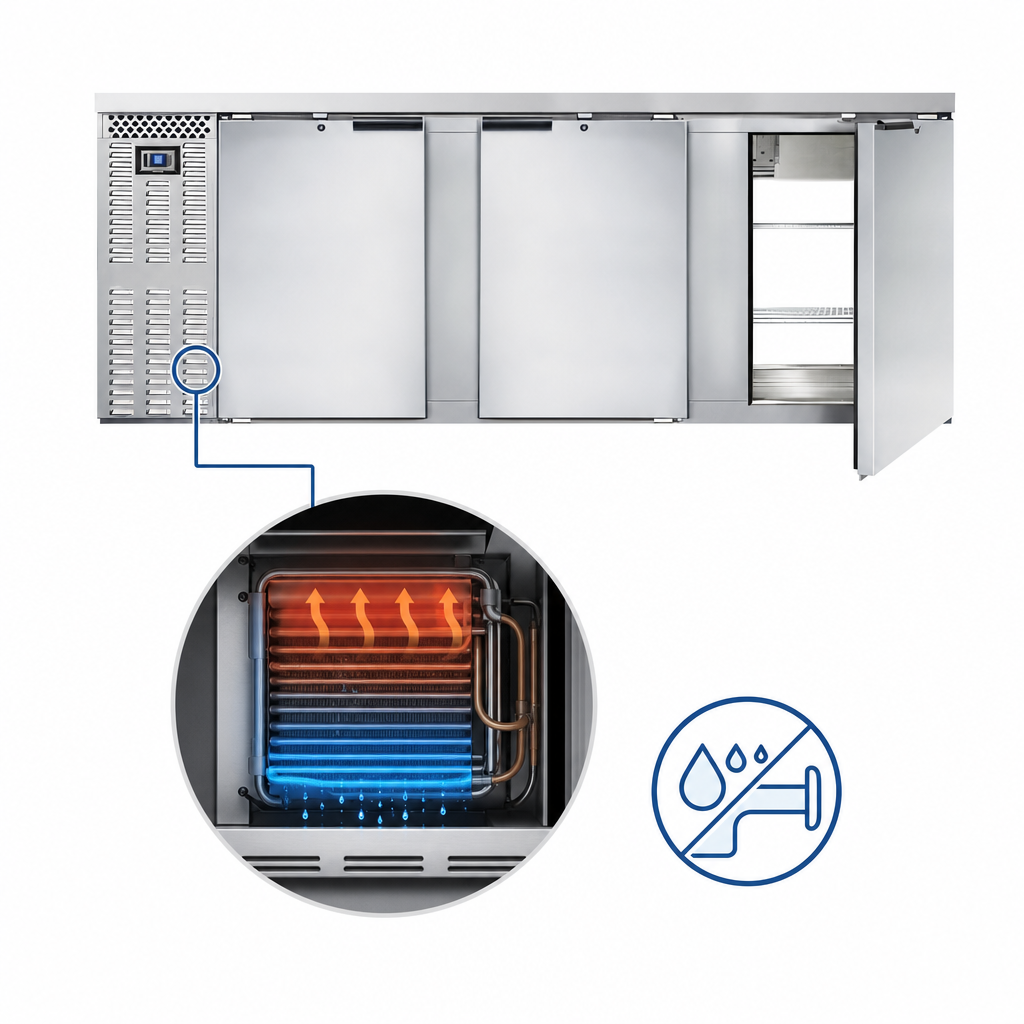

Automatic Hot Gas Condensate Evaporator

Automatically evaporates condensate using hot gas, eliminating the need for external drain connections.

Balanced Evaporator Coil

Includes an extra-large, balanced evaporator coil to ensure consistent and efficient cooling throughout the cabinet.

High-Density Insulation

Cabinet is insulated with high-density, non-CFC polyurethane foamed-in-place insulation for superior thermal retention.

Front, Rear and Side Venting Louvered Grills

Designed with louvered grills on multiple sides to ensure proper airflow and cooling, especially with its front-breathing design.

Magnetic Snap-In Door Gaskets

Equipped with magnetic snap-in Santoprene™ door gaskets for a tight seal, easy cleaning, and replacement.

Cylinder Keyed Security Locks

Each of the 6 doors includes a cylinder keyed security lock to protect contents.

Stainless Steel Reinforced Threshold

Features a reinforced stainless steel threshold for added durability and protection against wear and tear.

Low Profile Cabinet Design

The low-profile design (34 3/4 inches height) allows for easy integration under countertops.

Electronic Controller with Digital Display

Provides precise temperature control with a clear digital display and an integrated hi-low temperature alarm.

LED Interior Lighting

Bright LED lighting illuminates the interior for clear visibility of contents.

Off-Cycle Defrost

Automated off-cycle defrost system helps maintain optimal coil performance and energy efficiency.

Serviceable Slide-Out Condensing Unit

The condensing unit is easily accessible and slides out for simplified maintenance and service.

Type Refrigerated Back Bar Cooler
Style Shallow Depth, Pass-Thru
Installation Type Floor Model
Capacity 25.0 cu. ft.
Body Depth 25 Inches (Less Doors)
Number of Doors 6
Shelves 6
Capacity (Barrel Kegs) 4
Capacity (Straight Wall Kegs) 4
Capacity (1/6 Size Kegs) 15
Refrigeration Type Self-Contained
Refrigerant Type R-290 Hydrocarbon
HP 1/4 HP
BTU 2670 BTUH
Controls Electronic with Digital Display & Hi-Low Alarm
Exterior Finish Stainless Steel
Top Finish Stainless Steel
Interior Finish Stainless Steel
Shelf Material Epoxy Coated Steel
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 5.8 Amps
Cord Length 10 Feet
Plug Type NEMA 5-15P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 109 Inches
Shipping Depth 42 Inches
Shipping Height 46 Inches
Shipping Weight 555.0 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Seven (7) Year Parts, Labor, and Compressor Warranty

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Owner's manual PDF Download PDF Map policy PDF Download PDF Warranty-hc PDF Download

Frequently Asked Questions

This back bar cooler uses natural, environmentally safe, and high-efficiency R-290 Hydrocarbon refrigerant, which meets all federal and state regulatory requirements.
Yes, the BB90SNSSPT is a completely front-breathing model, taking in and exhausting air through the front grill. This allows for installation with minimal clearance (3 inches recommended on the sides) and without obstructing the front or back.
The interior features stainless steel back and side panels, along with a reinforced stainless steel floor, ensuring durability and easy cleaning in commercial environments.
The BB90SNSSPT can hold 4 full-size barrel kegs, 4 straight wall kegs, or 15 one-sixth size kegs.
Yes, each of the six doors is equipped with a cylinder keyed security lock to secure your inventory.
The cooler is equipped with a NEMA-5-15P plug, suitable for standard 115 Volt, 1-phase electrical outlets.
