Continental Refrigerator BB90NGDPT Back Bar Coolers
Description
90" Pass-Thru Back Bar Cooler – Continental Refrigerator BB90NGDPT
35 cu ft | 6 Hinged Glass Doors | Front-Breathing R-290 SystemBuilt for high-volume bars, taprooms, and venues that never slow down, the BB90NGDPT delivers 35 cubic feet of perfectly chilled storage in an ultra-efficient, low-profile cabinet that slides right beneath a standard 36" counter. Load kegs or cases from the back, serve directly from the front, and keep every beverage ice-cold, visible, and secure.
Key Benefits
- Pass-thru design with (6) double-pane low-E glass doors for effortless loading and service.

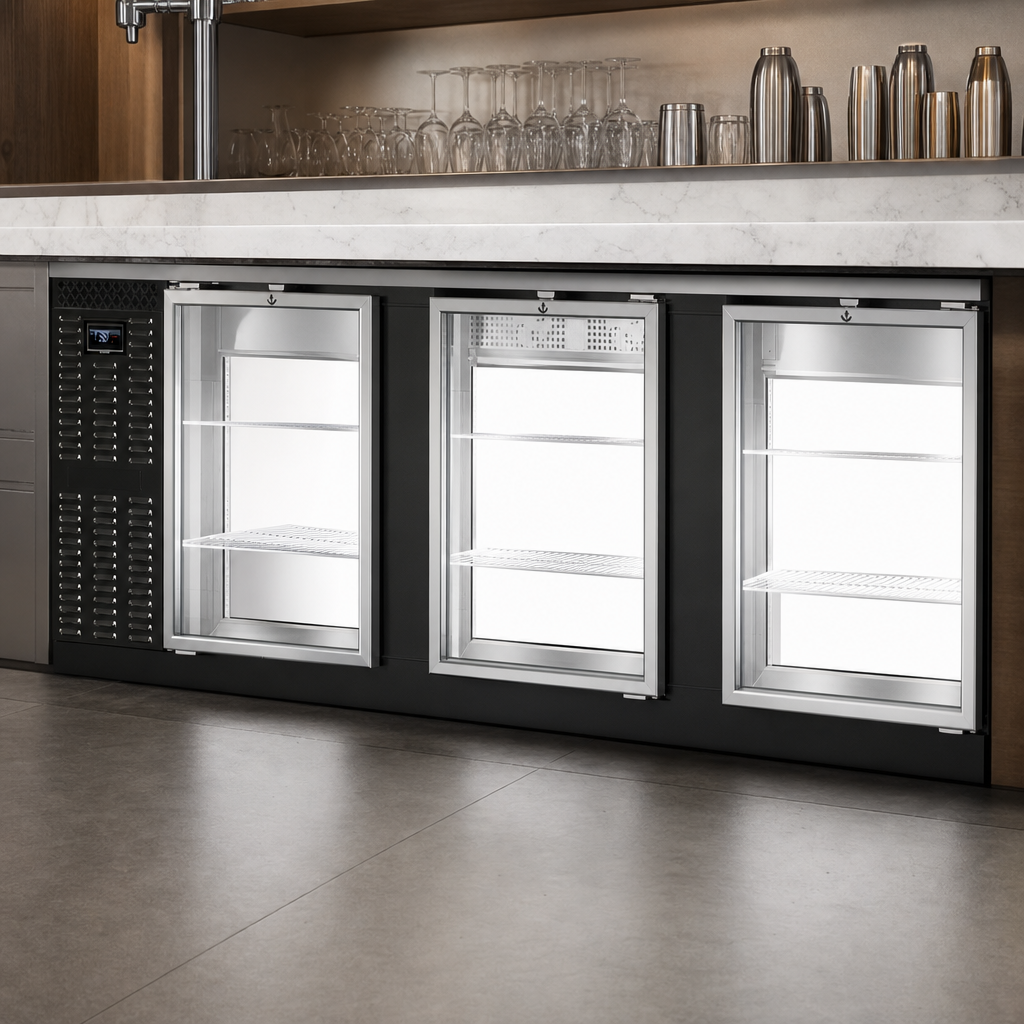

- Performance-rated, front-breathing refrigeration—installs flush with walls or other equipment.
- Eco-friendly R-290 hydrocarbon refrigerant lowers energy costs and exceeds environmental regs.
- Electronic controller with oversized digital display plus hi/low temperature alarm.
- Bright, long-life LED interior lighting showcases product while generating minimal heat.
- Textured black enamel exterior and stainless-steel top stand up to daily bar abuse.
- NSF-7 food-safe stainless interior with reinforced floor easily handles heavy kegs.
- Cylinder keyed locks on every door protect high-value inventory after hours.
- Foamed-in-place, CFC-free insulation maintains a steady 33-38 °F temperature range.
- Slide-out condensing unit for fast, front-side maintenance access.
Capacity at a Glance
- 4 barrel (½-barrel) kegs
- 5 straight-wall kegs
- Up to 16 sixth-barrel kegs
- (6) adjustable epoxy-coated shelves for cans, bottles & mixers
Technical Specifications
| Model | BB90NGDPT |
|---|---|
| Exterior Dimensions (W × D × H) | 90" × 30 1/4" × 34 3/4" (2286 × 768 × 883 mm) |
| Interior Net Capacity | 35 cu ft (991 L) |
| Doors / Type | 6 hinged, double-pane tempered glass, locking, pass-thru |
| Shelves Supplied | 6 epoxy-coated steel (adjustable) |
| Refrigerant | R-290 Hydrocarbon |
| Compressor | ¼ HP, 2,670 BTU/hr (@ +25 °F evap, 90 °F ambient) |
| Temperature Range | 33-38 °F (0.5-3.3 °C) adjustable |
| Electrical | 115 V / 60 Hz / 1-ph, 5.9 A, NEMA 5-15P, 10 ft cord |
| Certifications | cETLus, NSF-7 |
| Shipping Weight | 515 lb (234 kg) |
Installation Notes
- Completely front-breathing—no rear clearance required.
- Allow 3" clearance on each side for optimum airflow.
- Ships on leveling feet; optional casters, legs, wine racks & stainless shelves available.
Industry-Leading Warranty
Every R-290 model ships with a 7-year parts, labor & compressor warranty (USA & Canada), giving you long-term peace of mind.
Specifications subject to change without notice. Images are representative; actual product may vary.
