Key specifications

BTU
192,000 BTU
Dimensions
48.0"W × 28.75"D × 15.0"H
Type
Hot Plate
Style
Step-Up
Installation Type
Countertop
Material
Stainless Steel
Spec sheet
Comstock-Castle SKU: SUFHP48

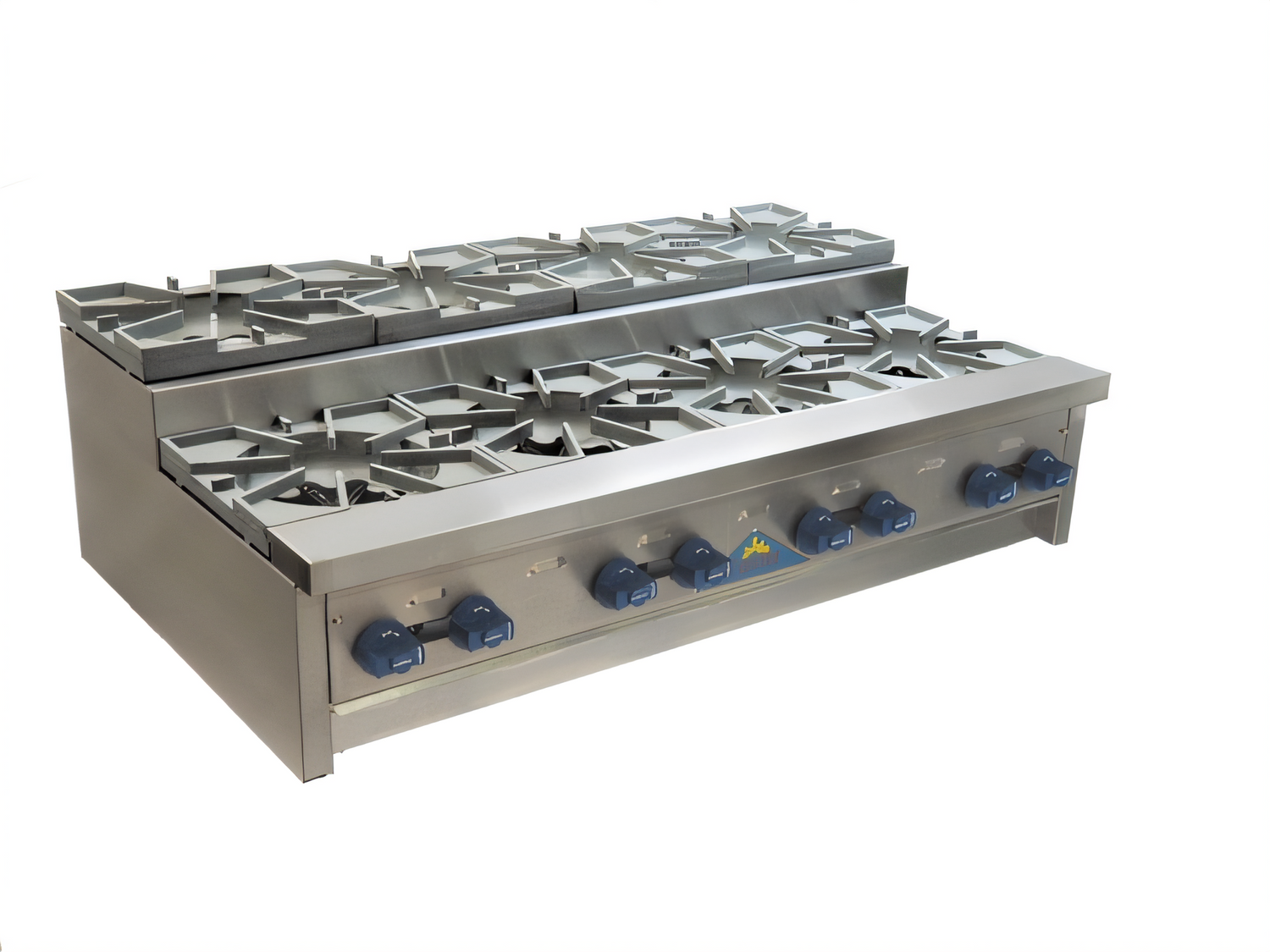

Comstock-Castle SUFHP48 48-Inch Countertop 8-Burner Hot Plate

$5,445.00
/each
Estimated to ship in 11–14 business days
Width
Gas typeRequired
Factory Add-Ons
Gas Connector
Included: Comstock-Castle warranty 1-year parts and labor warranty from the original date of installation

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $504/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Plate
Style Step-Up
Installation Type Countertop
Material Stainless Steel
Burner Count 8
Burner Layout 4 Open, 4 Step-Up Open
Burner Material Cast Iron
Burner Pattern Star
Burner Output 24,000 BTU
BTU 192,000 BTU
Grate Size 12 in x 12 in
Grate Material Cast Iron
Controls Manual
Control Count 8
Gas Connection 3/4 in NPT
Cook Surface Size 11 in and 15 in
Finish Stainless Steel
Legs Without Legs

Description

Comstock-Castle SUFHP48 is a 48-inch countertop step-up gas hot plate with eight burners and 192,000 BTU total output.

  • Four open burners and four step-up open burners.
  • Each cast iron star-pattern burner is rated at 24,000 BTU.
  • 12-inch by 12-inch cast iron grate sections.
  • Stainless steel exterior and front control panel.
  • Eight manual controls and a 3/4-inch NPT gas connection.

Certifications include NSF and cETLus.

Overall Dimensions:

48.0"W x 28.75"D x 15.0"H

Product Weight:

320.0 lb

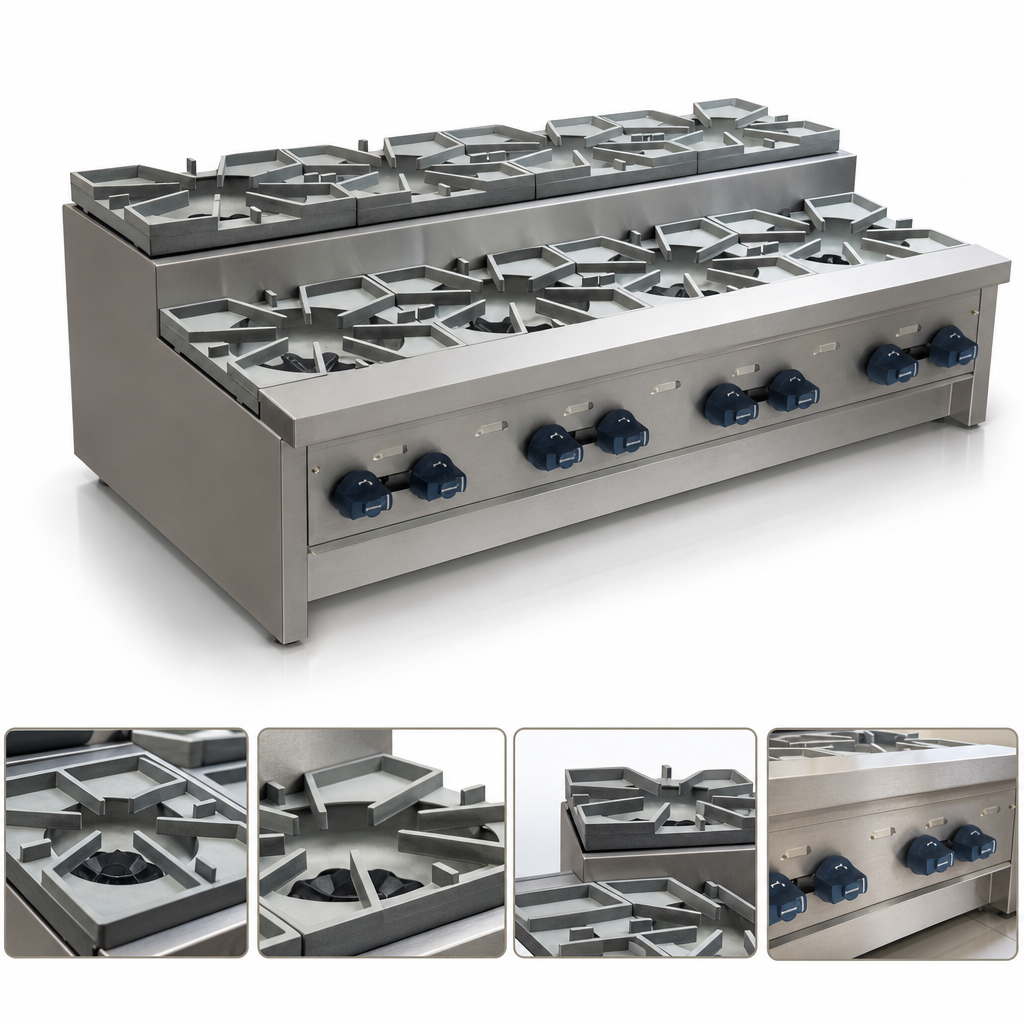

Eight-Burner Layout

The burner arrangement includes four open burners and four step-up open burners.

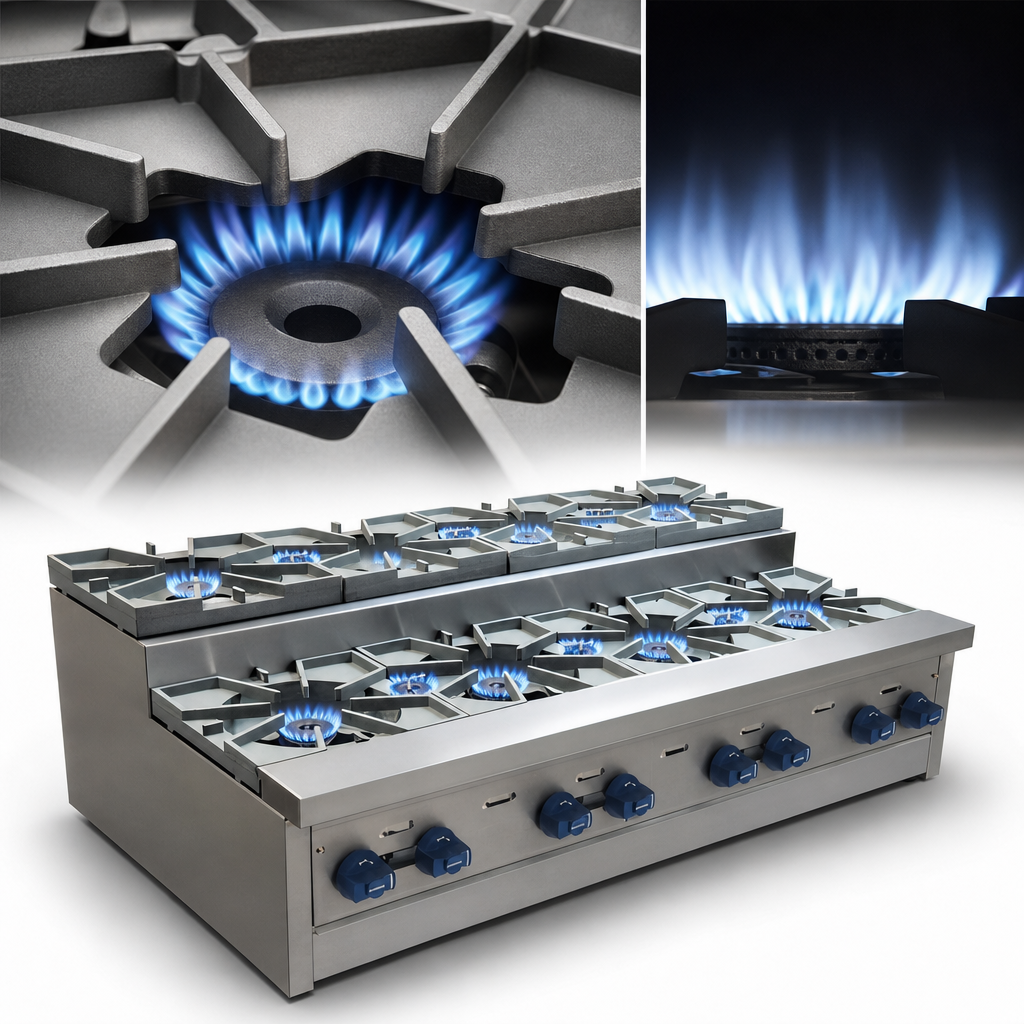

24,000 BTU Burners

Each of the eight cast iron star-pattern burners is rated at 24,000 BTU.

Cast Iron Grates

The cooking surface uses 12 in x 12 in cast iron grate sections.

Stainless Steel Construction

The unit has a stainless steel exterior, welded double-walled cabinet frame, and stainless steel front control panel.

Manual Controls

The hot plate has eight manual controls.

Automatic Standing Pilots

The specified gas controls include brass gas valves and automatic standing pilots.

Gas Connection

The manifold uses a 3/4 in NPT gas connection.

Countertop Format

The hot plate is designed for countertop installation and is specified without legs.

Frequently Asked Questions

It has eight burners: four open burners and four step-up open burners.
The total output is 192,000 BTU, with each burner rated at 24,000 BTU.
The product measures 48 in wide by 28.75 in deep by 15 in high and weighs 320 lb.
It uses a 3/4 in NPT gas connection.
No. The product is specified without legs.
