Key specifications

Amps
23 Amps
Phase
1-Phase
Dimensions
29.63"W × 20.38"D × 2.75"H
Type
Cooktop
Installation Type
Built-In
Material
Stainless Steel
Spec sheet
Summit Commercial SKU: CSD4B300

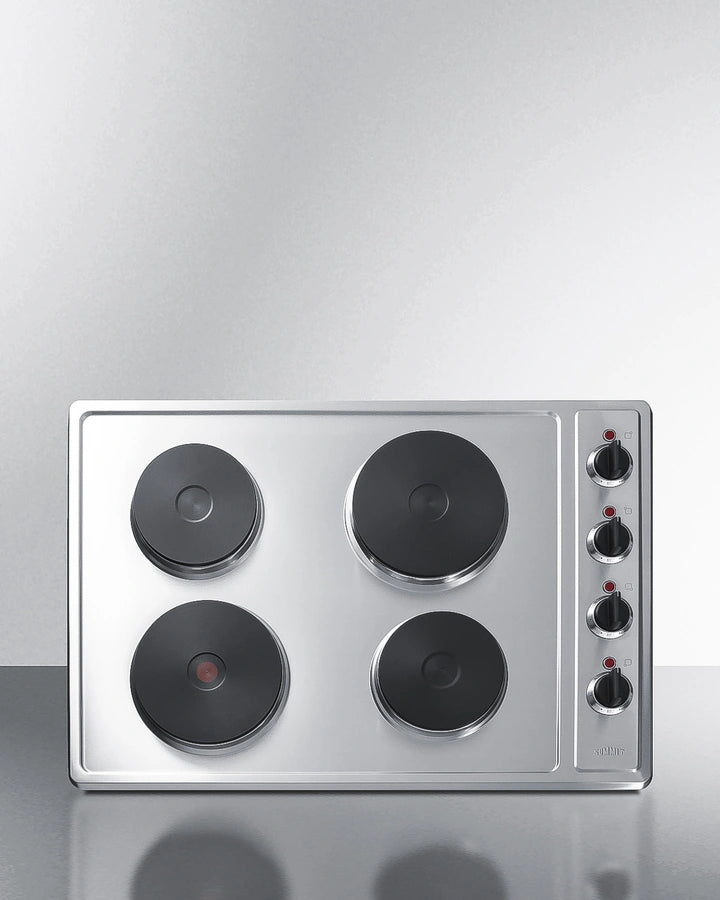

Summit Commercial CSD4B300 4-Burner Electric Radiant Stove

$431.85
/each
Estimated to ship in 6–9 business days
Included: Summit Commercial warranty 1-year limited parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $40/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cooktop
Installation Type Built-In
Material Stainless Steel
Finish Stainless Steel
Power Type Electric
Burner Count 4 Burners
Burner Type Solid Cast Iron Element
Controls Push-To-Turn
Cutout Width 28.5 Inches
Cutout Depth 19.75 Inches
Voltage 230 Volts
Amps 23 Amps
Watts 5.5 kW
Hertz 60 Hz
Phase 1-Phase

Description

The Summit Commercial CSD4B300 is a built-in electric cooktop with four sealed solid cast iron elements and a stainless steel finish.

  • One 8-inch, 2,000-watt element
  • One 8-inch, 1,500-watt element
  • Two 6-inch, 1,000-watt elements
  • Push-to-turn controls and operating indicator lights
  • Fits 28.5-inch W x 19.75-inch D counter cutouts
  • 230 Volts, 23 Amps, 60 Hz, single-phase electrical specification

Overall Dimensions:

29.63"W x 20.38"D x 2.75"H

Product Weight:

35.0 lb

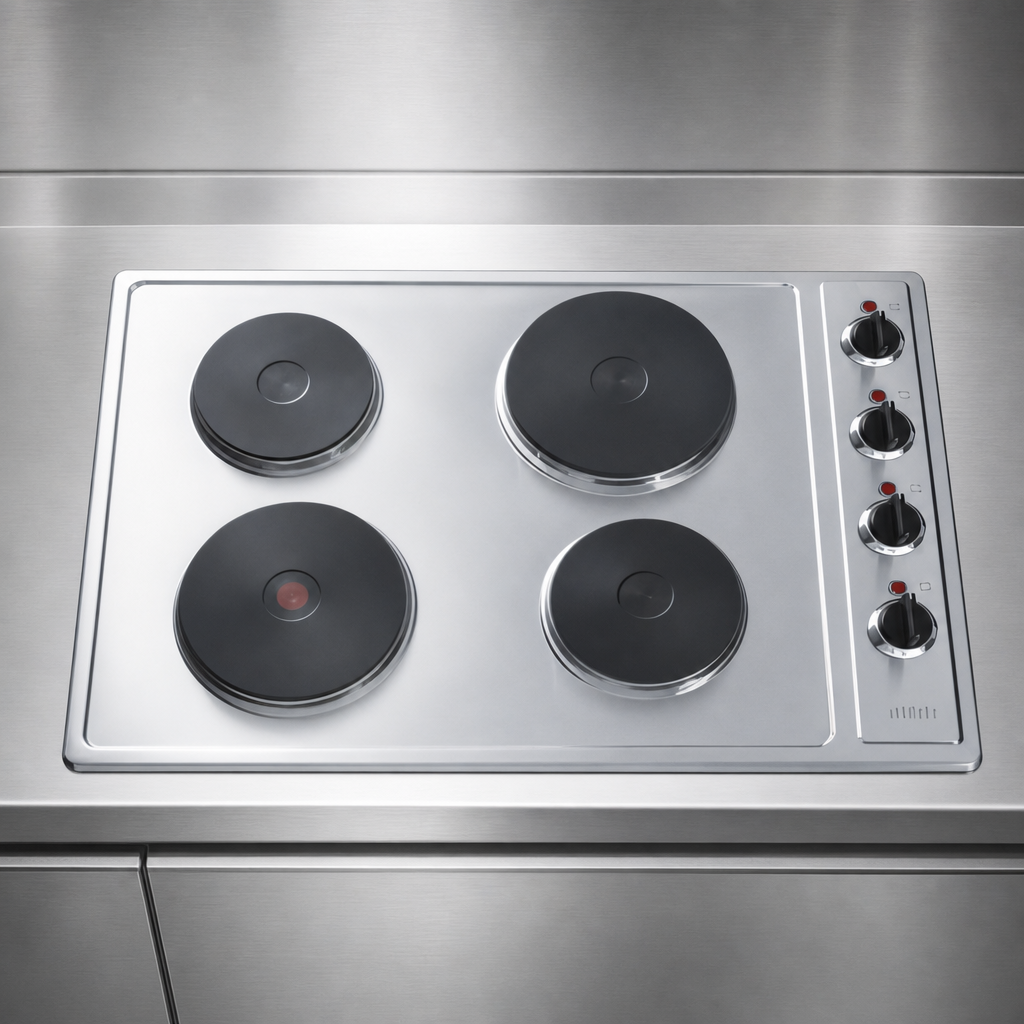

Four-Burner Layout

Includes one 8-inch 2,000-watt element, one 8-inch 1,500-watt element, and two 6-inch 1,000-watt elements.

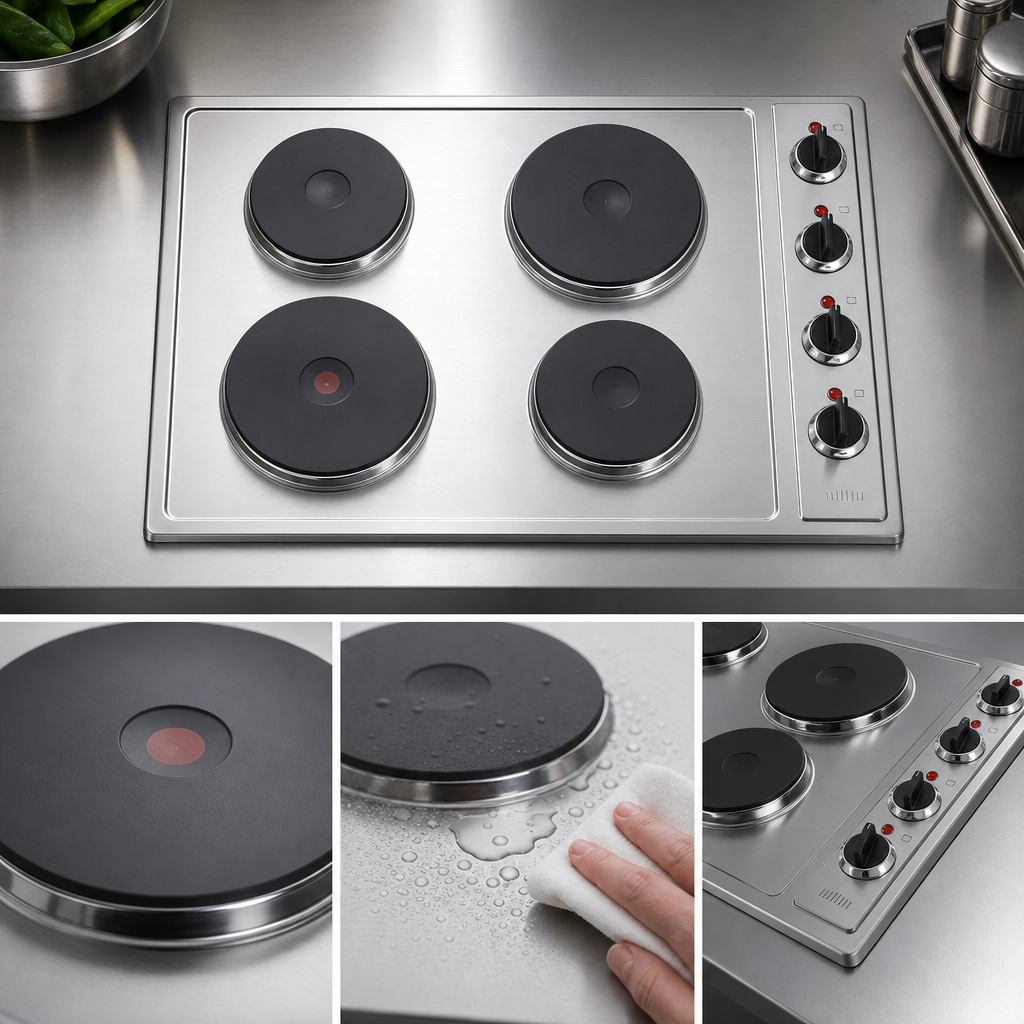

Sealed Cast Iron Elements

Solid cast iron elements use a sealed burner design.

Built-In Installation

Designed for installation in a counter cutout measuring 28.5 inches wide by 19.75 inches deep.

Push-To-Turn Controls

Manual push-to-turn controls provide burner operation.

Operating Indicator Lights

Operating indicator lights are included.

Electrical Specification

Operates at 230 Volts, 23 Amps, 60 Hz, and single-phase power.

Frequently Asked Questions

It has four sealed solid cast iron elements.
The cooktop has one 8-inch 2,000-watt element, one 8-inch 1,500-watt element, and two 6-inch 1,000-watt elements.
It fits a counter cutout measuring 28.5 inches wide by 19.75 inches deep.
It is rated for 230 Volts, 23 Amps, 60 Hz, and 1-phase power.
