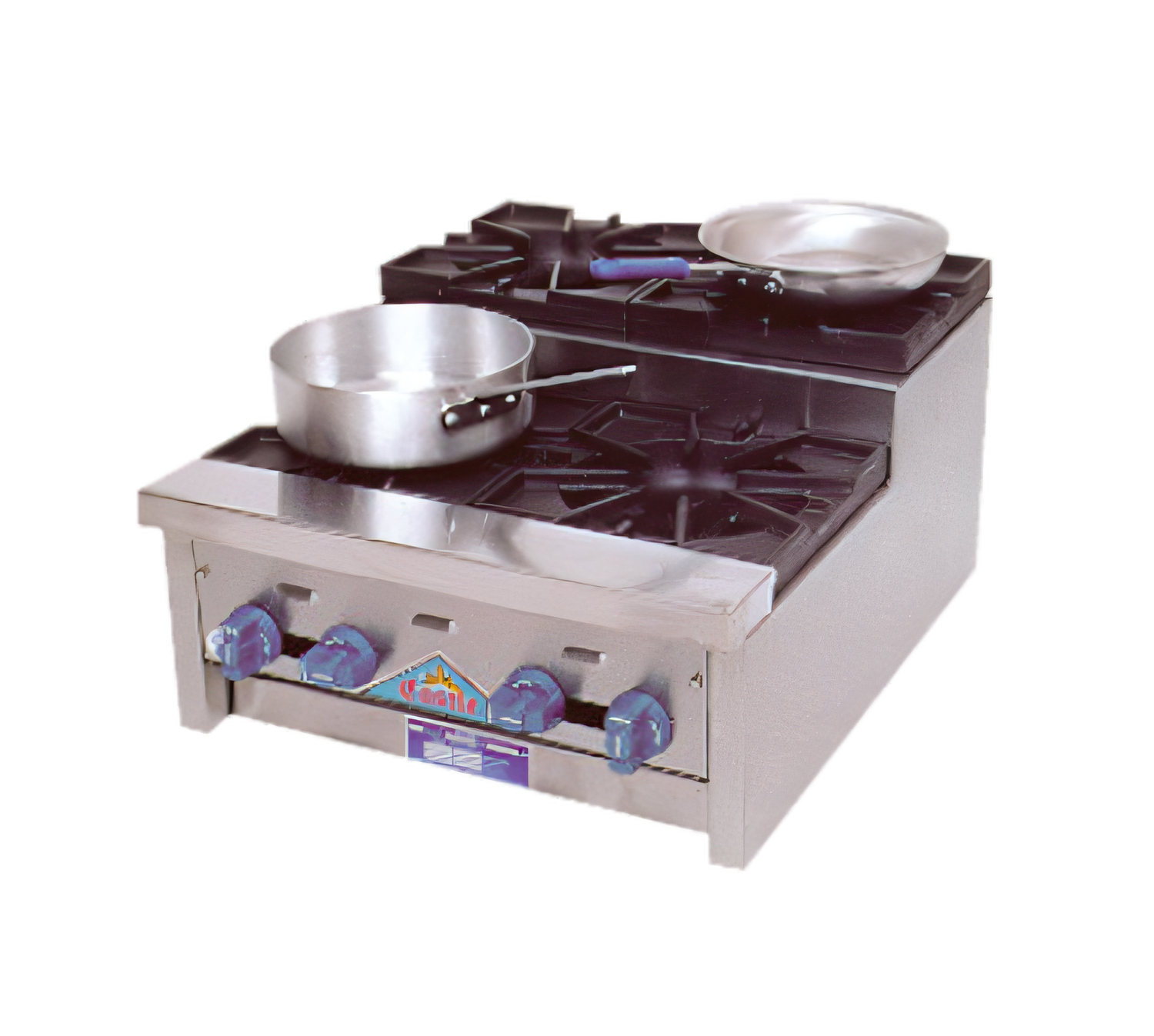

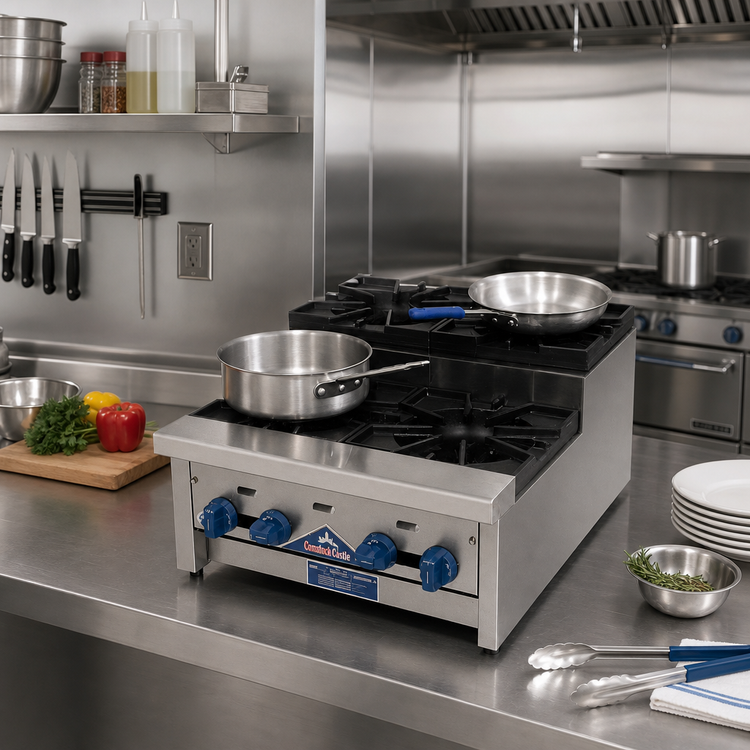

Comstock-Castle SUFHP24 24-Inch Countertop Gas Step-Up Saute Hotplate with 4 Burners

Stainless Steel Exterior, 96,000 BTU Total, 3/4-Inch NPT Connection

Built for compact high-output cooking, this 24-inch step-up hotplate pairs four 24,000 BTU cast iron star burners with a durable stainless steel frame.

  • Four 24,000 BTU cast iron star burners provide 96,000 BTU total output.
  • 12" x 12" cast iron grates with aeration bowls help catch spills and spread heat.
  • Stainless steel exterior and welded double-walled cabinet frame are built for easy cleanup.
  • Brass gas valves and automatic standing pilots support dependable manual control.
  • 3/4" NPT gas connection; factory-regulated for the gas type specified on the order.
  • Matches FHP series griddles and char-broilers, with optional accessories available.

Overall Dimensions:

24.0"W x 28.75"D x 15.0"H

Product Weight:

170.0 lb

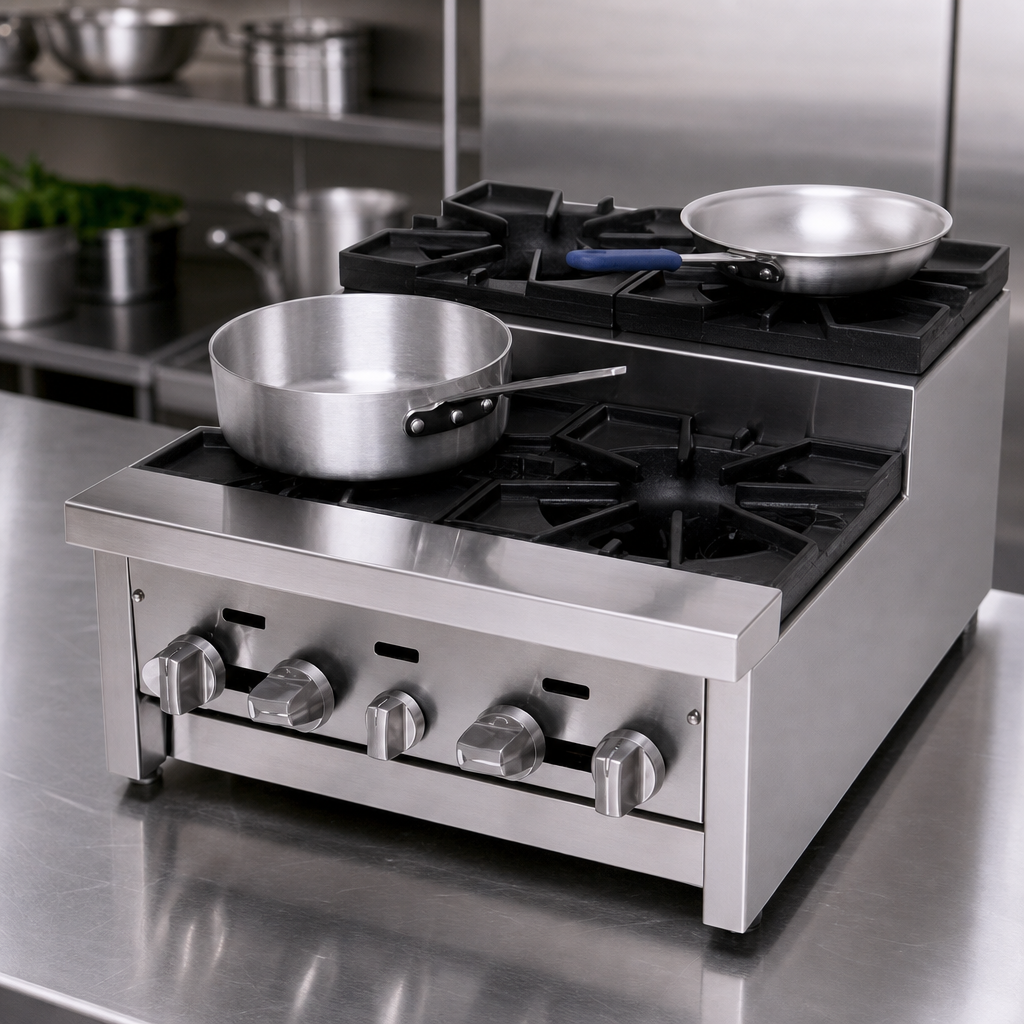

Stainless Steel Construction

Corrosion-resistant stainless steel exterior with a welded double-walled cabinet frame and stainless front control panel for durability and easy cleaning.

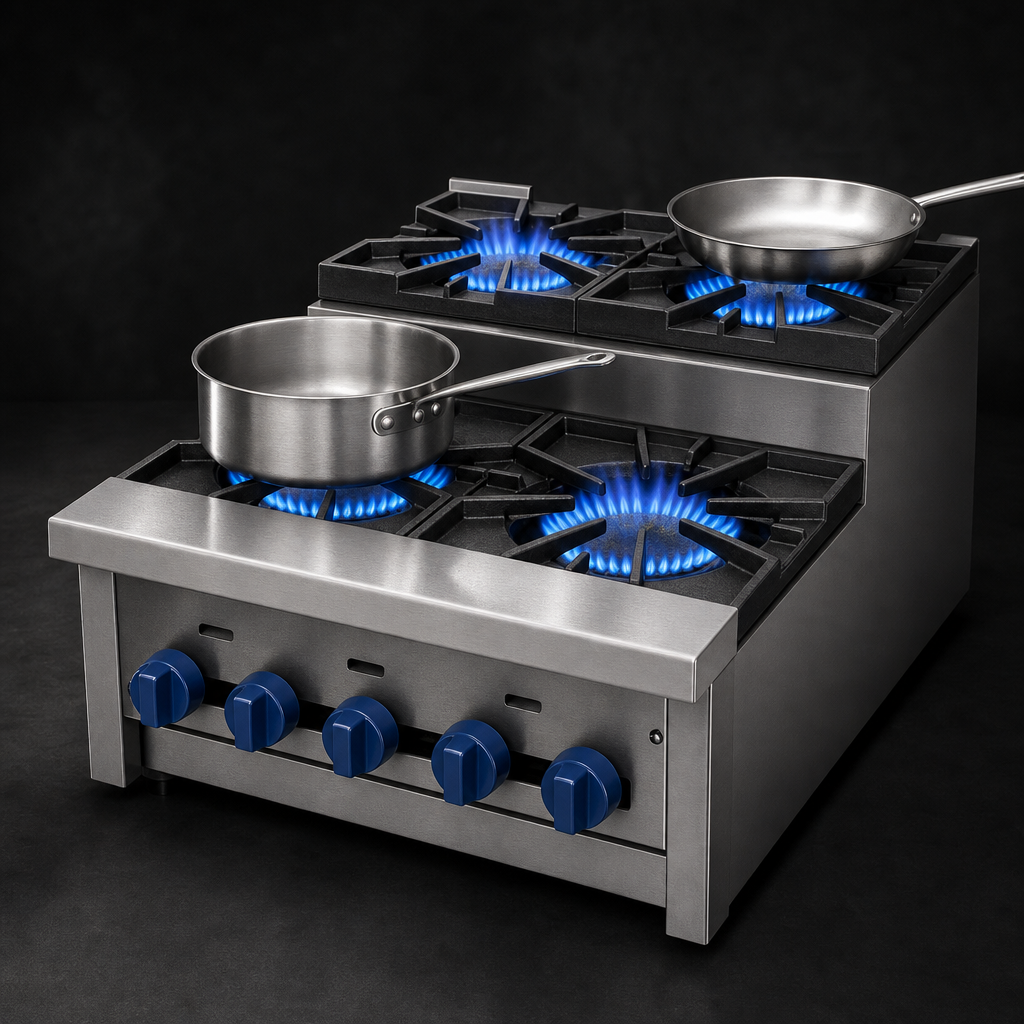

High-Output Star Burners

Four cast iron open top burners are rated at 24,000 BTU each and feature an extra-large 7-inch flame spread for efficient heating.

Cast Iron Top Grates

12" x 12" solid cast iron grate sections include cast-in aeration bowls to catch spills and reflect heat upward for better burner efficiency.

Manual Gas Controls

Equipped with brass gas valves and automatic standing pilots; pressure regulators are factory set for the gas type specified.

Countertop Step-Up Design

Compact 24-inch wide step-up hotplate configuration designed for countertop installation and efficient pot movement across the top sections.

Installation Clearances

Requires 0-inch side and rear clearances for non-combustible surfaces, or 6 inches on the sides and rear for combustible surfaces.

Accessory Compatibility

Hot matches with FHP series griddles and char-broilers, and accepts optional accessories such as legs, griddle plates, char-broilers, hoses, and equipment stands.

Type Hotplate
Style Step-Up
Installation Type Countertop
Material Stainless Steel
Finish Stainless Steel
Controls Manual
Burner Quantity 4
BTU 96,000 BTU
Gas Connection Size 3/4 Inch NPT
Shipping Width 24 Inches
Shipping Depth 29 Inches
Shipping Height 15 Inches
Shipping Weight 170 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It has four cast iron star-pattern burners, each rated at 24,000 BTU, for 96,000 BTU total.
It uses 12" x 12" solid cast iron top grates with cast-in aeration bowls.
The factory regulator is set for the gas type specified on the order: 4" W.C. for natural gas or 10" W.C. for propane.
Non-combustible surfaces require 0-inch side and rear clearances; combustible surfaces require 6 inches on the sides and rear.
Optional accessories include legs, lift-off griddle plates, lift-off char-broilers, gas hoses, knob protectors, carrying handles, spatulas, scrapers, and matching equipment stands.
The standard warranty is 1 year for parts and labor from the original installation date, with special limitations for food trucks, trailers, tents, and outdoor installations.
