Key specifications
- Phase
- 1-Phase or 3-Phase
- Dimensions
- 48.0"W × 29.0"D × 15.4"H
- Type
- Griddle
- Installation Type
- Countertop
- Material
- Stainless Steel
- Finish
- Smooth Steel
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The CS-48EG is a 48-inch countertop electric griddle with a stainless steel frame and smooth steel cooking plate.
- Four thermostat-controlled elements operate independently across a 150°F to 450°F temperature range.
- The cooking surface is 20.6 inches deep and 1 inch thick.
- Adjustable stainless steel legs support leveling, and a large-capacity grease drawer is provided.
- The rear junction box is wired in the field for 208/240 Volts and either 1-Phase or 3-Phase operation by a licensed electrical technician.
- A cord and plug must be provided by the installer.
Allow 1 inch of installation clearance on the sides and rear.
Overall Dimensions:
48.0"W x 29.0"D x 15.4"HProduct Weight:
525.0 lbThermostatic Controls
Four thermostat-controlled elements operate independently with a 150°F to 450°F temperature range.
Smooth Steel Plate
The cooking surface is 20.6 inches deep and 1 inch thick.
Stainless Steel Frame

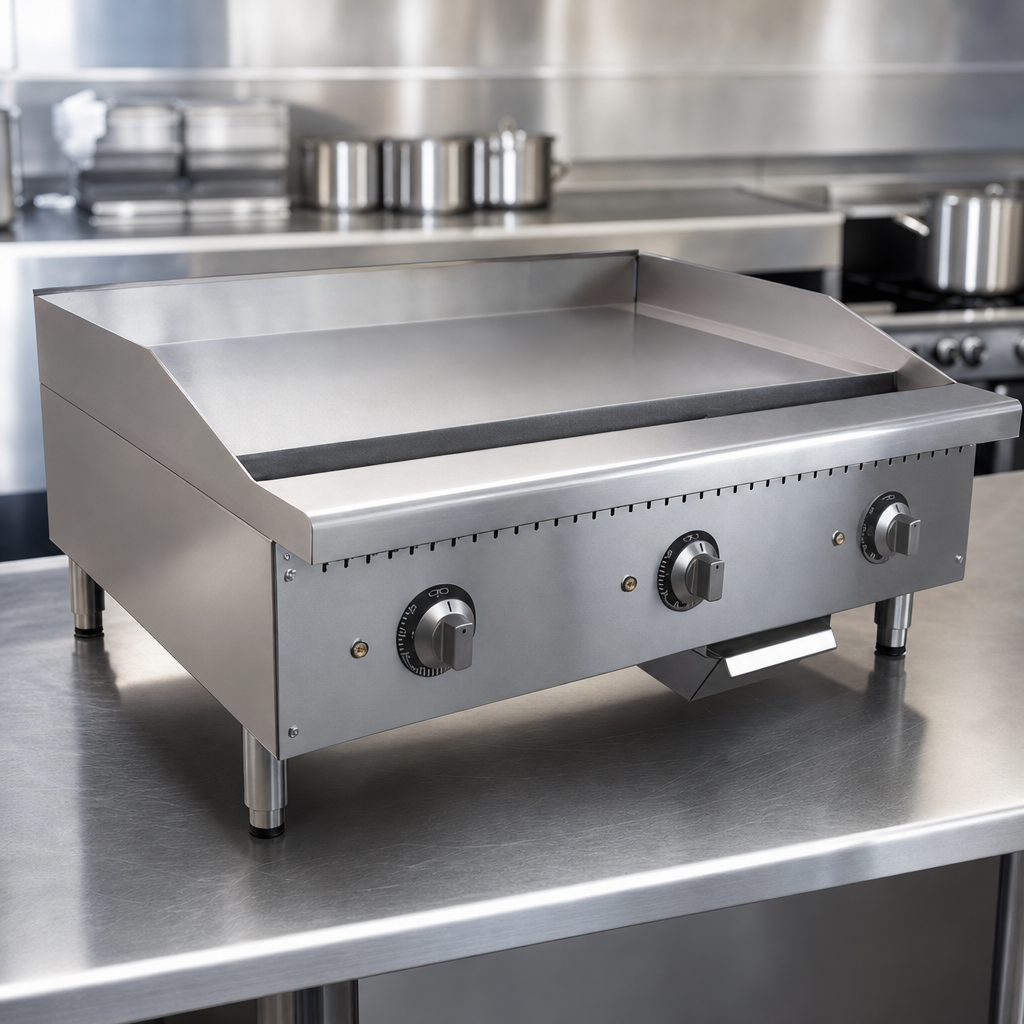

Stainless steel frame construction includes adjustable stainless steel legs for leveling.
Grease Drawer
A large-capacity grease drawer is provided.
Field-Wirable Junction Box
The junction box supports field wiring for 208/240 Volts and either 1-Phase or 3-Phase operation by a licensed electrical technician.
Installation Clearance
Allow 1 inch of clearance on the sides and rear.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
