Component Hardware Encore GHM-100H72 Moveable Gas Hose, 72" Length, 1" Connection, Stainless Steel Braided PVC Coated

SKU: GHM-100H72
$336.47
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

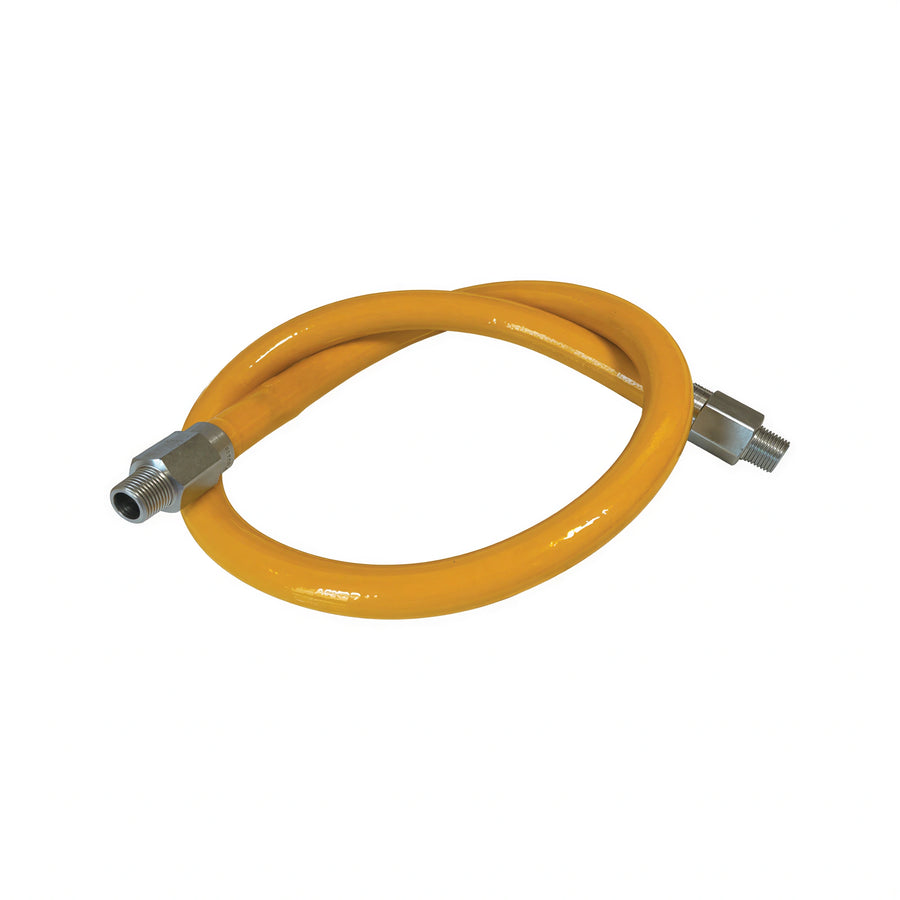

The Encore GHM-100H72 is a 72-inch movable gas hose with 1-inch NPT male freespin inlet and outlet connections, designed for commercial appliances.

  • PVC-coated stainless steel braided construction
  • 360° rotatable hex nut for installation flexibility
  • Maximum gas pressure of 1/2 psi and maximum temperature of 350°F
  • Rated capacity of 432,000 BTU/hr under the stated test conditions

Installation and testing must be performed by a qualified professional in accordance with applicable gas installation codes.

Overall Dimensions:

72.0"W

Product Weight:

5.48 lb

Commercial appliance application

Specifically designed for commercial appliances.

PVC-coated stainless steel braid

Stainless steel braided construction with a PVC protective coating.

Freely rotating ends

The 360° rotatable hex nut rotates completely and freely.

NPT male freespin connections

Includes an NPT male freespin inlet and an NPT male freespin outlet.

Welded construction

The brochure identifies welded construction for the commercial foodservice gas hose.

Corrugated tubing

Stainless steel corrugated tubing provides flexibility for installation.

Gas flow capacity

The product documentation lists a 432,000 BTU/hr capacity for the 1-inch by 72-inch configuration under stated test conditions.

Related Searches

Best Sellers Component Hardware Cooking Equipment Cooking Gas & Steam Connections Equipment Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts
Product Type Movable gas hose
Connection Size 1 in.
Connection Type 1 in. NPT male freespin inlet and 1 in. NPT male freespin outlet
Hose Length 72 in.
Material PVC-coated stainless steel braid
Construction Welded construction with corrugated stainless steel tubing
End Rotation 360°
Maximum Gas Pressure 1/2 psi
Maximum Temperature 350°F
Gas Capacity 432,000 BTU/hr at 72 in., 1 in. NPT x 1 in. NPT, based on gas with a 1,000 BTU/ft³ heating value, 0.64 specific gravity, and 0.5 in. w.c. pressure drop

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Five-year limited warranty.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Installation instructions PDF Download

Frequently Asked Questions

The GHM-100H72 has a 72-inch hose length.
It uses 1-inch NPT male freespin inlet and outlet connections.
It has a stainless steel braided construction with a PVC coating.
The maximum gas pressure is 1/2 psi.
The maximum temperature is 350°F.
The documentation lists ANSI Z21.69 / CSA 6.16, NSF 2, and NFPA 54.
The product is covered by a five-year limited warranty for Encore gas connectors.
