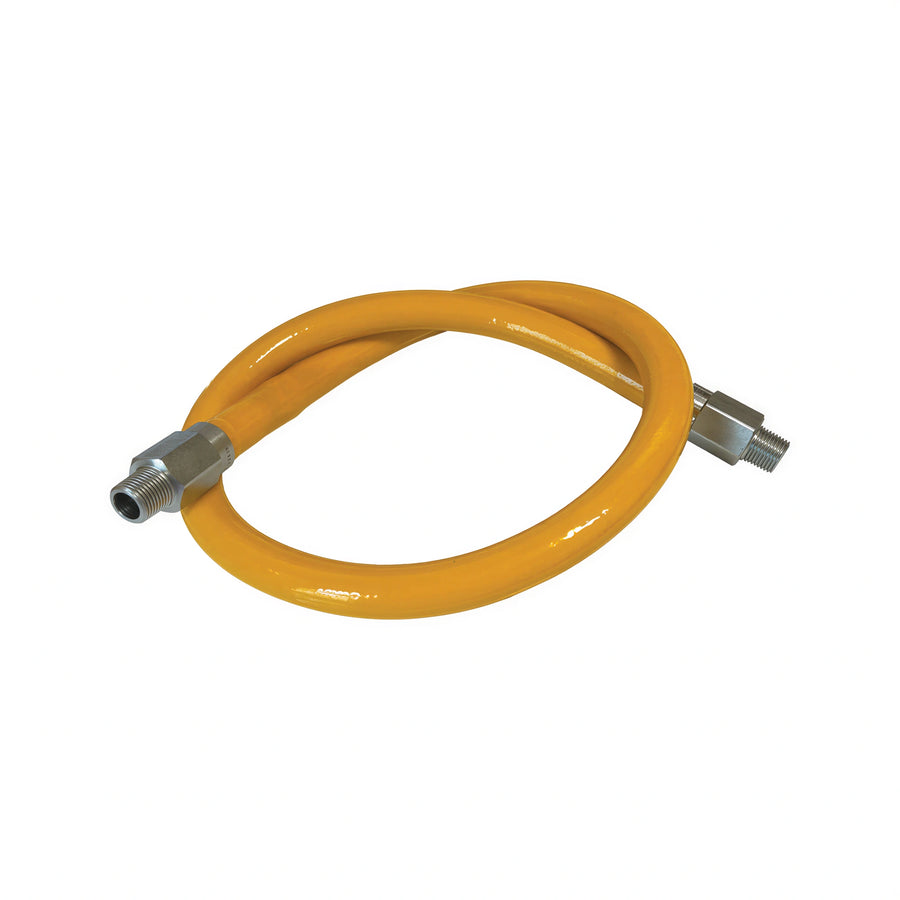

Play manufacturer video for Component Hardware Encore GHM-100H48 Moveable Gas Hose, 48" Length, 1" Connection, PVC-Coated Stainless SteelComponent Hardware Encore GHM-100H48 Moveable Gas Hose, 48" Length, 1" Connection, PVC-Coated Stainless Steel
SKU: GHM-100H48
$291.53
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout
The Encore GHM-100H48 is a moveable gas hose designed for commercial appliances. It has a 48-inch length, a 1-inch connection, and stainless steel braided construction with a PVC coating.
- Connections: NPT male freespin inlet and outlet.
- Installation: 360° rotatable hex nut rotates completely and freely.
- Ratings: Maximum gas pressure of 1/2 psi and maximum temperature of 350°F.
Overall Dimensions:
48.0"WMoveable gas hose
Designed for use with commercial appliances.
PVC-coated stainless steel braid
Constructed with stainless steel braids and a PVC coating.
Male freespin connections
Includes an NPT male freespin inlet and NPT male freespin outlet.
360° rotational end
The hex nut rotates completely and freely for installation.
Connection Size
1"
Hose Length
48"
Material
PVC-coated stainless steel braid
Connection Type
NPT male freespin inlet and outlet
Maximum Gas Pressure
1/2 psi (3.5 kPa)
Maximum Temperature
350°F
Gas Capacity
475,000 BTU/hr for 1-inch NPT x 1-inch NPT at 48 inches, based on a 0.5 in. w.c. pressure drop, 1,000 BTU/ft³ heating value, and 0.64 specific gravity
Certifications & Compliance
Warranty & Protection
Five-year limited warranty on Encore gas connectors.
Frequently Asked Questions
The GHM-100H48 has a 1-inch connection.
The hose length is 48 inches.
It uses stainless steel braids with a PVC coating.
The maximum gas pressure is 1/2 psi (3.5 kPa).
The product is covered by a five-year limited warranty for Encore gas connectors.
The product documentation lists ANSI Z21.69 / CSA 6.16, NSF 2, and NFPA 54.
