CMA Energy Mizer 181-VL High Temperature Heat Recovery Undercounter Dishwasher / Glasswasher

SKU: 181 VL
$9,582.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers CMA Dishmachines Commercial Dishwashers Dishwashers Glass Washers New Arrivals Restaurant Equipment Undercounter Dishwashers Undercounter Dishwashers

CMA Energy Mizer 181-VL High Temperature Heat Recovery Undercounter Dishwasher / Glasswasher

Cold Water Only, 20 Racks/Hour, 208/240 Volts

This cold-water-only undercounter glasswasher uses heat recovery and a built-in booster heater to sanitize efficiently while reducing vapor and energy costs.

  • Requires only a cold water hookup, simplifying installation and reducing hot water demand.
  • Heat recovery helps reduce vapor and speeds drying for underbar applications.
  • Built-in Safe-T-Temp booster heater delivers hot water sanitizing with a 180°F final rinse.
  • Washes up to 20 racks per hour using standard 19-3/4" x 19-3/4" glass racks.
  • 304 stainless steel construction and stainless steel wash/rinse arms support long-term durability.
  • Top-mounted controls, digital LED temperature gauges, automatic fill, and chemical pumps streamline operation.

Overall Dimensions:

24.0"W x 27.0"D x 33.38"H

Product Weight:

272.0 lb

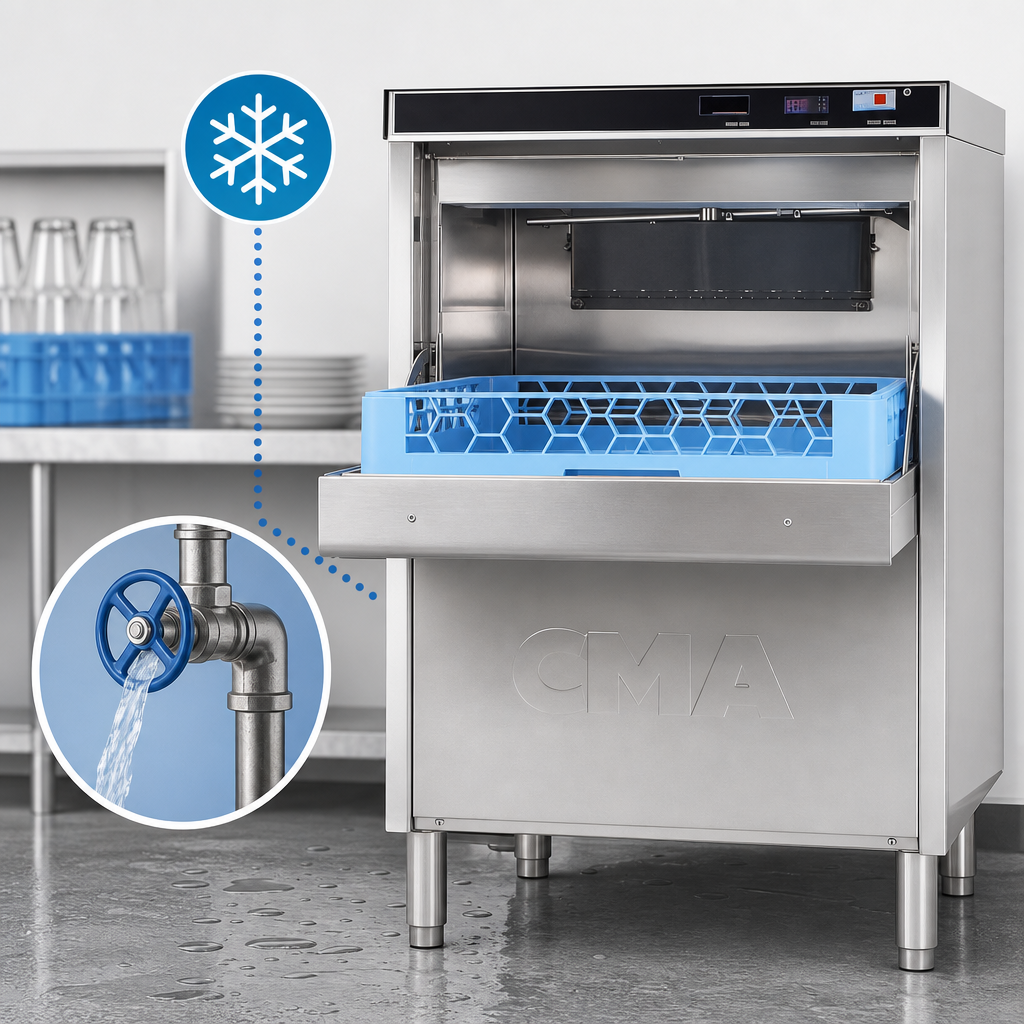

Cold Water Only Operation

Requires only a cold water supply, eliminating the need for a dedicated hot water hookup.

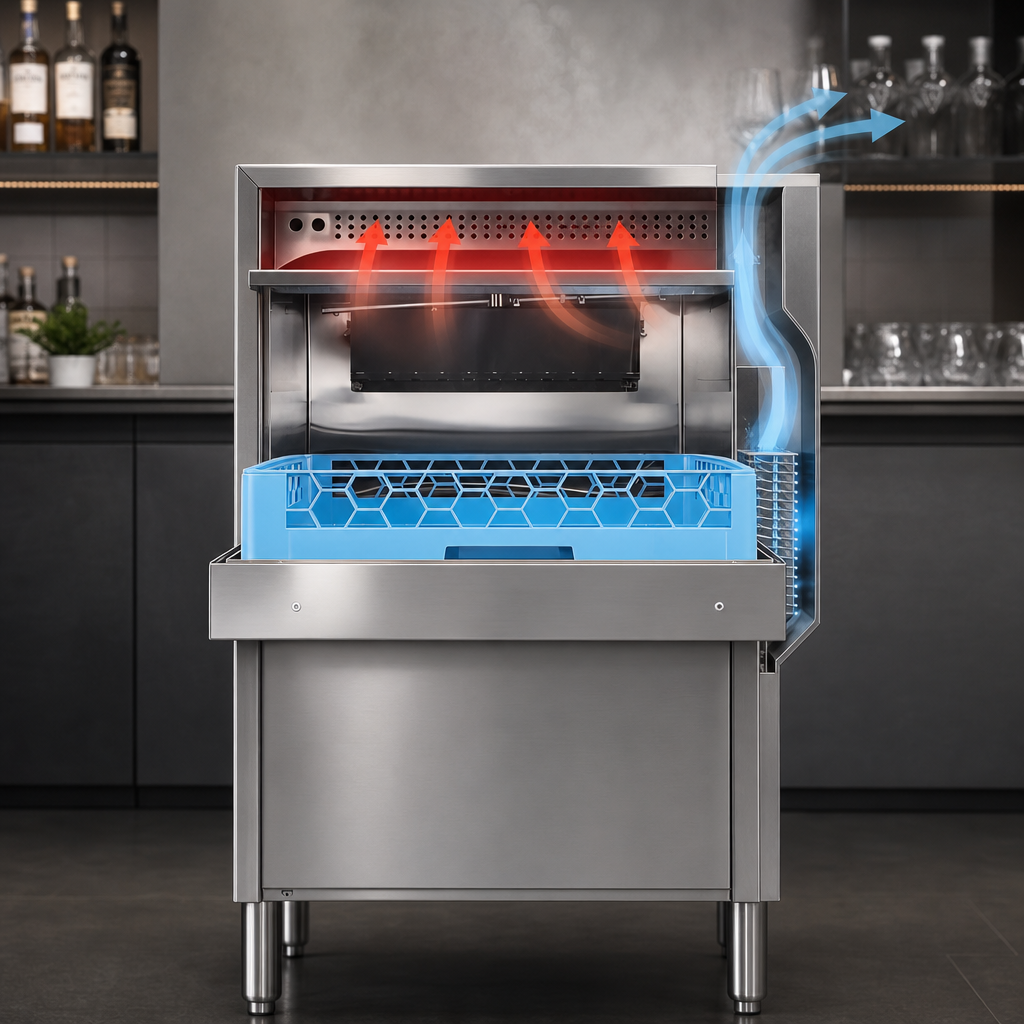

Heat Recovery System

Helps reduce water vapor and promotes faster drying, making it well suited for under-bar use.

Safe-T-Temp Booster Heater

Built-in booster heater provides a 70°F rise to support hot water sanitizing.

180°F Final Rinse Safety System

Ensures the unit reaches proper final rinse temperature before the cycle completes.

304 Stainless Steel Construction

Durable stainless steel build with upper and lower stainless steel wash and rinse arms.

Digital LED Temperature Gauges and Top-Mounted Controls

Easy-to-read gauges and accessible controls simplify monitoring and daily operation.

Automatic Fill, Chemical Pumps, and Pump Drain System

Automatic fill, detergent and rinse aid pumps, and a pump drain system help streamline operation.

Soft Start and Tall Clearance

Soft Start helps reduce noise and breakage, while 11-1/4" door clearance accommodates larger wares.

Standard Glass Rack Compatibility

Uses standard 19-3/4" x 19-3/4" glass racks and includes one glass rack.

Type Glass Washer
Style Door Type
Installation Type Undercounter
Material 304 Stainless Steel
Controls Digital
Racks Per Hour 20 Racks per Hour
Water Consumption 0.73 Gallons per Rack
Cycle Time 180 Seconds
Wash Pump 1 HP
Water Inlet Size 1/2 Inch
Drain Connection Size 1 Inch
Voltage 208/240 Volts
Amps 33.0/36.0 Amps
Hertz 60 Hz
Phase 1-Phase
Watts 5.3/7.1 kW
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 27 Inches
Shipping Height 34 Inches
Shipping Weight 272 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Diagram PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. The 181-VL requires only a cold water hookup and uses a built-in booster heater for sanitizing.
It is rated for up to 20 racks per hour.
It uses standard 19-3/4" x 19-3/4" glass racks.
The unit is available in 208 or 240 Volts, 1-Phase, 60 Hz, with 33.0 or 36.0 amps depending on voltage.
The door opening provides 11-1/4" of clearance for larger wares.
It includes heat recovery, top-mounted controls, digital LED temperature gauges, automatic fill, detergent and rinse aid pumps, and a pump drain system.
