CMA Dishmachines L-1C Energy Mizer Undercounter Dishwashers
CMA Dishmachines L-1C Energy Mizer Undercounter Dishwashers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
CMA Dishmachines L-1C Energy Mizer Undercounter Dishwashers
Description

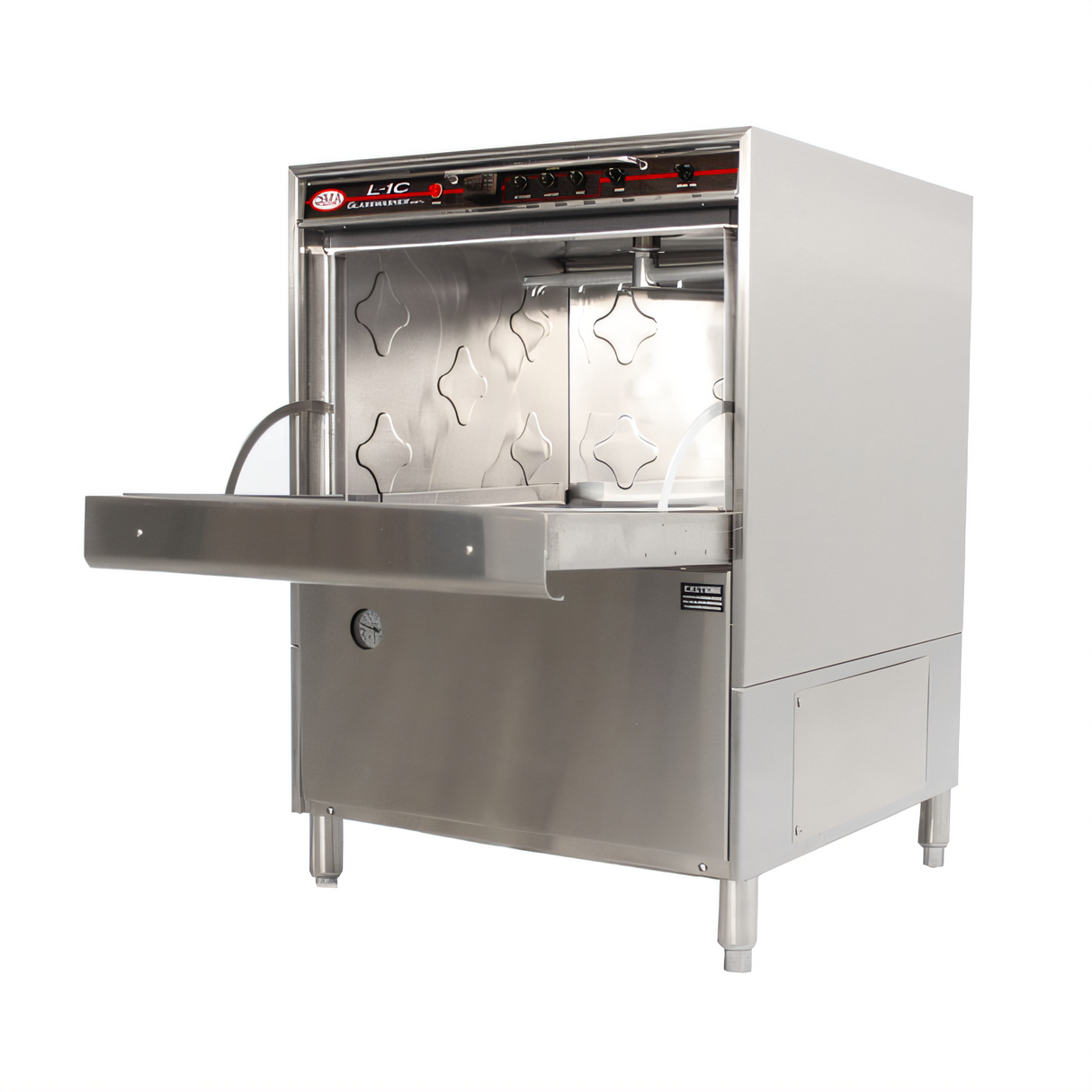

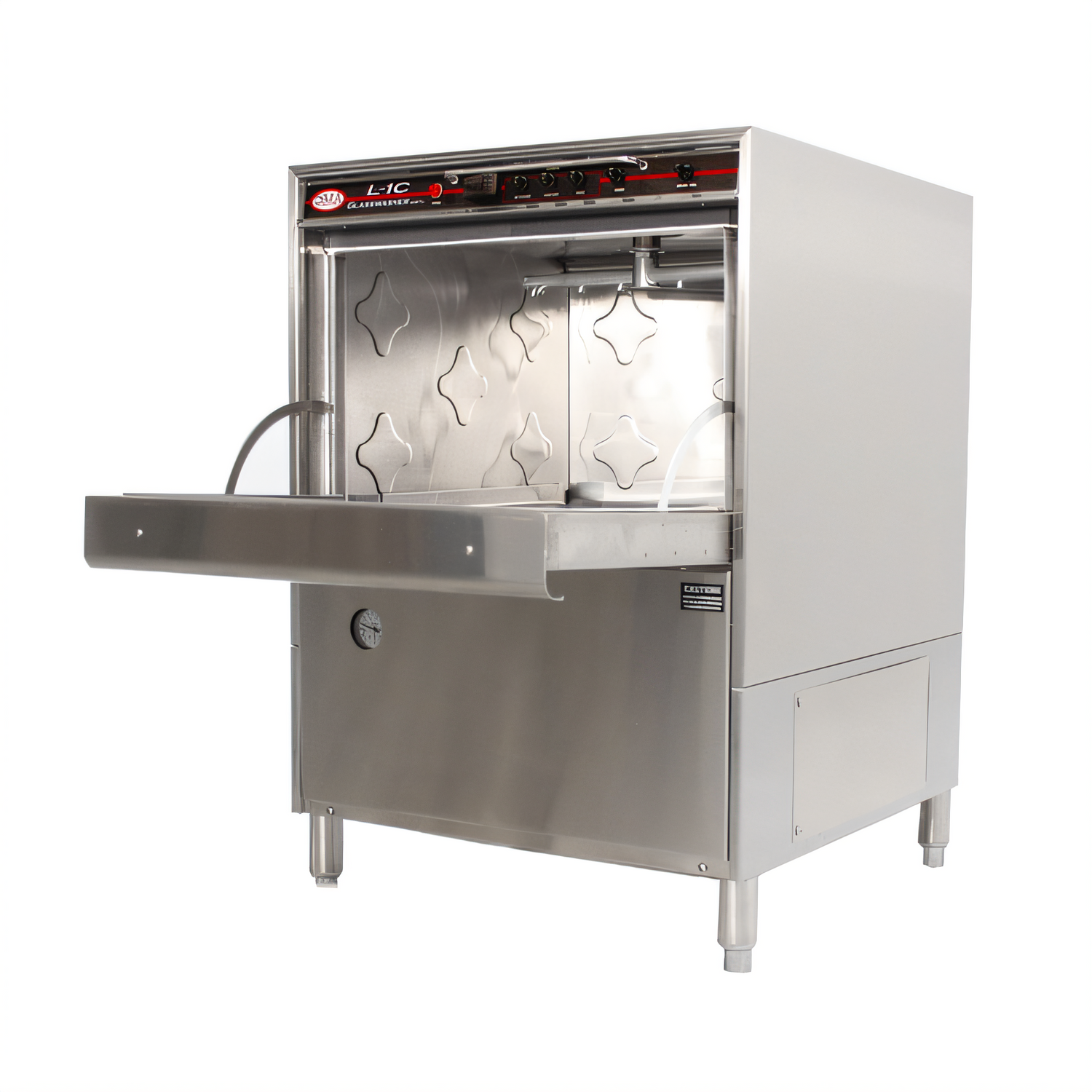

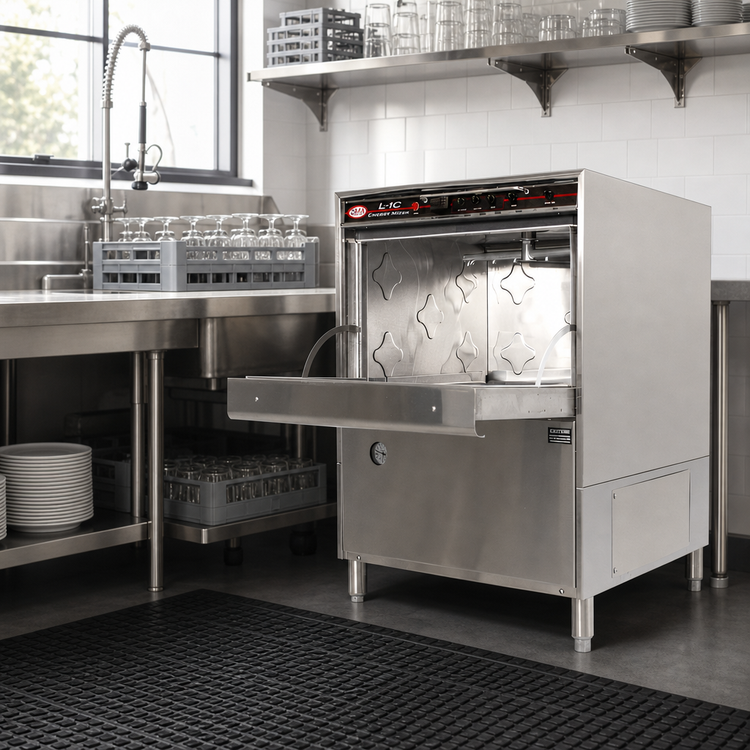

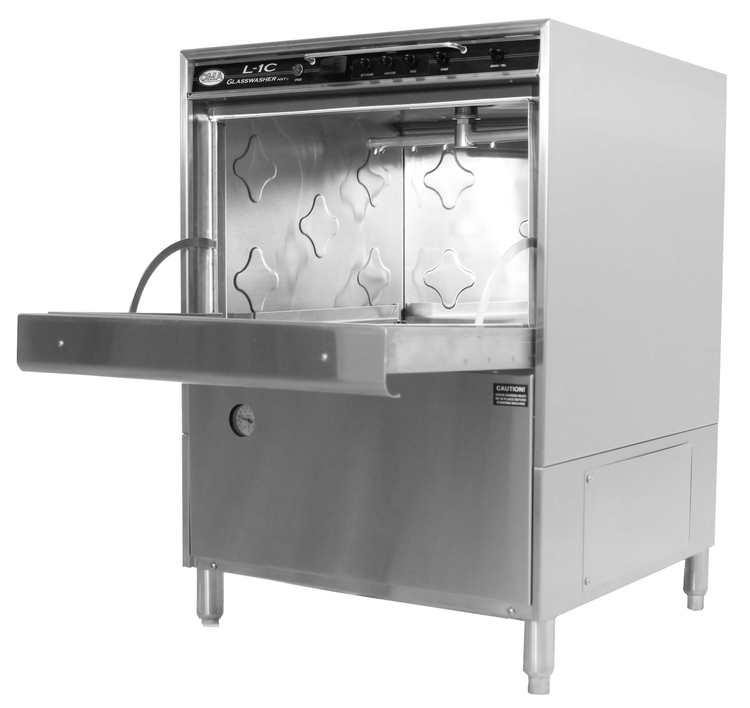

CMA Energy Mizer® L-1C Undercounter Glasswasher
Low-Temperature • 30 Racks / 120 Covers per Hour • NSF & cULus ListedQuiet, efficient and built to last—the Energy Mizer® L-1C delivers sparkling glasses and dishes while slashing water, chemical and energy costs. Its patented Noise Suppression Technology, stainless-steel construction and chemical-sanitizing rinse make it the perfect “behind-the-bar” solution for restaurants, cafés and tasting rooms.
Why You’ll Love It

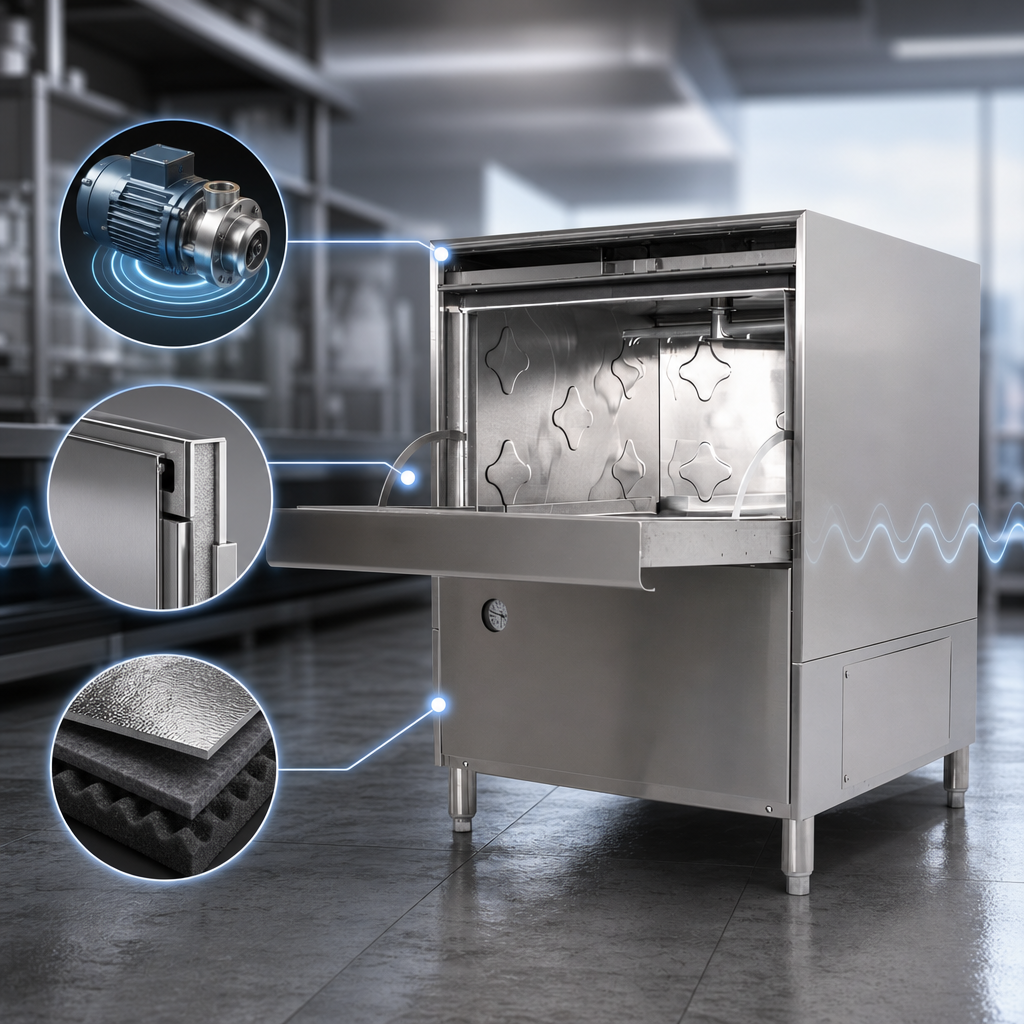

- Noise Suppression Technology (NST) cuts operational sound by up to 50 % for a more pleasant guest experience.
- Economical—uses only 1.7 gal. of water per cycle (≈51 GPH).
- Fast 2-minute cycles wash, rinse and sanitize up to 30 racks per hour.

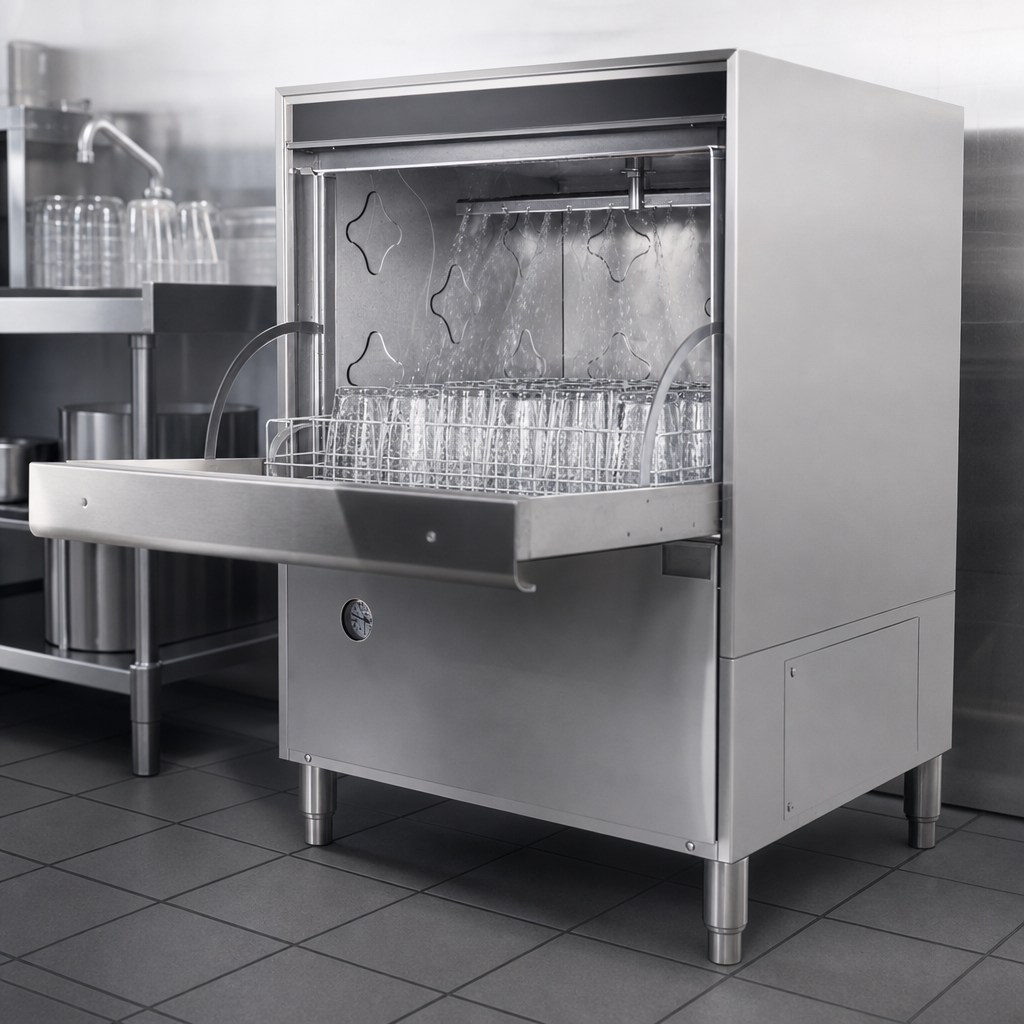

- Low-temperature chemical sanitizing eliminates the need for a costly booster heater.
- Double-wall, all-stainless construction adds durability, heat retention and quiet performance.
- Upper & lower stainless steel wash arms with reinforced end caps deliver full-coverage cleaning.
- Built-in detergent, sanitizer and rinse aid pumps ensure precise chemical dosing every cycle.
- Pumped drain—no floor drain required for flexible installation.
- Integrated pump-purge & deliming system reduces soil and scale buildup for better results and easier maintenance.
- Ships with one 16-compartment glass rack and adjustable 4" legs.
Technical Specifications
| Capacity | 30 racks / 120 covers per hour |
|---|---|
| Cycle Time | 2 min total (58 s wash • 32 s rinse • 30 s purge) |
| Water Usage | 1.7 gal. per rack |
| Wash Tank Capacity | 1.7 gal. |
| Pump | 1 HP, 35 GPM recirculating |
| Sanitizing Method | Low-temperature chemical (built-in pumps) |
| Door Clearance | 11" (accommodates tall stemware) |
| Rack Size (included) | 20" × 20" – 16-compartment glass rack |
| Dimensions (W × D × H) | 24" × 24" × 34–35" |
| Electrical | 115 V / 1-ph / 16 A |
| Water Inlet / Drain | ½" NPT / 1" OD pumped drain |
| Certifications | NSF, cULus |
| Shipping Weight | ≈203 lb |
For optimal performance CMA recommends incoming water at 120 °F minimum (140 °F ideal) and hardness ≤ 3.5 gpg. A standard tank-style water heater is advised.
Peace-of-Mind Coverage
Every Energy Mizer® glasswasher is backed by CMA’s one-year parts & labor warranty when installed by a qualified technician and registered within 30 days of purchase.
