Key specifications

Amps
15 Amps
Phase
1-Phase
Dimensions
48.0"W × 22.0"D × 38.0"H
Type
Glasswasher
Style
Pass-Through
Installation Type
Undercounter
Spec sheet
Champion SKU: CG4

Champion CG4 Conveyor Glasswasher, 2,000 Glasses/Hour

$18,501.63
/each
Estimated to ship in 15–18 business days Free Shipping
Cabinet width
Conveyor directionRequired
Accessories
Included: Champion warranty 1-year parts and 90-day labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,711/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Glasswasher
Style Pass-Through
Installation Type Undercounter
Material Stainless Steel
Capacity Approximately 2,000 2-1/2 in Glasses/Hour
Conveyor Type Straight Conveyor
Conveyor Material Polypropylene
Sanitizing Method Low-Temperature Chemical Sanitizing
Controls Built-In
Chemical Pump Count 3
Conveyor Direction Left-to-Right or Right-to-Left
Wash and Rinse System Upper and Lower Spray System
Splash Curtain Count 2
Water Consumption Approximately 2.6 GPM
Hot Water Initial Fill 3 Gal
Maximum Water Use Approximately 10 GPH
Tank Heat 3 kW
Voltage 208-230 Volts
Amps 15 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Cord Length 4 ft
Hot Water Connection 1/2 in IPS
Cold Water Connection 1/2 in IPS
Drain Connection 1-1/2 in Tailpiece
Conveyor Speed 14 in/min

Description

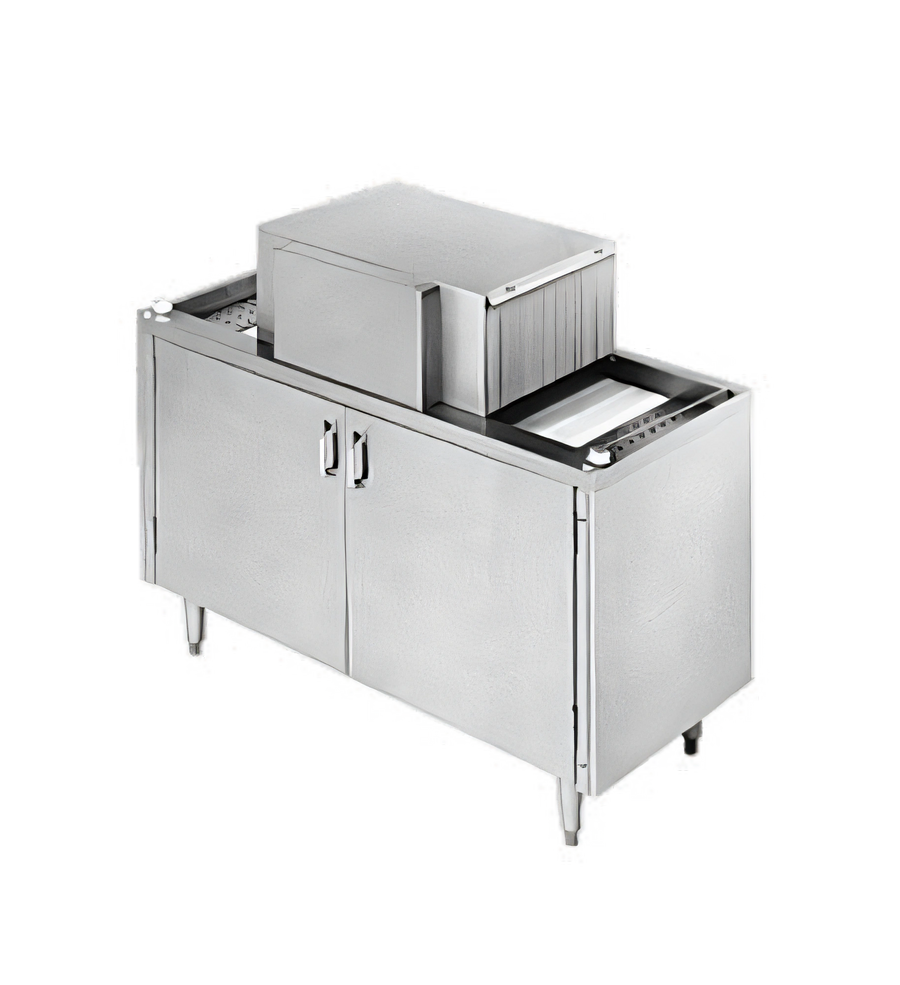

The Champion CG4 is a 48-inch straight conveyor underbar glasswasher with stainless steel construction and low-temperature chemical sanitizing.

It features a polypropylene conveyor with a glass-activated on/off stop, three built-in chemical dispensing pumps, an electric tank heater, upper and lower wash and rinse spray systems, and two splash curtains.

  • Processes approximately 2,000 2-1/2-inch glasses per hour
  • Supports left-to-right or right-to-left operation
  • Uses a 4-foot cord with a NEMA 6-15P plug

Overall Dimensions:

48.0"W x 22.0"D x 38.0"H

Product Weight:

227.0 lb

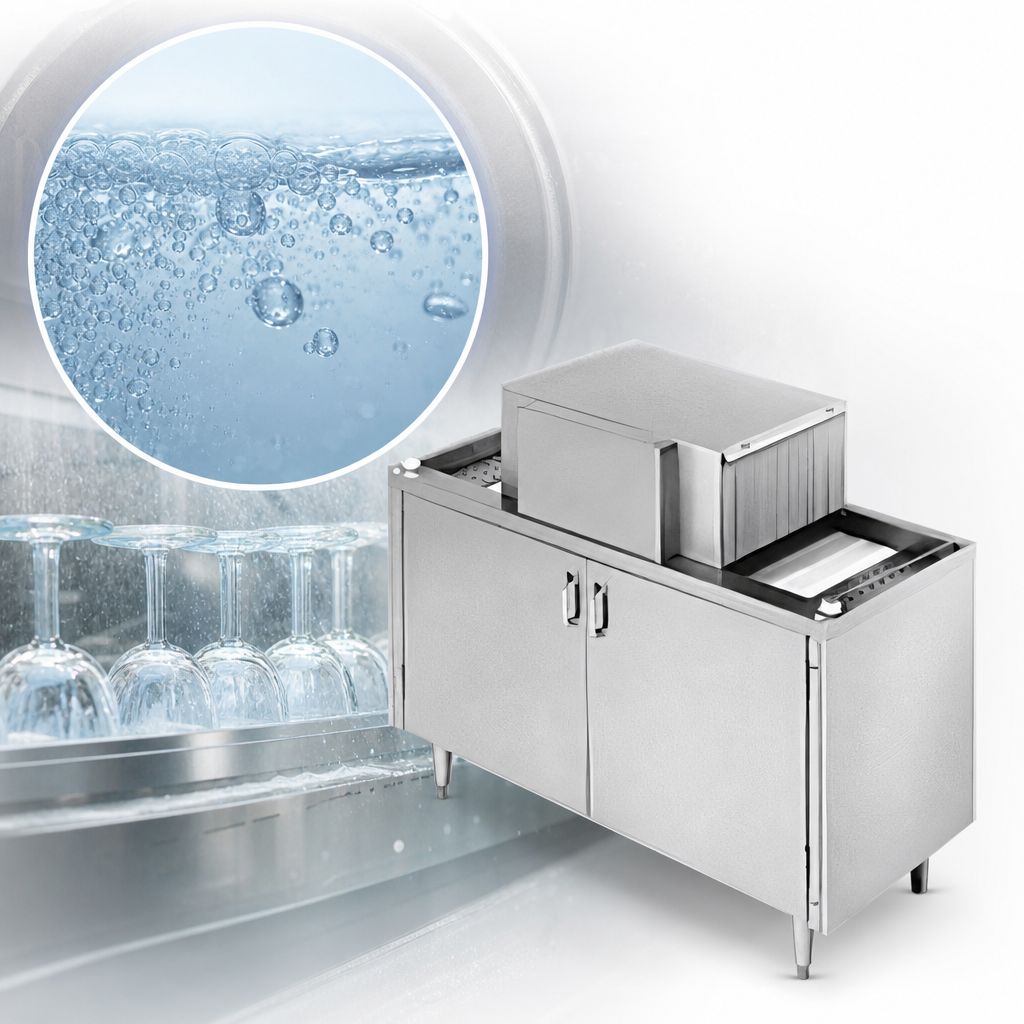

Low-Temperature Chemical Sanitizing

The documented sanitizing method is low-temperature chemical sanitizing.

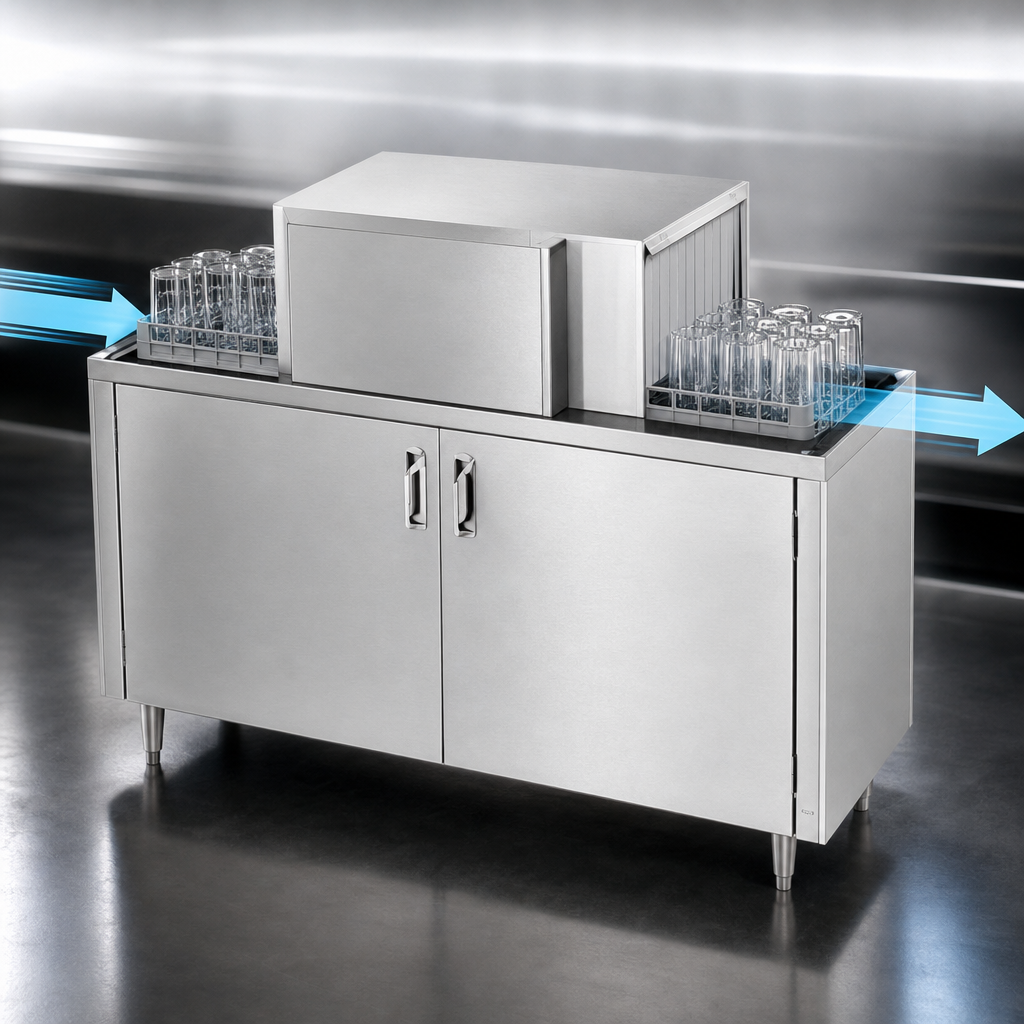

Straight Conveyor

A polypropylene conveyor with a glass-activated on/off stop is specified.

Chemical Dispensing Pumps

Three built-in pumps are specified for detergent, sanitizer, and rinse aid.

Upper and Lower Wash and Rinse Spray

Directional Operation

The unit supports left-to-right or right-to-left operation.

Electric Tank Heater

Stainless Steel Construction

Splash Curtains

The unit includes two splash curtains.

Frequently Asked Questions

The CG4 processes approximately 2,000 2-1/2-inch glasses per hour.
It uses low-temperature chemical sanitizing.
Yes. The unit supports left-to-right or right-to-left operation.
The specified electrical service is 208-230 Volts, 60 Hz, single-phase, 15 Amps, with a NEMA 6-15P plug.
The product is 48 inches wide, 22 inches deep, and 38 inches high, with a listed weight of 227 pounds.
The specified warranty is 1 year on parts and 90 days on labor.
