Key specifications

Amps
15 Amps
Phase
1-Phase
Dimensions
25.0"W × 26.0"D × 39.0"H
Type
Glasswasher
Style
Rotary
Installation Type
Undercounter
Spec sheet
Champion SKU: CG

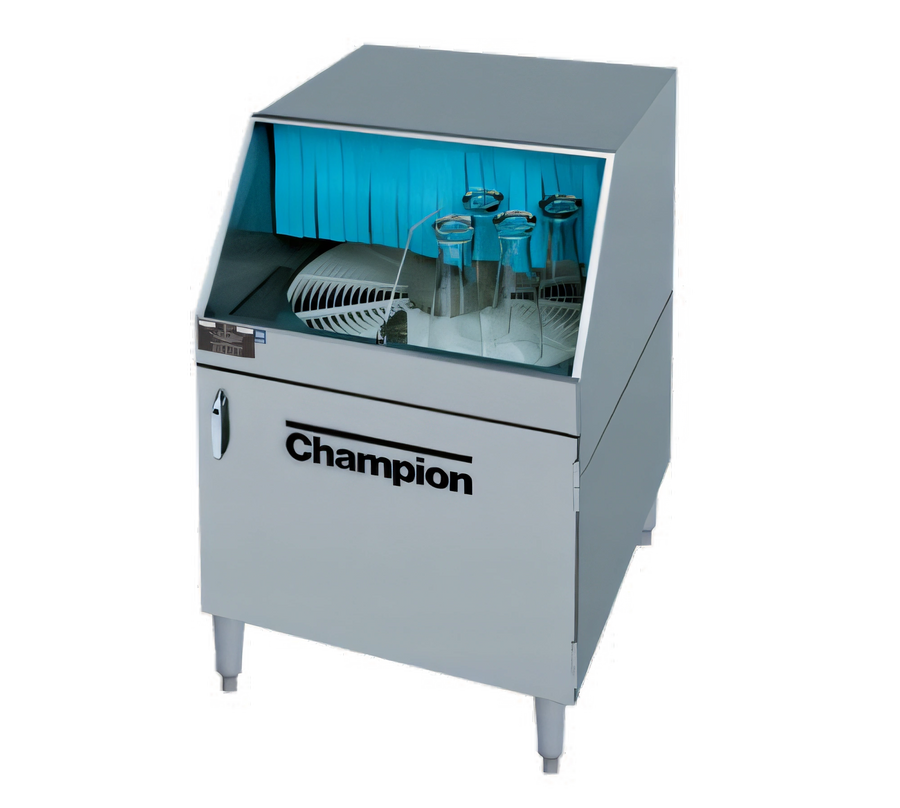

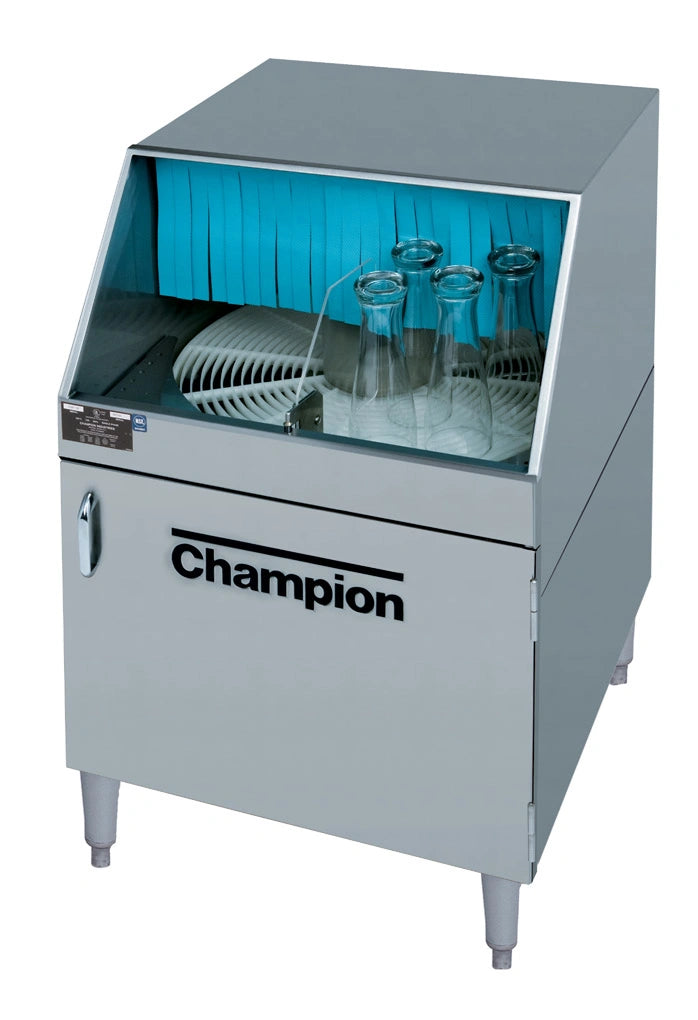

Champion CG Rotary Undercounter Glasswasher, 1,000 Glasses/Hour

$10,437.18
/each
Estimated to ship in 41–44 business days Free Shipping
Included: Champion warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $965/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Glasswasher
Style Rotary
Installation Type Undercounter
Material Stainless Steel
Capacity Approx. 1,000 Glasses/Hour
Sanitizing Temperature Low Temperature
Sanitizing Method Chemical Sanitizing
Conveyor Movement Clockwise
Glass Clearance 12 Inches
Glass Size 2-1/2 Inches
Voltage 208-230 Volts
Amps 15 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Cord Length 6 Feet
Tank Heat 3 kW
Water Consumption Approx. 2.6 GPM

Description

The Champion CG is an underbar rotary glasswasher with low-temperature chemical sanitizing, stainless steel construction, and clockwise conveyor movement. It is rated for approximately 1,000 2-1/2-inch glasses per hour.

  • 12-inch glass clearance accepts taller stemware.
  • Upper and lower wash and rinse arms.
  • Cool final rinse water.
  • Three-pump injection system for detergent, sanitizer, and rinse aid dispensing.
  • Double-walled construction and a polypropylene conveyor.
  • Front access door and an off-the-floor shelf for three 1-gallon containers.

Overall Dimensions:

25.0"W x 26.0"D x 39.0"H

Product Weight:

204.0 lb

Rotary Conveyor Design

Conveyor movement is clockwise.

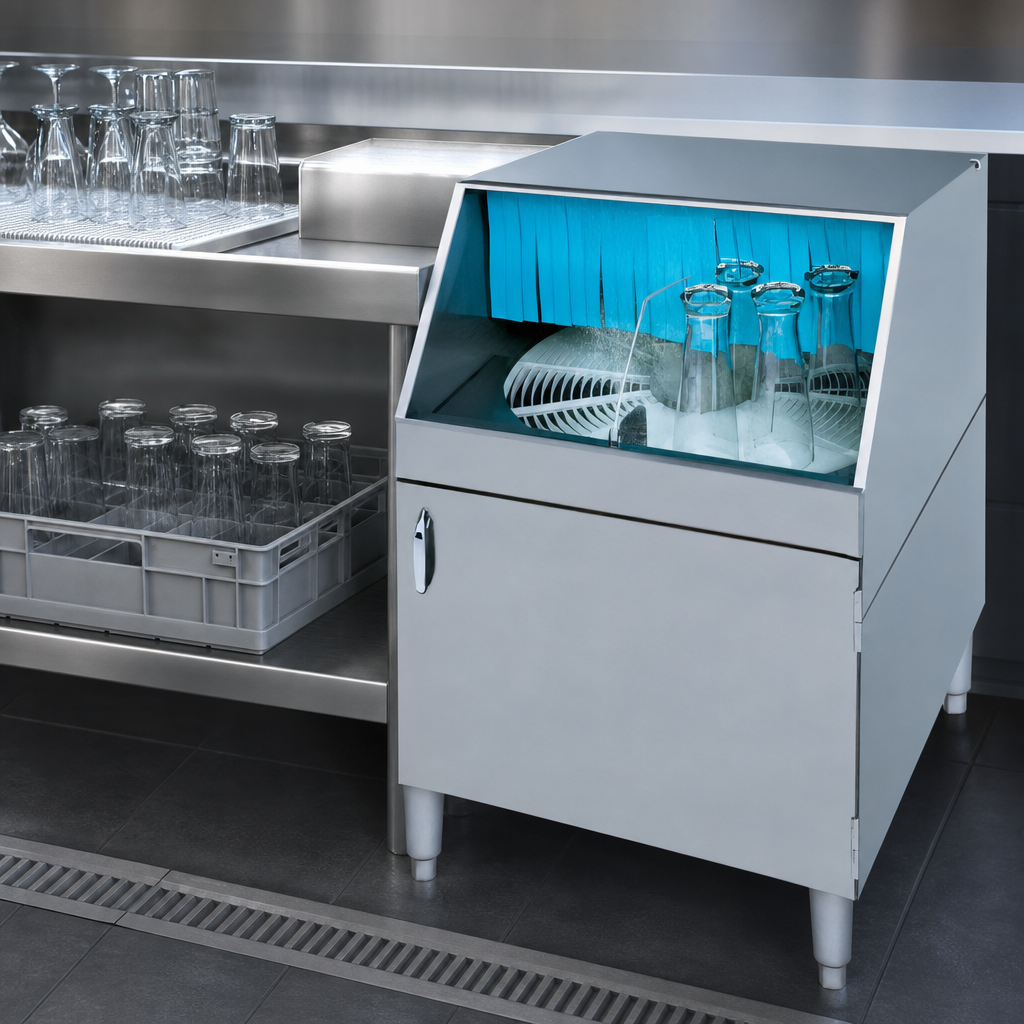

Low-Temperature Chemical Sanitizing

Uses chemical sanitizing at low temperature.

Glass Clearance

Provides 12 inches of clearance for taller stemware.

Wash and Rinse Arms

Includes upper and lower wash and rinse arms.

Three-Pump Injection System

Provides detergent, sanitizer, and rinse aid dispensing.

Cool Final Rinse

Uses cool water for the final rinse.

Double-Walled Construction

Double-walled construction supports quieter operation.

Off-the-Floor Shelf

Provides storage for three 1-gallon containers.

Frequently Asked Questions

Approximately 1,000 2-1/2-inch glasses per hour.
It uses low-temperature chemical sanitizing.
208-230 Volts, 60 Hz, 1-Phase, and 15 Amps, with a NEMA 6-15P plug and 6-foot cord.
The glass clearance is 12 inches.
A 1-year parts and labor warranty is specified.
