Key specifications

Amps
15.6 Amps
Dimensions
24.0"W × 24.0"D × 36.0"H
Type
Steam Table
Style
Open Base
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
BK Resources SKU: ST-SW-5 UPC: 840653189109

BK Resources ST-SW-5 5-Pan Sealed-Well Steam Table

$3,369.82
/each
Estimated to ship in 4–7 business days
Pan capacity
Casters
Included: BK Resources warranty 1-year parts-only warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $312/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Steam Table
Style Open Base
Installation Type Floor Model
Material Stainless Steel
Pan Capacity 5 Pans
Well Type Open Well
Working Height 33 in
Gauge 20 Gauge
Opening Type Die-Stamped
Heating Type Wet Heating Only
Controls Infinite Temperature Control
Well Control Independent
Indicator Lights Included
Pan Compatibility Full Size Food Pans
Board Material Poly
Drain Type Individual 1/2 in NPT
Voltage 240 Volts
Amps 15.6 Amps
Watts 3.75 kW
Power Per Well 750 Watts
Plug Type NEMA 6-30

Description

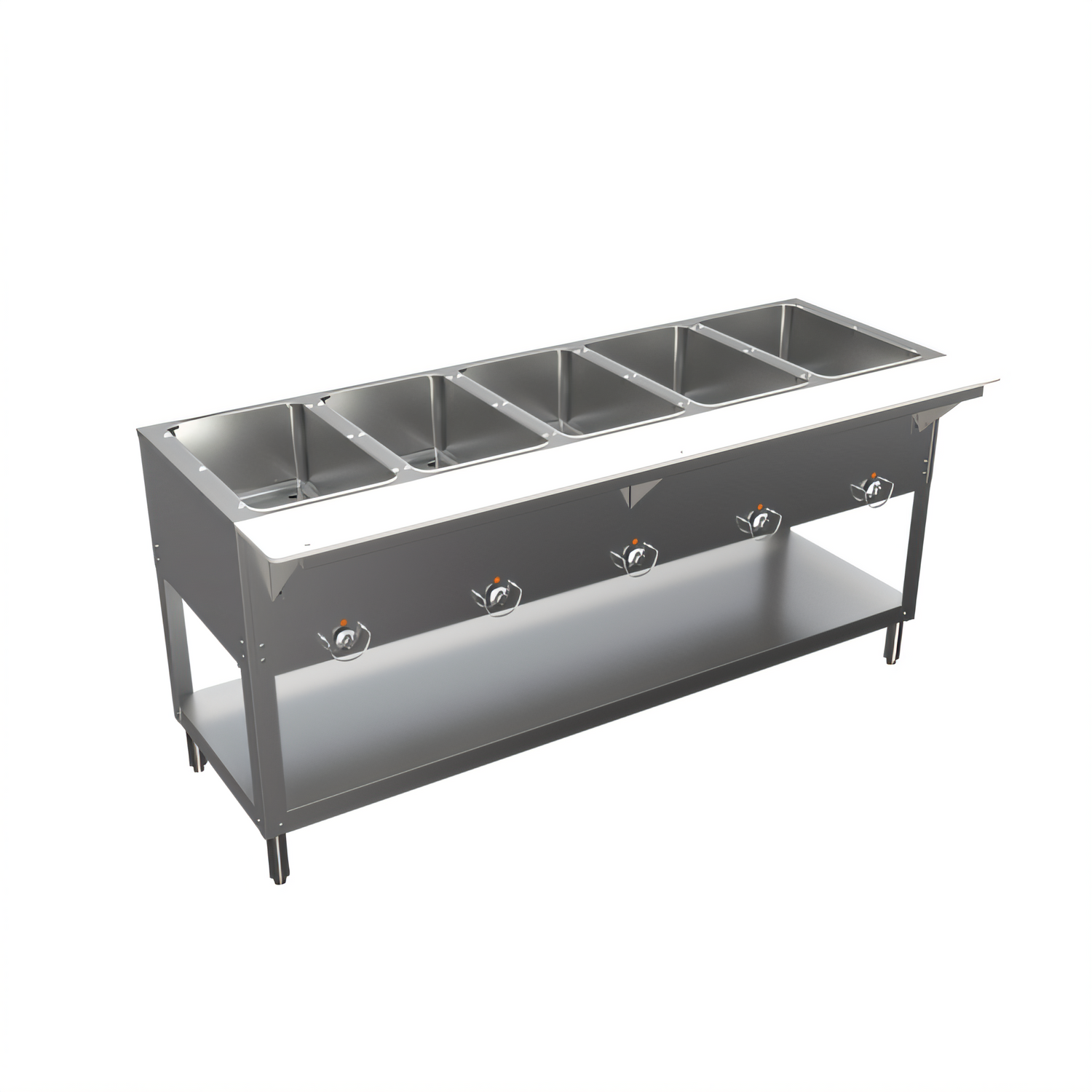

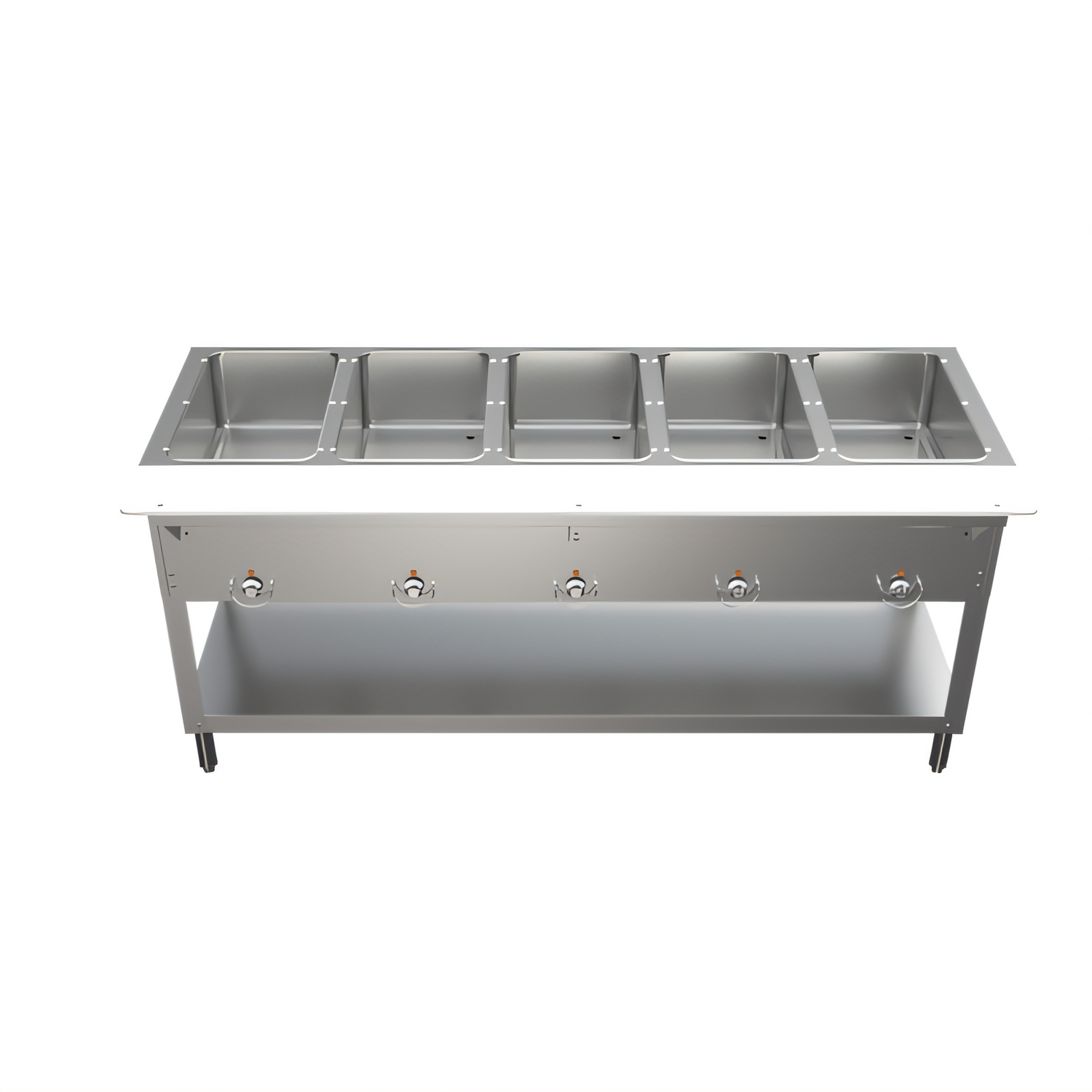

The BK Resources ST-SW-5 is an electric steam table with a 5-pan sealed-well design for full-size food pans. It is intended for wet heating only, with no water pans needed.

It features 20-gauge stainless steel construction, die-stamped openings, independently controlled wells with indicator lights, and infinite temperature control. A removable poly cutting board and stainless steel support shelf provide a work surface, while the undershelf stores water pans, lids, and utensils.

Each well provides 750 watts of heating power and includes an individual 1/2 in NPT drain.

Overall Dimensions:

24.0"W x 24.0"D x 36.0"H

Product Weight:

174.4 lb

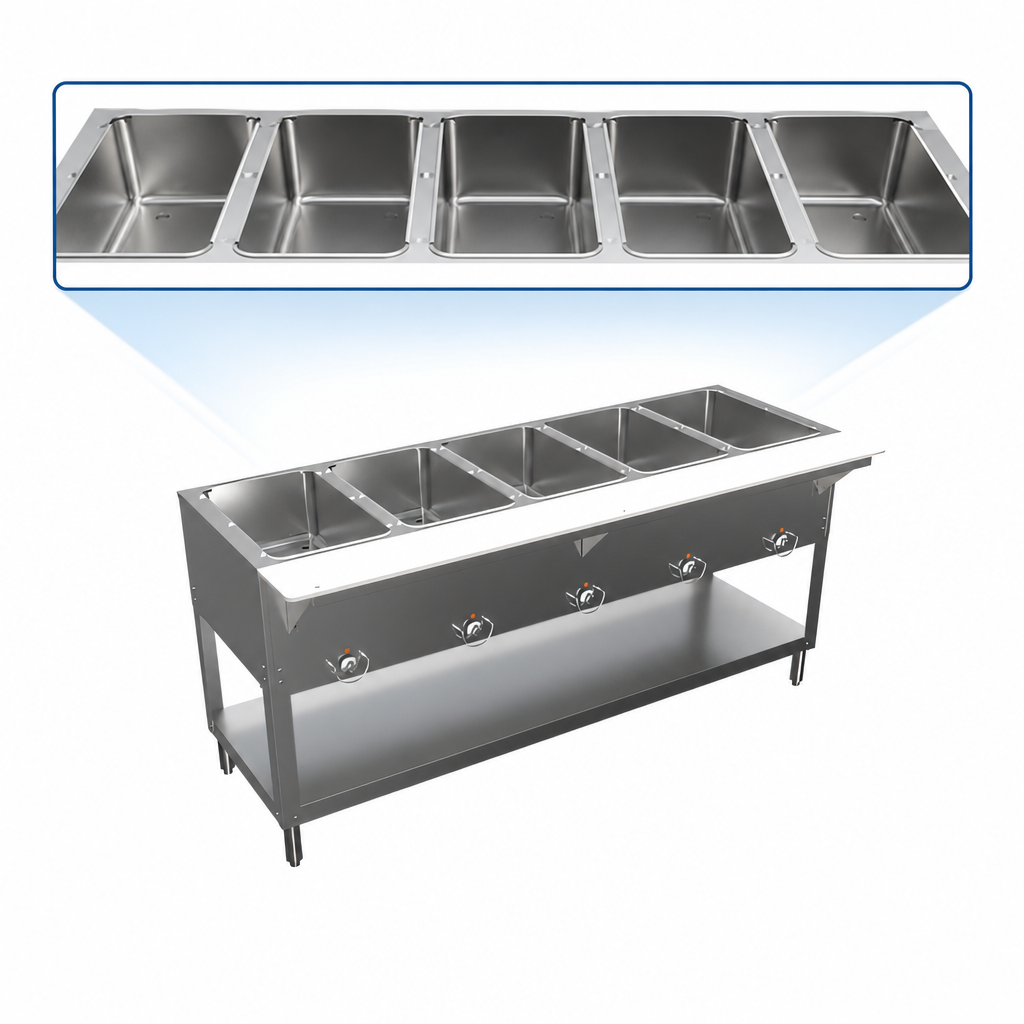

Sealed Well Design

Five sealed wells accommodate full-size food pans without water pans.

Independent Well Controls

Each well is independently controlled with infinite temperature control and an indicator light.

Wet Heating

Designed for wet heating only.

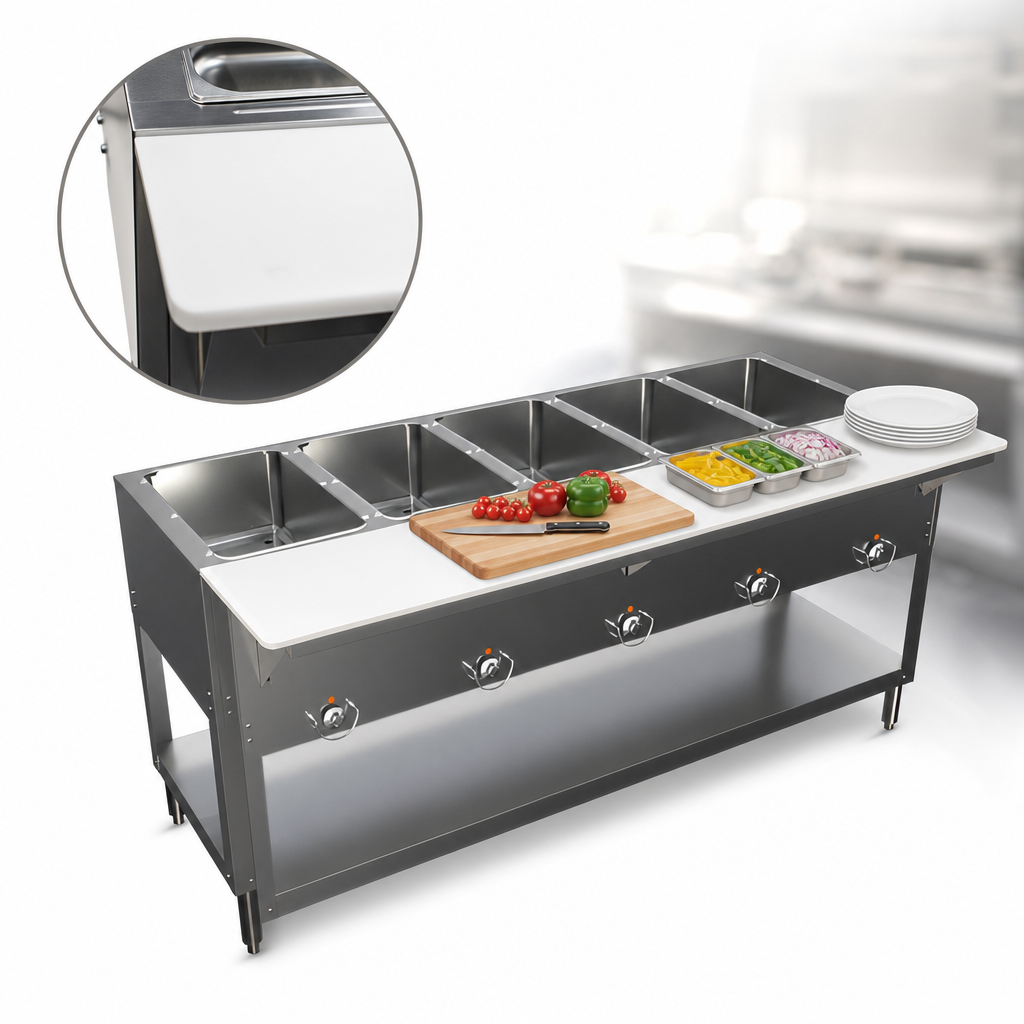

Cutting Board Shelf

Includes a removable poly cutting board with a stainless steel support shelf.

Undershelf Storage

The undershelf stores water pans, lids, and utensils when not in use.

Stainless Steel Construction

Constructed from 20-gauge stainless steel with die-stamped openings.

Individual Drains

Each well has an individual 1/2 in NPT drain.

Frequently Asked Questions

It has a 5-pan sealed-well design that accommodates full-size food pans.
No. It is designed for wet heating only and does not require water pans.
The wells are independently controlled with infinite temperature control and indicator lights.
It is rated at 240 volts, 3.75 kW, and 15.6 amps with a NEMA 6-30 plug.
Yes. It has a removable poly cutting board with a stainless steel support shelf.
The warranty is 1 year for parts only.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
