Baxter Manufacturing

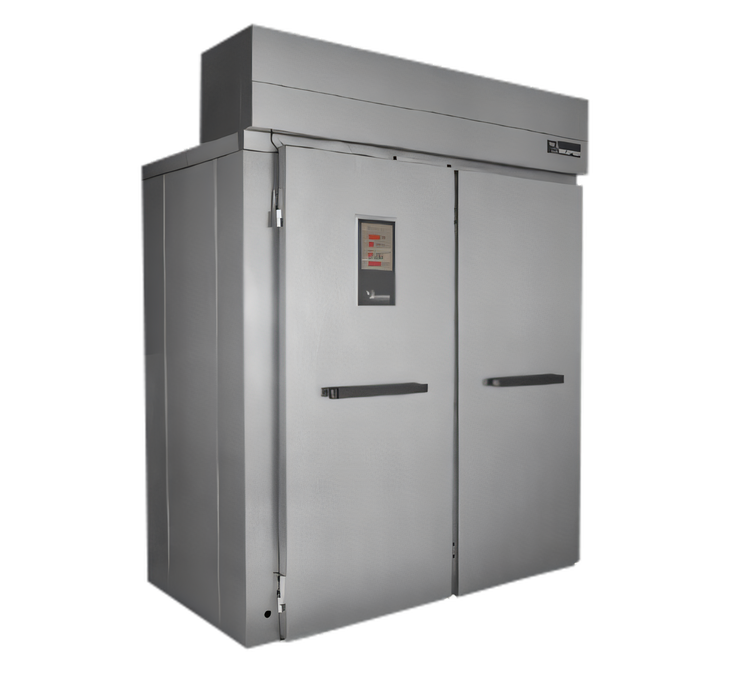

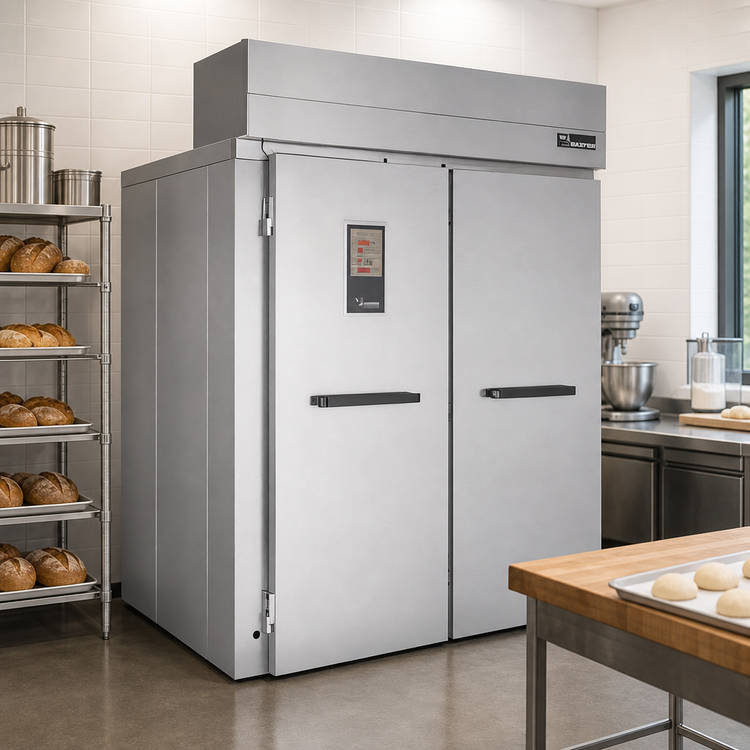

Baxter PW2E 80.5-Inch Deep Double Wide Roll-In Proofer Cabinet with Floor, Stainless Steel

SKU: PW2E-80.5"D-FL
$23,878.75
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Baxter PW2E 80.5-Inch Deep Double Wide Roll-In Proofer Cabinet with Floor, Stainless Steel

Electric Heat, Digital Controls, Field-Reversible Door

Built for high-volume bakeries, this roll-in proofer delivers precise temperature and humidity control for multiple rack configurations without requiring a ramp.

  • Holds up to 5 single-end racks, 6 side-load racks, or 2 double racks in the 80.5-inch deep cabinet.
  • Eye-level digital controls let operators set heat and humidity independently and manage multiple proofing cycles with four timers.
  • Patented airflow and an internally mounted humidity system help provide even proofing performance with no flushing required.
  • Stainless steel interior and exterior, plus modular cam-lock panel construction, support durability and easier field assembly.
  • Roll-in design with a floor option and no-ramp access improves loading workflow in busy bakeries.
  • Field-reversible door and 74-inch maximum rack height add flexibility for installation and operation.

Overall Dimensions:

83.3"D x 99.0"H

Product Weight:

1500.0 lb

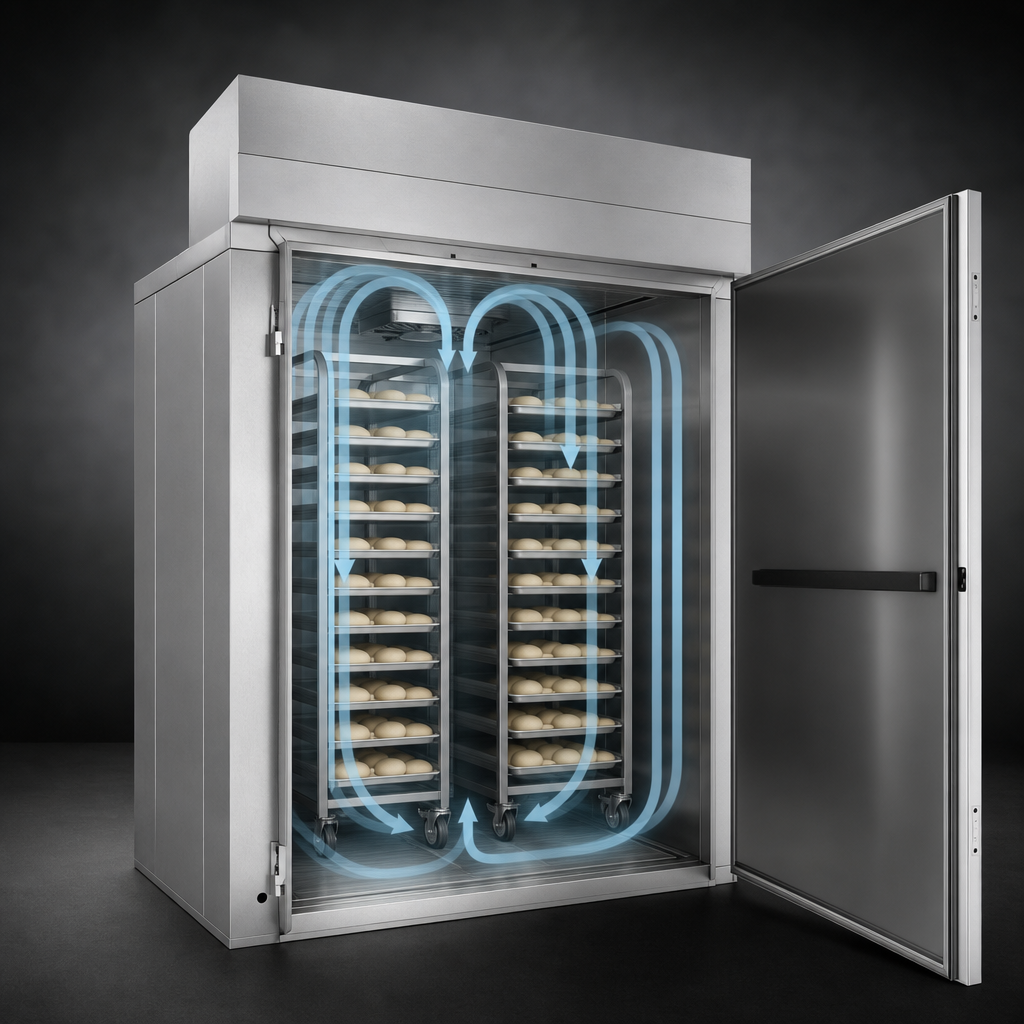

Patented Air Flow System

Engineered to circulate air evenly throughout the cabinet for more consistent proofing results.

Patented Air Flow System

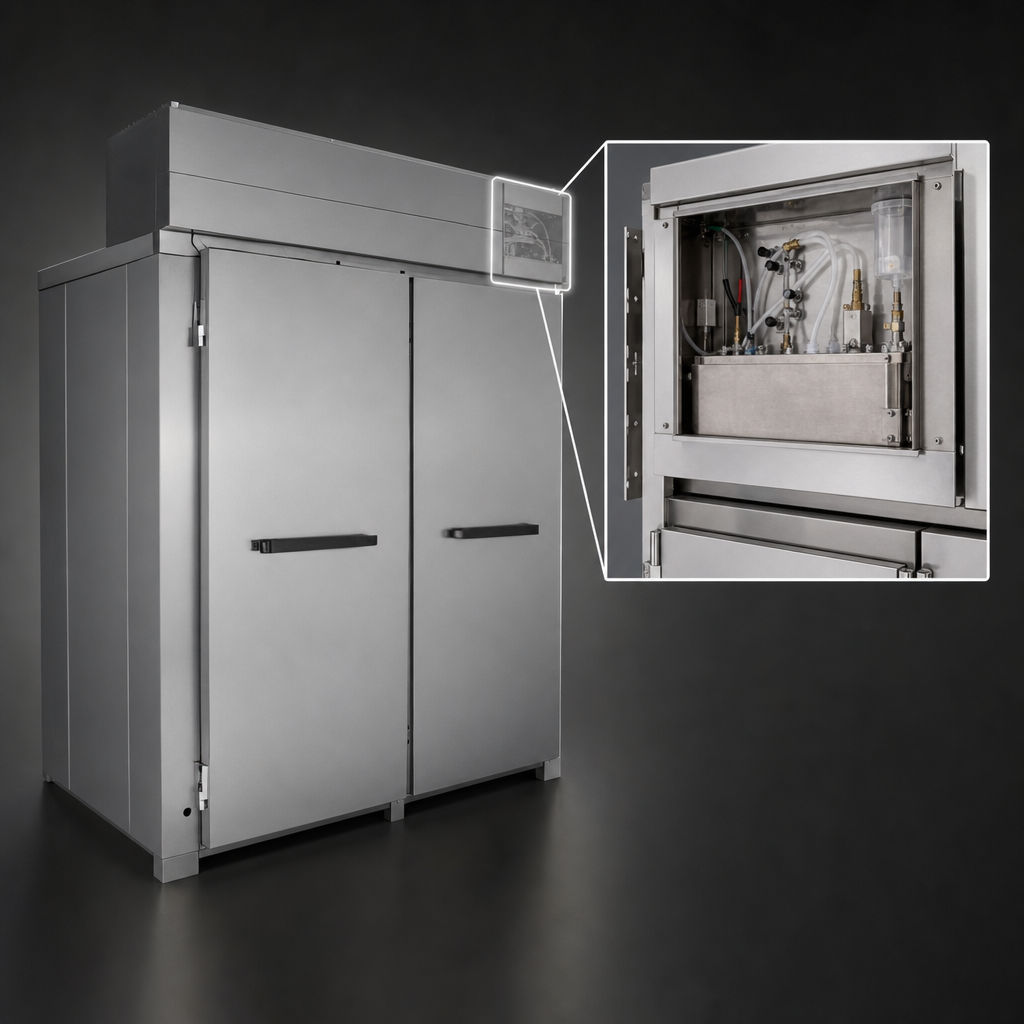

Easy-Access Heat And Humidity System

Internally mounted system is designed for simple service access and does not require flushing.

Easy-Access Heat And Humidity System

Eye-Level Digital Control Panel

Operators can set heat and humidity from the door area and use four independent countdown timers.

Stainless Steel Interior And Exterior

Durable stainless steel construction is built for commercial bakery use and easier cleaning.

Modular Panel Construction

Cam-lock panel attachment supports field assembly and simplifies installation handling.

Roll-In, No-Ramp Design

Designed for rack loading access without the need for a ramp.

Field-Reversible Door

Door can be reversed in the field to help fit the installation layout.

Match-Height Cabinet Design

Standard overall height is designed to match a rack oven installation.

Type Proofer Cabinet
Style Double Wide, Roll-In
Installation Type Floor Model
Capacity 5 Single End Racks / 6 Side Load Racks / 2 Double Racks
Controls Digital
Material Stainless Steel
Interior Finish Stainless Steel
Exterior Finish All Stainless Steel
Voltage 208-240 Volts
Hertz 60 Hz
Phase 1-Phase / 3-Phase
Amps 37-41 Amps (1-Phase) / 32-36 Amps (3-Phase)
Watts 6.6-8.8 kW
Water Inlet Size 1/2 Inch FNPT
Water Connection Required
Drain Connection Size 1/2 Inch FNPT
Drain Connection Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Height 99 Inches
Shipping Depth 84 Inches
Shipping Weight 1500 lb.

Frequently Asked Questions

For the 80.5-inch deep configuration, it holds up to 5 single-end racks, 6 side-load racks, or 2 double racks.
No. The unit is designed for no-ramp access.
The unit is offered with 208-240V, 60 Hz power input in 1-phase or 3-phase configurations.
It requires a 1/2 inch FNPT cold water connection and a 1/2 inch FNPT drain routed to an air-gap drain.
Yes. The door is field reversible.
It is shipped knocked down and assembled in the field.
