Atlas Metal

Atlas Metal Heated Drop-In Shielded Plate Dispenser for 14-1/2 Inch Round Plates

SKU: PDH-14-1/2
$1,915.58
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Atlas Metal Best Sellers Commercial Carts Dish & Tray Dispensers Dish Caddy & Dispenser Food Holding & Warming Equipment New Arrivals Storage & Transport

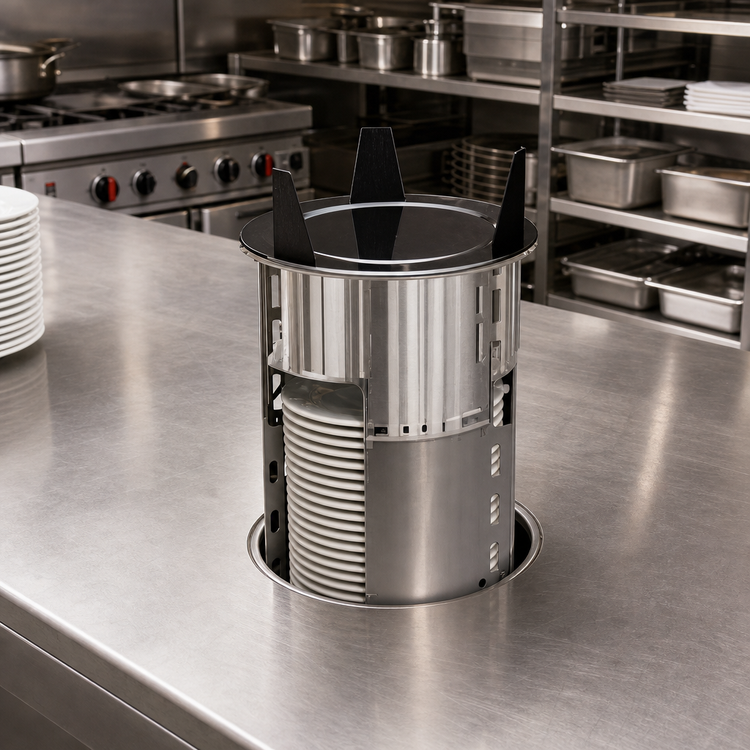

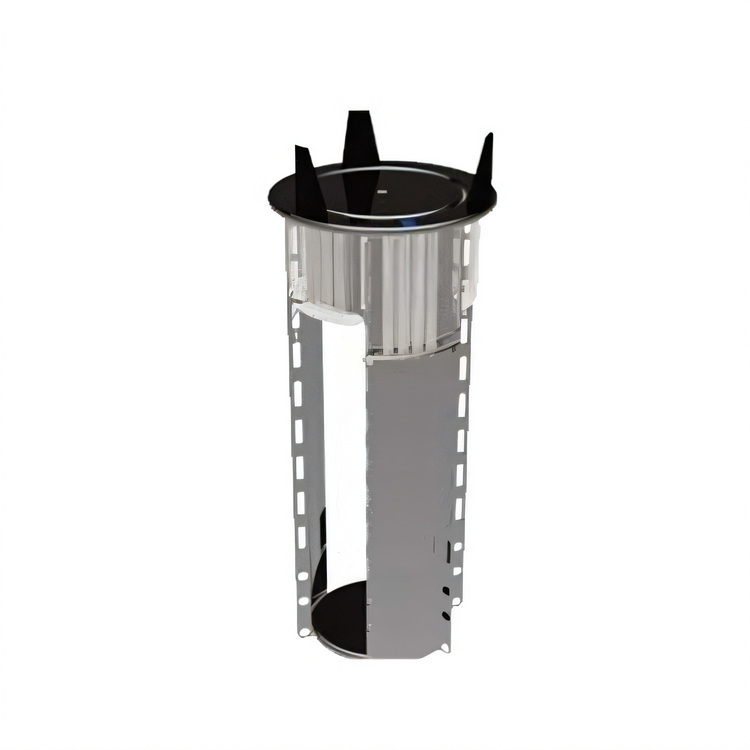

Atlas Metal Heated Drop-In Shielded Plate Dispenser for 14-1/2 Inch Round Plates

300-Series Stainless Steel, Self-Leveling, 120V

Keep plates warm and organized at the service line with a self-leveling heated dispenser that fits large round dishes and holds up to 72 plates or 36 bowls.

  • Heated drop-in shielded dispenser designed for round plates up to 14-1/2 inches in diameter.
  • Self-leveling spring platform helps maintain a consistent dispensing height as dishes are removed.
  • Holds up to 72 plates or 36 bowls, depending on dishware size and manufacturer.
  • Built with stainless steel construction and high-impact plastic guideposts for dependable commercial use.
  • Includes a 120V cordset with NEMA 5-15P plug, plus thermostat, pilot light, and on/off switch.
  • Requires a 17-1/4 inch diameter cutout and 27-1/2 to 29 inches of undercounter clearance.

Overall Dimensions:

17.88"W x 29.0"H

Product Weight:

45.0 lb

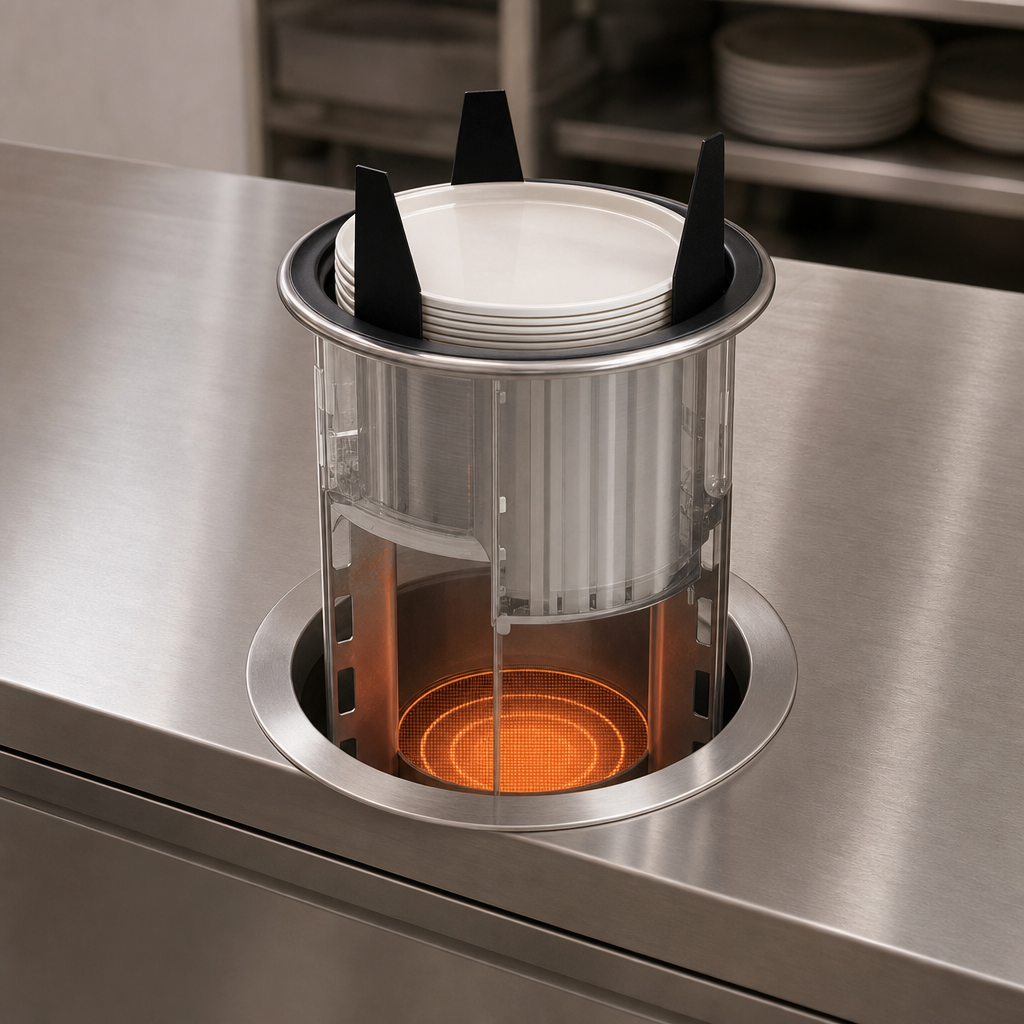

Heated Drop-In Design

Base-mounted heating element helps keep plates warm and ready for service in a drop-in installation.

Heated Drop-In Design

Shielded Enclosed Frame

An outer stainless steel shield covers the spring mechanism and vertical channel guides for a cleaner, more protected install.

Self-Leveling Plate Platform

Extension springs support the plate stack and can be adjusted in the field to match the desired dispensing height.

Series 300 Stainless Steel Construction

Durable stainless steel body is built for demanding foodservice environments.

High-Impact Plastic Guideposts

Guideposts help align round plates and keep the stack centered in the dispenser tube.

Integrated Heat Controls

Side-mounted thermostat, pilot light, and on-off switch are located in the top flange for easy operation.

Ready-to-Install Cordset

Includes a 6-foot 120V cordset with NEMA 5-15P plug.

Large Dish Capacity

Designed to hold up to 72 plates or 36 bowls, with capacity varying by dish manufacturer.

Type Heated Plate Dispenser
Style Shielded
Installation Type Drop-In
Controls Thermostatic
Capacity Up to 72 Plates or 36 Bowls
Material Stainless Steel
Voltage 120 Volts
Watts 550 Watts
Amps 4.6 Amps
Plug Type NEMA 5-15P
Cord Length 6 Feet
Maximum Plate Size 14-1/2 Inches
Cutout Diameter 17-1/4 Inches
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It is designed for round plates up to approximately 14-1/2 inches in diameter.
It can hold up to 72 plates or 36 bowls, depending on the dishware manufacturer.
The unit requires a 17-1/4 inch diameter cutout.
It includes a 6-foot 120V cordset with a NEMA 5-15P plug and is rated at 550 watts and 4.6 amps.
Yes. The self-leveling spring mechanism is field adjustable to match the desired dispensing height.
The unit requires approximately 27-1/2 to 29 inches of undercounter clearance.
