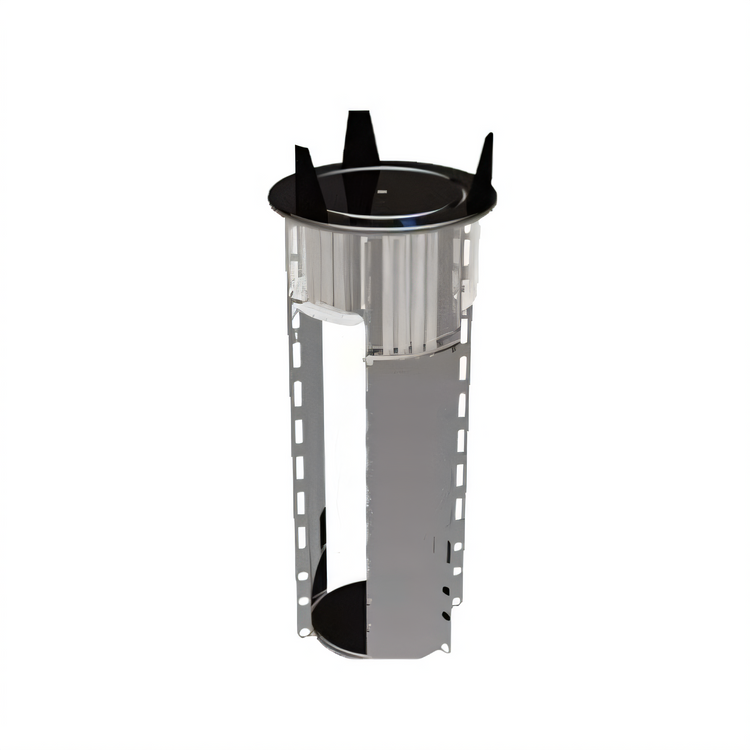

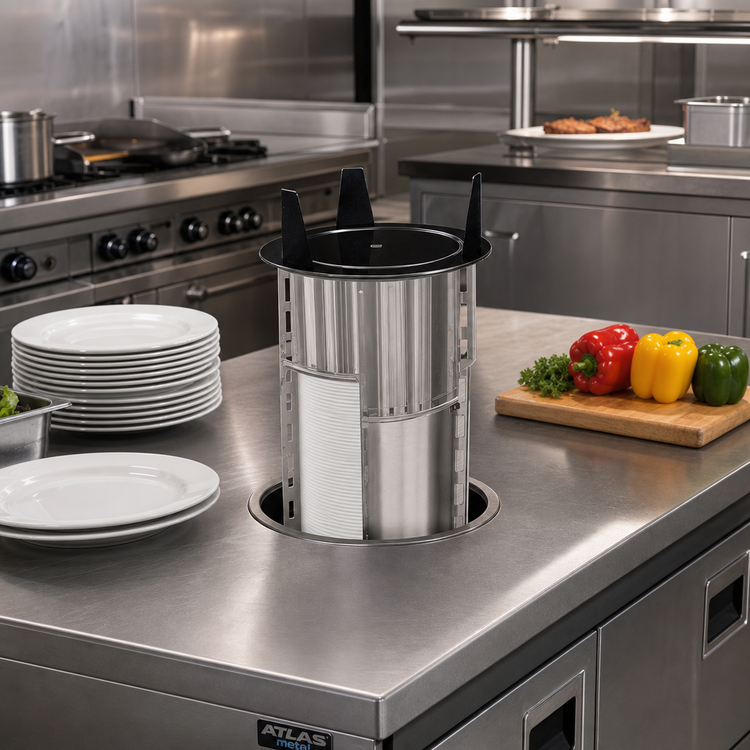

Atlas Metal PDH-12 Heated Drop-In Shielded Plate Dispenser, 12-Inch Round Plate Capacity
Atlas Metal PDH-12 Heated Drop-In Shielded Plate Dispenser, 12-Inch Round Plate Capacity
Stainless Steel, Single Self-Elevating Tube, 120V
Keep plates organized and at serving temperature with a durable drop-in dispenser that self-levels as dinnerware is removed.
- Heated drop-in design helps keep plates warm and ready at the service line.
- Shielded enclosed frame protects the spring mechanism and vertical guides.
- Single self-elevating tube with high-impact plastic guideposts supports smooth dispensing.
- Holds up to 72 plates or 36 bowls, depending on dinnerware size and manufacturer.
- Built for round plates up to approximately 12 inches in diameter.
- Includes a 6-foot 120V cordset with NEMA 5-15P plug; 220/240V operation is available by specification.
Overall Dimensions:
15.38"W x 29.0"HProduct Weight:

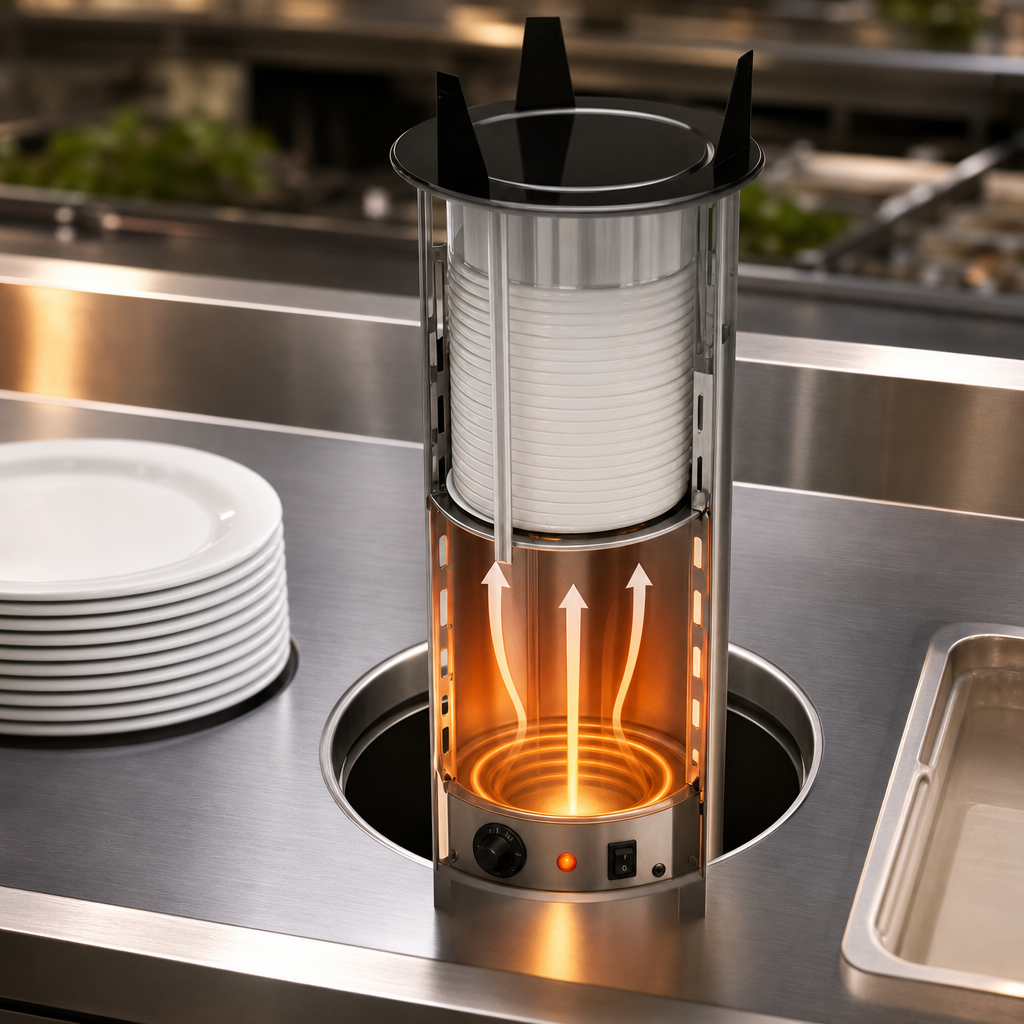

36.0 lbHeated Drop-In Design
Base-mounted heating element with thermostat, pilot light, and on-off switch helps maintain plate temperature.
Shielded Enclosed Frame
Stainless steel shield covers the spring mechanism and vertical channel guides for a cleaner, protected design.
Self-Leveling Tube
Extension springs support the plate stack and adjust as dishes are removed for consistent dispensing height.
High-Impact Guideposts
Three plastic guideposts at the countertop flange help align plates as they are loaded.
Large Dinnerware Capacity
Holds up to 72 plates or 36 bowls, depending on plate or bowl manufacturer.
Power Connection Included
Supplied with a 6-foot 120V cordset and NEMA 5-15P plug.
Installation Requirements
Requires a 14-3/4-inch diameter cutout and approximately 27-1/2 to 29 inches of under-counter clearance.
