Atlas Metal MOPD4H-8-1/8 Mobile Heated 4-Stack Plate Dispenser

Full-Size, Open Frame, Round Dish, 4 Compartments, up to 8 1/8" Plate Diameter

This mobile heated plate dispenser provides efficient and flexible plate service, keeping up to 288 dishes warm and ready for your guests.

  • Maintains ideal serving temperatures for stacked plates with individually heated tubes.
  • Features a mobile open frame design for easy transport and access.
  • Each of the four self-elevating tubes holds up to 72 plates or 36 bowls.
  • Constructed from durable stainless steel for commercial use and longevity.
  • Field-adjustable spring mechanism allows for various plate weights and dispensing heights.
  • Equipped with 4-inch heavy-duty swivel casters for smooth mobility.

Overall Dimensions:

30.38"W x 30.38"D x 36.0"H

Product Weight:

184.0 lb

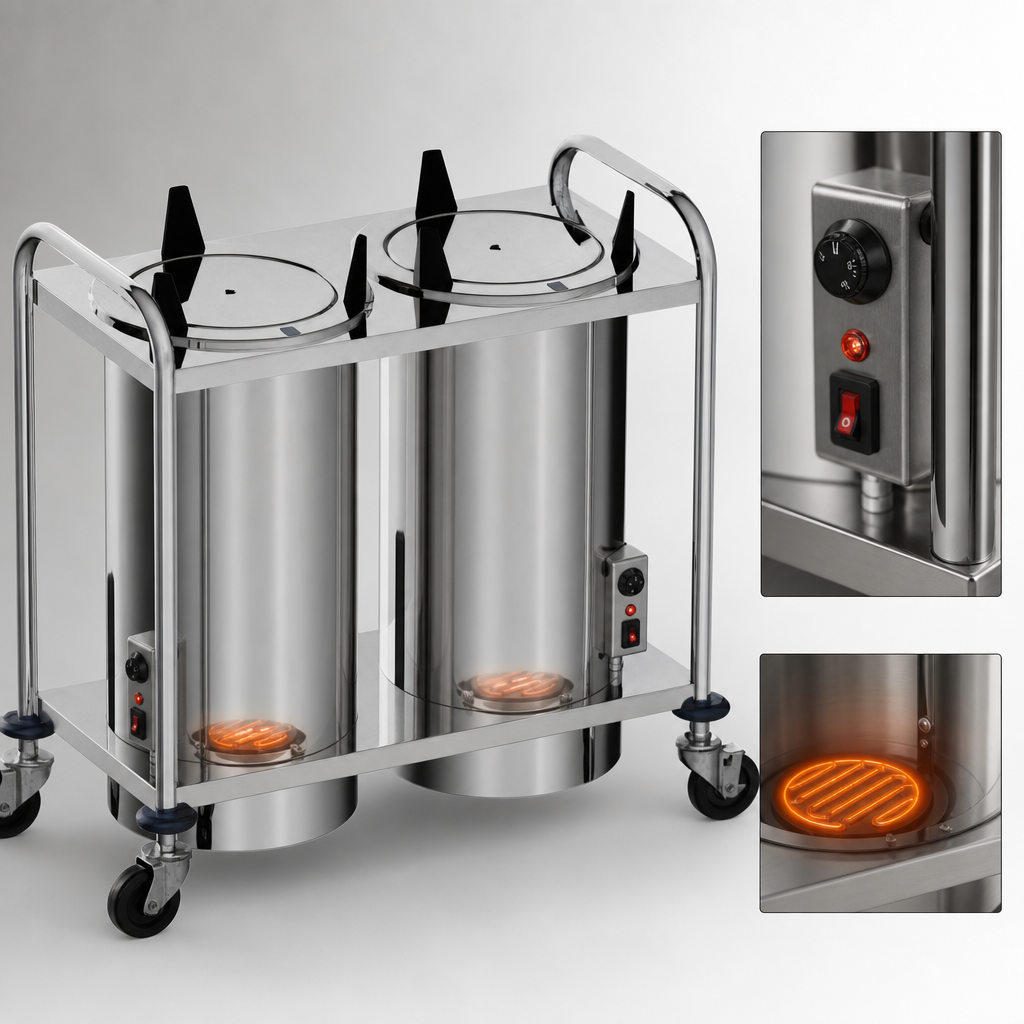

Heated Dispensing Tubes

Each dispensing tube includes a base mounted heating element, a side mounted thermostat, pilot light, and on-off switch to keep plates warm at optimal serving temperatures.

Heated Dispensing Tubes

Self-Leveling Mechanism

An easily adjustable spring mechanism ensures plates are always at the ready-to-serve height, accommodating different plate weights for consistent service.

High-Impact Plastic Guide Posts

Three guide posts per tube align plates for smooth and stable dispensing, preventing spills and jams.

Durable Stainless Steel Construction

The entire frame is constructed of 1-inch stainless steel tubing, welded to a 16 gauge stainless steel upper and lower deck with heavy duty reinforcements, ensuring robust support and sanitation in commercial environments.

Mobile Design

Features an open frame design and 4-inch heavy-duty swivel casters for effortless transportation within any commercial kitchen or serving area.

NEMA 5-15P Plug

Comes with a 6-foot cord set and NEMA 5-15P plug for easy connection to standard 120V outlets.

Type Heated Plate Dispenser
Style Mobile Open Frame
Installation Type Freestanding
Material Stainless Steel
Compartments 4
Capacity 72 Plates or 36 Bowls Per Tube
Max Dish Diameter 8 1/8 Inches
Voltage 120 Volts
Amps 11.0 Amps
Watts 1320 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Selling Unit Each
Units Per Case 1
Shipping Width 31 Inches
Shipping Depth 31 Inches
Shipping Height 36 Inches
Shipping Weight 184.0 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

The Atlas Metal MOPD4H-8-1/8 is designed for round plates with a maximum diameter of 8 1/8 inches.
Each self-elevating dispensing tube has a capacity for up to 72 plates or 36 bowls. With four tubes, the total capacity is up to 288 plates or 144 bowls.
Yes, the spring mechanism is field-adjustable, allowing you to fine-tune the dispensing height for various plate weights and sizes.
The unit operates on 120 Volts, 1-Phase, drawing 11.0 Amps and 1320 Watts. It comes with a NEMA 5-15P plug and a 6-foot cord.
The MOPD4H-8-1/8 dispenser features all stainless steel construction, including a 1-inch stainless steel tubing frame welded to 16 gauge stainless steel upper and lower decks.
