Atlas Metal

Atlas Metal MOPD4H-10-1/8 4-Stack Mobile Heated Plate Dispenser for 10-1/8 Inch Plates

SKU: MOPD4H-10-1/8
$7,686.74
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Atlas Metal Best Sellers Commercial Carts Dish & Tray Dispensers Dish Caddy & Dispenser Food Holding & Warming Equipment New Arrivals Storage & Transport

Atlas Metal MOPD4H-10-1/8 4-Stack Mobile Heated Plate Dispenser for 10-1/8 Inch Plates

4 Compartments, Heated, Mobile, Stainless Steel Construction

Keep your plates consistently warm and ready for service with this robust 4-stack mobile heated plate dispenser, designed for efficiency and durability in any commercial setting.

  • Maintains ideal serving temperature for up to 72 plates or 36 bowls per tube.
  • Mobile open frame design with 4" swivel casters for easy transport and placement.
  • Durable all stainless steel construction ensures longevity and easy cleaning.
  • Self-elevating tubes with field-adjustable spring mechanism accommodate various dish weights.
  • High-impact plastic guide posts ensure smooth and consistent plate dispensing.
  • UL Listed and NSF Approved, meeting high standards for safety and sanitation.

Overall Dimensions:

30.38"W x 30.38"D x 36.0"H

Product Weight:

194.0 lb

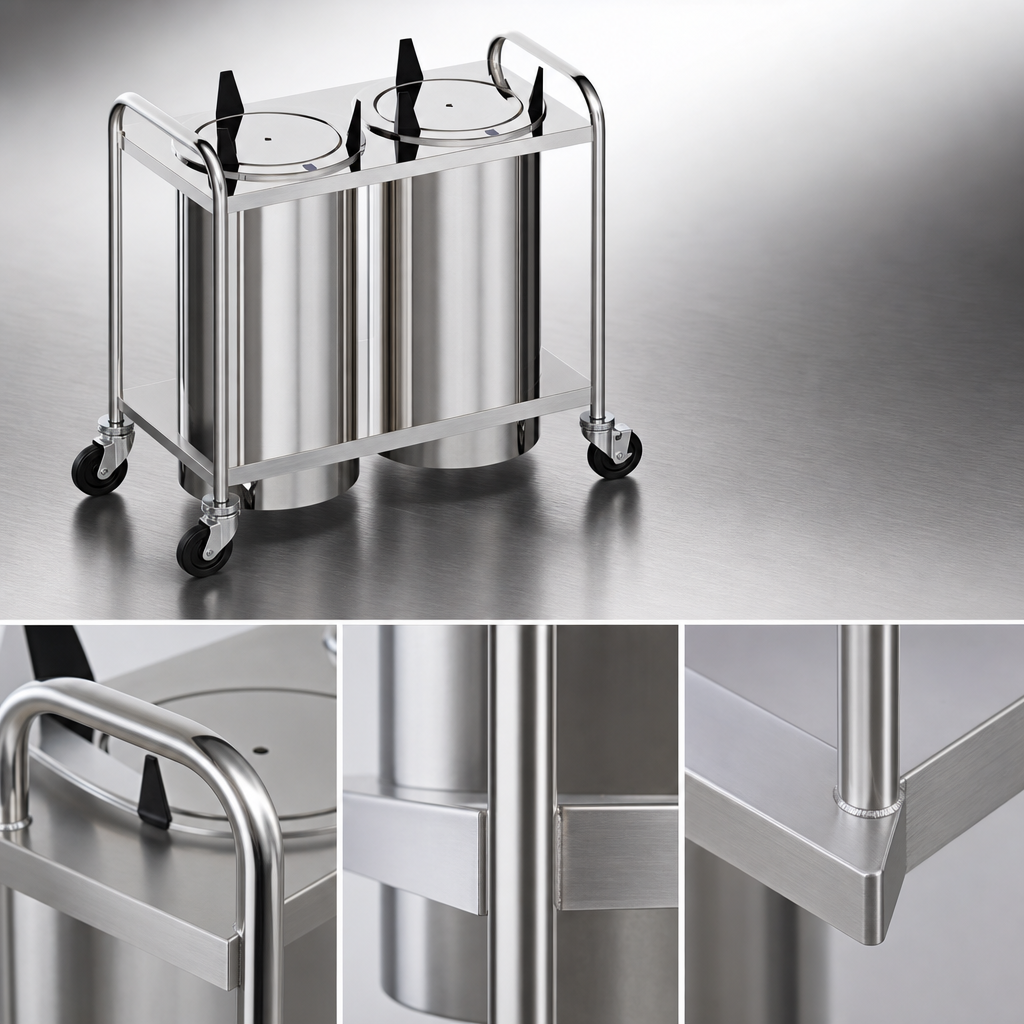

All Stainless Steel Construction

The frame is constructed of 1" stainless steel tubing, welded to a 16 gauge stainless steel upper and lower deck, with heavy-duty reinforcements for exceptional durability and hygiene.

All Stainless Steel Construction

Heated Dispensing Tubes

Each of the four tubes includes a base-mounted heating element, a side-mounted thermostat, a pilot light, and an on-off switch located in the top flange to keep plates perfectly warm.

Self-Leveling Mechanism

Equipped with an easy-to-adjust spring mechanism that allows for field adjustment to accommodate different dish weights and ensure the required dispensing height.

High-Impact Plastic Guide Posts

Three high-impact plastic guide posts per tube effectively align plates for smooth, consistent, and jam-free dispensing.

High Capacity Per Tube

Each self-elevating dispensing tube can hold up to 72 plates or 36 bowls, accommodating a maximum dish diameter of 10-1/8 inches.

Mobile Design with Swivel Casters

Features four 4" heavy-duty swivel casters, providing effortless mobility for transporting plates across your kitchen or serving area.

Convenient Electrical Connection

Comes with a 6-foot cordset and a NEMA 5-15P plug, allowing for flexible placement and easy connection to standard 120V outlets.

Type Heated Plate Dispenser
Style Mobile Open Frame
Installation Type Floor Model (With Casters)
Material Stainless Steel
Compartments 4
Pan Capacity 72 plates or 36 bowls per tube
Maximum Dish Diameter 10-1/8 Inches
Voltage 120 Volts
Watts 1.68 kW
Amps 14.0 Amps
Plug Type NEMA 5-15P
Cord Length 6 Feet
Shipping Width 31 Inches
Shipping Depth 31 Inches
Shipping Height 36 Inches
Shipping Weight 194 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

This dispenser is designed for a maximum dish diameter of 10-1/8 inches.
Each of the four dispensing tubes has a capacity of up to 72 plates or 36 bowls, depending on their size.
Yes, the self-leveling spring mechanism is easy to adjust in the field to accommodate varying dish weights and ensure plates are dispensed at the required height.
The Atlas Metal MOPD4H-10-1/8 operates on 120 Volts, drawing 14.0 Amps, and consuming 1.68 kW of power. It comes with a 6-foot cord and a NEMA 5-15P plug.
The dispenser comes standard with 4" heavy-duty swivel casters. Locking brakes are available as an optional accessory (model LB - Locking brakes, set of 2).
The dispenser is built with an all stainless steel construction, featuring a 1" stainless steel tubing frame and 16 gauge stainless steel upper and lower decks for enhanced durability and sanitation.
