Atlas Metal

Atlas Metal MOPD4-9-1/8 Unheated Mobile Open Frame Plate Dispenser, 4-Stack, 9-1/8" Max Dish Diameter

SKU: MOPD4-9-1/8
$5,044.74
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Atlas Metal Best Sellers Commercial Carts Dish & Tray Dispensers Dish Caddy & Dispenser Food Holding & Warming Equipment New Arrivals Storage & Transport

Atlas Metal MOPD4-9-1/8 Unheated Mobile Open Frame Plate Dispenser, 4-Stack, 9-1/8" Max Dish Diameter

Mobile, Unheated, 4 Self-Elevating Dispensing Tubes, Up to 9-1/8 Inch Plate Diameter

Efficiently transport and dispense up to 288 plates or 144 bowls with this robust, mobile 4-stack plate dispenser, designed for heavy-duty commercial use.

  • Durable all-stainless steel construction for commercial longevity.
  • Features 4 self-elevating dispensing tubes, each holding up to 72 plates or 36 bowls.
  • Accommodates plates and bowls up to 9-1/8 inches in diameter.
  • Spring mechanism is field-adjustable to maintain proper dispensing height for various dish weights.
  • Equipped with 4-inch heavy-duty swivel casters for easy mobility.
  • High-impact plastic guideposts ensure proper plate alignment and secure storage.

Overall Dimensions:

30.38"W x 30.38"D x 36.0"H

Product Weight:

180.0 lb

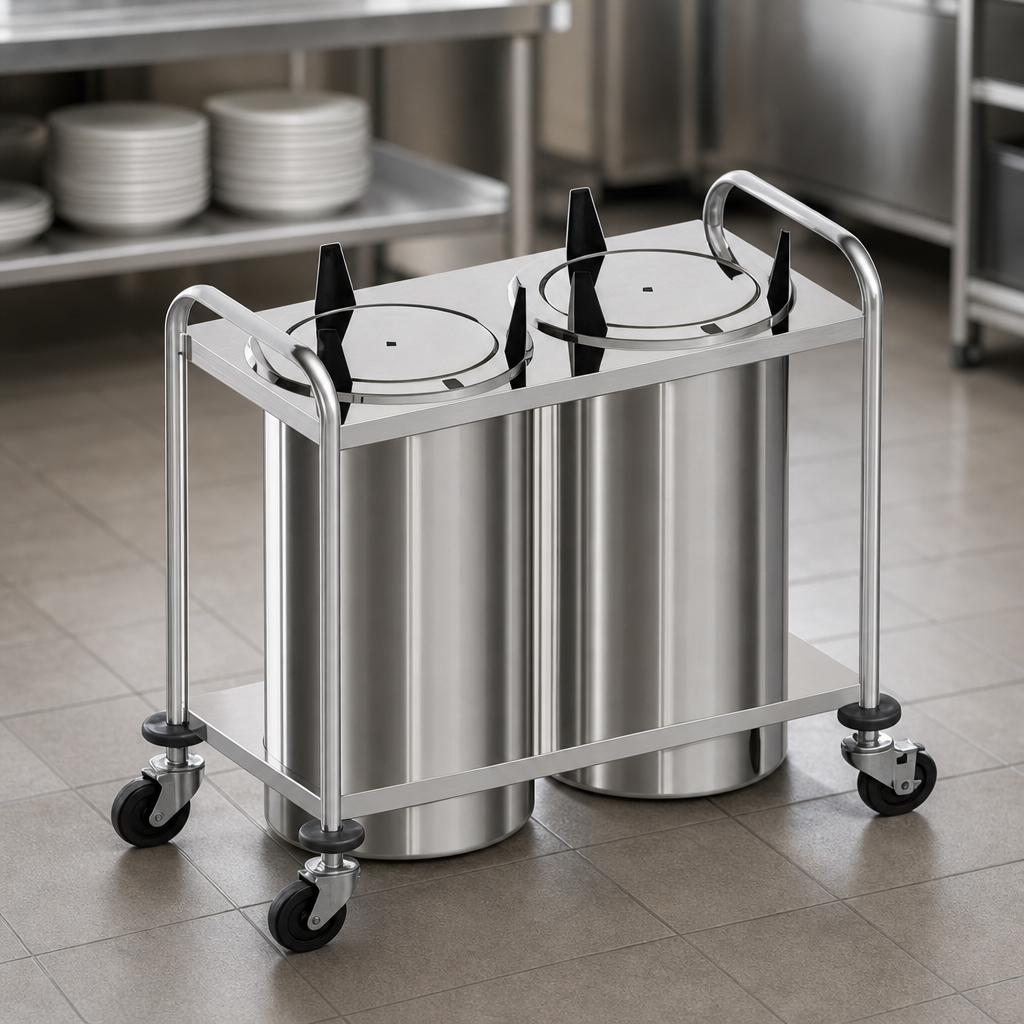

All Stainless Steel Construction

The frame is constructed of 1-inch stainless steel tubing, welded to 16-gauge stainless steel upper and lower decks. Dispensing tubes are made of 300 series stainless steel for maximum durability and hygiene in commercial environments.

All Stainless Steel Construction

4 Self-Elevating Dispensing Tubes

Each unheated tube features a stainless steel platform suspended by extension springs, providing a self-leveling mechanism to keep plates at a consistent dispensing height. Includes a stainless steel jacket to cover the spring mechanism and channel guides.

Field Adjustable Spring Mechanism

The spring tension is easy to adjust, allowing operators to fine-tune the dispensing height to accommodate different dish weights and ensure smooth, consistent access to plates.

High-Impact Plastic Guideposts

Three high-impact plastic guideposts on each counter top flange help align plates within the dispensing tubes, preventing jams and ensuring neat stacking.

High Capacity

Each dispensing tube can hold up to 72 plates or 36 bowls, offering a total capacity of up to 288 plates or 144 bowls for this 4-stack unit.

Heavy-Duty Mobile Casters

Equipped with four 4-inch heavy-duty swivel casters for effortless maneuverability, making it easy to transport dishes across various service areas.

Type Plate Dispenser
Style Mobile Open Frame
Installation Type Floor Model (Mobile)
Material Stainless Steel
Compartments 4
Capacity Up to 288 Plates or 144 Bowls
Max Dish Diameter 9 1/8 Inches
Casters 4 Inch Swivel
Controls Unheated
Shipping Width 31 Inches
Shipping Depth 31 Inches
Shipping Height 36 Inches
Shipping Weight 180 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

Manufacturer's standard warranty

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

This dispenser is designed to hold round plates and bowls with a maximum diameter of 9-1/8 inches. Each tube can accommodate up to 72 plates or 36 bowls.
No, the Atlas Metal MOPD4-9-1/8 is an unheated model, ideal for holding and transporting ambient temperature dishes. Heated versions (MOPD4H series) are available as alternative configurations.
The self-leveling spring mechanism is designed for easy field adjustment. A combination of extension springs is provided, allowing you to fine-tune the tension to achieve the required dispensing height for various dish weights.
The dispenser features an all-stainless steel construction. The frame is made of 1-inch stainless steel tubing welded to 16-gauge stainless steel upper and lower decks, and the dispensing tubes are constructed from 300 series stainless steel.
The unit comes standard with 4-inch heavy-duty swivel casters. Locking brakes (LB) are available as an optional accessory.
