Atlas Metal MOPD4-8-1/8 4-Stack Mobile Open Frame Unheated Plate Dispenser

Max. 8 1/8 Inch Plate Diameter, Stainless Steel, Heavy-Duty Casters

Efficiently organize and transport up to 288 plates with this robust, mobile 4-stack plate dispenser, designed for smooth operation in busy commercial kitchens.

  • Mobile open frame design with heavy-duty swivel casters for easy transport.
  • Four self-elevating dispensing tubes, each holding up to 72 plates or 36 bowls.
  • Constructed entirely from durable stainless steel for longevity and hygiene.
  • Features high-impact plastic guide posts for proper plate alignment.
  • Spring mechanism is field-adjustable to accommodate various plate weights.
  • NSF and UL EPH certified for sanitation and safety standards.

Overall Dimensions:

30.38"W x 30.38"D x 36.0"H

Product Weight:

175.0 lb

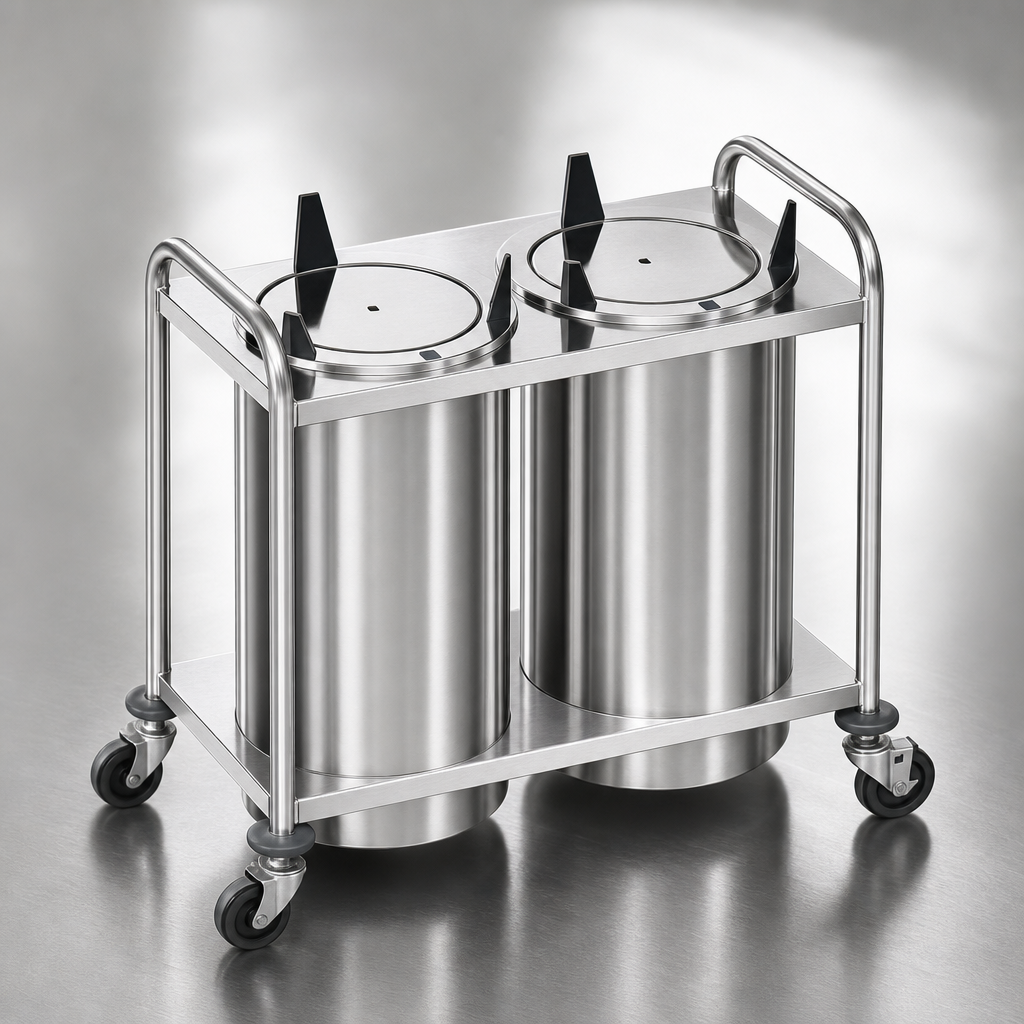

All Stainless Steel Construction

The frame is built from 1-inch stainless steel tubing, welded to a 16 gauge stainless steel upper and lower deck with heavy-duty reinforcements. Dispensing tubes are constructed of 300 series stainless steel, ensuring durability and hygiene.

All Stainless Steel Construction

Self-Leveling Dispensing Tubes

Features four self-elevating tubes with stainless steel platforms suspended by extension springs, automatically adjusting to maintain the required dispensing height. The spring mechanism is easy to adjust in the field to accommodate different plate weights.

Plate Alignment Guide Posts

Each dispensing tube's counter top flange includes three high-impact plastic guide posts to ensure plates are properly aligned and dispensed smoothly.

High Capacity Storage

Each of the four dispensing tubes can hold up to 72 plates or 36 bowls, providing a total capacity of up to 288 plates for the entire unit.

Mobile Design

Equipped with 4-inch heavy-duty swivel casters, making it easy to move the dispenser around a commercial kitchen or serving area.

Type Plate Dispenser
Style Mobile Open Frame
Installation Type Floor Model
Compartments 4
Max Dish Diameter 8 1/8 Inches
Capacity 72 plates or 36 bowls per dispensing tube
Material Stainless Steel
Casters 4 Inch Swivel
Selling Unit Each
Units Per Case 1
Shipping Width 31 Inches
Shipping Depth 31 Inches
Shipping Height 36 Inches
Shipping Weight 175 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

null

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

This Atlas Metal MOPD4-8-1/8 dispenser is designed to hold plates with a maximum diameter of 8 1/8 inches.
Each of the four self-elevating dispensing tubes has a capacity of up to 72 plates or 36 bowls.
Yes, the spring mechanism is easy to adjust in the field to accommodate different plate weights and desired dispensing heights.
The unit is equipped with 4-inch heavy-duty swivel casters for enhanced mobility.
The plate dispenser is constructed entirely from stainless steel, including the frame (1-inch stainless steel tubing and 16 gauge decks) and 300 series stainless steel dispensing tubes.
