Atlas Metal

Atlas Metal MOPD3H-5-3/4 3-Stack Mobile Heated Plate Dispenser

SKU: MOPD3H-5-3/4
$4,598.23
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Atlas Metal Best Sellers Commercial Carts Dish & Tray Dispensers Dish Caddy & Dispenser Food Holding & Warming Equipment New Arrivals Storage & Transport

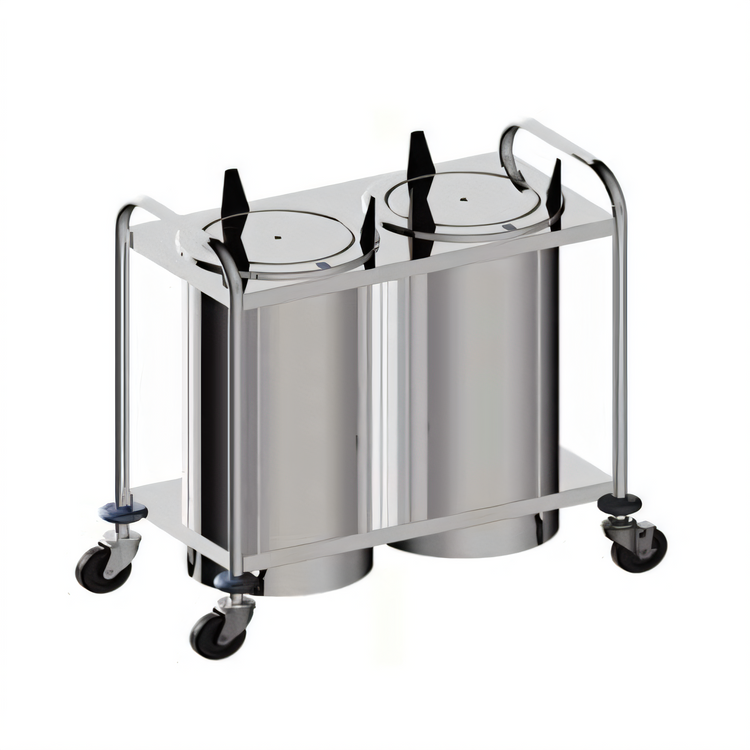

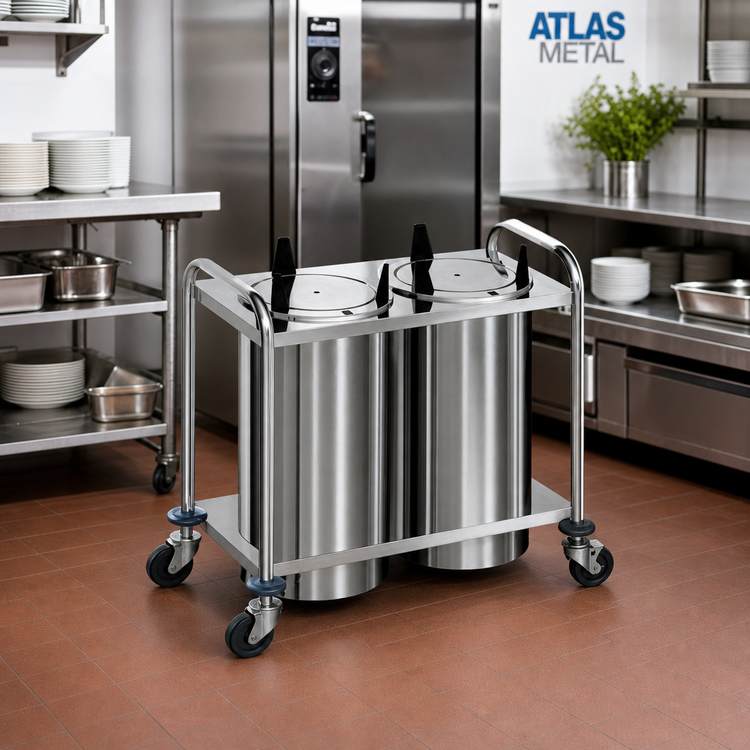

Atlas Metal MOPD3H-5-3/4 3-Stack Mobile Heated Plate Dispenser

Mobile, Heated, Open Frame, for 5-3/4 Inch Diameter Plates

This Atlas Metal mobile heated plate dispenser provides efficient and convenient service, keeping plates warm and readily accessible for your guests.

  • Equipped with three self-elevating dispensing tubes, each holding up to 72 plates or 36 bowls.
  • Features a base-mounted heating element to maintain optimal plate temperatures for service.
  • Durable all stainless steel construction ensures longevity and easy cleaning in commercial environments.
  • Mobile open frame design with heavy-duty swivel casters allows for effortless transport and placement.
  • Spring mechanism is field-adjustable, accommodating different plate weights for consistent dispensing height.

Overall Dimensions:

36.0"W x 15.13"D x 36.0"H

Product Weight:

124.0 lb

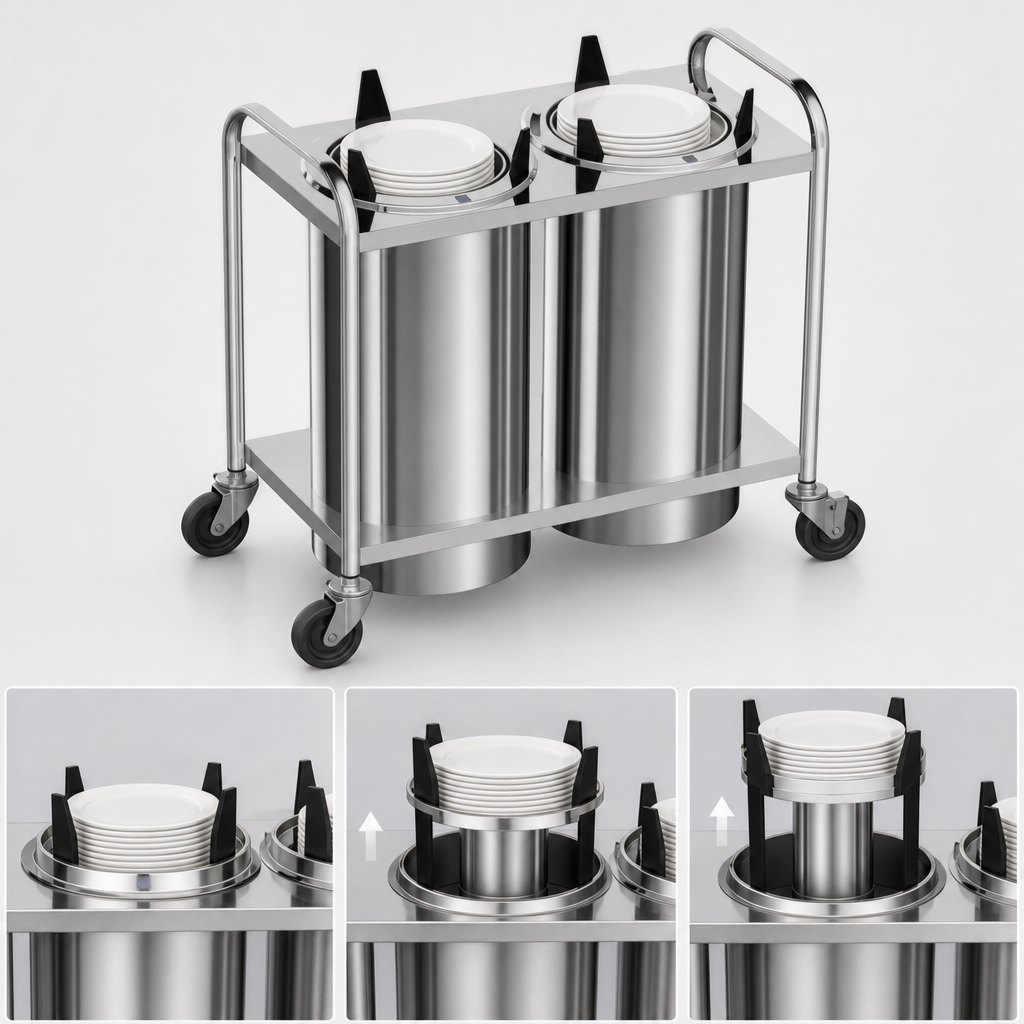

Self-Leveling Dispensing Tubes

Each of the three tubes automatically raises plates for easy, ergonomic access, ensuring a smooth service flow.

Self-Leveling Dispensing Tubes

Heated Dispensing System

Integrated heating elements, a side-mounted thermostat, pilot light, and on-off switch (located in the top flange) keep plates warm and ready for use.

All Stainless Steel Construction

The frame is constructed of 1-inch stainless steel tubing, welded to 16-gauge stainless steel upper and lower decks, with heavy-duty reinforcements for durability and hygiene.

High-Impact Plastic Guide Posts

Three guide posts on the counter top flange help align plates within the dispensing tubes, preventing jams and ensuring smooth operation.

Mobile Design with Swivel Casters

Equipped with 4-inch heavy-duty swivel casters, allowing the dispenser to be easily moved to different locations as needed.

Field Adjustable Spring Mechanism

A combination of extension springs can be easily adjusted in the field to support varying plate weights and achieve the desired dispensing height.

High Capacity

Each dispensing tube can hold up to 72 plates or 36 bowls, providing ample capacity for busy service periods.

Type Plate Dispenser
Style Mobile Open Frame
Installation Type Floor Model (With Casters)
Compartments 3
Pan Capacity 72 Plates or 36 Bowls Per Tube
Plate Diameter 5-3/4 Inches (Maximum)
Material Stainless Steel
Voltage 120 Volts
Amps 6.0 Amps
Watts 720 Watts
Cord Length 6 Feet
Plug Type NEMA 5-15P
Controls Thermostat, Pilot Light, On-Off Switch
Casters 4 Inches Swivel Heavy Duty
Shipping Width 36 Inches
Shipping Depth 16 Inches
Shipping Height 36 Inches
Shipping Weight 124.0 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

This model is designed to accommodate plates with a maximum diameter of approximately 5-3/4 inches.
Each self-elevating dispensing tube has a capacity of up to 72 plates or 36 bowls.
Yes, this model features heated dispensing tubes with a base-mounted heating element, a thermostat, pilot light, and an on-off switch.
Yes, the spring mechanism is field-adjustable, allowing you to fine-tune it to the specific weight of your plates for optimal dispensing height.
The MOPD3H-5-3/4 operates on 120 Volts, drawing 6.0 Amps and consuming 720 Watts. It comes with a 6-foot cord set and a NEMA 5-15P plug.
