Key specifications

Type
Beverage Serving Counter
Style
Mobile Modular
Installation Type
Floor Model
Material
Aluminum
Top Material
304 Stainless Steel
Finish
Laminate
Spec sheet
Atlas Metal SKU: CAU-5

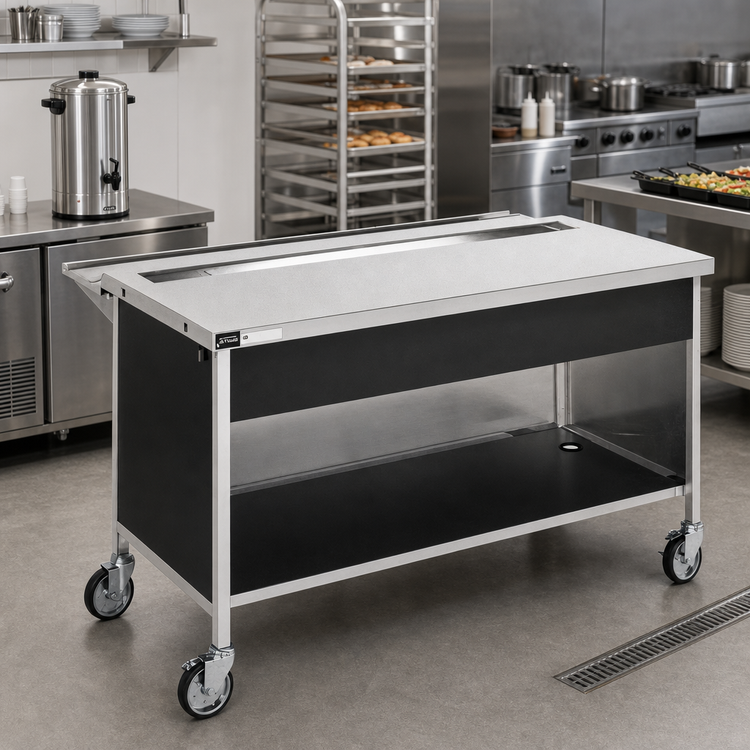

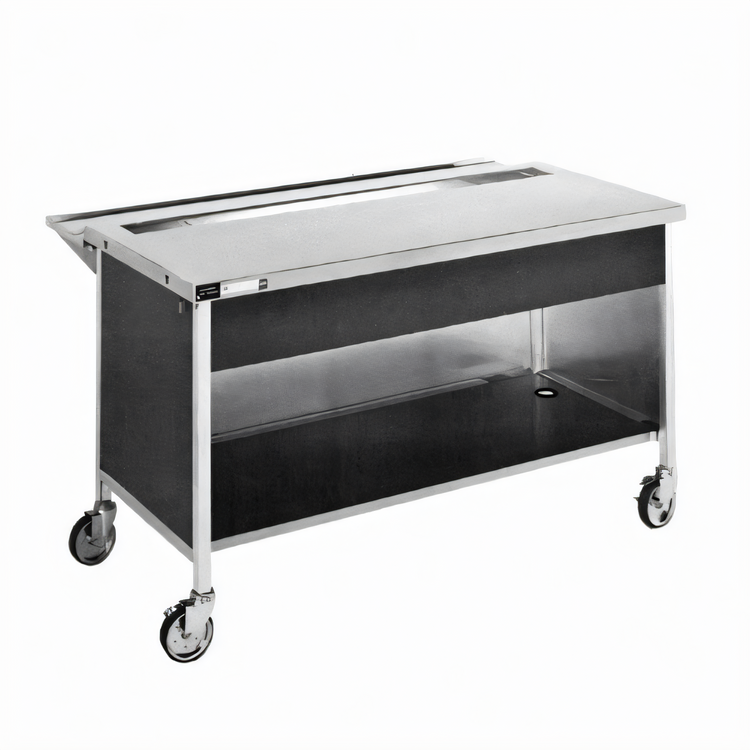

Atlas Metal CAU-5 Mobile Beverage Counter with Urn Trough

$4,378.77
/each
Estimated to ship in 61–64 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Width
Urn drain
Front panel
Mobility
Factory Add-Ons
End shelves

Need something else? Contact us.

Included: Atlas Metal warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $405/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Beverage Serving Counter
Style Mobile Modular
Installation Type Floor Model
Material Aluminum
Top Material 304 Stainless Steel
Finish Laminate
Overall Width 77-1/2 Inches
Overall Depth 30-1/2 Inches
Working Height 35 Inches
Top Gauge 16 Gauge
Urn Trough Size 66-15/16 in W x 4-1/2 in front-to-back x 1-3/4 in deep
Drain Diameter 3/4 Inch
Caster Diameter 5 Inches
Caster Type Swivel
Braked Casters 2
Rear Apron 7 Inches
Weight 270 lb

Description

The Atlas Metal CAU-5 is a mobile modular beverage serving counter with a 16-gauge 304 stainless steel top, built-in urn trough, removable anti-splash grate, drain assembly, and laminated front panel.

  • Measures 77-1/2 inches wide, 30-1/2 inches deep, and 35 inches high.
  • Built-in urn trough measures 66-15/16 inches wide, 4-1/2 inches front-to-back, and 1-3/4 inches deep.
  • Includes five 5-inch swivel casters, with two casters equipped with brakes.
  • UL EPH Classified.

Overall Dimensions:

77.5"W x 30.5"D x 35.0"H

Product Weight:

270.0 lb

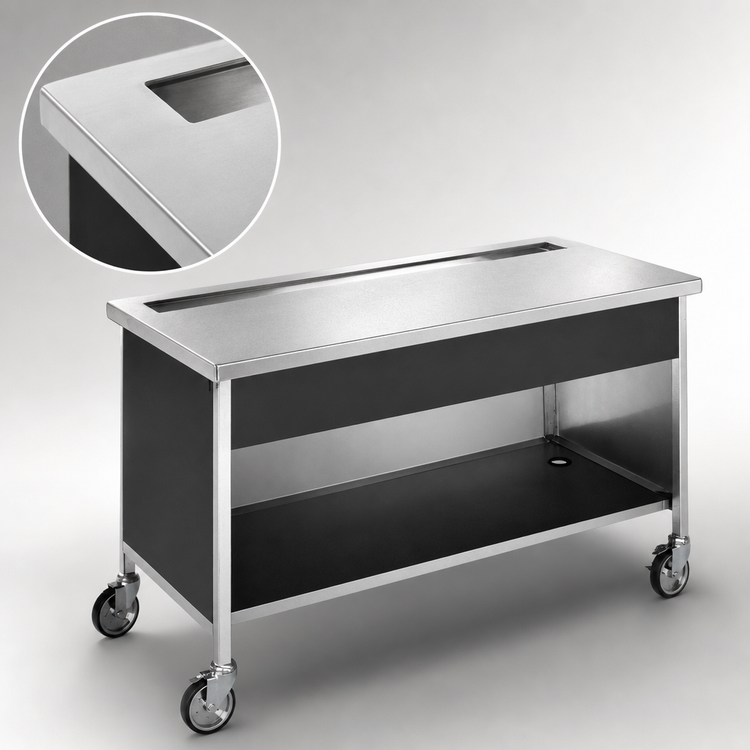

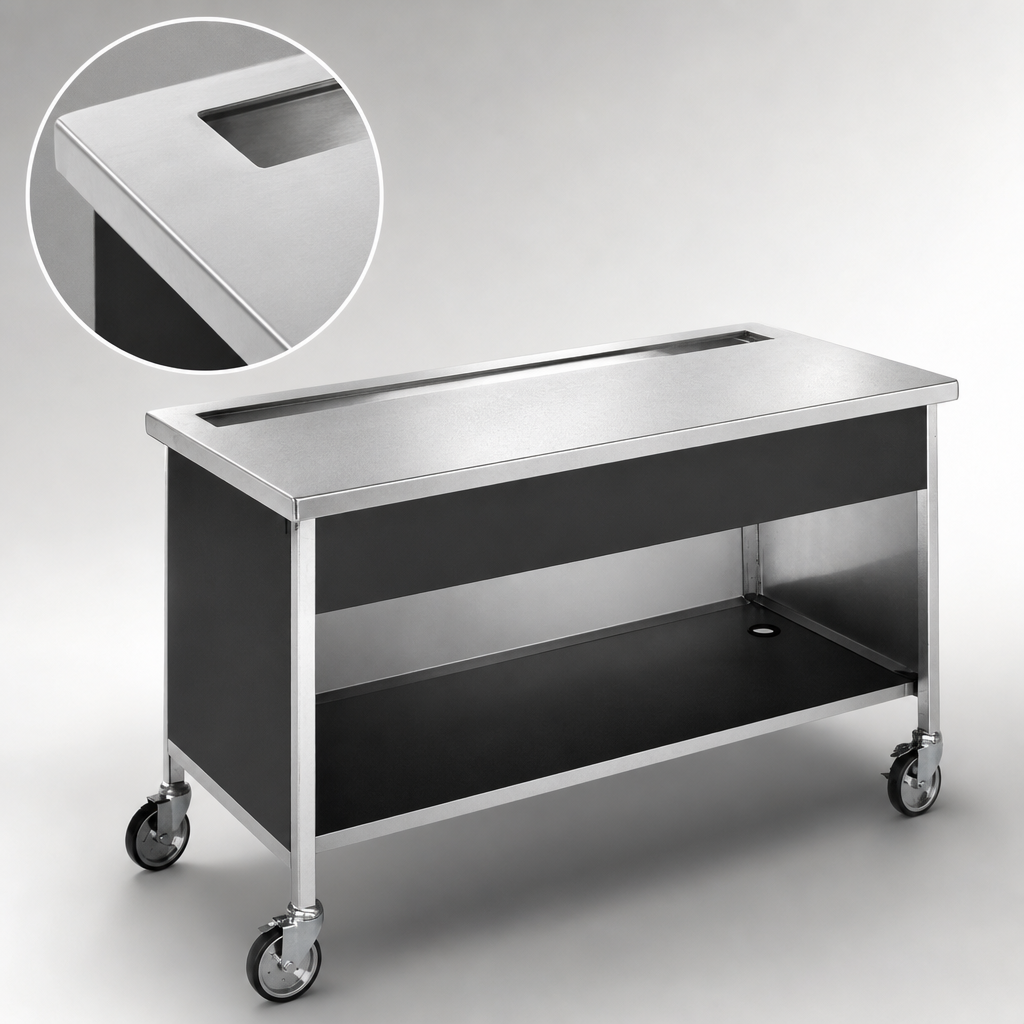

304 Stainless Steel Top

The 16-gauge top is die-formed, welded, ground, and polished.

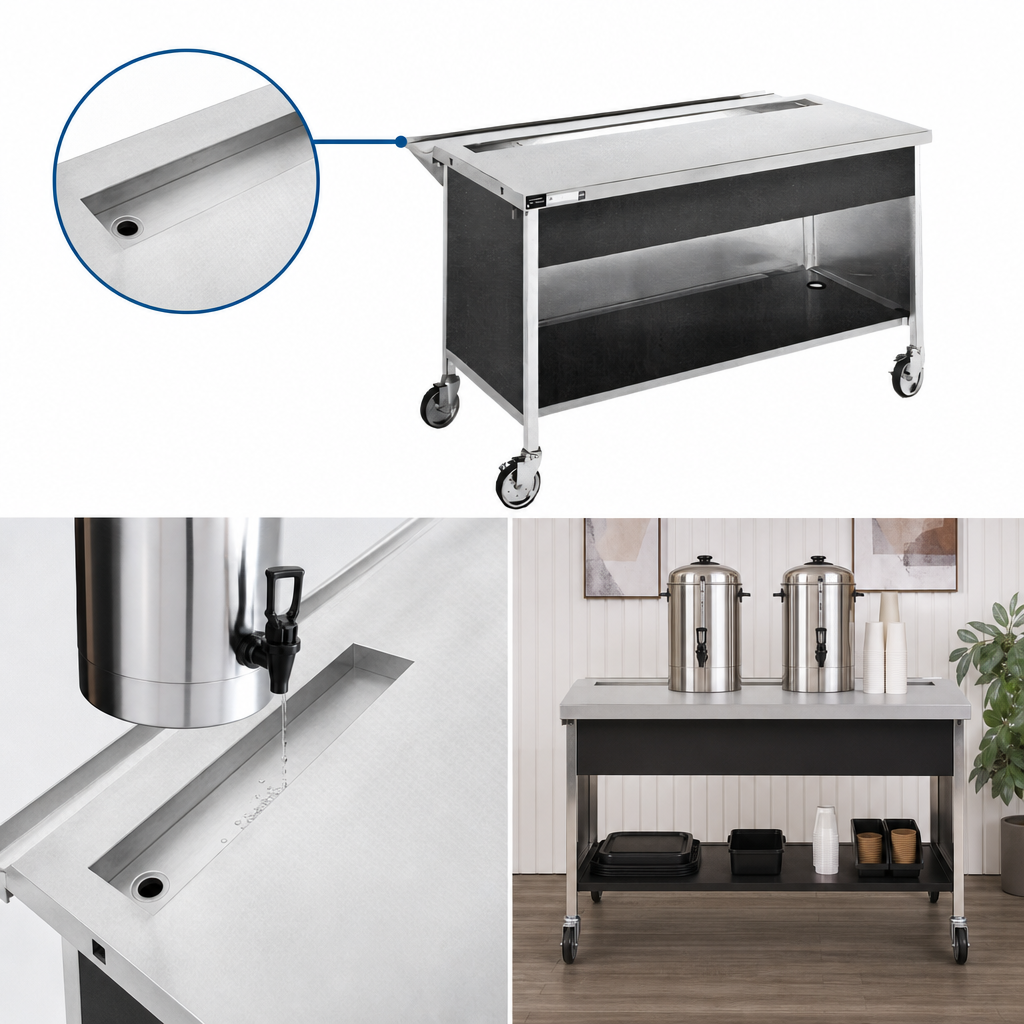

Built-In Urn Trough

The trough measures 66-15/16 inches wide, 4-1/2 inches front-to-back, and 1-3/4 inches deep.

Removable Anti-Splash Grate

The grate is removable for cleaning.

Drain Assembly

Includes a 3/4-inch drain with strainer, 4-inch PVC nipple, and valve.

Mobile Casters

Five 5-inch swivel casters are included, with two equipped with toe-activated brakes.

Aluminum Frame

The frame uses welded aluminum square tubing.

Laminated Front Panel

The body includes a laminated front panel and a 7-inch rear apron.

Self-Locking Device

The device aligns and retains cart positioning when two or more carts are joined.
