Key specifications

Type
Beverage Center
Style
Enclosed Base
Installation Type
Floor Model
Material
Fiberglass
Top Material
Stainless Steel
Pan Material
Stainless Steel
Spec sheet

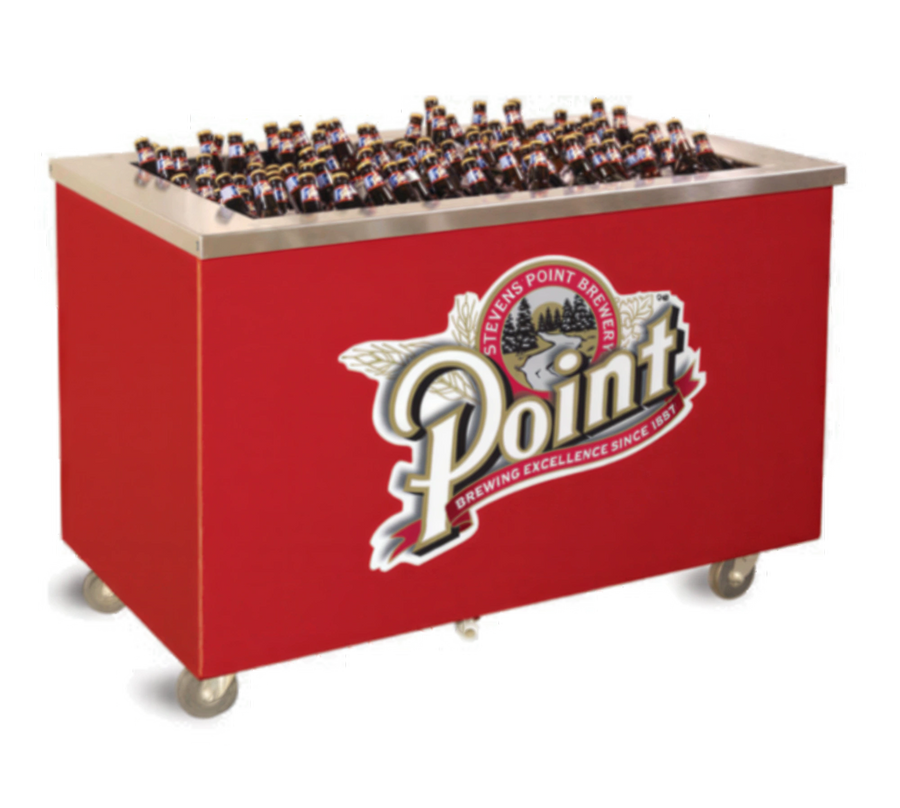

Piper Products/Servolift Eastern Reflections R4-BCI 60-Inch Beverage Center

$5,525.02
/each
Estimated to ship in 41–44 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Length
Protector guard
Storage base
Cutting board
Tray slide
Factory Add-Ons

Need something else? Contact us.

Included: Piper Products/Servolift Eastern warranty 12-month limited warranty on parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $511/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Beverage Center
Style Enclosed Base
Installation Type Floor Model
Material Fiberglass
Top Material Stainless Steel
Pan Material Stainless Steel
Capacity 160 Bottles (12 oz)
Pan Size 12 x 20 in
Pan Capacity 4 Pans
Cold Pan Depth 9-7/16 in
Top Gauge 14 Gauge
Pan Gauge 20 Gauge
Caster Count 4 Casters
Caster Diameter 4 in
Drain Valve 3/4 in FPT Ball Valve

Description

The Reflections R4-BCI Beverage Center is a floor model measuring 60 in wide, 30 in deep, and 36 in high. It includes a 9-7/16 in deep cold pan, fiberglass base, and enclosed construction.

  • Seamless molded FRP body with a smooth exterior and rounded corners.
  • 14-gauge stainless steel top with fully welded square turndowns on all sides.
  • 20-gauge stainless steel cold pan with a fully welded, watertight well.
  • Four 4 in diameter swivel plate casters with brakes.
  • A 3/4 in FPT drain ball valve is located below the unit.
  • An interlocking mechanism connects the unit with other Reflections units.
  • The unit can be customized with your logo.

Overall Dimensions:

60.0"W x 30.0"D x 36.0"H

Product Weight:

500.0 lb

Cold Pan

The model includes a 9-7/16 in deep cold pan with a fully welded, watertight well.

Stainless Steel Top

The 14-gauge stainless steel top has fully welded square turndowns on all sides.

Molded FRP Body

The body is seamless molded FRP with a smooth exterior and rounded corners.

Enclosed Fiberglass Base

The unit has an enclosed fiberglass base.

Mobility

Four 4 in diameter swivel plate casters with brakes are included.

Drain Valve

A 3/4 in FPT drain ball valve is located below the unit.

Interlocking Design

An interlocking mechanism is provided for connecting with other Reflections units.

Logo Customization

The unit can be customized with your logo.

Frequently Asked Questions

The unit measures 60 in wide, 30 in deep, and 36 in high.
The authoritative product specification lists a 9-7/16 in deep cold pan.
The product sheet lists a pan capacity of four 12 x 20 in pans.
The listed capacity is 160 bottles based on 12 oz bottles; actual capacity varies with the product and ice usage.
Yes. It has four 4 in diameter swivel plate casters with brakes.
Yes. An interlocking mechanism is provided for connecting with other Reflections units.
Piper Products provides a 12-month limited warranty on parts and labor.
