Key specifications

Type
Beverage Serving Counter
Style
Mobile Modular
Installation Type
Floor Model
Material
Aluminum
Top Material
304 Stainless Steel
Front Panel Material
Plastic Laminate
Spec sheet
Atlas Metal SKU: CAU-3

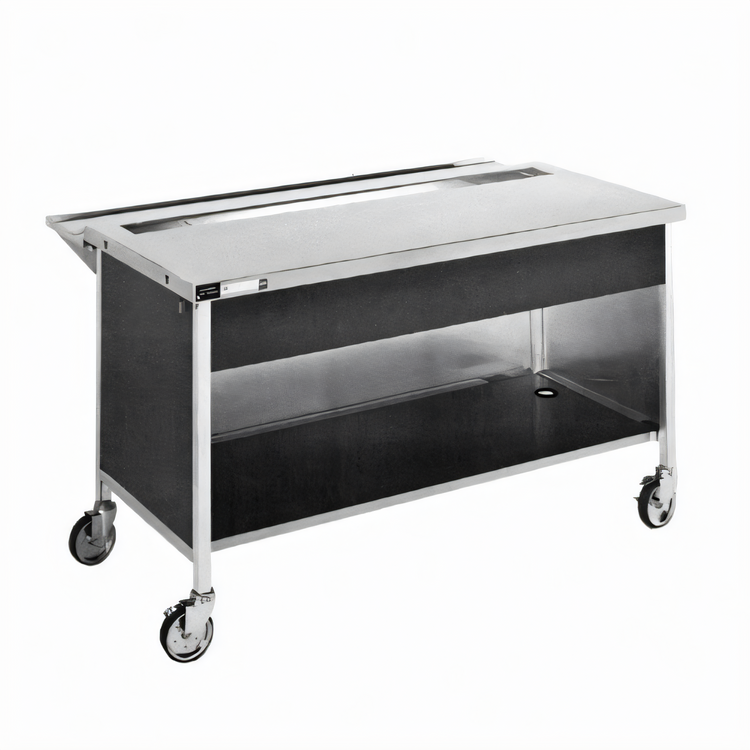

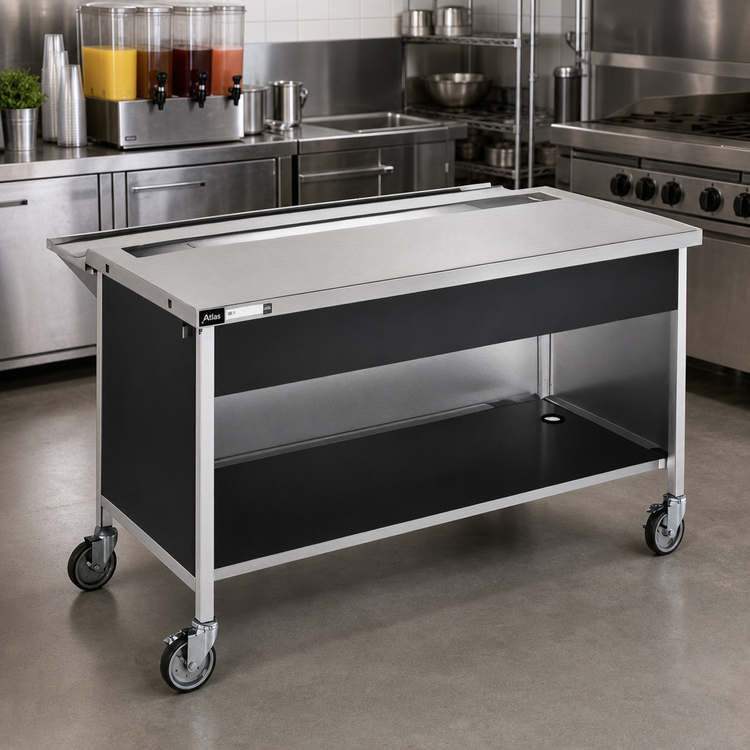

Atlas Metal CAU-3 50-Inch Mobile Beverage Serving Counter

$3,422.43
/each
Estimated to ship in 61–64 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Width
Urn drain
Factory Add-Ons
Accessories
Included: Atlas Metal warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $317/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Beverage Serving Counter
Style Mobile Modular
Installation Type Floor Model
Material Aluminum
Top Material 304 Stainless Steel
Front Panel Material Plastic Laminate
Finish Laminate
Width 50 in
Depth 30.5 in
Height 35 in
Weight 180 lb
Top Gauge 16 Gauge
Frame Profile 1-1/4 in Square Tubing
Urn Trough Width 39-7/16 in
Urn Trough Front-To-Back 4-1/2 in
Urn Trough Depth 1-3/4 in
Drain Diameter 3/4 in
Drain Nipple Length 4 in
Caster Diameter 5 in
Caster Type Swivel
Caster Tread Non-Marking Rubber
Brake Count 2

Description

The Atlas Metal CAU-3 is a mobile beverage serving counter with a 16-gauge 304 stainless steel top and built-in urn drain trough.

  • 50-inch-wide counter with a 39-7/16-inch-wide urn trough.
  • Removable anti-splash grate and 3/4-inch drain with strainer, PVC nipple, and valve.
  • Aluminum square tubing frame with laminated front panel.
  • 5-inch swivel casters, including two with toe-activated brakes.
  • Integral self-locking device aligns and retains carts when two or more units are joined.

Overall Dimensions:

50.0"W x 30.5"D x 35.0"H

Product Weight:

180.0 lb

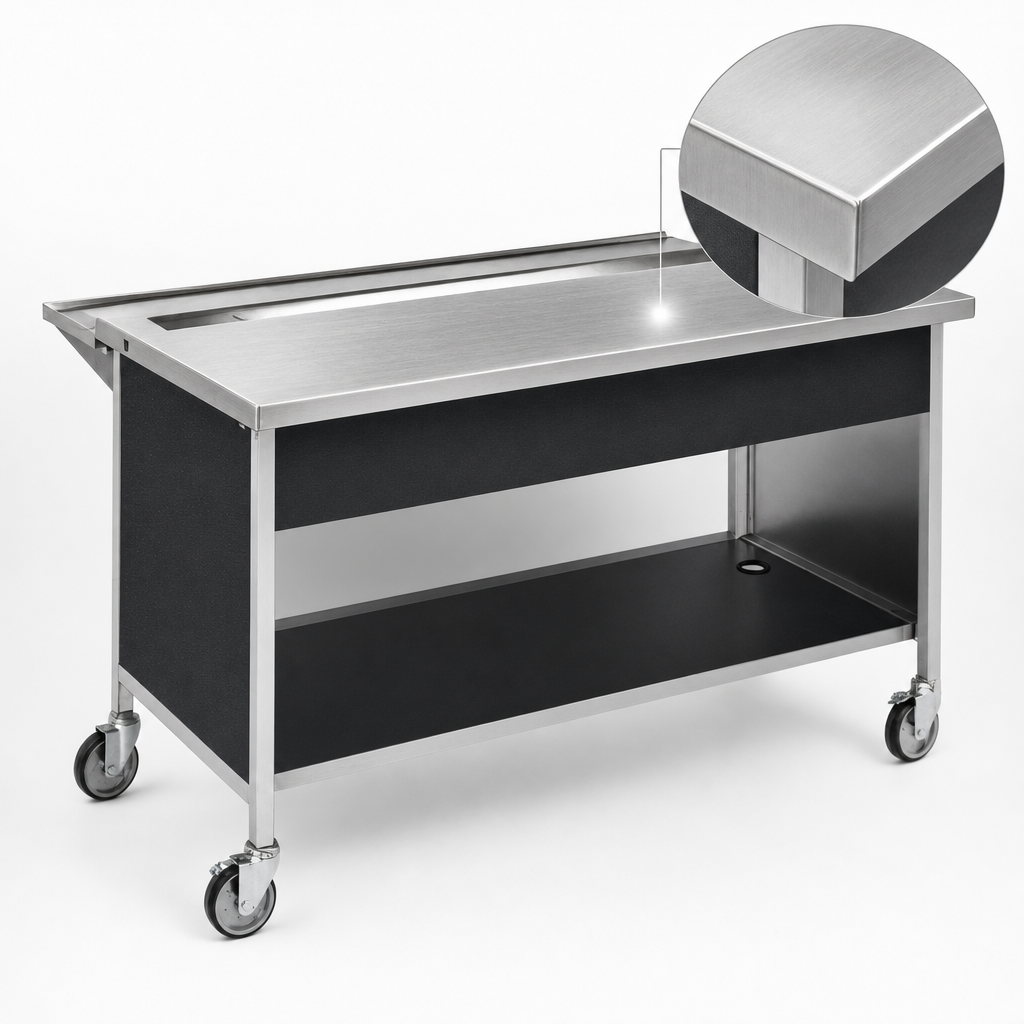

304 Stainless Steel Top

The 16-gauge top is constructed from type 304 stainless steel.

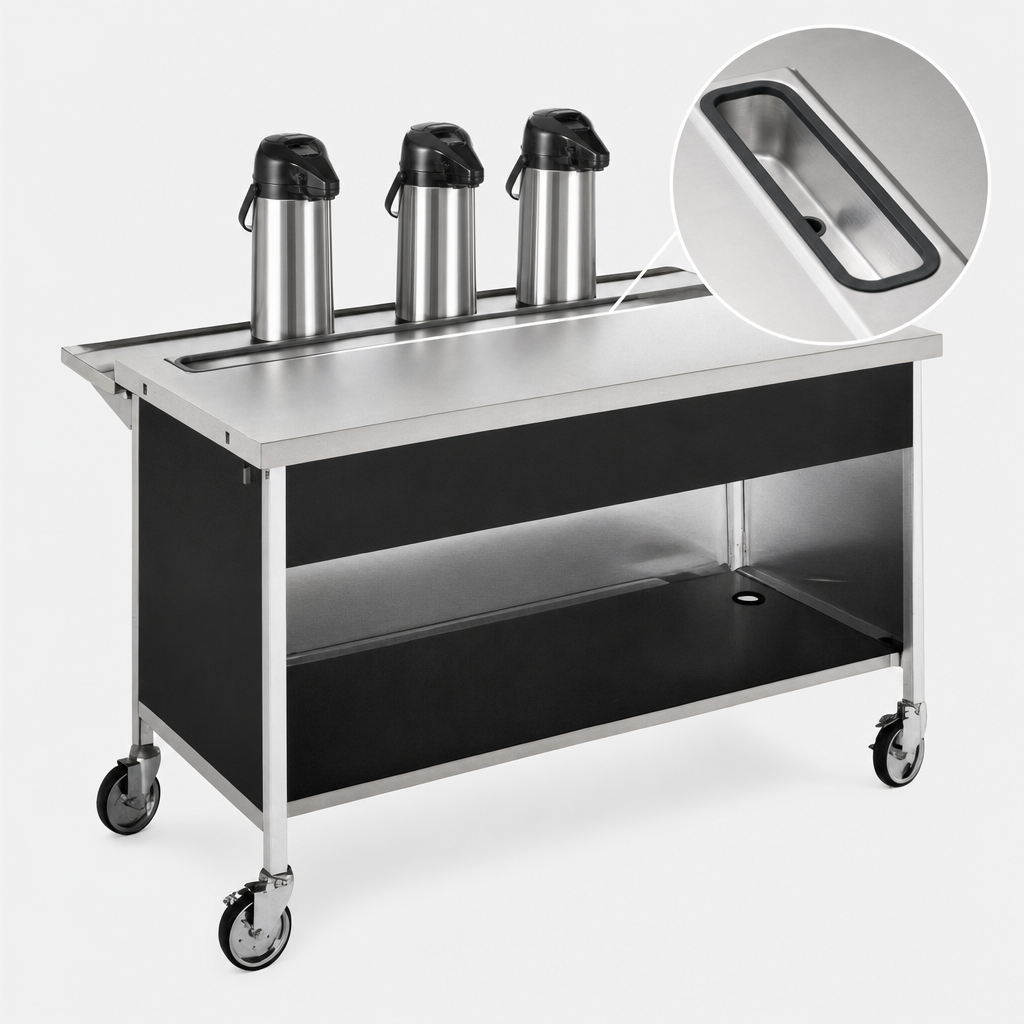

Built-In Urn Drain Trough

The integrated trough measures 39-7/16 in wide, 4-1/2 in front-to-back, and 1-3/4 in deep.

Removable Anti-Splash Grate

The grate is removable for cleaning.

Drain Assembly

Includes a 3/4 in drain with strainer, 4 in PVC nipple, and valve.

Mobile Caster Base

The counter has 5 in non-marking rubber-tired swivel casters, with two toe-activated brakes.

Self-Locking Device

The integral locking device aligns and retains cart positioning when two or more carts are joined.

Laminated Front Panel

The body includes a front panel of plastic laminate on aluminum.

Frequently Asked Questions

The top is constructed from 16-gauge type 304 stainless steel.
Yes. It has a built-in urn drain trough measuring 39-7/16 in wide, 4-1/2 in front-to-back, and 1-3/4 in deep.
Yes. It includes 5 in swivel casters, with two casters equipped with toe-activated brakes.
The drain assembly includes a 3/4 in drain with strainer, 4 in PVC nipple, and valve.
