Key specifications

Type
Beverage Counter
Style
Mobile Modular
Installation Type
Floor Model
Material
Aluminum
Top Material
304 Stainless Steel
Front Panel Finish
Laminate
Spec sheet
Atlas Metal SKU: CAU-2

Atlas Metal CAU-2 Mobile Beverage Counter with Urn Trough

$3,028.41
/each
Estimated to ship in 61–64 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Width
Urn drain
Factory Add-Ons
Accessories
Included: Atlas Metal warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $280/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Beverage Counter
Style Mobile Modular
Installation Type Floor Model
Material Aluminum
Top Material 304 Stainless Steel
Front Panel Finish Laminate
Width 36-1/4 in
Depth 30-1/2 in
Height 35 in
Weight 150 lb
Top Gauge 16 Gauge
Trough Dimensions 25-11/16 in W x 4-1/2 in D x 1-3/4 in deep
Drain Diameter 3/4 in
Grate Type Removable Anti-Splash
Caster Diameter 5 in
Caster Type Swivel
Braked Casters 2
Frame Tube Size 1-1/4 in x 1-1/4 in
Top Finish Polished

Description

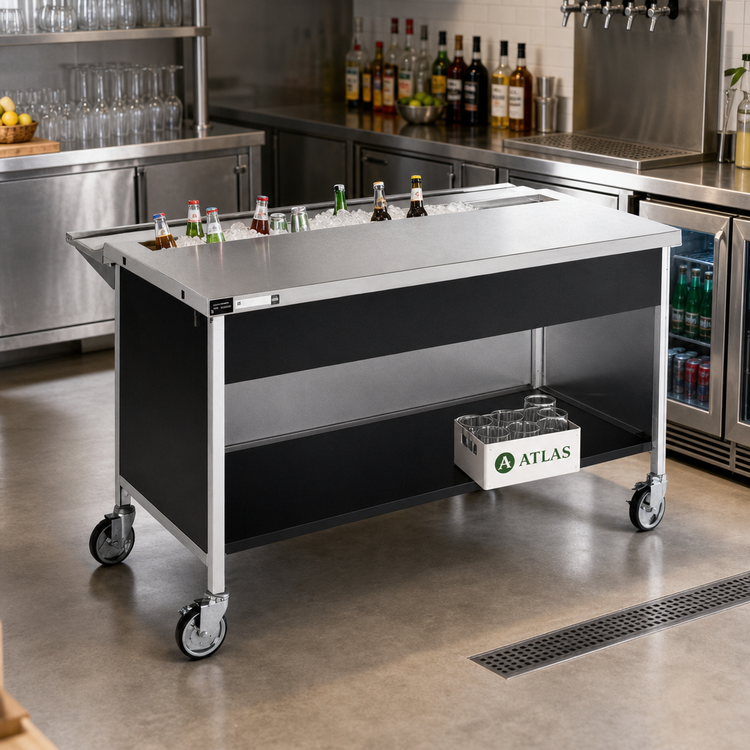

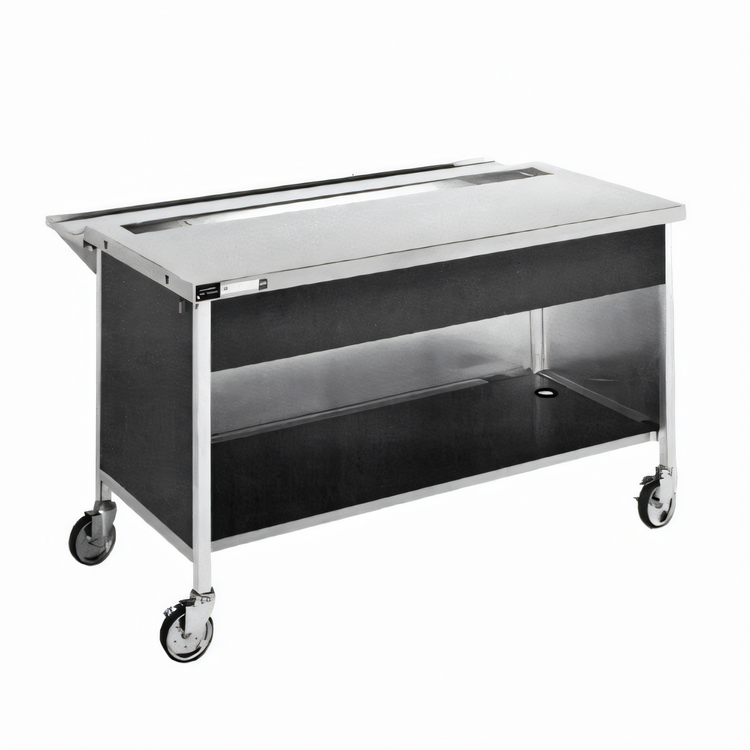

The Atlas Metal CAU-2 is a mobile modular beverage serving counter with a 16-gauge 304 stainless steel top and a full-length built-in urn trough.

  • Built-in urn trough measures 25-11/16 inches wide x 4-1/2 inches front-to-back x 1-3/4 inches deep.
  • Removable anti-splash grate supports cleaning.
  • Includes a 3/4-inch drain with strainer, 4-inch PVC nipple, and valve.
  • Aluminum square-tubing frame with a laminated front panel.
  • Five-inch swivel casters provide mobility, with two casters equipped with brakes.

Overall Dimensions:

36.25"W x 30.5"D x 35.0"H

Product Weight:

150.0 lb

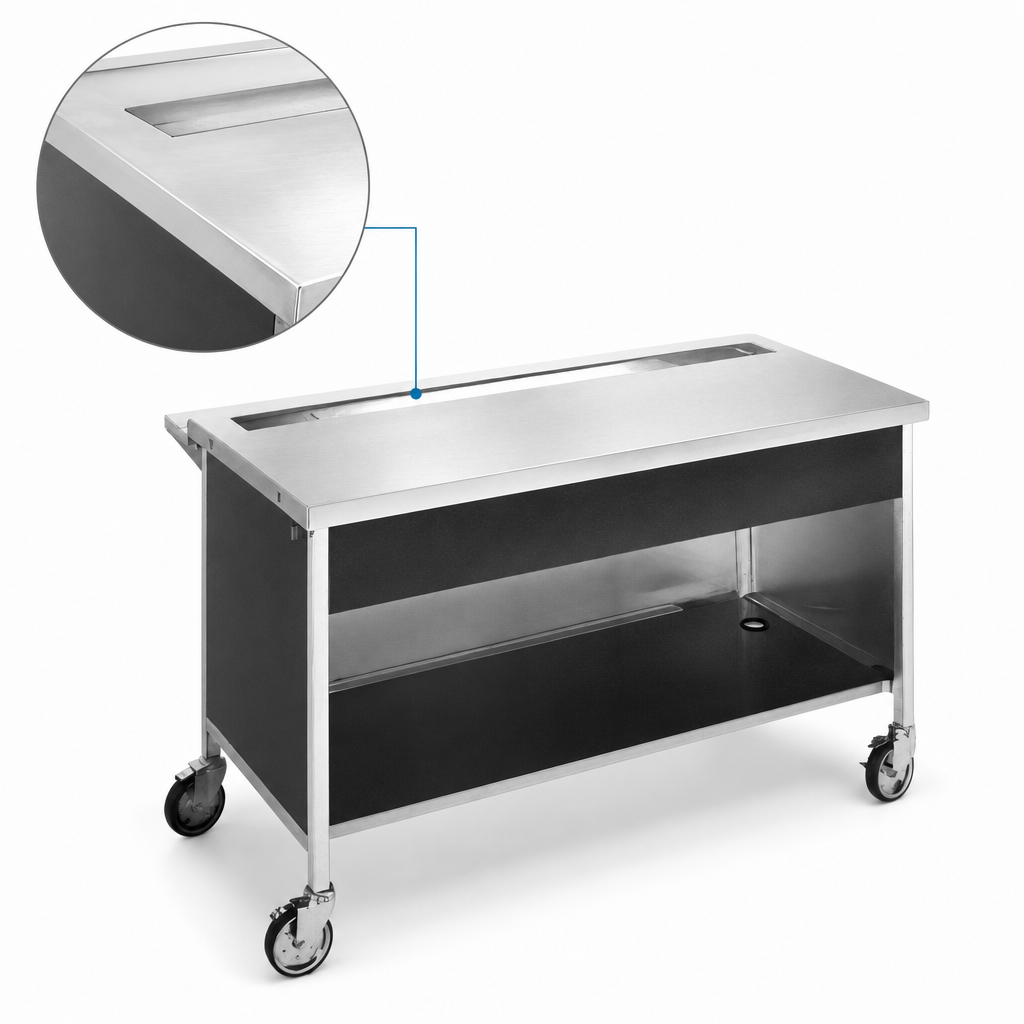

304 Stainless Steel Top

The 16-gauge top is die-formed, welded, ground, and polished.

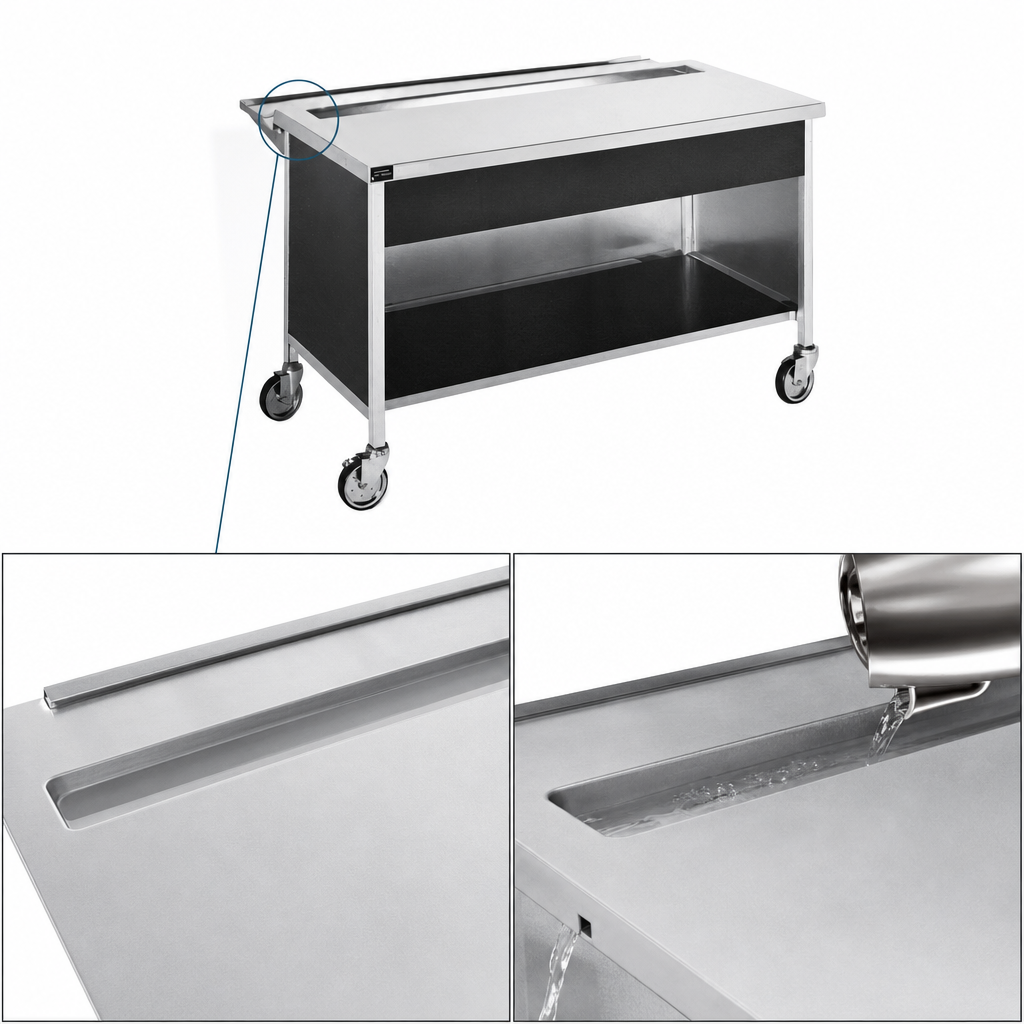

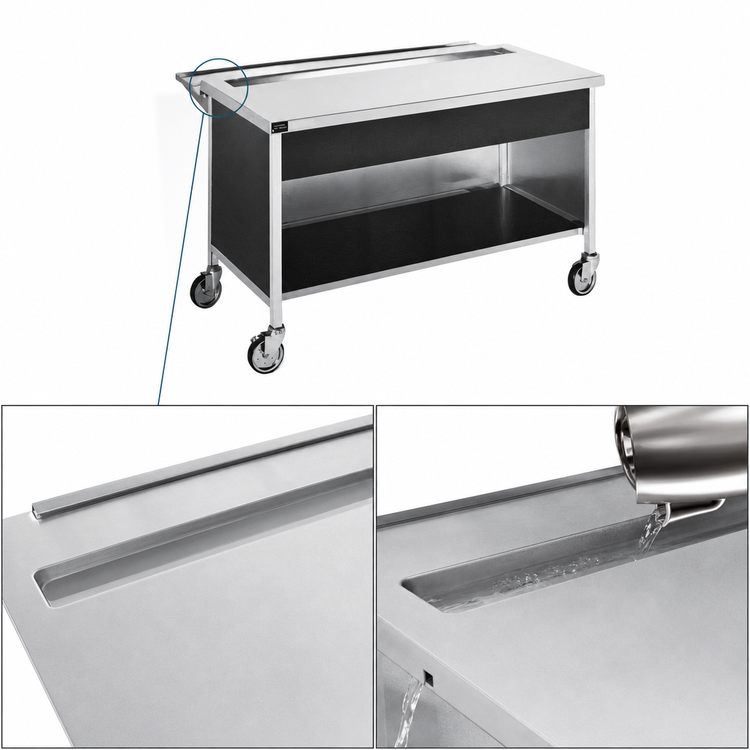

Full-Length Urn Trough

The built-in trough measures 25-11/16 inches wide x 4-1/2 inches front-to-back x 1-3/4 inches deep.

Removable Anti-Splash Grate

The removable grate is provided for the urn trough.

Drain Assembly

Includes a 3/4-inch drain with strainer, 4-inch PVC nipple, and valve.

Aluminum Square-Tubing Frame

The frame uses 1-1/4-inch x 1-1/4-inch hi-tensile aluminum square tubing.

Laminated Front Panel

The body includes a laminated front panel.

Mobile Caster Base

Five-inch swivel casters provide mobility, with two casters equipped with toe-activated brakes.

Self-Locking Device

Aligns and retains cart positioning when two or more carts are joined.

Frequently Asked Questions

The counter is 36-1/4 inches wide x 30-1/2 inches deep x 35 inches high.
The top is constructed from 16-gauge Type 304 stainless steel.
Yes. It includes a full-length built-in urn trough measuring 25-11/16 inches wide x 4-1/2 inches front-to-back x 1-3/4 inches deep.
Yes. The urn trough includes a 3/4-inch drain with strainer, 4-inch PVC nipple, and valve.
Yes. It has 5-inch swivel casters, with two casters equipped with toe-activated brakes.
The product includes a 1-year parts and labor warranty.
