Key specifications

Amps
21.3 Amps; 24.5 Amps; 25.0 Amps; 28.8 Amps
Dimensions
91.25"W × 30.5"D × 35.0"H
Type
Hot Food Counter
Style
Mobile
Installation Type
Floor Model
Material
Aluminum
Spec sheet
Atlas Metal SKU: CAIH-6

Atlas Metal CAIH-6 Mobile 6-Well Hot Food Serving Counter

$8,910.00
/each
Estimated to ship in 61–64 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Number of wells
ElectricalRequired
Drain configuration
Control location
Rear doors
Factory Add-Ons

Need something else? Contact us.

Included: Atlas Metal warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $824/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Counter
Style Mobile
Installation Type Floor Model
Material Aluminum
Top Material 304 Stainless Steel
Front Panel Material Plastic Laminate
Pan Capacity 6 Pans
Pan Size 12 in x 20 in
Heating Type Electric
Controls Individual Thermostat Controls
Operation Wet or Dry
Caster Diameter 5 in
Brake Count 2
Watts 850 Watts; 1,000 Watts
Voltage 208 Volts; 240 Volts
Amps 21.3 Amps; 24.5 Amps; 25.0 Amps; 28.8 Amps
Plug Type 6-50P; L6-30P
Cord Length 6 ft

Description

The Atlas Metal CAIH-6 is a mobile electric hot food serving counter with six individual 12 in x 20 in hot food wells and thermostat controls for each well.

It features a 304 stainless steel top, aluminum square-tubing frame, laminated front panel, and 5 in swivel casters, including two with brakes.

  • Fully insulated hot food wells
  • Wet or dry operation
  • 6 ft power cord and plug
  • 1-year parts and labor warranty

Overall Dimensions:

91.25"W x 30.5"D x 35.0"H

Product Weight:

355.0 lb

Six hot food wells

The counter includes six individual 12 in x 20 in hot food wells.

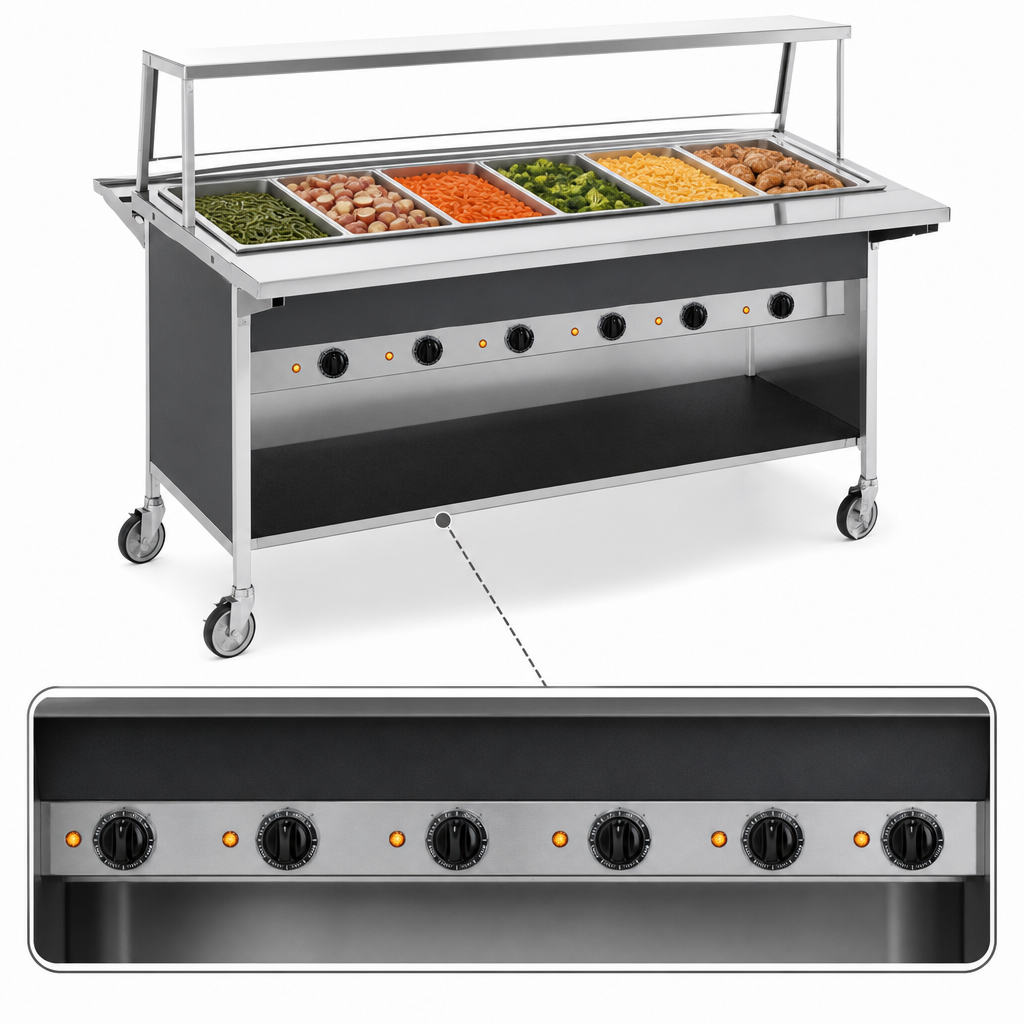

Individual thermostat controls

Each well has an individual thermostat control and pilot light.

304 stainless steel top

The die-formed top is constructed of 16-gauge type 304 stainless steel.

Aluminum frame

The frame uses welded 1-1/4 in x 1-1/4 in high-tensile aluminum square tubing.

Laminated front panel

The front panel is made of plastic laminate on aluminum.

Mobile caster base

The unit has 5 in non-marking rubber-tired swivel casters, with two casters equipped with toe-activated brakes.

Insulated wells

The hot food pan is insulated with high-density fiberglass insulation.

Wet or dry operation

The standard features specify wet or dry operation.

Frequently Asked Questions

It has six individual 12 in x 20 in hot food wells.
Yes. Each well has an individual thermostat control and pilot light.
The counter measures 91.25 in wide, 30.5 in deep, and 35 in high.
The electrical table lists 208 V and 240 V options with 850-watt or 1,000-watt configurations.
Yes. It has 5 in swivel casters, and two casters have toe-activated brakes.
The cutsheet lists a 1-year parts and labor warranty.
