Atlas Metal

Atlas Metal CAIH-3 3-Well Electric Hot Food Serving Counter

SKU: CAIH-3
$6,132.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

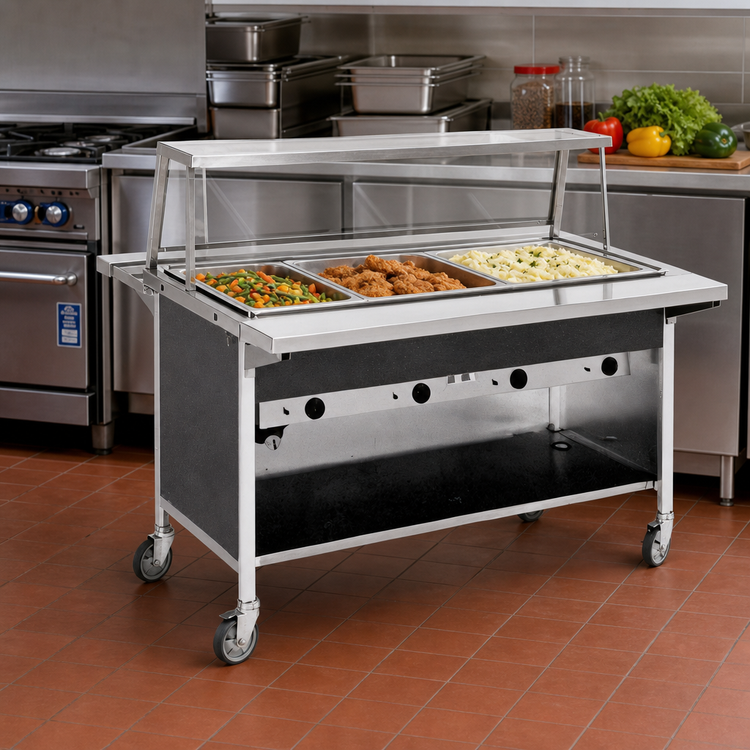

Atlas Metal CAIH-3 3-Well Electric Hot Food Serving Counter

50" Long, Mobile, Individual Thermostat Controls

Provide flexible and efficient hot food holding with this durable, mobile serving counter, perfect for various commercial food service operations.

  • Features three 12" x 20" fully insulated, thermostatically controlled hot food wells.
  • Equipped with 5" swivel casters, two with brakes, for easy mobility and secure positioning.
  • Durable construction with 16 gauge type 304 stainless steel top and 18 gauge type 304 stainless steel wells.
  • Integral locking device allows for aligning and retaining position when joining multiple units.
  • Versatile operation for both wet or dry heating applications.
  • Backed by a 1-year parts and labor warranty and certified by NSF and UL.

Overall Dimensions:

50.0"W x 30.5"D x 35.0"H

Product Weight:

200.0 lb

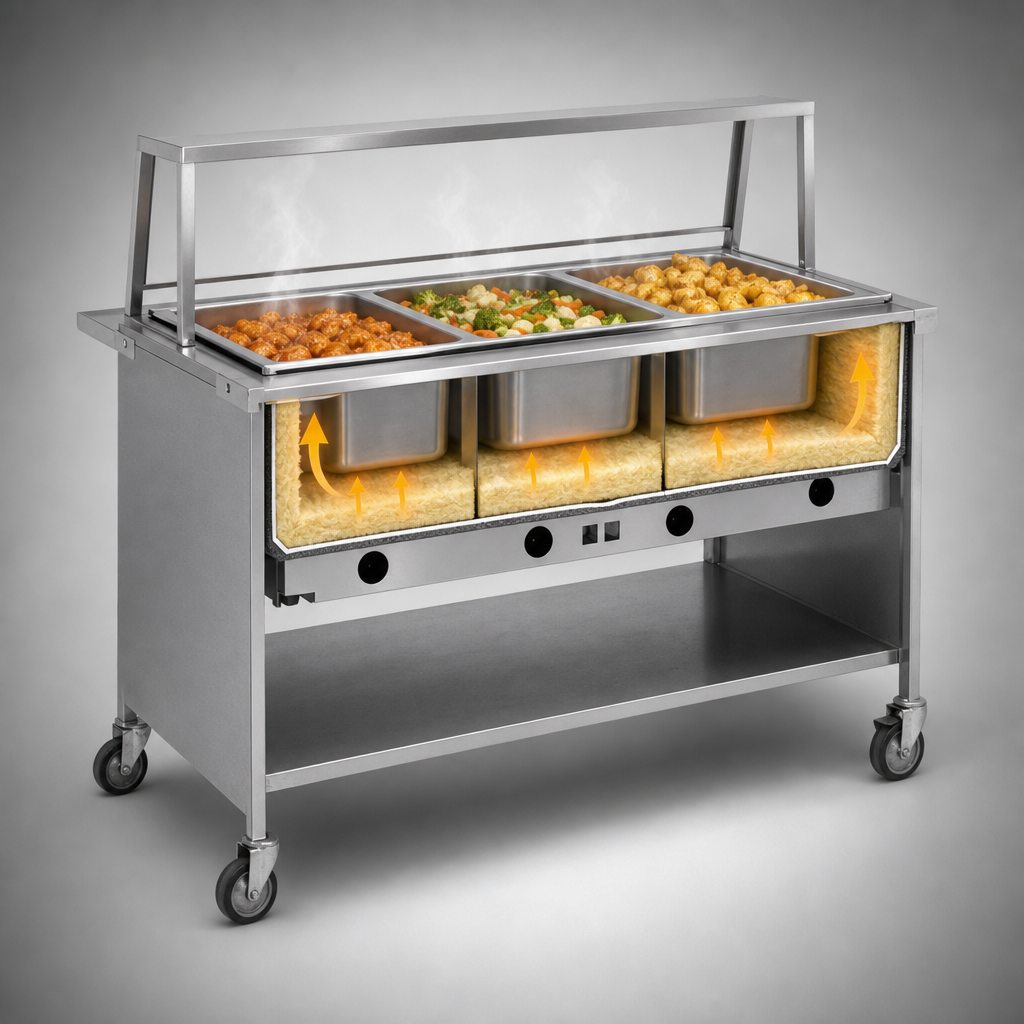

Fully Insulated Hot Food Wells

Each 12" x 20" hot food well is fully insulated with high-density fiberglass (1" thick on sides, 2" thick on bottom) to efficiently retain heat.

Fully Insulated Hot Food Wells

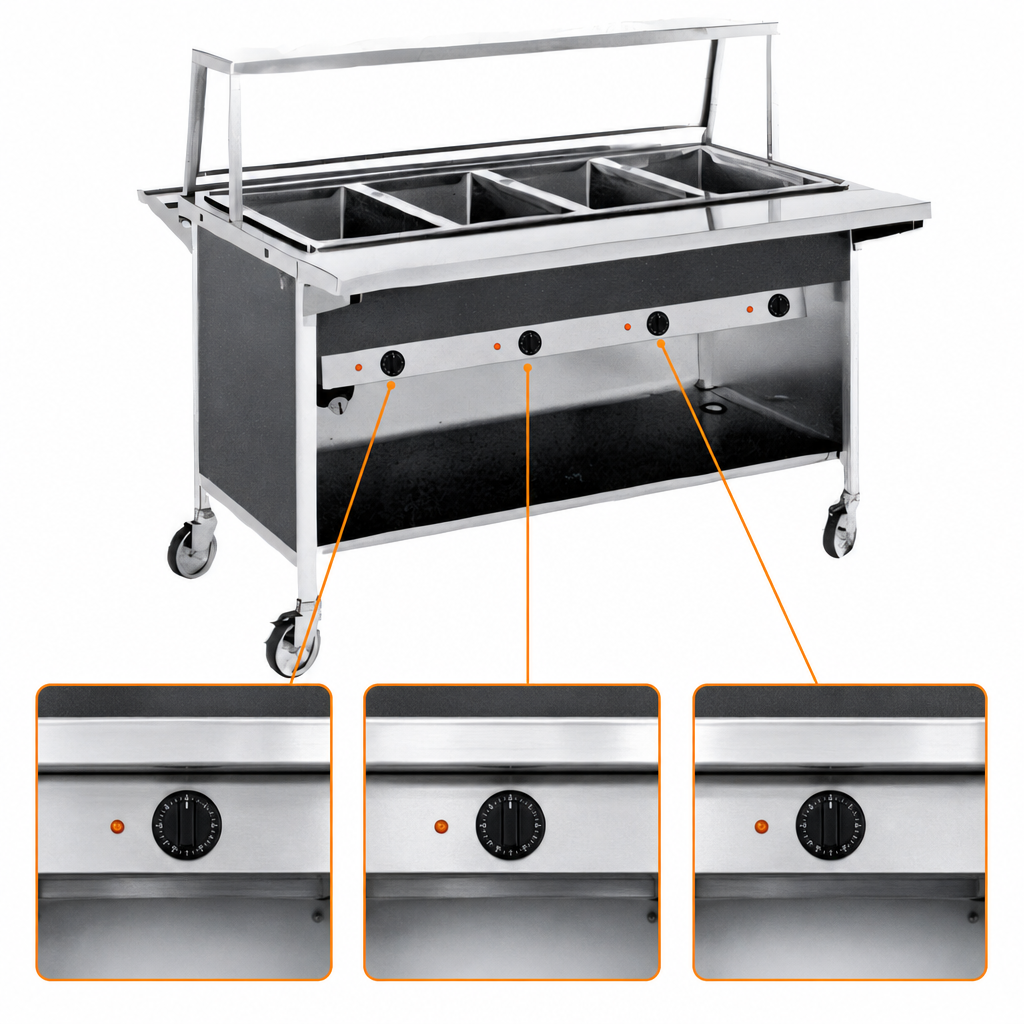

Individual Thermostat Controls

Each hot food well is independently controlled by its own thermostat, allowing for precise temperature management for different food items.

Individual Thermostat Controls

Positive Self-Locking Device

An integral locking device is provided to align and retain cart positioning, ensuring stability when two or more units are joined.

Mobile Design with Braking Casters

Equipped with 5" diameter, non-marking rubber tired swivel casters for easy mobility, with two casters on the operator's side featuring toe-activated brakes for secure positioning.

Wet or Dry Operation

Designed for versatile use, allowing for both wet and dry heating applications to accommodate various food holding needs.

Durable Stainless Steel Top

The top is constructed of heavy-duty 16 gauge, type 304 stainless steel, featuring a die-formed, welded, ground, and polished finish for longevity and hygiene.

Hi-Tensile Aluminum Frame

Frame construction utilizes 1-1/4" x 1-1/4" hi-tensile aluminum square tubing with welded, ground, and polished sections for a robust and uniform structure.

Customizable Front Panel

Features a front panel and 7" rear apron made of plastic laminate on .063 aluminum, with the finish color specified by the owner.

Easy Electrical Access

The bottom of the outer case can be easily removed, providing convenient access to electrical components for maintenance.

Pre-wired 6-Foot Power Cord

The unit is provided with a 6-foot long, 3-wire cord and plug, pre-wired to individual thermostat controls, extending from the control box on the operator's left.

Type Hot Food Unit
Style Serving Counter
Installation Type Floor Model (Mobile)
Pan Capacity 3
Pan Size 12" x 20" Full-Size
Compartments 3
Material Stainless Steel, Aluminum, Plastic Laminate
Interior Finish 304 Stainless Steel
Controls Individual Thermostat
Watts 2.55 kW
Voltage 120 Volts
Amps 21.3 Amps
Plug Type 5-30P
Cord Length 6 Feet
Selling Unit Each
Units Per Case 1
Shipping Weight 200 lb.
Shipping Width 50 Inches
Shipping Depth 31 Inches
Shipping Height 35 Inches

Frequently Asked Questions

The Atlas Metal CAIH-3 model features three 12" x 20" hot food wells, each with individual thermostat controls.
Yes, this unit is equipped with an integral self-locking device designed to align and securely retain cart positioning when two or more CAIH series units are joined.
The standard CAIH-3 with 850W heating elements per well operates at 120 Volts, drawing 21.3 Amps (2.55 kW) and utilizes a NEMA 5-30P plug. Other voltage and wattage configurations are available.
The unit comes with 5" diameter, non-marking rubber tired, swivel casters, which include ball bearings and grease fittings. Two of the casters, located on the operator's side, are equipped with toe-activated brakes.
The Atlas Metal CAIH-3 hot food serving counter comes with a 1-year parts and labor warranty.
