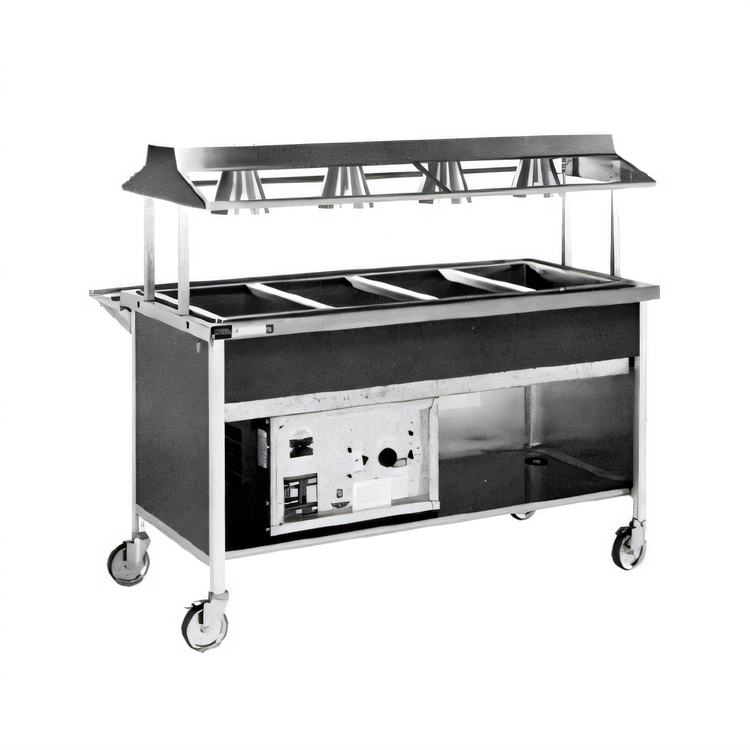

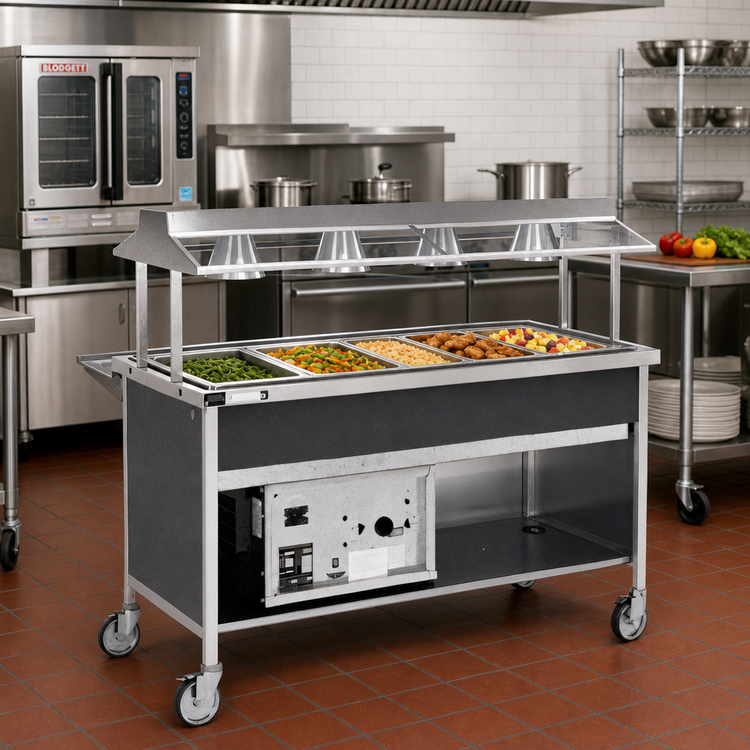

Atlas Metal CAHC-5 Dual Temperature 5-Pan Mobile Hot and Cold Food Serving Counter

77-1/2 Inch Length, Stainless Steel Top, Laminated Front Panel

Seamlessly switch between hot and cold food service with this versatile and mobile serving counter, designed for maximum efficiency and energy savings.

  • Offers dual temperature capability for both hot and refrigerated cold food service within a single unit.
  • Features self-contained refrigeration and an immersion heating element for efficient, independent operation.
  • Constructed with a durable 16 gauge stainless steel top and a hi-tensile aluminum square tubing frame.
  • Equipped with 5-inch swivel casters, two with brakes, for excellent mobility and secure positioning.
  • Fully insulated for superior temperature retention and reduced energy consumption.
  • Designed to accommodate five full-size (12" x 20") food pans with included separator channels.
  • Includes an integral locking device to align and retain cart positioning when multiple units are joined.

Overall Dimensions:

77.5"W x 30.5"D x 35.0"H

Product Weight:

475.0 lb

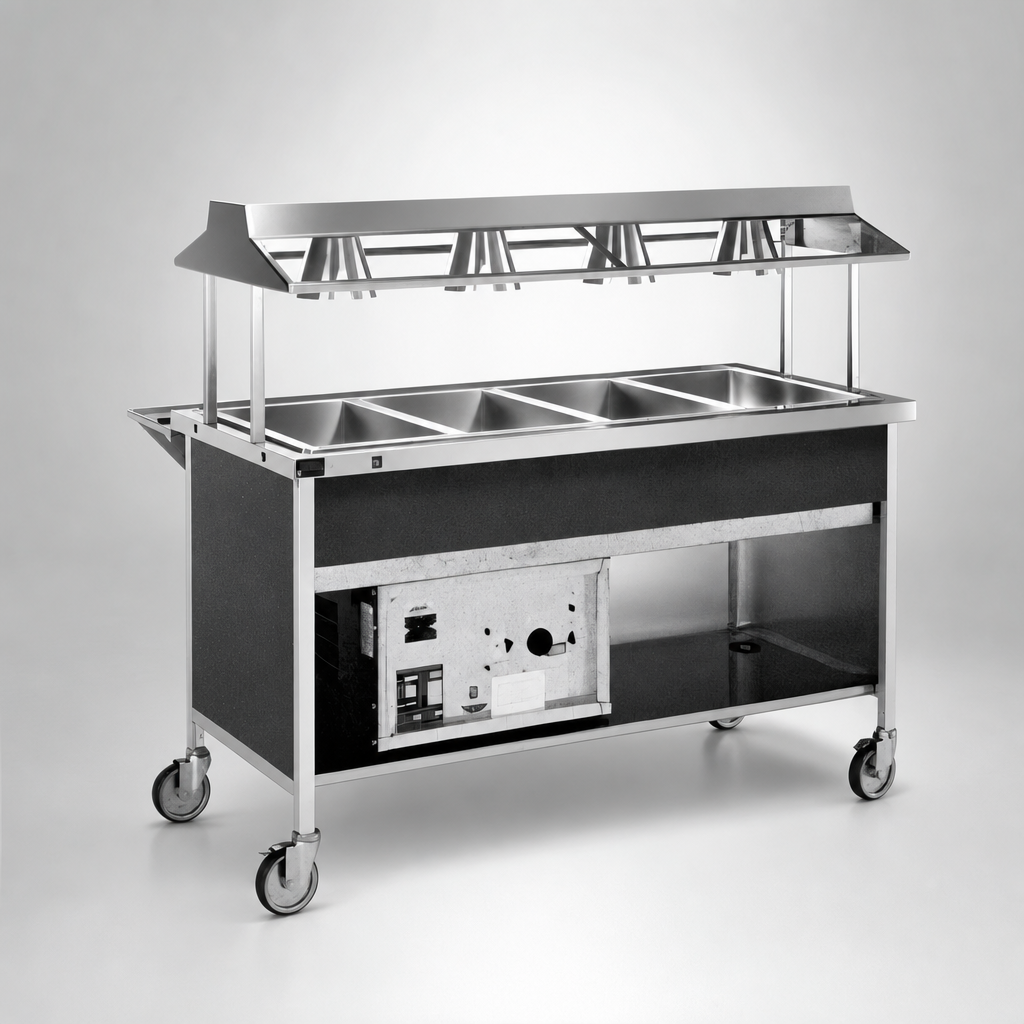

Heavy-Duty Stainless Steel Top

Constructed of 16 gauge, type 304 stainless steel, die-formed, welded, ground, and polished for superior durability and hygiene in commercial environments.

Heavy-Duty Stainless Steel Top

Integral Locking Device

Provided to align and securely retain cart positioning when two or more units are joined, creating a cohesive serving line.

Robust Aluminum Frame Construction

Frame utilizes hi-tensile aluminum square tubing (1-1/4" x 1-1/4"), featuring welded construction, ground, and polished to a uniform finish.

Customizable Body Panels

The body includes a front panel and a 7" rear apron crafted from plastic laminate on .063 aluminum, with the owner able to specify the desired finish.

WCM-HP Series Hot/Cold Pan

An integrated drop-in pan, constructed of 18 gauge, type 304 stainless steel with a raised perimeter bead and solid vinyl gasket for a secure, sealed fit.

High-Density Insulation

The pan is fully insulated with 1-3/8" thick high-density polystyrene on all sides and 1-1/2" thick on the bottom, encased in a 22 gauge galvanized steel outer case for maximum thermal efficiency.

Efficient Pan Liner Design

The interior liner features 1/4" radius coved corners for easy cleaning and has copper tubing firmly soldered to the exterior bottom and sides for effective temperature transfer.

Integrated Drain System

A 3/4" diameter drain with strainer, 4" brass nipple, and valve is provided for convenient water removal and cleaning.

Food Pan Separator Channels

Includes channels designed to securely hold standard 12" x 20" food pans in place within the well.

Immersion Heating Element with Safety Features

An immersion type heating element, located at the bottom of the pan with a perforated stainless steel sheath cover, includes a thermostat control. For safety, the element operates only when fully submerged in water and features an automatic cut-off if operated in a dry condition, along with a cut-off reset switch.

Self-Contained Refrigeration System

Equipped with a fully self-contained condensing unit, a hermetically sealed compressor, and a thermostat control. The system is fully charged with CFC-free refrigerant and ready for immediate operation.

Hot/Cold Selector Switch

The unit is pre-wired with a hot/cold selector switch that prevents dual operation, ensuring the unit functions exclusively as either a hot serving unit or a refrigerated cold pan at any given time.

Mobile Design with Locking Casters

Features 5" diameter, non-marking rubber tired, swivel casters with ball bearings and grease fittings. Both casters on the operator's side include toe-activated brakes for secure positioning.

Easy Plug-and-Play Electrical

The unit is pre-wired with required thermostat controls, pilot lights, and a 6' long, 3-wire cord with a twist lock plug for immediate use.

Type Hot and Cold Food Serving Counter
Style Floor Model (With Casters)
Installation Type Freestanding
Capacity 5 Full-Size Food Pans
Pan Capacity 5 Full-Size Pans
Pan Size 12" x 20"
Cold Capacity 5 Pan Refrigerated Cold Well
Hot Capacity 5 Pan
Controls Thermostat Control, Hot/Cold Selector Switch
Material 304 Stainless Steel, Aluminum
Top Construction 16 Gauge 304 Stainless Steel
Interior Finish 304 Stainless Steel
Base Finish Laminated Aluminum
Refrigerant Type CFC-Free
Voltage 208/240 Volts
Amps 18.7 Amps
Watts 4.5 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA L6-30P
Cord Length 6 Feet
Casters 5 Inches (diameter)
Working Height 35 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 78 Inches
Shipping Depth 31 Inches
Shipping Height 35 Inches
Shipping Weight 475 lb.

Warranty & Protection

1-Year Parts & Labor Warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The CAHC-5 primarily requires a 208/240 Volt, 1-Phase, 60 Hz electrical connection, utilizing a NEMA L6-30P twist lock plug. This setup is necessary to support its hot mode operation, and the unit comes with a 6-foot, 3-wire cord.
No, the CAHC-5 is equipped with a hot/cold selector switch that prevents dual operation. It is designed to function as either a hot serving unit or a refrigerated cold pan, but not both at the same time.
The CAHC-5 is designed to accommodate five standard full-size (12" x 20") food pans and includes separator channels to keep them organized and stable.
Yes, the unit is fully mobile, featuring 5" diameter swivel casters for easy movement. To secure it in position, two of these casters, located on the operator's side, are equipped with toe-activated brakes. Additionally, an integral locking device allows it to connect with other modular units.
The immersion heating element is designed with a safety mechanism that only allows it to operate when fully submerged in water. It also includes an automatic cut-off function if operated in a dry condition, along with a convenient reset switch.
Yes, the unit comes standard with a plastic laminate front panel and rear apron, for which the owner can specify the finish. Optional accessories are available for a stainless steel front panel, end panels, or urethane painted panels.
