Atlas Metal CAHC-4 Dual Temperature 4-Pan Mobile Hot/Cold Food Serving Counter

Full-Size, Dual Temperature, Laminated Front Panel, Mobile

Seamlessly transition between hot and cold food service with the Atlas Metal CAHC-4, a versatile and mobile dual-temperature serving counter designed for optimal efficiency and presentation.

  • Offers flexible hot or cold food service with a simple flip of a switch, not simultaneously.
  • Fully insulated pan ensures maximum temperature retention and energy efficiency for both hot and cold modes.
  • Self-contained refrigeration system provides plug-and-play convenience, requiring no external hookups.
  • Mobile design with 5-inch swivel casters, two with brakes, for easy positioning and secure stability.
  • Durable 16-gauge stainless steel top and hi-tensile aluminum frame ensure longevity in commercial settings.
  • Integral locking device allows secure alignment when joining multiple units for extended serving lines.
  • Accommodates four full-size 12" x 20" food pans, ideal for buffets and catering.

Overall Dimensions:

63.75"W x 30.5"D x 35.0"H

Product Weight:

430.0 lb

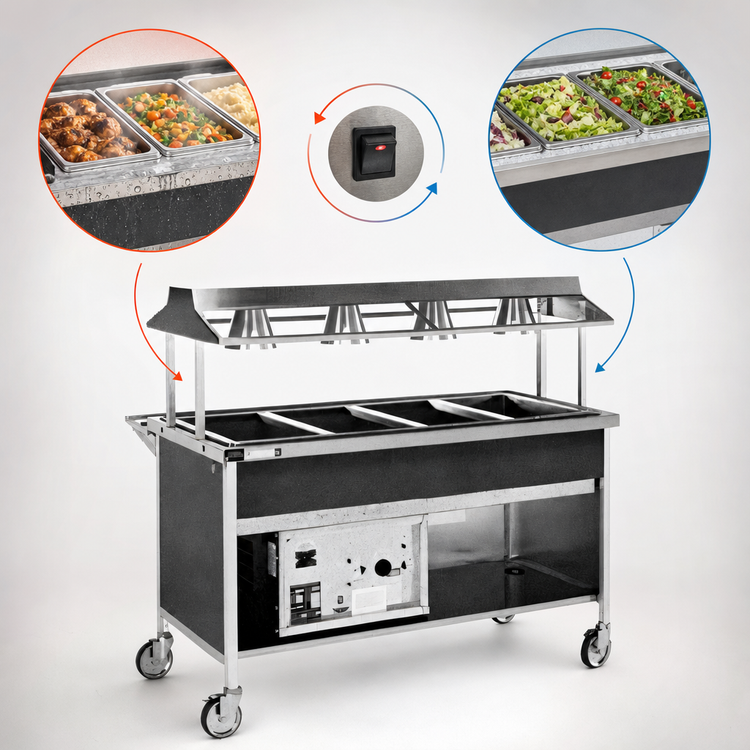

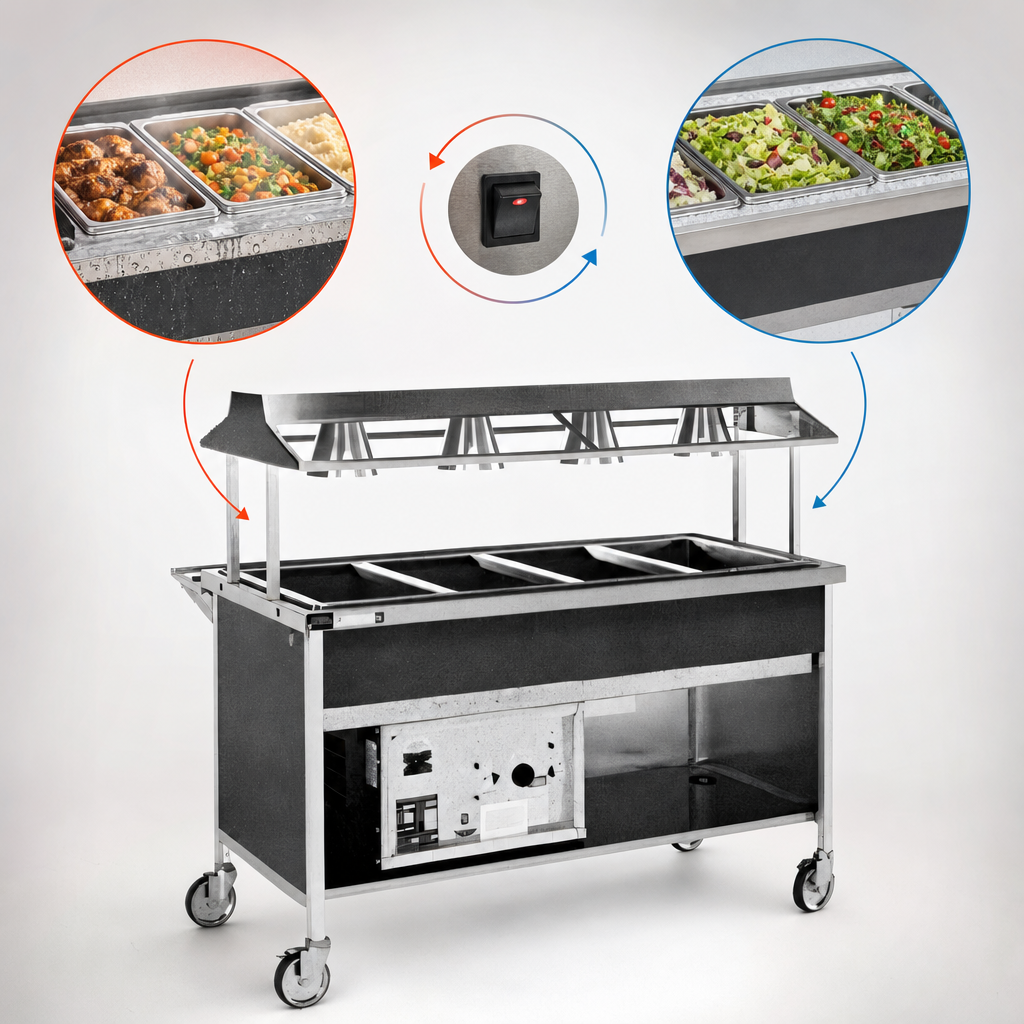

Dual Temperature Operation

Converts from a hot serving unit to a refrigerated cold pan with a single selector switch, offering versatile menu options. Water must be used for hot mode.

Dual Temperature Operation

Fully Insulated Pan

The 18-gauge 304 stainless steel food pan is fully insulated with 1-3/8" thick high-density polystyrene on all sides and 1-1/2" thick on the bottom, maximizing efficiency and energy savings.

Self-Contained Refrigeration System

Equipped with a hermetically sealed compressor and thermostat control, pre-charged with CFC-free refrigerant, ready for immediate operation upon plug-in.

Immersion Heating Element

An immersion type heating element is provided in the pan bottom, protected by a perforated stainless steel sheath. It includes a thermostat control and a safety cut-off that operates only when fully submerged in water, preventing dry operation.

Positive Self-Locking Device

Features an integral locking device to align and securely retain cart positioning when two or more carts are joined, creating a stable and cohesive serving line.

Durable Construction

The top is constructed of 16-gauge, type 304 stainless steel, die-formed and welded. The frame is made of hi-tensile 1-1/4" x 1-1/4" aluminum square tubing, welded and polished for a uniform finish.

Food Pan Liner with Coved Corners

The interior liner of the food pan is fabricated with 1/4" radius coved corners for easy cleaning and maintenance.

Integrated Drainage System

Includes a 3/4" diameter drain with strainer, a 4" brass nipple, and a valve for convenient water removal during cleaning or mode changes.

Food Pan Separator Channels

Designed with separator channels to securely hold four 12" x 20" full-size food pans.

Heavy-Duty Swivel Casters with Brakes

Equipped with 5" diameter, non-marking rubber tired, swivel type casters with ball bearings. Both casters on the operator's side feature toe-activated brakes for mobility and stability.

Customizable Laminated Panels

The body is complete with a front panel and 7" rear apron of plastic laminate on .063 aluminum, allowing owners to specify their desired finish.

Type Hot and Cold Buffet Station
Style Serving Counter
Installation Type Floor Model (Mobile)
Pan Capacity 4 Full-Size Pans
Material 304 Stainless Steel, Aluminum
Top Construction 16 gauge 304 Stainless Steel
Interior Finish 304 Stainless Steel
Base Finish Laminated Aluminum
Color Owner Specified Laminate
Controls Thermostat Control, Hot/Cold Selector Switch
Refrigeration Type Self-Contained
Refrigerant Type CFC Free
Voltage 120 Volts
Phase 1-Phase
Amps 15.6 Amps
Watts 1872 Watts
Hertz 60 Hz
Cord Length 6 Feet
Plug Type Twist Lock Plug
Drain Connection Required
Water Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 64 Inches
Shipping Depth 31 Inches
Shipping Height 35 Inches
Shipping Weight 430 lb.

Warranty & Protection

1-Year Parts & Labor Warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

No, the Atlas Metal CAHC-4 is a dual-temperature unit, meaning it can operate as either a hot serving unit or a refrigerated cold pan, selected by a switch. It cannot function in both modes at the same time.
The unit includes separator channels designed to securely hold four standard 12" x 20" full-size food pans, allowing for flexible food presentation.
Yes, for hot mode operation, water must be used in the pan. The immersion heating element is designed to operate only when fully submerged in water and includes a safety cut-off if operated in a dry condition.
The CAHC-4 is fully mobile, equipped with 5" diameter non-marking rubber tired swivel casters with ball bearings. Two of the casters, located on the operator's side, are provided with toe-activated brakes for secure positioning during service.
The Atlas Metal CAHC-4 comes standard with a 1-year parts and labor warranty. An optional 5-year compressor warranty (5YW) is available as an accessory.
Yes, the CAHC-4 includes an integral locking device designed to align and retain cart positioning when two or more CAHC series units are joined, creating a seamless and stable serving line.
