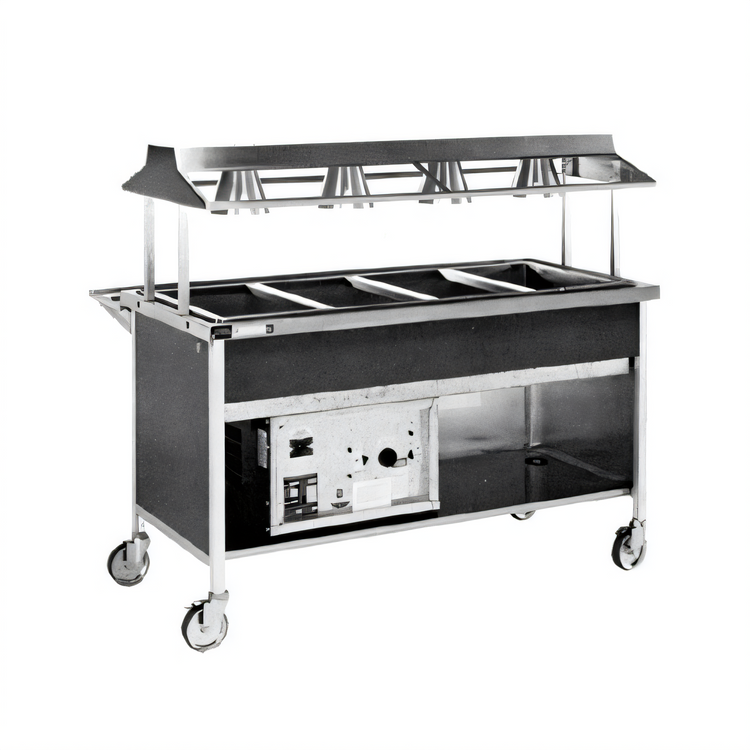

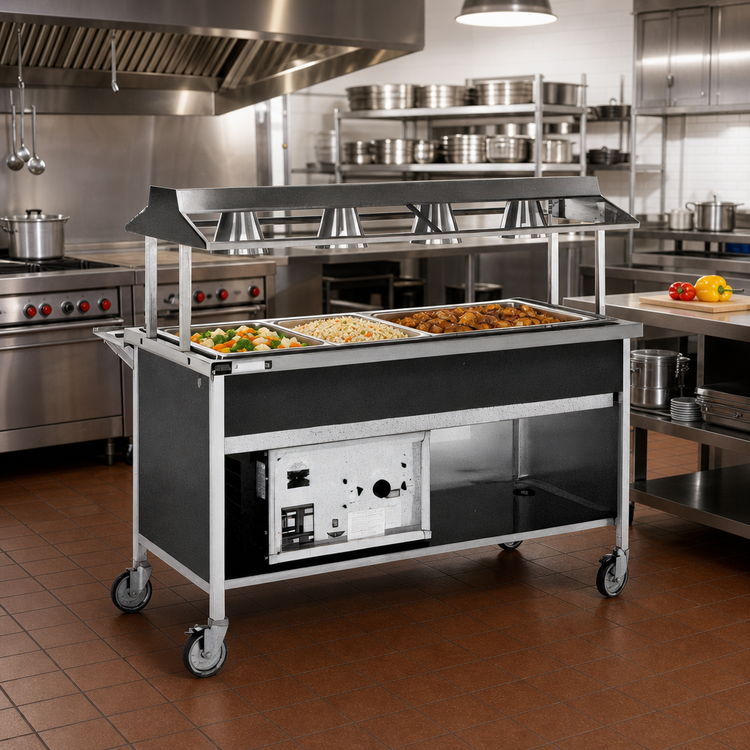

Atlas Metal CAHC-3 3-Pan Hot/Cold Food Serving Counter

50-Inch Length, Dual Temperature, Mobile

Seamlessly switch between hot and cold food service with this versatile and mobile Atlas Metal CAHC-3 serving counter, designed for maximum efficiency.

  • Dual-temperature functionality allows for hot or cold food service with a simple switch.
  • Fully insulated design ensures maximum efficiency and significant energy savings.
  • Self-contained refrigeration system provides plug-and-play convenience.
  • Equipped with 5-inch swivel casters, two with brakes, for easy mobility and secure positioning.
  • Durable construction with 16 gauge type 304 stainless steel top and hi-tensile aluminum frame.
  • Positive self-locking devices align and retain carts when multiple units are joined.
  • Includes a 1-year parts and labor warranty, backed by Atlas Metal's quality.

Overall Dimensions:

50.0"W x 30.5"D x 35.0"H

Product Weight:

370.0 lb

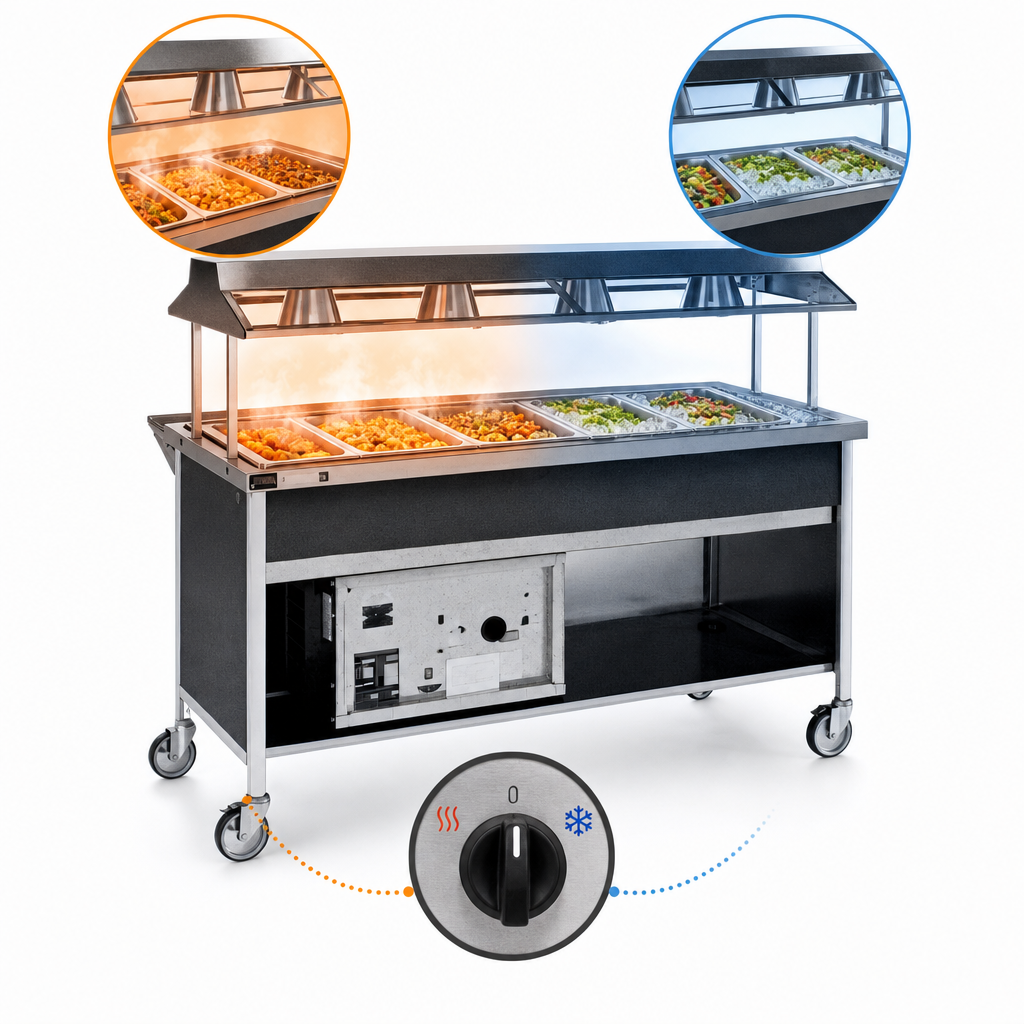

Dual Temperature Operation

Quickly switch between hot serving unit and refrigerated cold pan mode with a single selector switch, preventing dual operation for safety and efficiency.

Dual Temperature Operation

Robust Top Construction

Constructed from 16 gauge, type 304 stainless steel, the die-formed top is welded, ground, and polished for durability and hygiene.

Insulated Food Pan

Features a WCM-HP series drop-in hot/cold pan made of 18 gauge, type 304 stainless steel, fully insulated with high-density polystyrene (1-3/8" sides, 1-1/2" bottom) and enclosed in galvanized steel.

Efficient Heating Element

An immersion type heating element with a perforated stainless steel sheath cover and thermostat control. Operates only when fully submerged in water and includes an automatic cut-off and reset switch for safety.

Self-Contained Refrigeration System

Equipped with a hermetically sealed compressor and thermostat control, fully charged with CFC-free refrigerant for immediate operation.

Durable Body Frame

Frame construction uses 1-1/4" x 1-1/4" hi-tensile aluminum square tubing, welded and polished, with front panel and 7" rear apron of plastic laminate on aluminum.

Integrated Locking Device

Integral locking devices are provided to align and retain cart positioning when two or more carts are joined together.

Mobile Design

Features 5-inch diameter, non-marking rubber tired, swivel casters with ball bearings and grease fittings, with two casters on the operator's side equipped with toe-activated brakes.

Type Hot and Cold Buffet Station
Style Modular
Installation Type Floor Model (With Casters)
Pan Capacity 3 Full-Size Pans
Pan Size 19-7/8" x 39-1/4" x 9-1/2"
Top Construction 16 gauge Type 304 Stainless Steel
Material (Frame) Hi-tensile Aluminum Square Tubing
Finish (Body) Plastic Laminate on Aluminum
Casters 5" Diameter Swivel Casters (2 with brakes)
Controls Thermostat Control, Hot/Cold Selector Switch
Refrigerant Type CFC Free
Voltage 120 Volts
Phase 1-Phase
Amps 15 Amps
Watts 1.8 kW
Plug Type NEMA 5-15L Twist Lock
Cord Length 6 Feet
Selling Unit Each
Units Per Case 1
Shipping Width 50 Inches
Shipping Depth 31 Inches
Shipping Height 35 Inches
Shipping Weight 370 lb.

Warranty & Protection

1-Year Parts & Labor Warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

No, the Atlas Metal CAHC-3 features a hot/cold selector switch that prevents dual operation, meaning it can only function as either a hot serving unit or a refrigerated cold pan at any given time.
The unit comes standard with 5-inch diameter, non-marking rubber tired, swivel casters. Two of these casters, located on the operator's side, are equipped with toe-activated brakes for secure positioning.
The CAHC-3 requires 120 Volts, 1-Phase. It draws 15 Amps when operating in hot mode and 7 Amps in cold mode. It is pre-wired with a 6-foot cord and a NEMA 5-15L twist lock plug.
Yes, for the hot mode, water must be used. The immersion heating element is designed to operate only when fully submerged in water and features an automatic cut-off if operated dry, with a reset switch provided.
The Atlas Metal CAHC-3 includes a 1-Year Parts & Labor Warranty. A 5-Year Compressor Warranty is available as an accessory option.
