Atlas Metal CAHB-5 5-Well Electric Hot Food Serving Counter with Heated Base
Atlas Metal CAHB-5 5-Well Electric Hot Food Serving Counter with Heated Base
Full-Size, Electric, Mobile, Standard Depth
This mobile hot food serving counter keeps your dishes at optimal serving temperatures while providing convenient heated storage for backup pans.
- Features five 12" x 20" hot food wells with individual thermostat controls for precise temperature management.
- Integrated heated base offers additional storage for up to sixteen 12" x 20" pans, keeping them warm and ready.
- Durable 16-gauge 304 stainless steel top and 18-gauge 304 stainless steel hot food wells ensure longevity.
- Fully mobile design with 5-inch swivel casters, two with brakes, for easy relocation and secure positioning.
- Suitable for both wet or dry operation, offering versatility for various food items.
- Equipped with a positive self-locking device to securely align and join multiple units.
Overall Dimensions:
77.5"W x 30.5"D x 35.0"HProduct Weight:

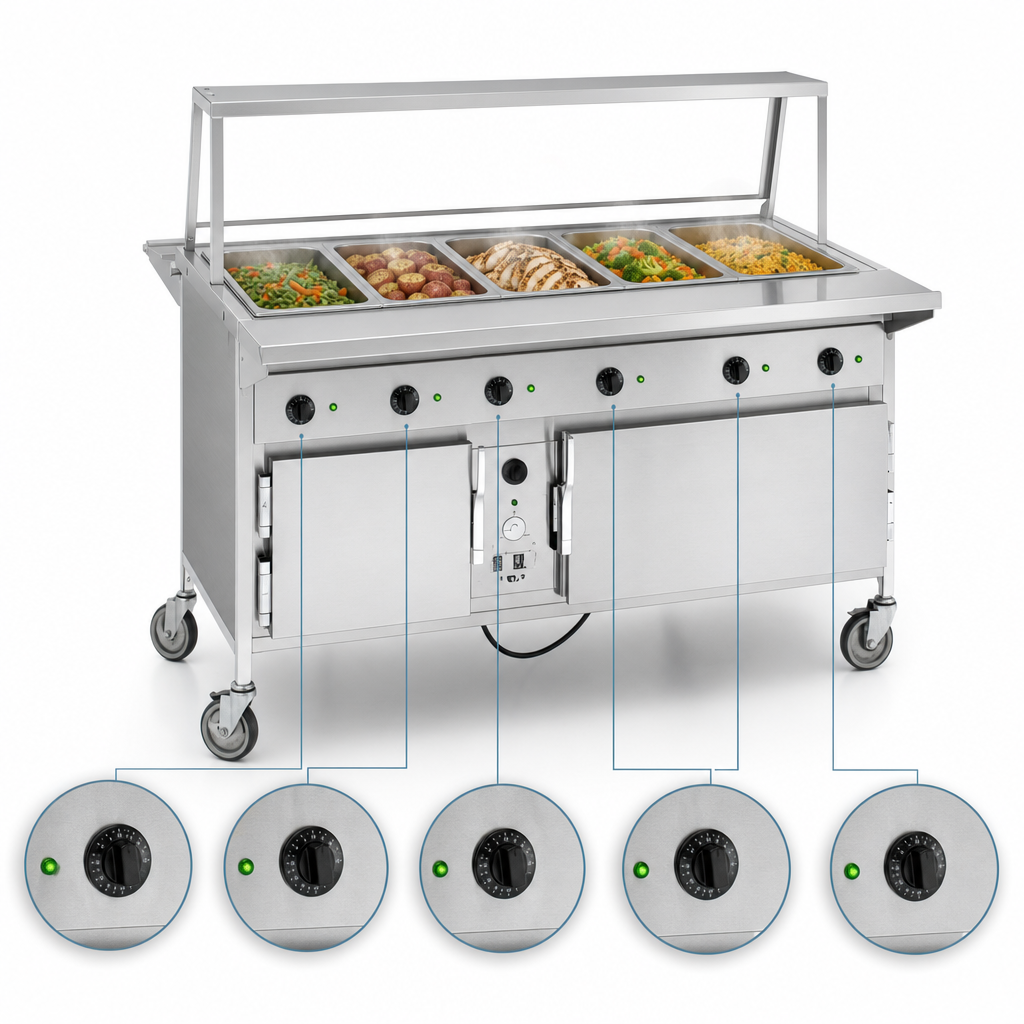

570.0 lbIndividual Thermostatically Controlled Wells
Each of the five 12" x 20" hot food wells has its own thermostat and pilot light, ensuring accurate temperature control and heat retention for diverse food items.

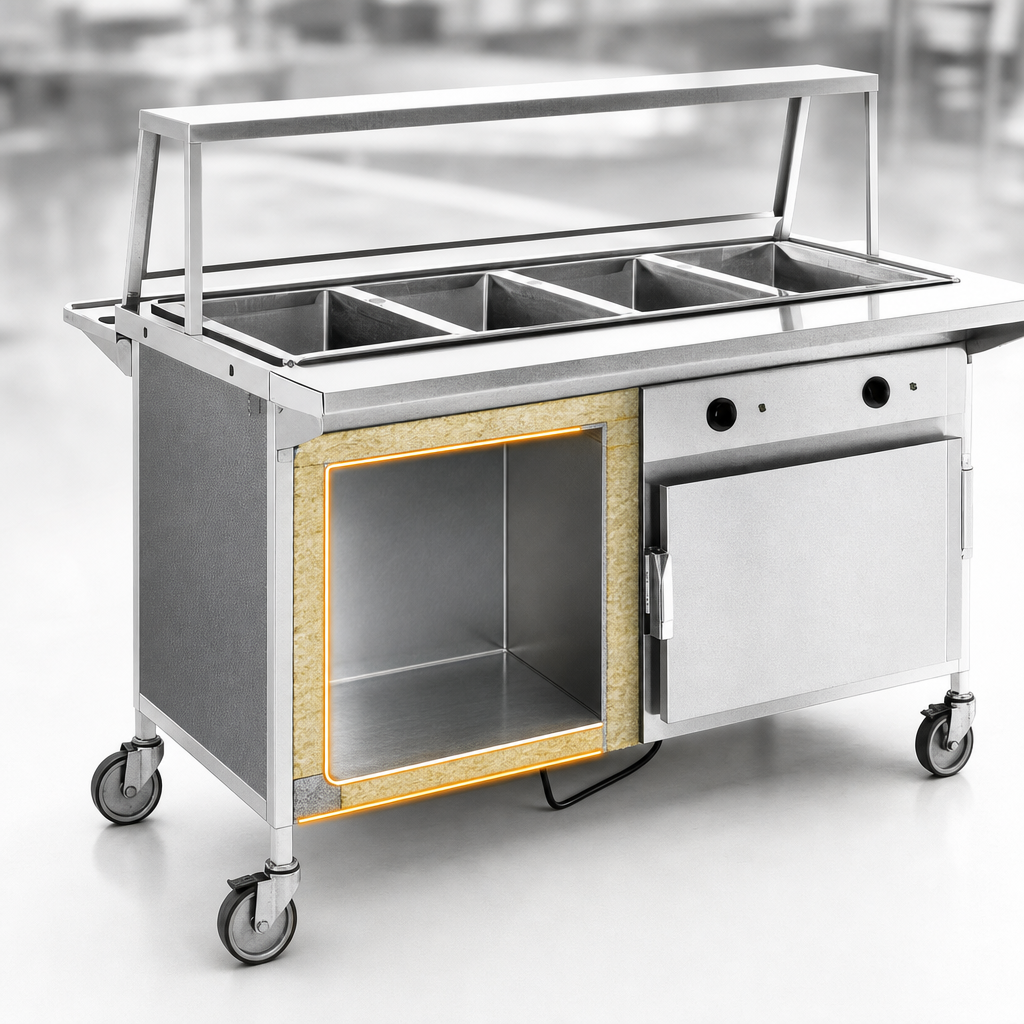

Insulated Hot Food Wells
Hot food wells are fully insulated with high-density fiberglass (1" thick on all sides, 2" thick on the bottom) and enclosed in a 22-gauge galvanized steel outer case for efficient heat retention.
Heated Base Storage
The enclosed heated base is constructed with a 20-gauge 304 stainless steel interior with coved corners, offering backup storage with a removable slide assembly to accommodate sixteen 12" x 20" pans.
Insulated Base Doors
Features two double-wall, fully insulated stainless steel doors, each provided with edge-mounted chrome plated hinges, a slam action latch, and a moisture-proof gasket. A dial thermometer is included for temperature monitoring.
Durable Construction
The top is constructed of 16 gauge, type 304 stainless steel. The hot food pan is 18 gauge, type 304 stainless steel. The body frame is made of hi-tensile 1-1/4" x 1-1/4" aluminum square tubing.
Mobile Design with Locking Casters
Equipped with 5" diameter, non-marking rubber tired swivel casters with ball bearings and grease fittings. Two casters on the operator's side include toe-activated brakes for secure placement.
Wet or Dry Operation
The hot food wells are designed for versatile operation, allowing for use with water or as a dry warmer, adapting to various menu needs.
Integral Locking Device
An integral locking device is provided to align and retain cart positioning when two or more units are joined, ensuring a stable and continuous serving line.
Warranty & Protection
1-Year Parts & Labor Warranty
