Key specifications

Type
Hot Food Counter
Style
Open Base
Installation Type
Floor Model
Mobility
Mobile
Material
Aluminum
Top Material
304 Stainless Steel
Spec sheet
Atlas Metal SKU: BLH-5

Atlas Metal BLH-5 Mobile 5-Well Hot Food Counter

$9,370.35
/each
Estimated to ship in 61–64 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Wells
ElectricalRequired
Drain configuration
Base closure
Control location
Factory Add-Ons

Need something else? Contact us.

Included: Atlas Metal warranty 1-Year Parts & Labor Warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $867/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Counter
Style Open Base
Installation Type Floor Model
Mobility Mobile
Material Aluminum
Top Material 304 Stainless Steel
Panel Material Plastic Laminate
Well Material 18 Gauge Stainless Steel
Pan Capacity 5 Pans
Pan Size 12 in x 20 in x 6 in Deep
Working Height 35 in
Heating Method Electric
Controls Individual Thermostatic Controls
Well Insulation High-Density Fiberglass
Caster Count 5
Caster Diameter 5 in
Braked Casters 2
Operation Wet or Dry

Description

Atlas Metal BLH-5 is a mobile electric hot food serving counter with an open base and five individual 12" x 20" x 6" deep hot food wells.

The counter has individual thermostatic controls, a stainless steel top, an extruded aluminum frame, laminate front and end panels, and five 5" swivel casters, including two with brakes.

  • Overall dimensions: 77.5" W x 30.5" D x 35" H.
  • Wells are fully insulated for wet or dry operation.
  • A cam-lock locking system helps align and retain cart positioning when units are joined.

Overall Dimensions:

77.5"W x 30.5"D x 35.0"H

Product Weight:

310.0 lb

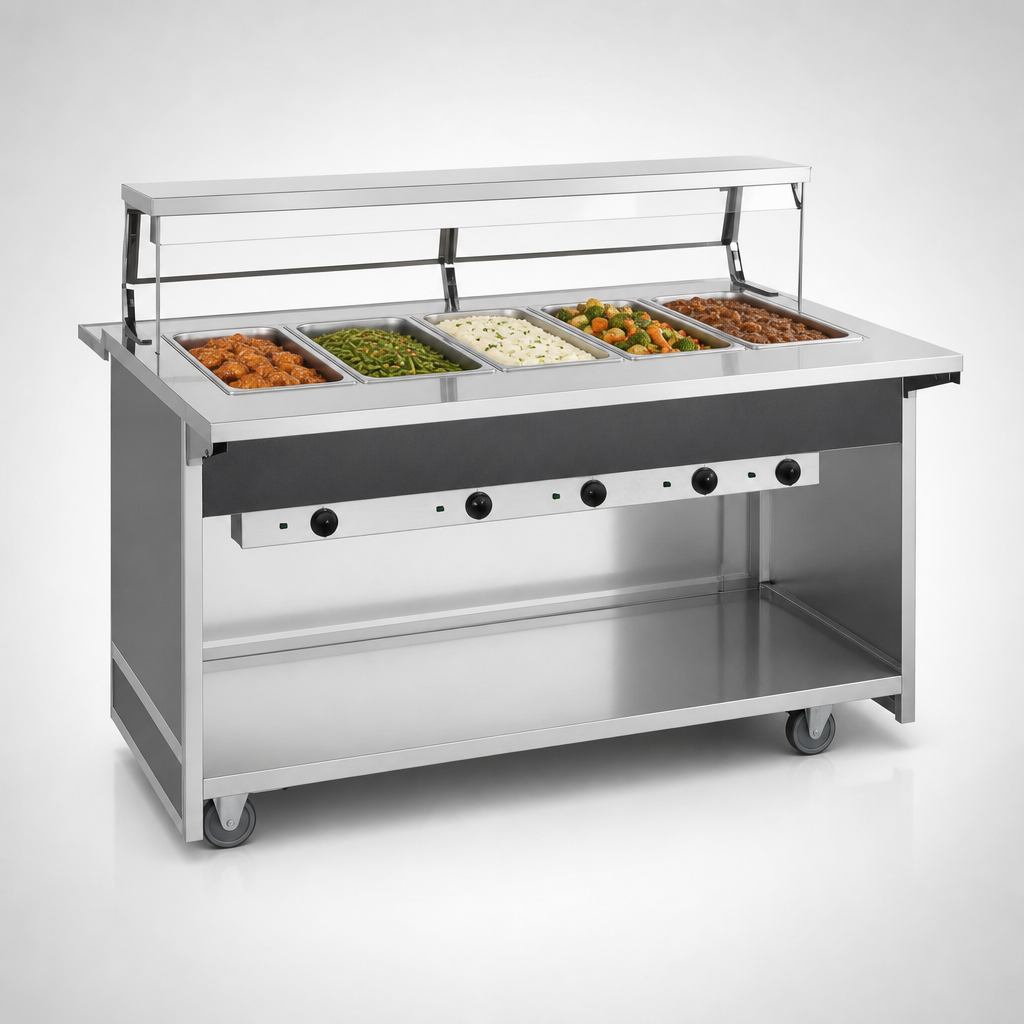

Five Hot Food Wells

Includes five individual 12 in x 20 in x 6 in deep hot food wells.

Individual Thermostatic Controls

Each well has an individual thermostat control and pilot light.

Insulated Wells

Wells use high-density fiberglass insulation measuring 1 in on the sides and 2 in on the bottom.

Stainless Steel Top

The top is constructed from 16-gauge type 304 stainless steel.

Open Base

The counter has an open base design.

Aluminum and Laminate Construction

The frame is extruded aluminum, and the front and end panels are aluminum covered with plastic laminate.

Mobile Caster Base

Five 5 in non-marking rubber-tired swivel casters are included, with toe-activated brakes on two operator-side casters.

Cam-Lock System

The included cam-lock system helps align and retain cart positioning when two or more units are joined.

Frequently Asked Questions

The counter measures 77.5 in wide by 30.5 in deep by 35 in high.
It has five 12 in x 20 in x 6 in deep hot food wells.
Yes. Each well has an individual thermostat control and pilot light.
Yes. It includes five 5 in swivel casters, with toe-activated brakes on the two operator-side casters.
The product has a 1-year parts and labor warranty.
