American Range SPSH-18-2 Gas Ranges
Description

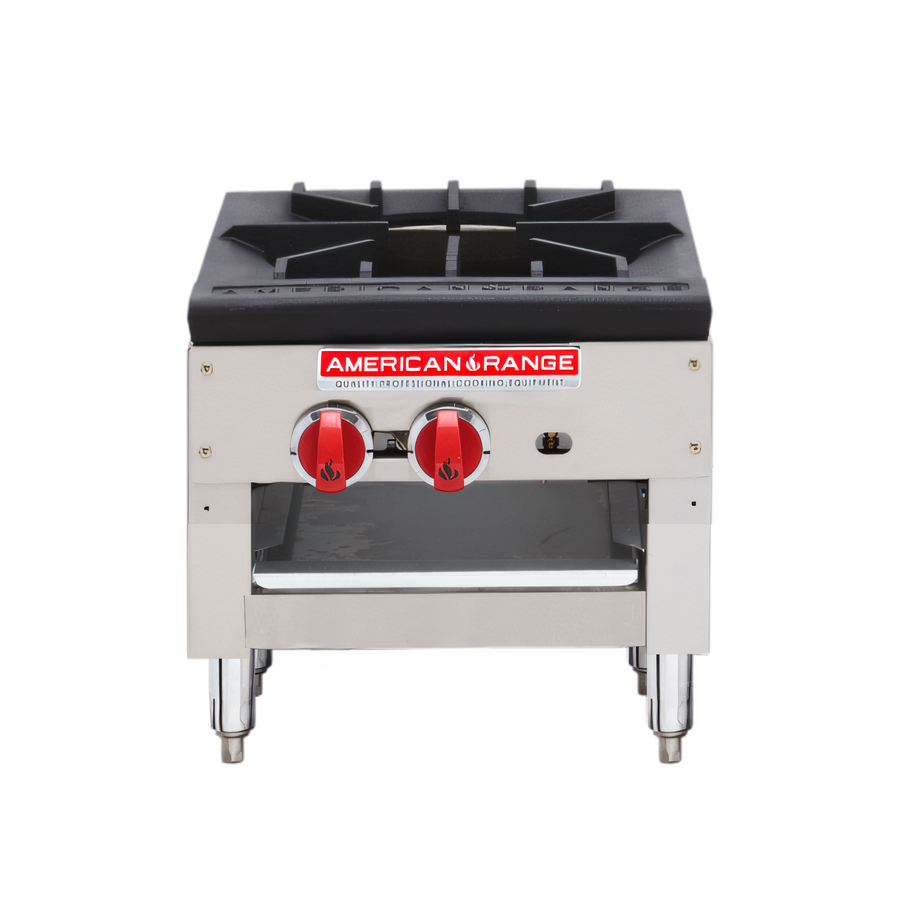

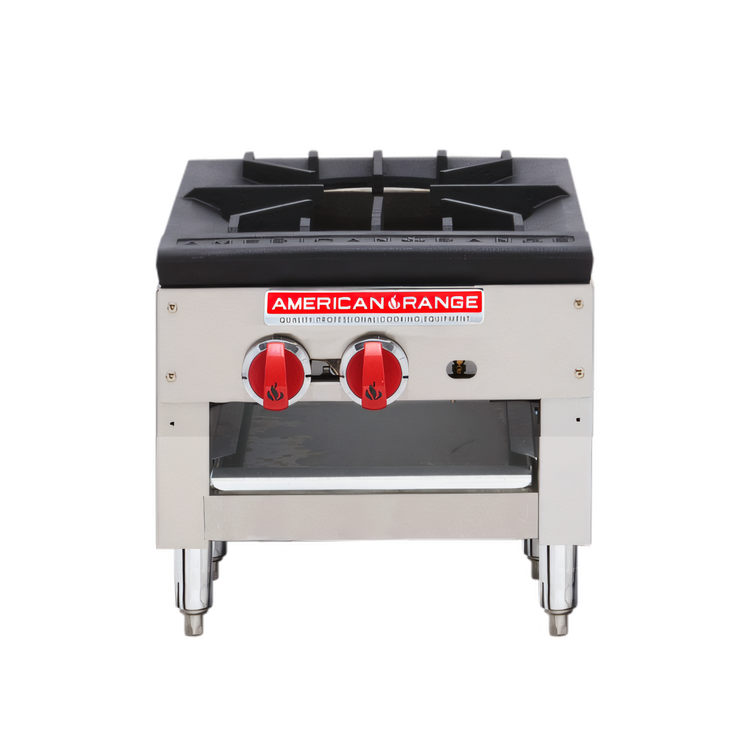

American Range SPSH-18-2 Dual-Burner Stock Pot Range
18" Low-Profile • 180,000 BTU • GasBuilt for serious volume in a compact footprint, the SPSH-18-2 unleashes 180,000 BTU of searing heat from two 3-ring cast-iron burners while standing just 18" tall. Whether you’re rapidly boiling stock or holding a steady simmer, this Made-in-USA workhorse delivers the power, precision and durability demanded by busy commercial kitchens.
Key Features
- Low 18" working height—ideal for loading heavy stock pots without lifting.

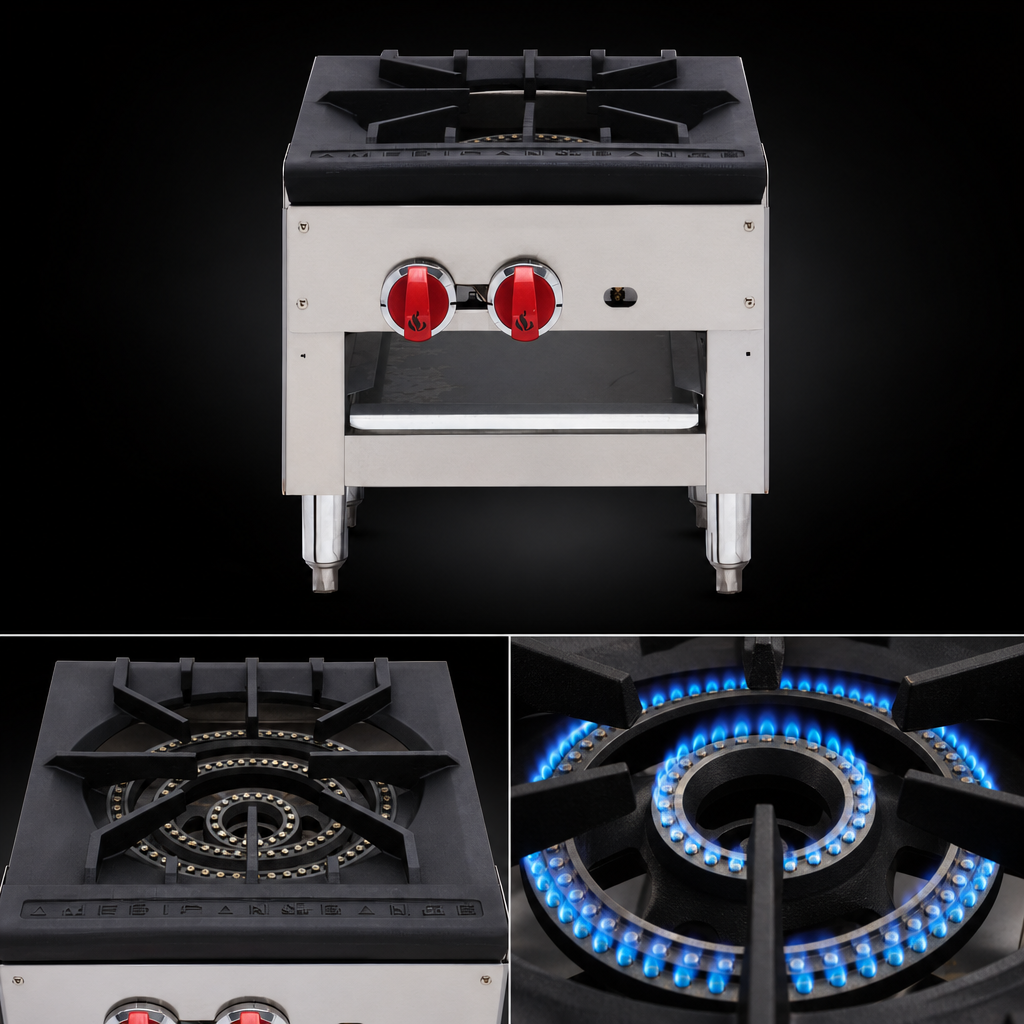

- (2) 3-ring cast-iron burners, 90,000 BTU/hr each (total 180,000 BTU / 53 kW).

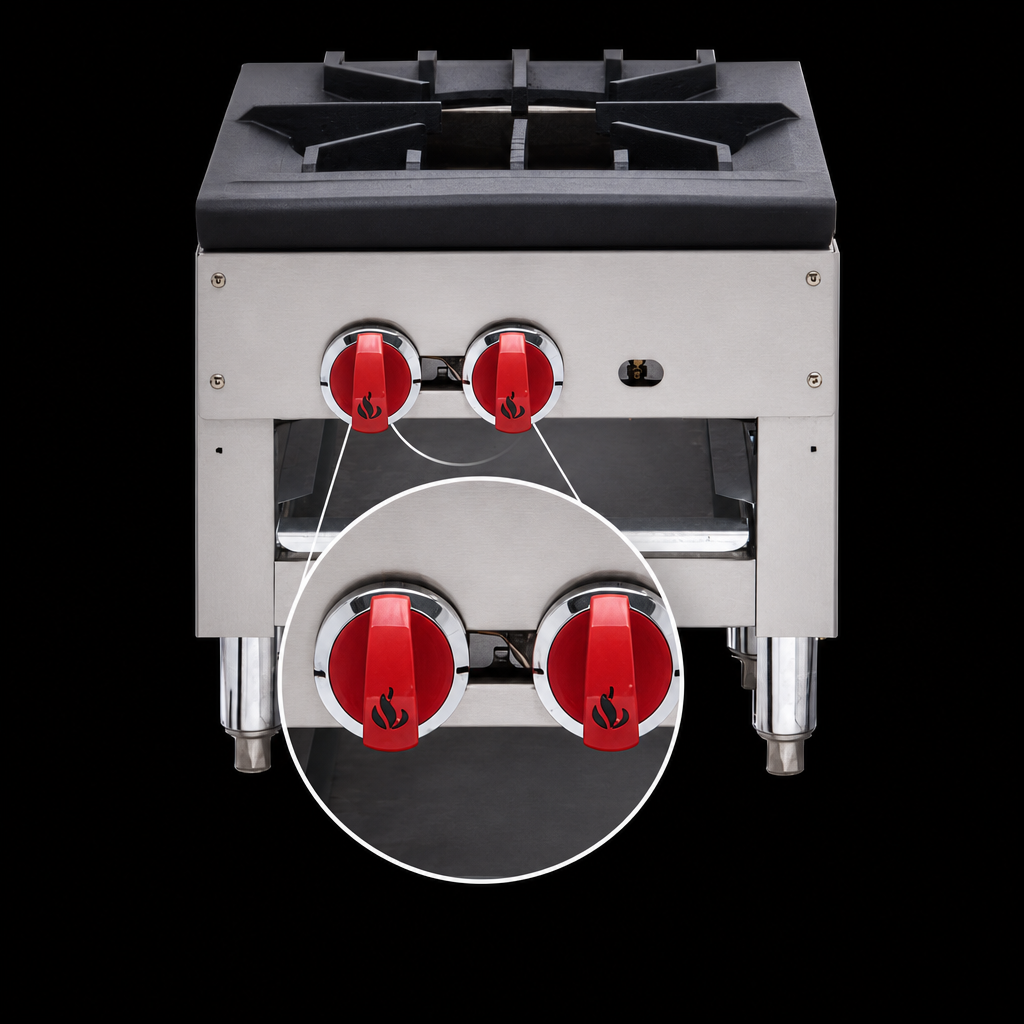

- Dual control valves per burner: one knob for inner/middle rings, second for the outer ring—fine-tune from gentle simmer to full boil.
- Stainless steel standing pilots provide instant ignition and reliability.
- Heavy-gauge stainless steel front & sides withstand daily rigors.
- Full-width removable crumb tray makes cleanup quick and easy.
- Built-in lower storage cavity keeps ladles, strainers and lids close at hand.
- Chrome-plated 6" legs with 3" adjustable bullet feet for perfect leveling.
- Field-specified for Natural Gas or LP (manifold pressure 5.0" W.C. NG / 10.0" W.C. LP).
- cETLus & ETL Sanitation listed for safety and hygiene.
- Backed by a 2-year limited parts & labor warranty.
At-a-Glance Specs
| Model | SPSH-18-2 |
|---|---|
| Burners | (2) 3-ring cast iron |
| Total Output | 180,000 BTU / 53.0 kW |
| Gas Type | Natural or Propane (specify when ordering) |
| Manifold Pressure | 5.0" W.C. NG / 10.0" W.C. LP |
| Gas Connection | 3/4" NPT (rear) |
| Width | 18" / 457 mm |
| Depth | 42" / 533 mm |
| Height | 18" / 457 mm (to cook surface) |
| Shipping Weight | Approx. 230 lb / 104 kg |
| Certifications | cETLus, ETL Sanitation |
| Origin | Designed & built in the USA |
| Warranty | 2-year limited, parts & labor |
Installation Clearances
- For use on non-combustible floors only—legs or optional casters required.
- 0" clearance to non-combustible walls.
- When placed next to combustible walls: 12" from sides, 4" from rear.
- Must be installed under an adequate ventilation system per NFPA 96.
Optional Accessories
- 6" swivel casters (set of 4, two locking)
Specifications and design are subject to change without notice as part of American Range’s continuous product improvement.
