Key specifications

Amps
23.82/27.48 Amps
Dimensions
93.06"W × 35.75"D × 35.5"H
Type
Hot Food Table
Style
Enclosed Base
Installation Type
Floor Model
Material
304 Stainless Steel
Spec sheet
Advance Tabco SKU: HDSW-6-240-BS UPC: 747545183736

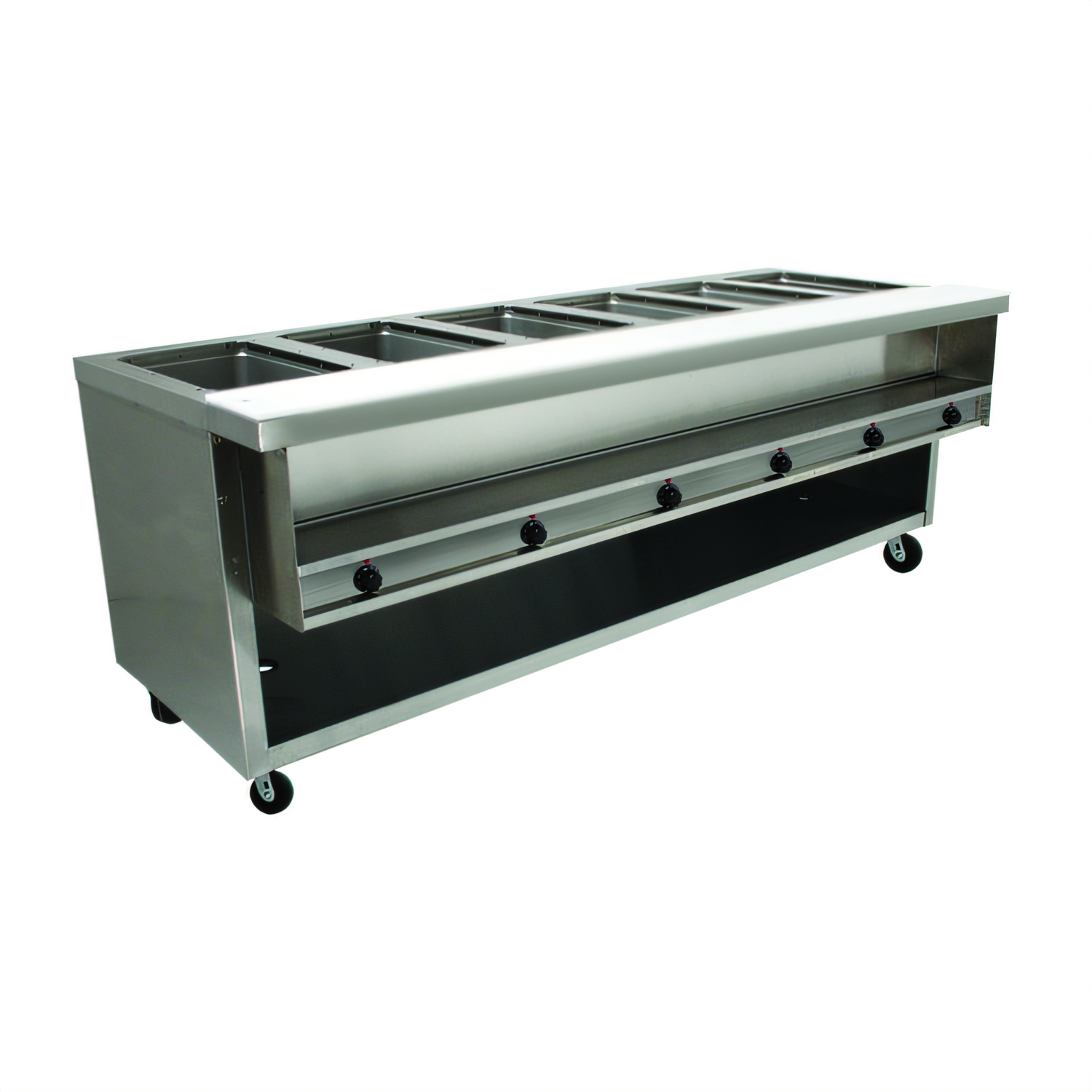

Advance Tabco HDSW-6-240-BS 6-Pan Electric Sealed-Well Table

$13,651.00
/each
Estimated to ship in 16–19 business days Free Shipping
Number of Compartments
Electrical
Factory Add-Ons
Casters

Need something else? Contact us.

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,263/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Table
Style Enclosed Base
Installation Type Floor Model
Material 304 Stainless Steel
Finish Stainless Steel
Power Type Electric
Well Type Sealed Well
Pan Capacity 6 Pans
Pan Size 12 x 20 Inches
Pan Insert Depth Up to 6-1/4 Inches
Controls Individual Thermostatic Controls
Drain Type Manifold Drain
Storage Type Rear Open Storage
Cutting Board Material White Thermoplastic
Cutting Board Thickness 3/8 Inch
Steel Gauge 18 Gauge
Voltage 208/240 Volts
Amps 23.82/27.48 Amps
Watts 4.95/6.6 kW
Plug Type NEMA L6-30P
Cord Length 8 Feet
Working Height 34 Inches
Width 93.06 Inches
Depth 35.75 Inches
Height 35.5 Inches
Weight 515 Pounds

Description

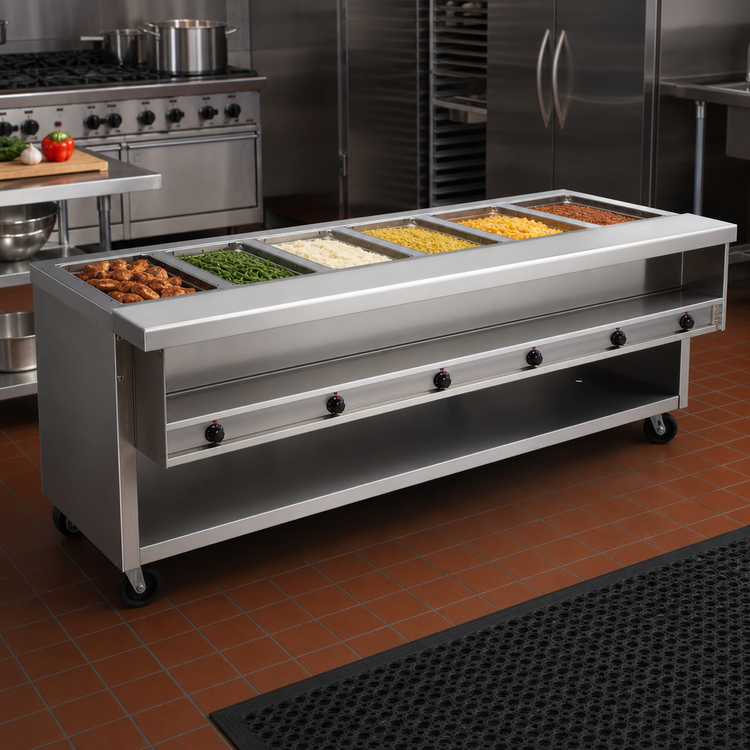

The Advance Tabco HDSW-6-240-BS is an electric sealed-well hot food table with six 12 x 20 inch wells, individual thermostatic controls, and an enclosed base with rear open storage.

  • Six sealed wells: Each well accommodates pan inserts up to 6-1/4 inches deep.
  • Stainless steel construction: The top, body, legs, and dish shelf are 18-gauge 304 stainless steel.
  • Serving support: Includes a stainless steel dish shelf with a removable 3/8-inch thick white thermoplastic cutting board.
  • Service access: The removable front panel provides access to the heating elements.
  • Drainage: Includes a manifold drain assembly.

Food placed in the table should already be hot. This unit is not designed to cook or heat frozen or refrigerated foods.

Overall Dimensions:

93.06"W x 35.75"D x 35.5"H

Product Weight:

515.0 lb

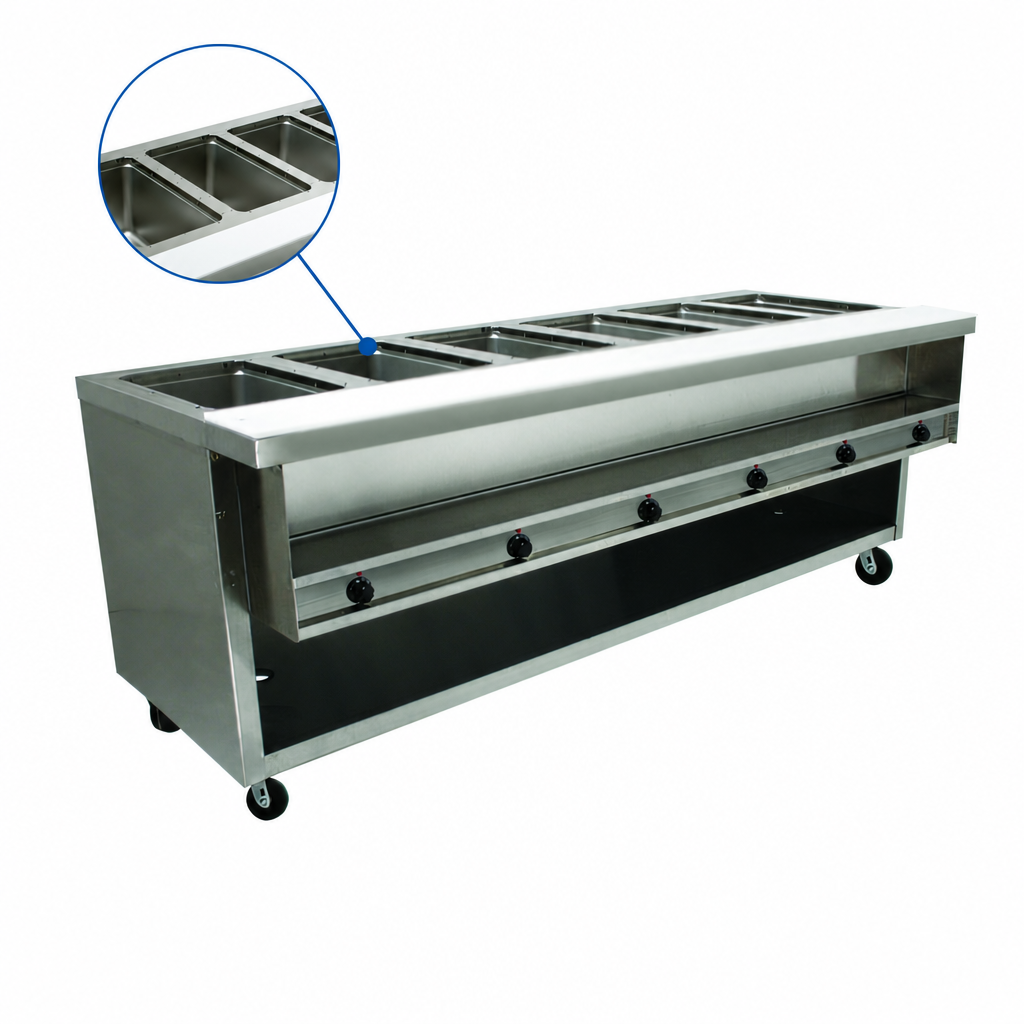

Six Sealed Wells

Six 12 x 20 inch sealed wells accommodate pan inserts up to 6-1/4 inches deep.

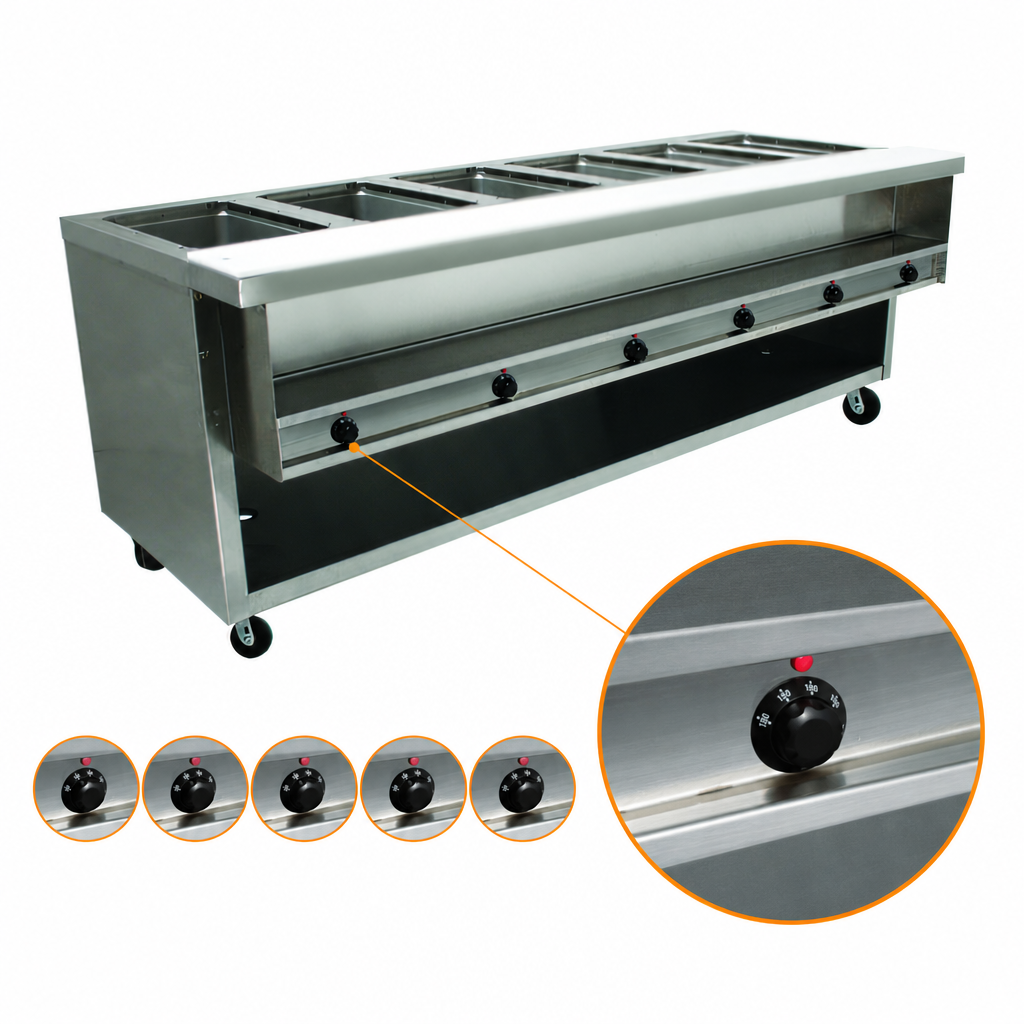

Individual Thermostatic Controls

Each well has individual thermostatic control.

Enclosed Base Storage

The front and sides are enclosed, with rear open storage.

Stainless Steel Construction

The top, body, legs, and dish shelf use 18-gauge 304 stainless steel.

Dish Shelf and Cutting Board

A stainless steel dish shelf is supplied with a removable 3/8-inch thick white thermoplastic cutting board.

Manifold Drain

A manifold drain assembly is included.

Removable Front Panel

The removable front panel provides access to the heating elements for service.

Dual-Voltage Electrical Configuration

The unit operates at 208/240 volts and includes an 8-foot cord with a NEMA L6-30P plug.

Frequently Asked Questions

It has six sealed wells, each with a 12 x 20 inch opening and capacity for pan inserts up to 6-1/4 inches deep.
It is a 208/240-volt dual-voltage unit with a NEMA L6-30P plug and an 8-foot cord.
No. It is not designed to cook or heat frozen or refrigerated foods. Food placed in the table should already be hot.
The front and sides are enclosed, with rear open storage.
The table is 93.06 inches wide, 35.75 inches deep, and 35.5 inches high.
