Advance Tabco FS-FM-1-ADA-F Hand Sinks
Description

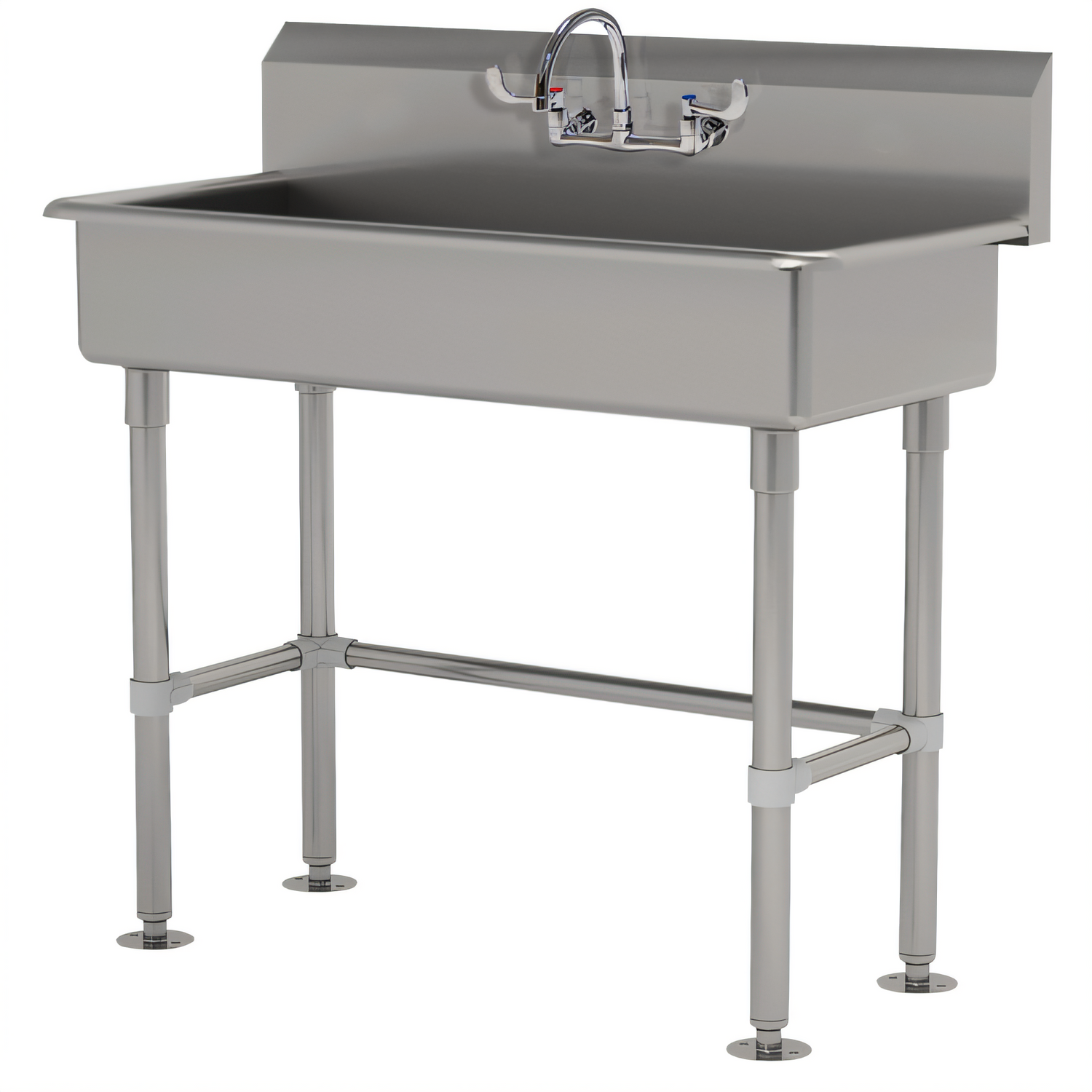

Advance Tabco FS-FM-1-ADA-F One-Station Floor-Mounted Service Sink
40" wide • 14-gauge 304 stainless steel • Includes wrist-blade faucetBuilt for the toughest janitorial, prep, and utility environments, this heavy-duty ADA-compliant service sink ships ready to install with a gooseneck wrist-blade faucet and rear basket drain. Its 14-gauge type 304 stainless steel construction and tubular leg base deliver the strength you need, while a low-profile 5" bowl depth and generous knee clearance keep the station fully accessible.
Why You’ll Love It
- Single-station, floor-mounted design meets current ADA knee-clearance requirements.

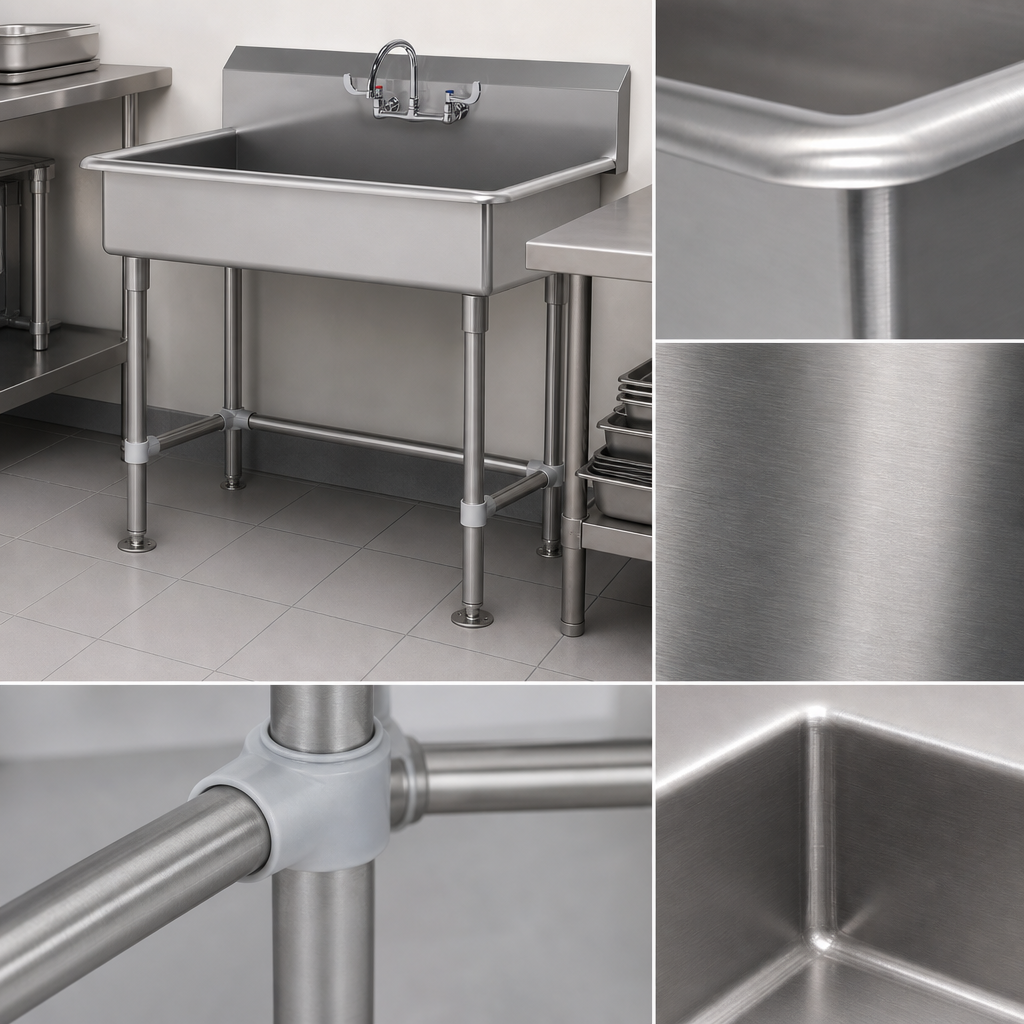

- 14-gauge type 304 stainless steel—extra-thick for superior dent & corrosion resistance.
- Spacious 37" × 16" bowl handles mop buckets, utility carts, and bulky equipment.
- 8-1/2" integral backsplash is pre-punched with one set of 8"-on-center holes for the included faucet.
- K-161-LU 6" gooseneck faucet with wrist blades allows elbow or forearm operation—ideal for messy tasks.
- Tubular stainless steel legs with flanged feet and adjustable side/rear cross-bracing for rock-solid stability.
- 3-1/2" rear basket drain keeps plumbing out of the working zone and speeds cleanup.
- TIG-welded seams blended to a sanitary satin finish for easy wipe-down.
- NSF listed and certified lead-free; fully compliant with ANSI/NSF 61 Sec. 9 and ADA guidelines.
Technical Specs
| Model | FS-FM-1-ADA-F |
|---|---|
| User Stations | 1 |
| Overall Size | 40" W × 19-1/2" D × 42-1/2" H |
| Bowl Size | 37" W × 16" D × 5" Deep |
| Backsplash Height | 8-1/2" |
| Material & Gauge | 14-ga. type 304 stainless steel |
| Faucet (included) | K-161-LU 6" gooseneck, wrist blades, 8" O.C. |
| Faucet Holes | (1) set, 8" on center |
| Drain (included) | K-6 3-1/2" rear basket drain |
| Legs / Feet | 1-5/8" Ø tubular stainless steel legs with flanged feet |
| Finish | Satin |
| Certifications | NSF, ADA compliant, lead-free |
| Approx. Ship Weight | 89 lb |
Looking for wall brackets, soap dispensers, or additional faucets? Ask about Advance Tabco accessories for a fully customized wash station.
