Advance Tabco

Advance Tabco DTC93-2020-8R Compartment Sinks

SKU: DTC93-2020-8R
GTIN: 747545219060
$4,361.00
/each
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco New Arrivals

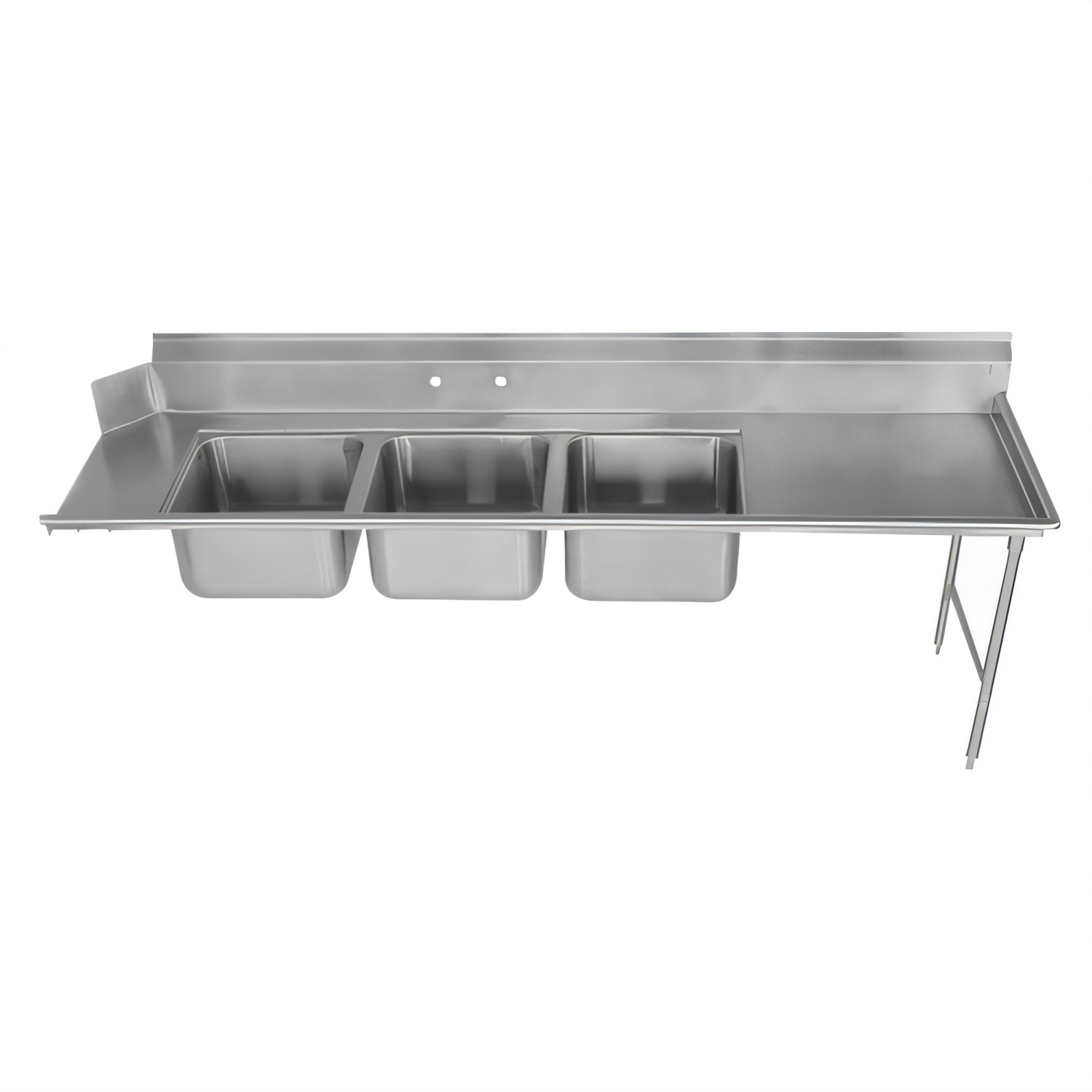

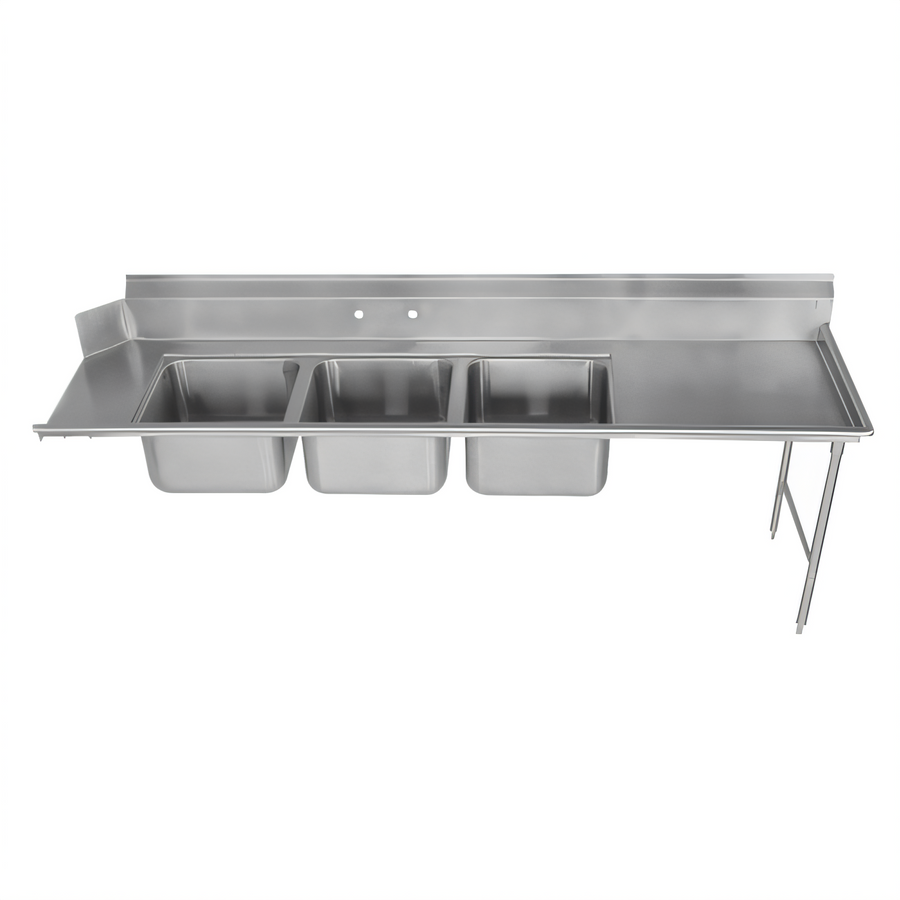

Advance Tabco DTC93-2020-8R | 96" Right-Side 3-Compartment Dishtable

Deep Drawn™ 20" × 20" × 12" Bowls • 16" Drainboard • 16 ga 304 Stainless Steel

Engineered to mount directly to the right side of your commercial dish machine, this 96-inch Advance Tabco dishtable delivers a rugged work surface, seamless 3-compartment sink and a convenient drainboard — everything your warewashing crew needs in one NSF-listed station.

Each Deep Drawn™ bowl is formed from a single sheet of stainless steel for superior strength, easy sanitation and generous 3" radius corners. The 16" drainboard on the right slopes toward the sink for quick water run-off, while the 2" tile edge speeds installation and helps create a watertight seal against the wall.

Key Features

  • (3) 20" × 20" × 12" Deep Drawn™ sink bowls with smooth 3" corners
  • Heavy-duty 16 ga type 304 stainless steel top — corrosion-resistant & easy to clean
  • Integrated 16" right-hand drainboard with pitched surface
  • Bowls positioned 12" from dish machine to maximize work surface
  • TIG-welded construction; welds blended to a uniform satin finish
  • 1-5/8" O.D. stainless steel legs with front-to-back crossrails & gussets
  • Extra-large 10-1/2" adjustable stainless steel bullet feet for leveling
  • (2) 1-1/8" faucet holes on 8" centers in backsplash (faucet sold separately)
  • (3) 1-1/2" IPS basket drains included — no add-on kit required
  • NSF listed for safe, sanitary operation

Specifications

Model DTC93-2020-8R
Overall length 96" (2438 mm)
Overall depth 30" (762 mm)
Work height 34" adjustable; 39" to top of backsplash
Compartments 3
Bowl size (W × L × D) 20" × 20" × 12"
Drainboard 16" — right-hand
Top material / gauge 16 ga type 304 stainless steel
Legs & bracing 1-5/8" O.D. stainless legs with front-to-back crossrails
Feet Adjustable 10-1/2" stainless steel bullet feet
Faucet holes (2) on 8" centers, 1-1/8" dia.
Waste drains (3) 1-1/2" IPS basket drains (included)
Shipping weight ≈ 260 lb (118 kg)
Certifications NSF

Optional Accessories

  • 18" or 24" stainless steel undershelf  | Models DTA-SS-18 / DTA-SS-24
  • Prerinse baskets & slide bars  | Models DTA-62, DTA-63, DTA-65, DTA-69
  • 14 ga top upgrade  | Model DTA-49
  • Custom faucet-hole modification  | Model K-472
  • Overhead rack shelves & faucets — contact us for details
Important: Verify that your dish machine’s control box or drive unit will not interfere with the 12" clearance between the machine and the first sink bowl. Consult Advance Tabco’s dish-machine compatibility chart or contact us for assistance before ordering.

Dish machine, faucet and other accessories shown in marketing images are sold separately.

Overall Dimensions:

96.0"W x 30.0"D x 44.5"H

Product Weight:

260.0 lb
Manufacturer Advance Tabco
Height 44.5in
Width 96.0in
Depth 30.0in
Shipping Weight 260.0lbs
Gauge 16 ga
Dish Machine Location left side
Compartment (side - side) 20"
Width (side - side) OA 85" - 96"
Compartment (front - back) 20"
Dishtable Splash 10-1/2"
Dishtable Legs stainless steel
Type Stainless Steel Top 300 series
Dishtable Shape straight
Specifications Dishtable with 3-compartment Sink, 96”W, (3) 20" x 20" x 12" Deep Drawn™ bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to right of dish machine operator, stainless steel bullet feet, 16" right drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)

Documents

PDF Cutsheet PDF Download
