Advance Tabco DTC93-2020-8L Compartment Sinks

SKU: DTC93-2020-8L
GTIN: 747545219053
$4,361.00
/each
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco New Arrivals

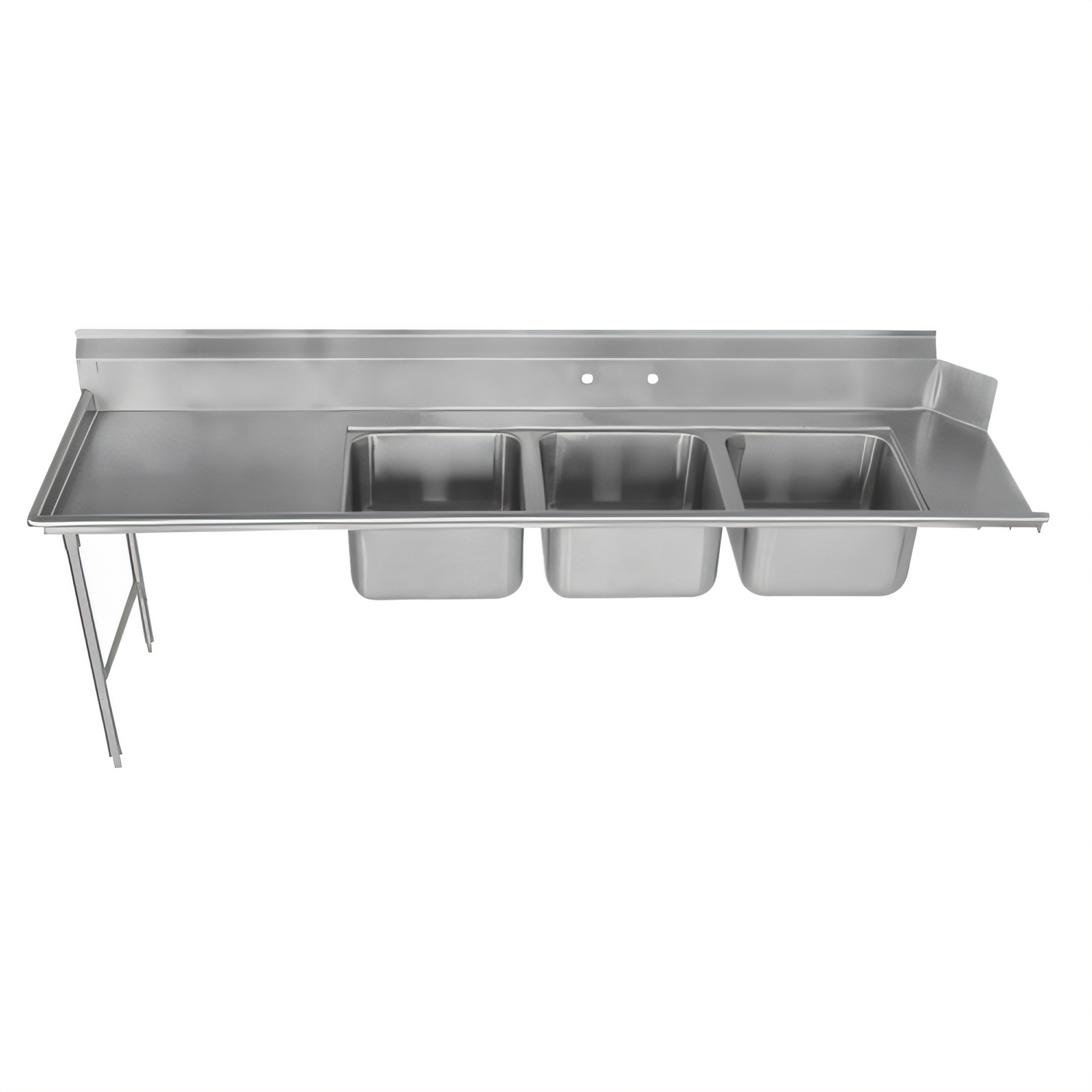

Advance Tabco DTC93-2020-8L Dishtable with 3-Compartment Sink – 96" Left-Side

20" x 20" x 12" Deep Drawn™ Bowls  |  16" Drainboard  |  NSF Certified

Built for busy dish rooms, this 96" long dishtable combines a rugged 3-compartment sink with a generous left-hand drainboard and a tile-edge backsplash for quick, sanitary installation next to your commercial dish machine.

Key Benefits

  • Three Deep Drawn™ sink bowls (20" x 20" x 12") with 3" radius corners for effortless cleaning.
  • 16 ga. type 304 stainless steel top resists corrosion from harsh ware-washing chemicals.
  • Bowls sit 12" away from the machine cut-out, keeping operators clear of control boxes and drive units.
  • 16" drainboard (left) slopes toward the sink for efficient water run-off.
  • One-piece TIG-welded construction; welds are blended to a smooth satin finish.
  • 1 ⅝" O.D. stainless steel legs with front-to-back cross rails and gussets for rock-solid stability.
  • Extra-large 10 ½" adjustable stainless steel bullet feet level the table on uneven floors.
  • 3" backsplash with 2" return and tile edge speeds caulking and helps meet local health codes.
  • Pre-punched 8" on-center faucet holes (faucet sold separately); 1 ½" IPS drains included.

Built for Demanding Kitchens

  • All-stainless build stands up to constant moisture, chemicals, and temperature swings.
  • Seamless Deep Drawn™ bowls deliver superior strength compared with welded sink inserts.
  • NSF certification ensures the unit meets strict public-health standards.

Specifications

Model DTC93-2020-8L
Overall length 96"
Overall depth / height 30" D  |  37" H (to work surface)  |  39" H (to top of backsplash)
Sink bowls (3) 20" W × 20" F-B × 12" D Deep Drawn™
Drainboard 16" left-hand, integrally welded & sloped
Material 16 ga. 304 stainless steel top, legs, gussets & cross rails
Backsplash 3" H with 2" return, tile edge
Faucet holes (1) set, 8" on-center, 1 ⅛" dia.
Drains 1 ½" IPS basket drains (included)
Feet Adjustable 10 ½" stainless steel bullet style
Certifications NSF

Popular Accessories (sold separately)

  • 14 ga. top upgrade (Model DTA-49)
  • 18" or 24" stainless steel undershelves (DTA-SS-18 / DTA-SS-24)
  • Prerinse baskets & slide bars for 16" × 20" or 20" × 20" rack sizes
  • Overhead rack shelves & commercial faucets
Important: Confirm dish-machine make & model before ordering to ensure the machine’s control box or drive unit will not interfere with the sink bowls.

Need a different size, gauge, or orientation? Ask about Advance Tabco’s Smart Fabrication™ custom services.

Overall Dimensions:

96.0"W x 30.0"D x 44.5"H

Product Weight:

260.0 lb
Manufacturer Advance Tabco
Height 44.5in
Width 96.0in
Depth 30.0in
Shipping Weight 260.0lbs
Dishtable Splash 10-1/2"
Width (side - side) OA 85" - 96"
Dishtable Shape straight
Compartment (side - side) 20"
Gauge 16 ga
Type Stainless Steel Top 300 series
Dishtable Legs stainless steel
Compartment (front - back) 20"
Dish Machine Location right side
Specifications Dishtable with 3-compartment Sink, 96”W, (3) 20" x 20" x 12" Deep Drawn™ bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to left of dish machine operator, stainless steel bullet feet, 16" left drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)

Documents

PDF Cutsheet PDF Download
