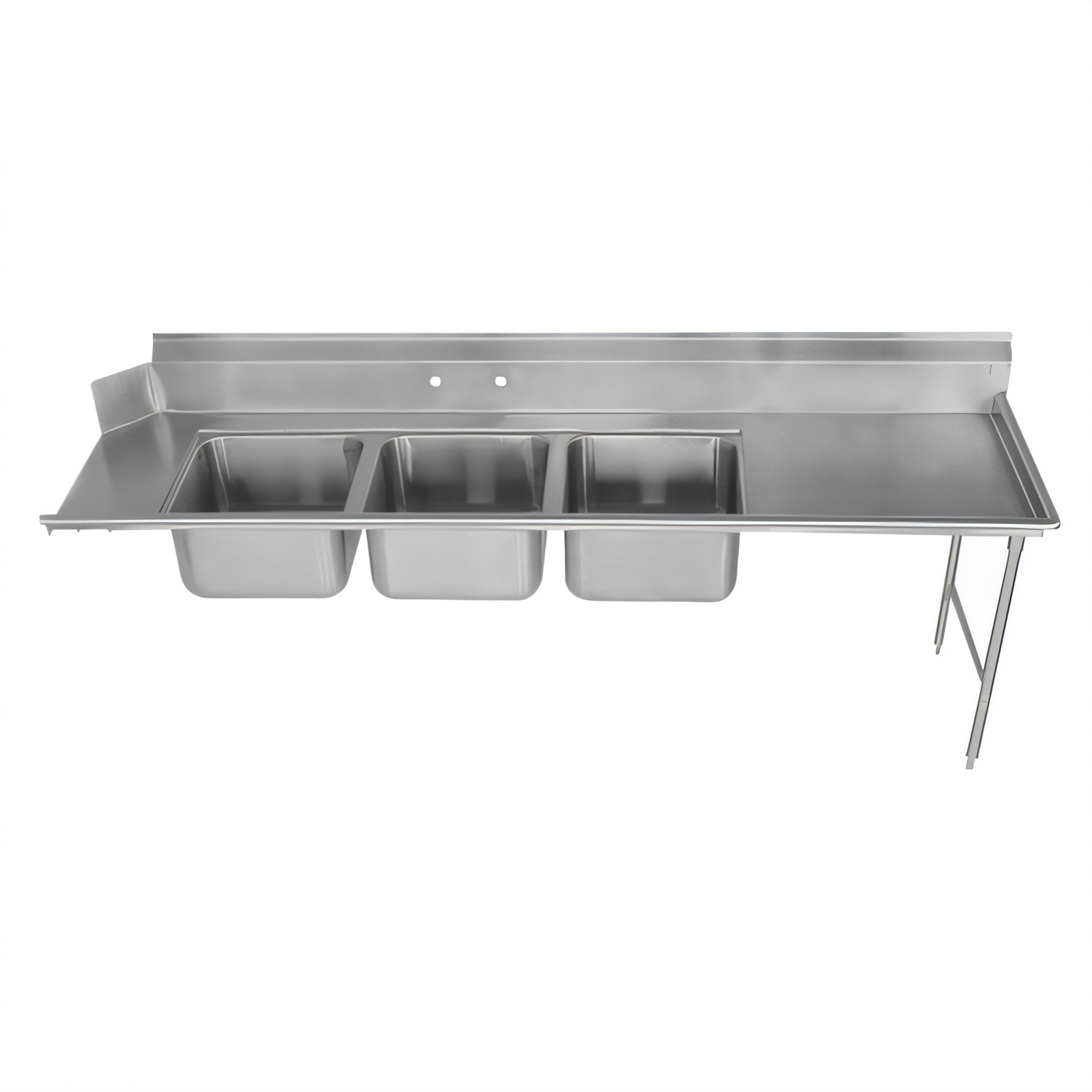

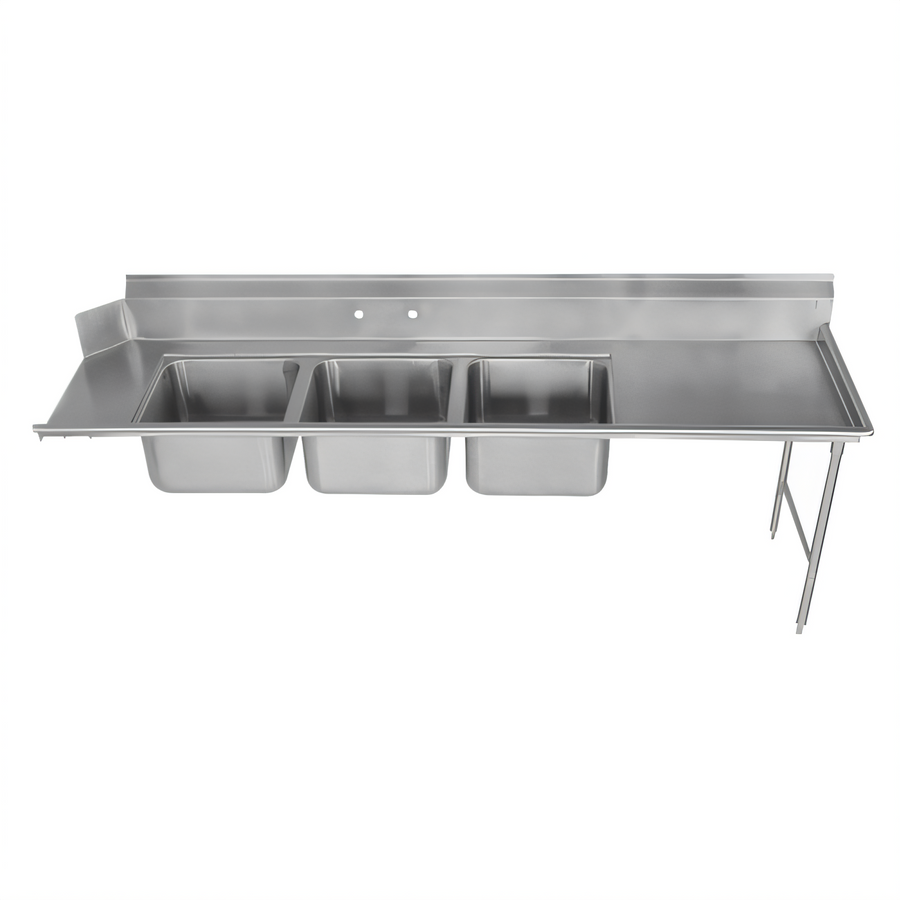

Advance Tabco 96" Right-Side Dishtable with 3-Compartment Deep Drawn™ Sink
Model DTC93-1620-8R | NSF CertifiedStreamline your ware-washing line with a single, heavy-duty station that combines a generous 28" drainboard and three Deep Drawn™ compartments— all engineered to attach directly to the right side of your dish machine for a smooth, left-to-right workflow.
Key Features
- (3) one-piece Deep Drawn™ bowls, each 16" W × 20" L × 12" D with 3" radius corners for easy cleaning
- Bowls are located exactly 12" from the dish machine opening to maximize usable work surface
- 28" right-hand drainboard with pitched surface for efficient water run-off
- 16-gauge 304 series stainless steel top—rugged, sanitary and corrosion-resistant
- All-stainless construction: legs, front-to-back crossrails and extra-large 10½" bullet feet
- TIG-welded seams blended to a uniform satin finish
- Bold 10½" backsplash with 2" return and tile edge for a tight, hygienic wall seal
- Pre-punched 8"-on-center faucet holes (faucet sold separately)
- 1½" IPS waste drains furnished and installed
- NSF listed for food-service sanitation
At-a-Glance Specifications
| Overall length | 96" |
|---|---|
| Overall depth | 30" |
| Working height | 34" (37" to top of backsplash) |
| Sink compartments | (3) 16" × 20" × 12" Deep Drawn™ bowls |
| Drainboard length | 28" (right side) |
| Gauge / material | 16-ga 304 stainless steel top (14-ga upgrade available) |
| Legs & bracing | 1⅝" Ø stainless steel legs with front-to-back crossrails |
| Feet | 10½" adjustable stainless steel bullet feet |
| Faucet holes | (2) holes on 8" centers |
| Waste outlets | 1½" IPS drains included |
| Mounting orientation | Right of dish machine operator (clean-to-dirty flow) |
Optional Accessories (sold separately)
- 18" or 24" stainless steel undershelf (Models DTA-SS-18 / DTA-SS-24)
- 16" × 20" prerinse basket with welded slide bar (Model DTA-69)
- 14-gauge top upgrade (Model DTA-49)
- Faucet hole modification (Model K-472)
- Overhead racks & faucets—contact our Smart Fabrication™ team for details
Advance Tabco reserves the right to improve products and change specifications without notice.
Overall Dimensions:
96.0"W x 30.0"D x 44.5"HProduct Weight:
240.0 lbDocuments
