Advance Tabco DTC93-1620-7L Compartment Sinks
Description

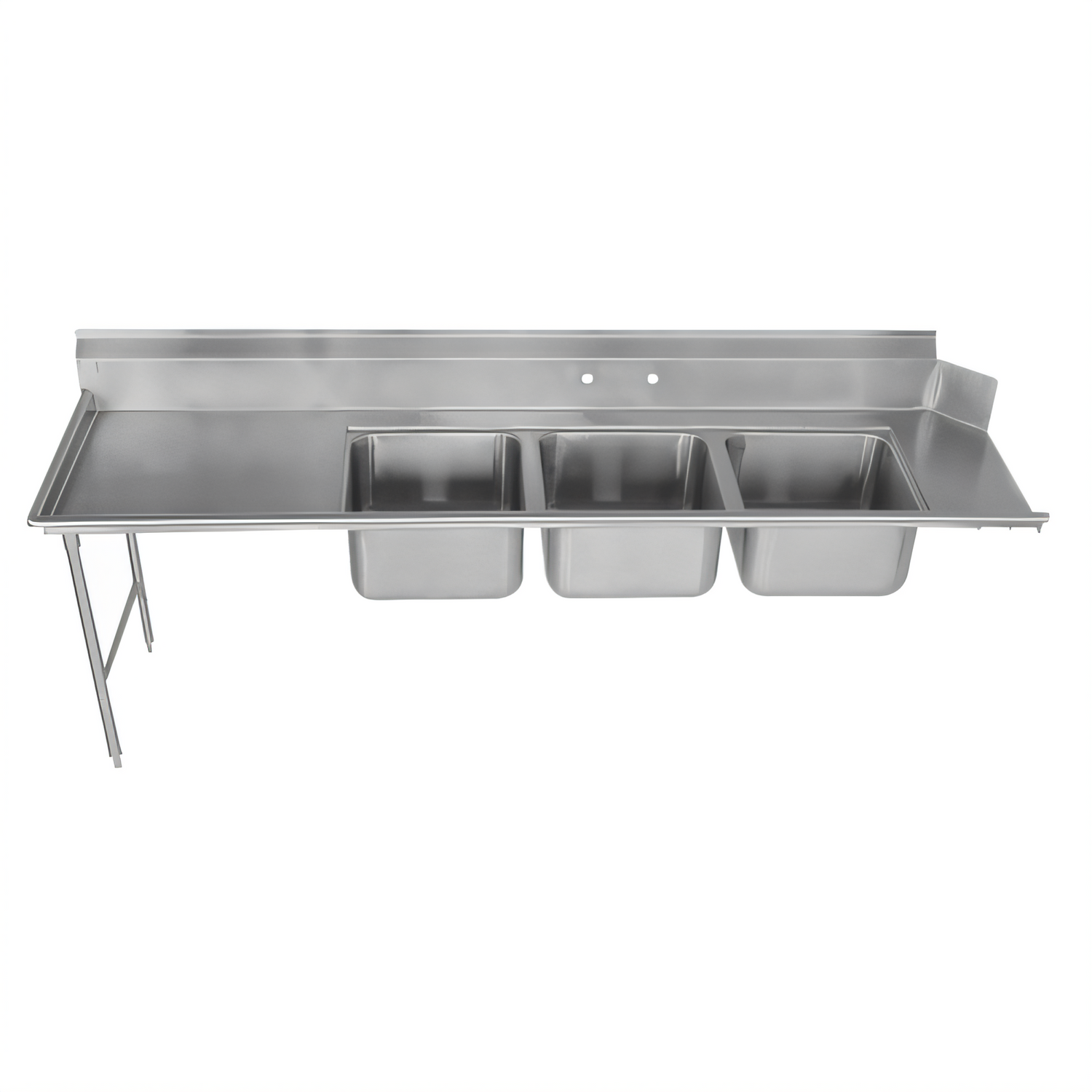

Advance Tabco DTC93-1620-7L Dishtable with 3-Compartment Sink – 84" Left Feed
16" left drainboard ▪ Deep Drawn™ 16 × 20 × 12" bowls ▪ 16-ga. 304 stainless steelPurpose-built for the left side of a commercial dish machine, the Advance Tabco DTC93-1620-7L merges an 84-inch soiled dishtable with a fully integrated, 3-bay sink. 16-gauge 304 stainless steel, Deep Drawn™ bowls and heavy-duty cross-braced legs guarantee years of reliable, NSF-approved performance in the busiest kitchens.
Key Features
- 84" overall length with 16" left-hand drainboard for efficient dirty-to-clean workflow.
- (3) Deep Drawn™ sink bowls – each 16" W × 20" L × 12" D with easy-to-sanitize 3" radius corners.
- Bowls are located 12" away from the dish machine opening to clear most control boxes and drive components.
- 16-gauge type 304 stainless steel top, legs and front-to-back crossrails resist corrosion and heavy impacts.
- All TIG-welded construction; welds are blended to a uniform satin finish.
- 1 5/8" O.D. stainless steel legs with oversized 10-1/2" adjustable stainless bullet feet for rock-solid stability.
- Bold 10-1/2" backsplash with 2" return and tile edge speeds wall installation and keeps water off the floor.
- Pre-punched faucet holes on 8" centers (faucet not included).
- (3) 1-1/2" IPS basket drains supplied.
- NSF listed for food-service sanitation.
Performance Benefits
- Deep 12" bowls handle large pots, sheet pans and dinnerware without splashing.
- Tile-edge backsplash prevents water intrusion behind the dishtable.
- Left feed orientation minimizes lifting and turning when loading the dish machine.
Specifications
| Model | DTC93-1620-7L |
|---|---|
| Overall Length | 84" (2134 mm) |
| Orientation | Attaches to left side of dish machine (operator feed) |
| Compartments | 3 |
| Bowl Interior (W × L × D) | 16" × 20" × 12" |
| Drainboard | 16" left-hand |
| Material | 16-ga. 304 stainless steel (14-ga. upgrade available) |
| Backsplash Height | 10-1/2" with 1" tile edge turn-up |
| Faucet Holes | (2) holes on 8" centers |
| Drains | 1-1/2" IPS basket drains (included) |
| Approx. Weight | 220 lb (100 kg) |
| Listing | NSF |
Popular Add-Ons (sold separately)
- DTA-SS-18 or DTA-SS-24 stainless steel undershelves for extra storage.
- DTA-69 16" × 20" pre-rinse basket with welded slide bar.
- K-472 faucet-hole modification for specialized faucets.
Need a right-hand configuration or custom length? Ask about Advance Tabco Smart Fabrication™ for tailored solutions.
