Advance Tabco  |  SKU: DTC93-1620-6R  |  UPC: 747545219121

Advance Tabco DTC93-1620-6R Compartment Sinks

$3,886.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

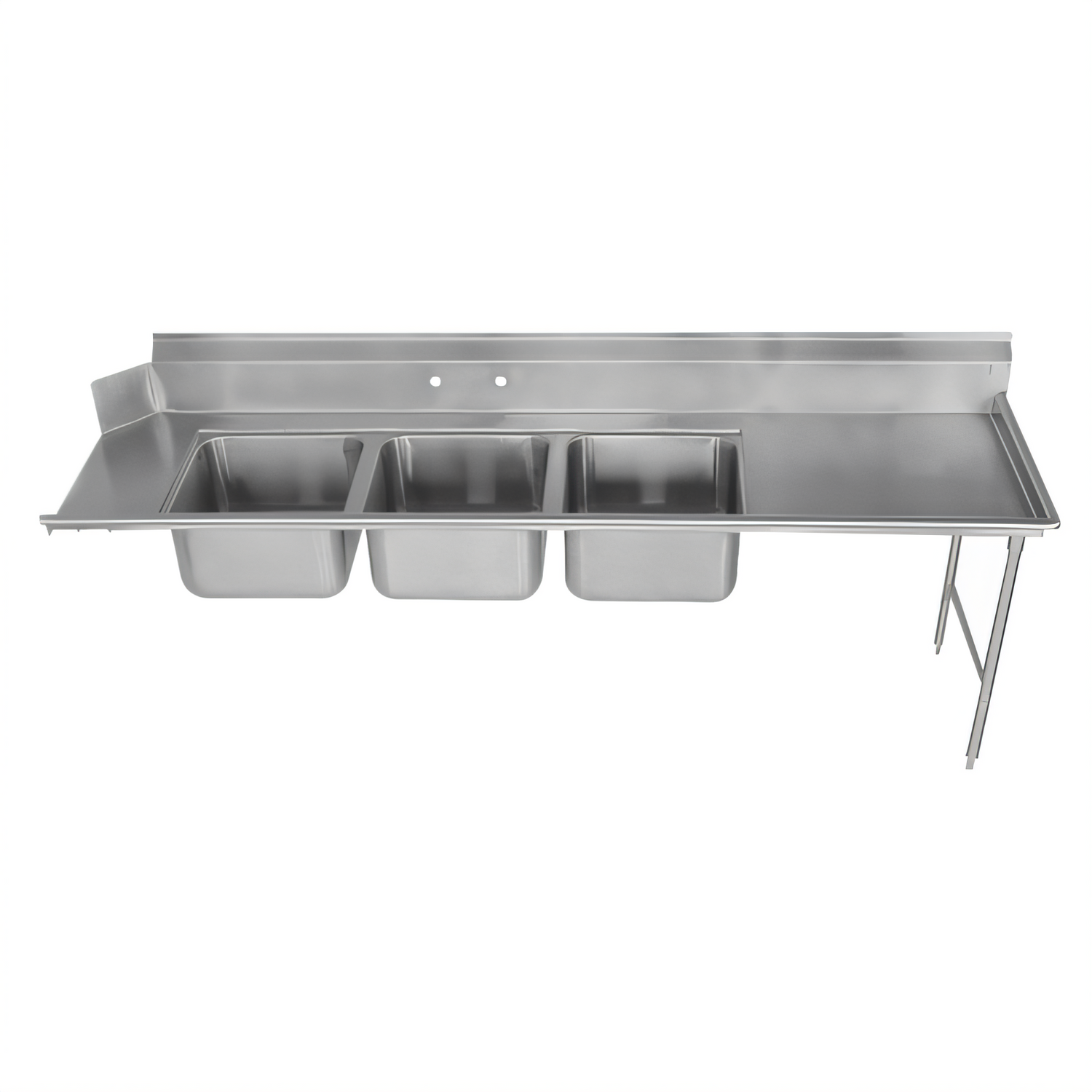

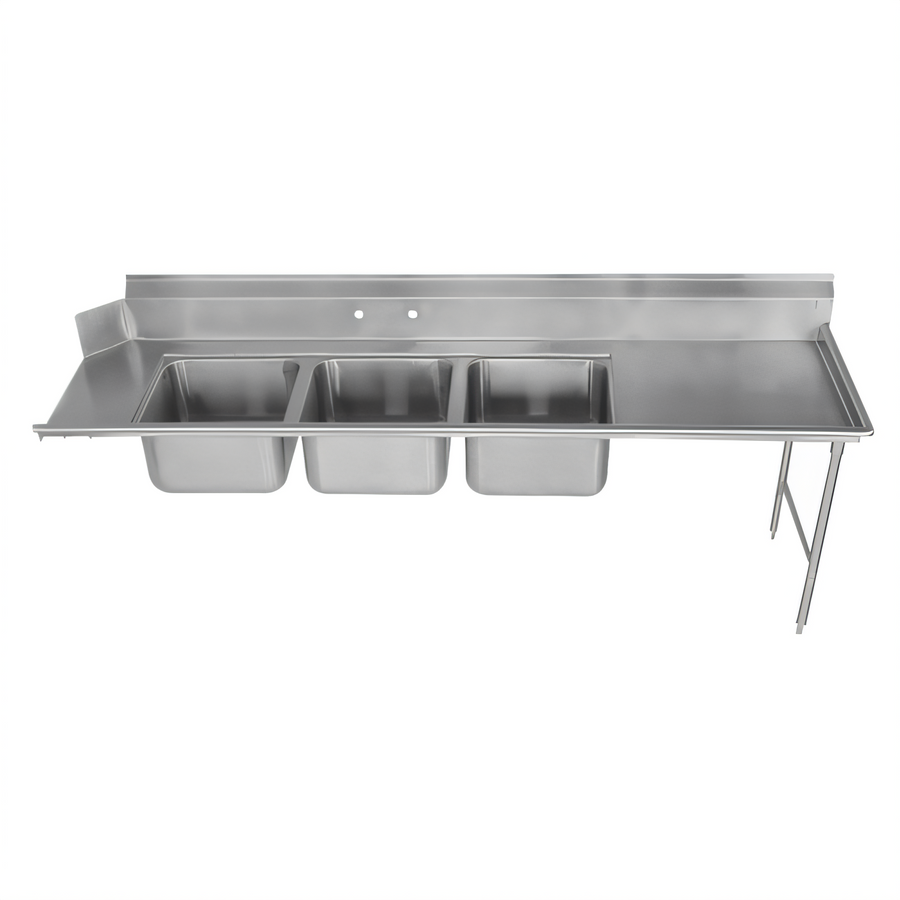

Advance Tabco DTC93-1620-6R 72" Right-Hand Dishtable w/ 3-Compartment Sink

Deep Drawn™ 16" × 20" × 12" bowls • 16 ga 304 stainless steel • NSF

Boost ware-washing efficiency and save precious floor space with this all-in-one 72 inch dishtable. Purpose-built for the operator’s right side of the dish machine, it delivers a smooth wash-rinse-sanitize workflow while standing up to the daily grind of a high-volume kitchen.

Why this model stands out
  • (3) 16" × 20" × 12" Deep Drawn™ bowls with generous 3" radius corners for easy cleaning.
  • Heavy-duty 16 ga, type 304 stainless steel top resists corrosion and dents.
  • Bowls are positioned 12" from the dish-machine opening for unobstructed access.
  • Space-saving 4" right-hand drainboard provides a landing area for racks or utensils.
  • TIG-welded seams are blended to a satin finish for a seamless, professional look.
  • 1-piece backsplash with 2" return and tile edge ensures fast, sanitary installation against a wall.
  • Pre-punched 8"-on-center faucet holes (faucet sold separately).
  • 1 ½" IPS basket drains included on every bowl.
  • 1 5/8" O.D. stainless steel legs with front-to-back crossrails maximize rigidity.
  • 10-½" extra-large adjustable stainless steel bullet feet for quick, precise leveling.
  • NSF listed for food-service use.
At-a-glance specs
Model DTC93-1620-6R
Overall length 72" (1830 mm)
Overall depth 30" (762 mm)
Sink compartments 3 × 16" W × 20" D × 12" H
Drainboard 4" right-hand
Top material 16 ga 304 stainless steel
Legs & bracing Stainless steel legs with front-to-back crossrails
Backsplash height 10-½" with 1" tile edge
Faucet holes (2) 1-1/8" dia. on 8" centers
Drain size 1-½" IPS per bowl
Certifications NSF
Approx. ship weight 200 lb (91 kg)

Optional accessories such as stainless steel undershelves, prerinse baskets and slide bars are available to tailor the station to your exact needs.

Important: Verify dish-machine make and model before ordering—control boxes or drive units must not interfere with the required 12" clearance between the first sink bowl and the machine.

Features & Specs

Manufacturer

Advance Tabco

Height

44.5in

Width

72.0in

Depth

30.0in

Shipping Weight

200.0lbs

Compartment (side - side)

16"

Dishtable Splash

10-1/2"

Dish Machine Location

left side

Dishtable Shape

straight

Width (side - side) OA

63" - 72"

Gauge

16 ga

Type Stainless Steel Top

300 series

Dishtable Legs

stainless steel

Compartment (front - back)

20"

Specifications

Dishtable with 3-compartment Sink, 72”W, (3) 16" x 20" x 12" Deep Drawn™ bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to right of dish machine operator, stainless steel bullet feet, 4" right drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
